ADJ VS3, Vision Series High-Resolution Video Panel

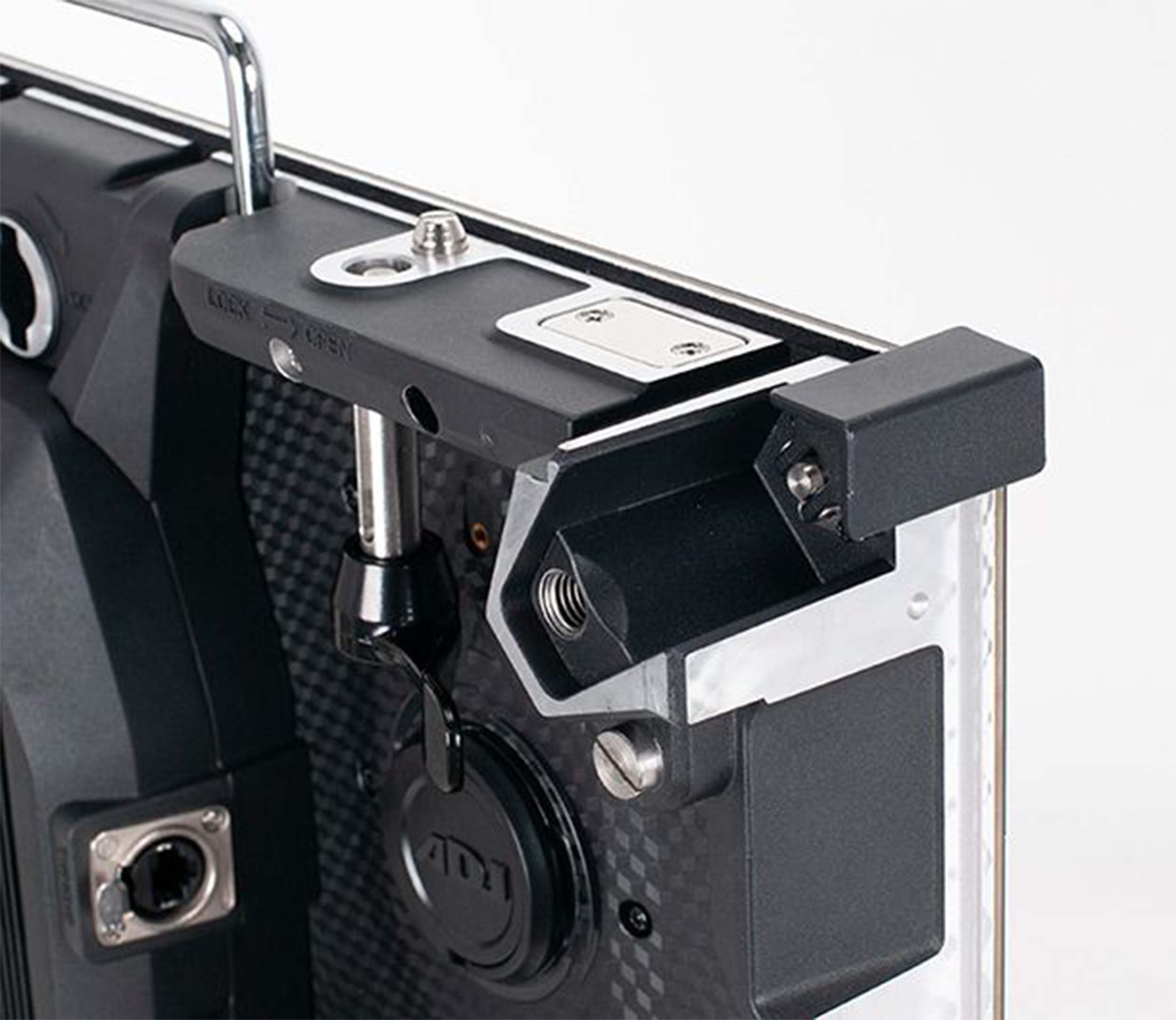

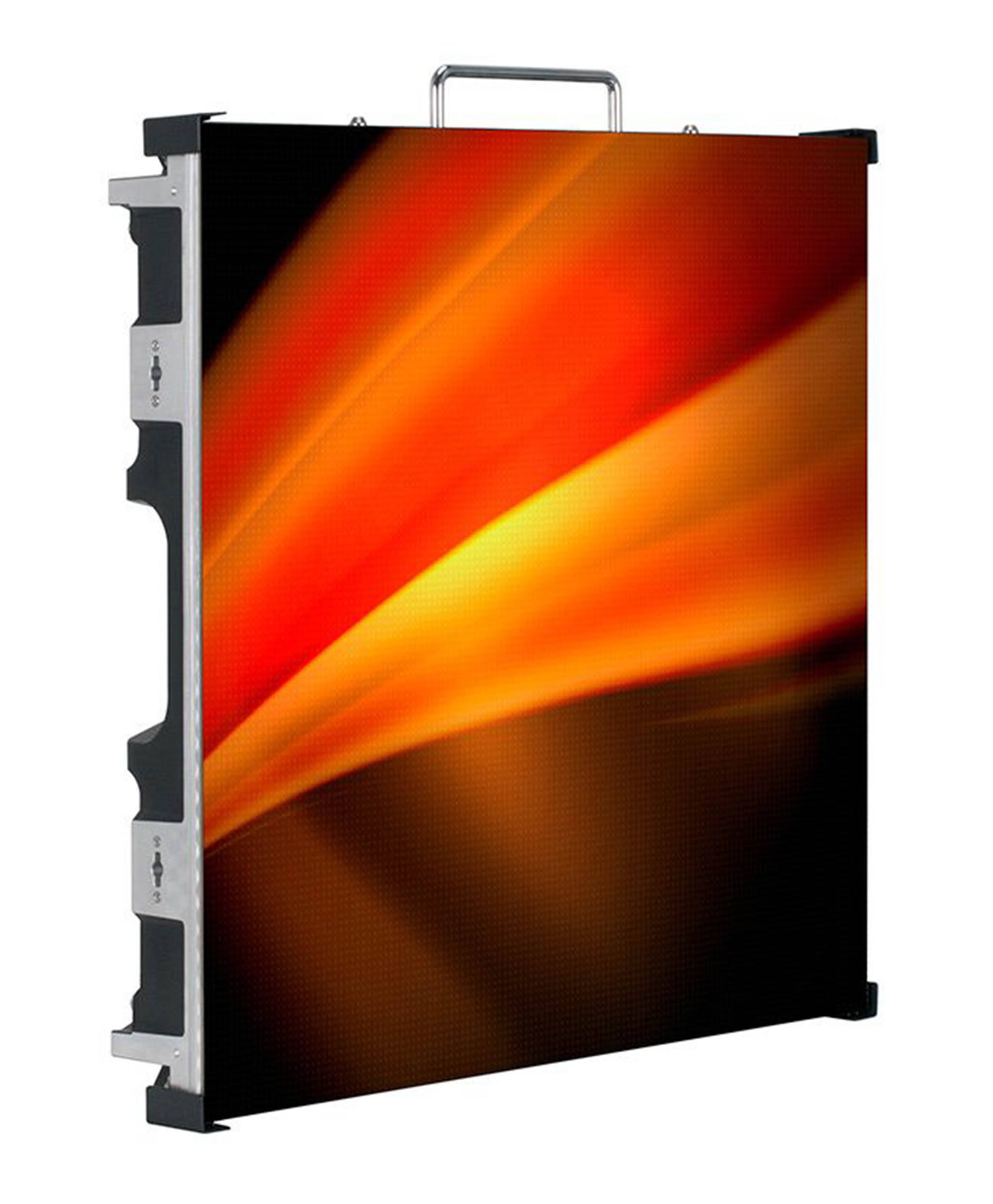

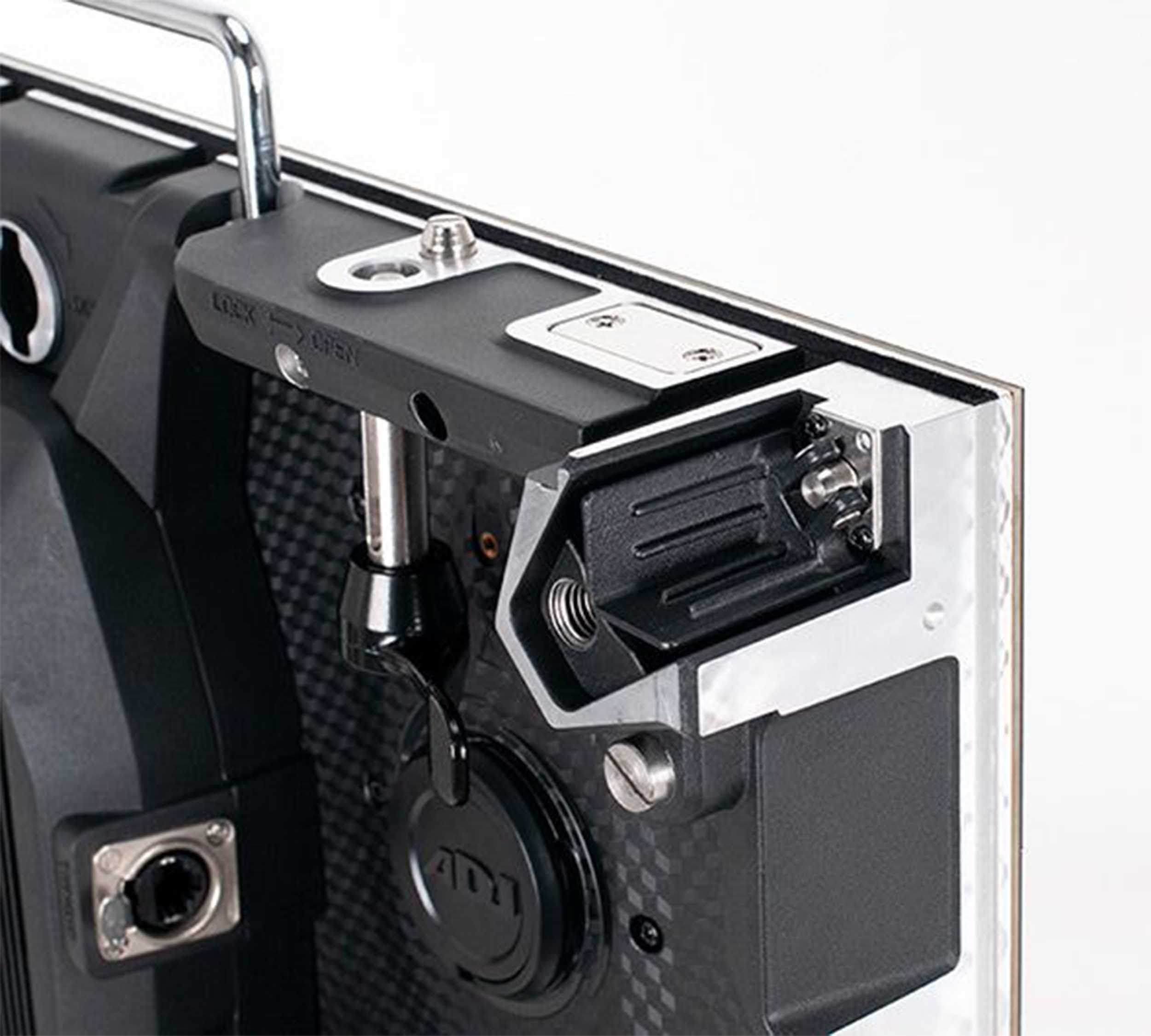

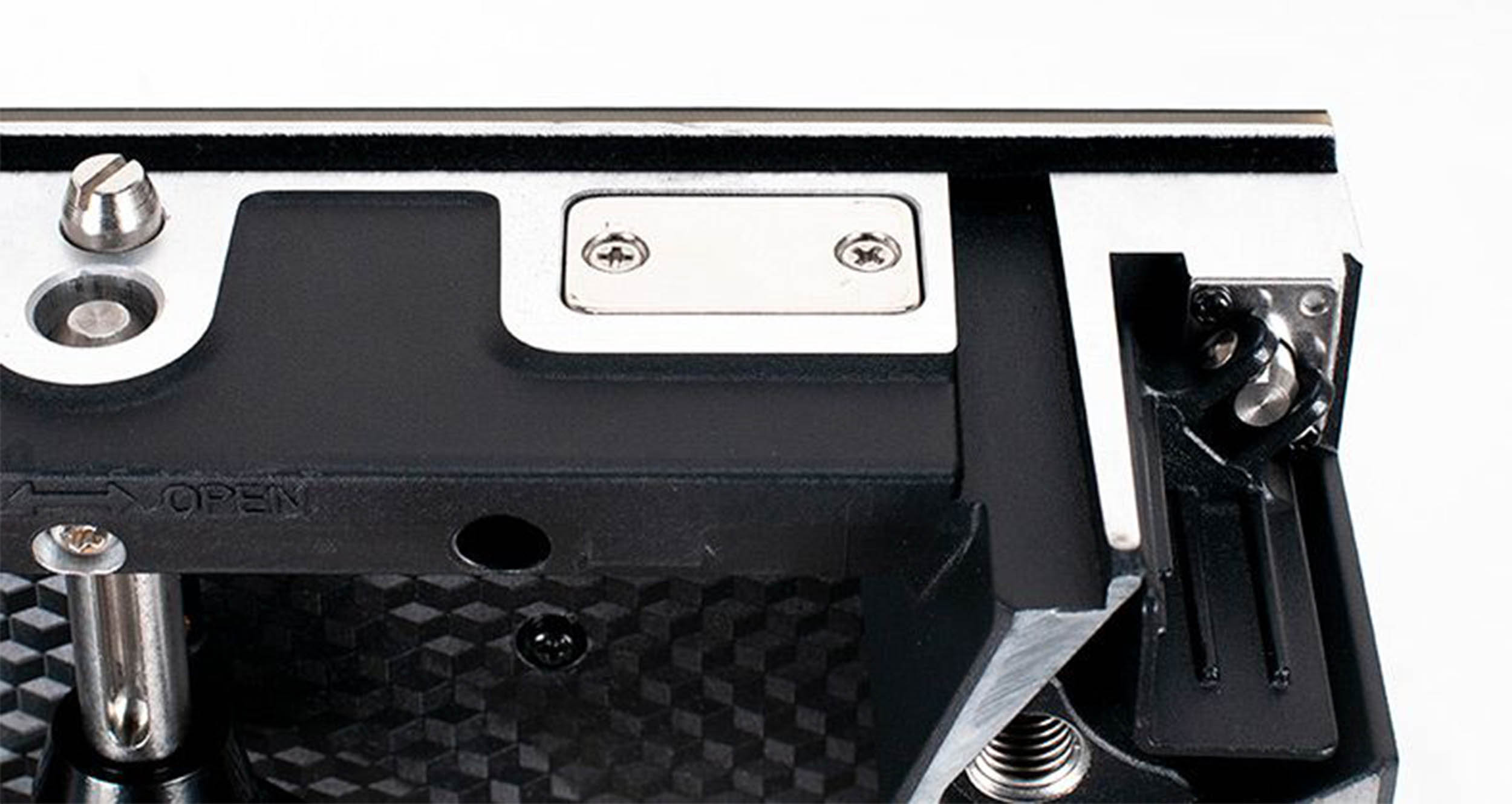

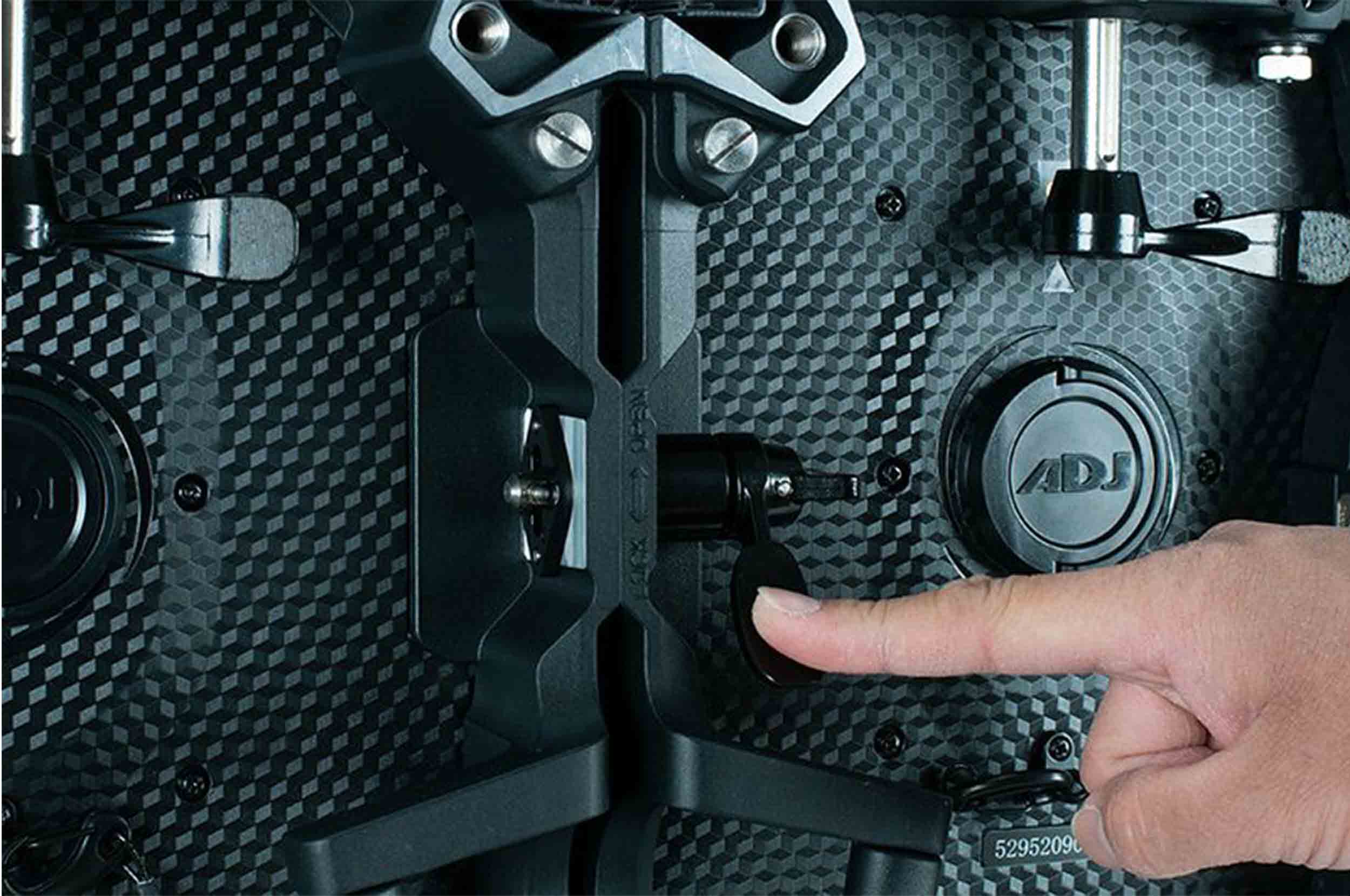

ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

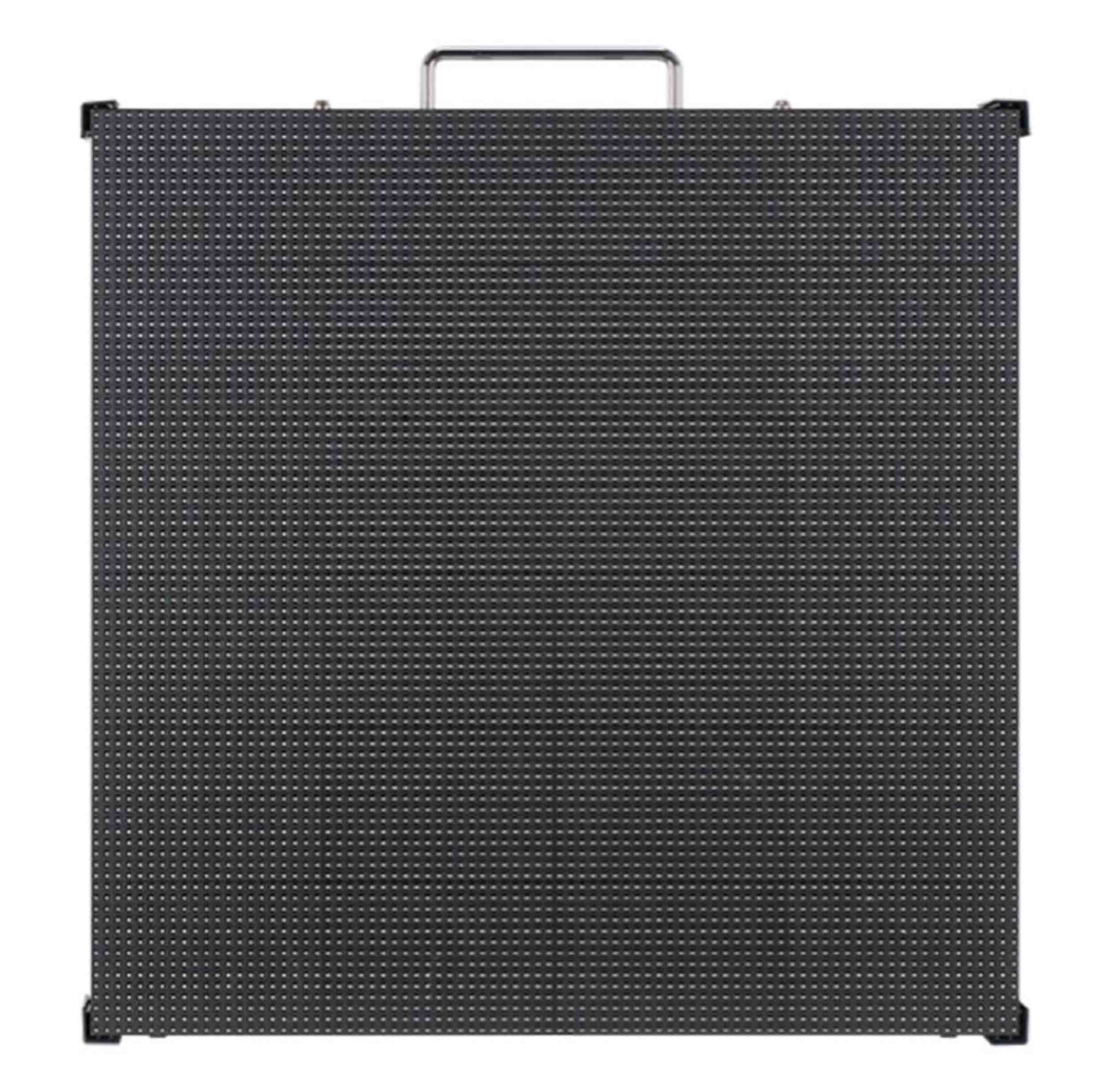

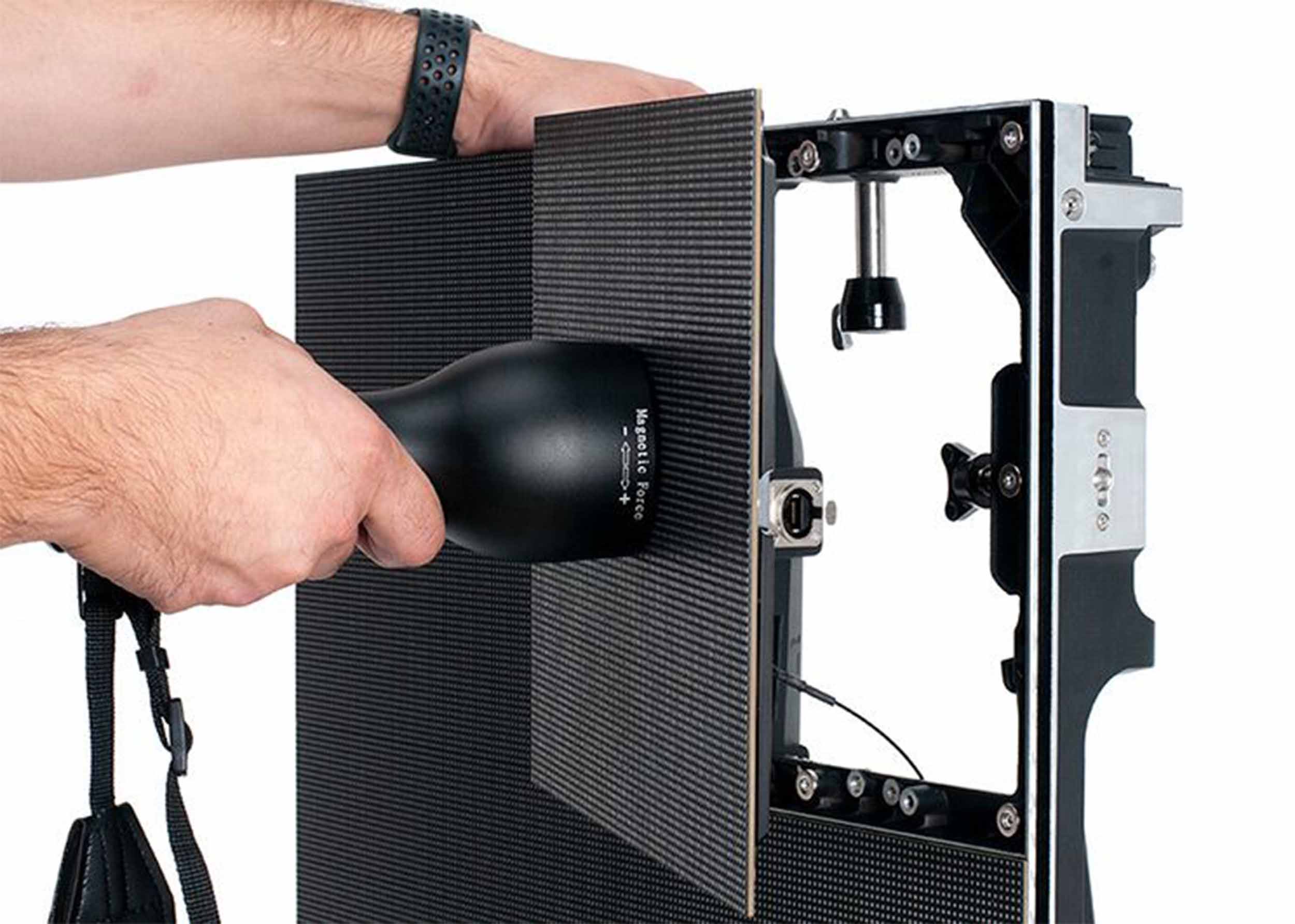

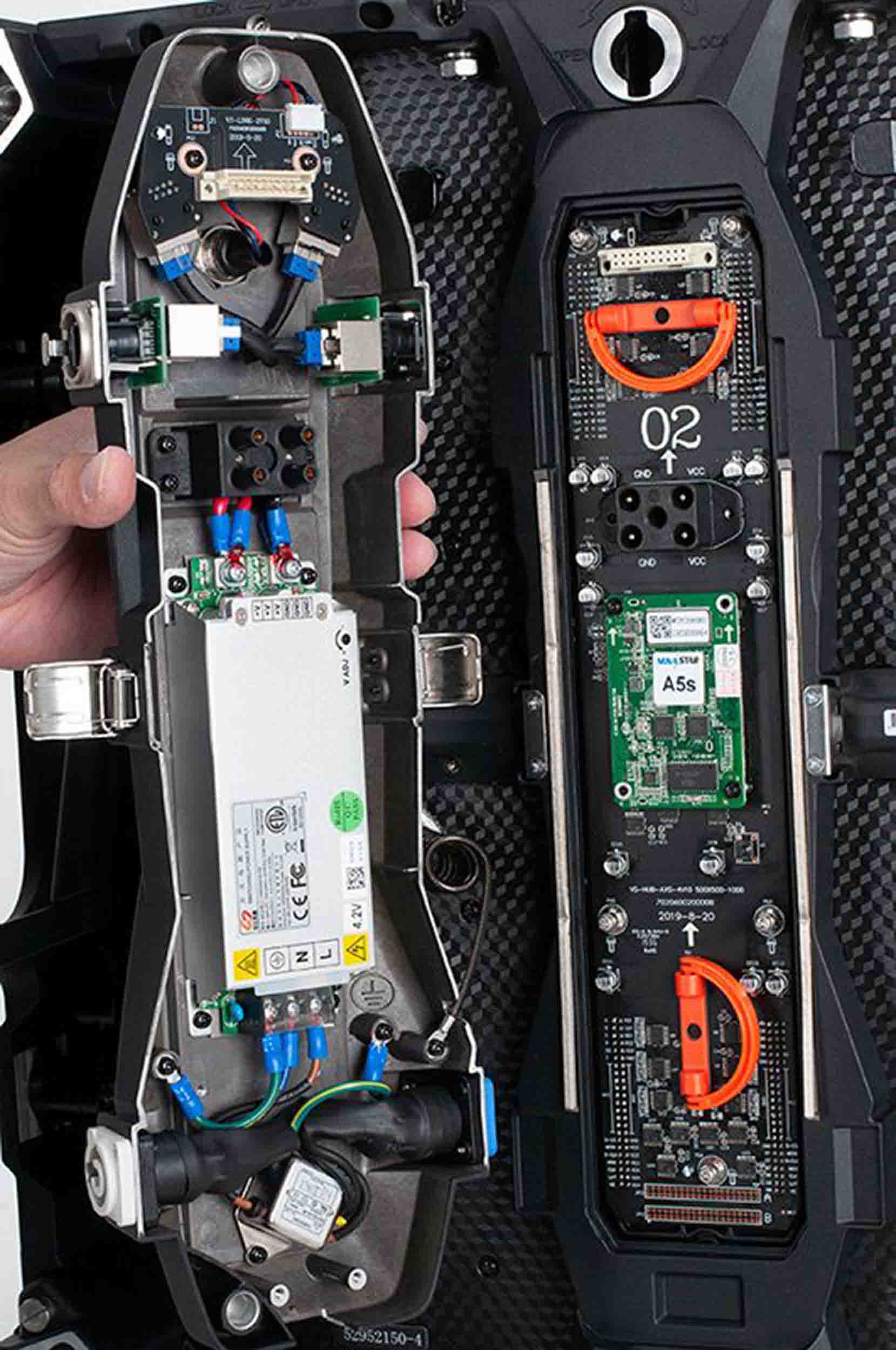

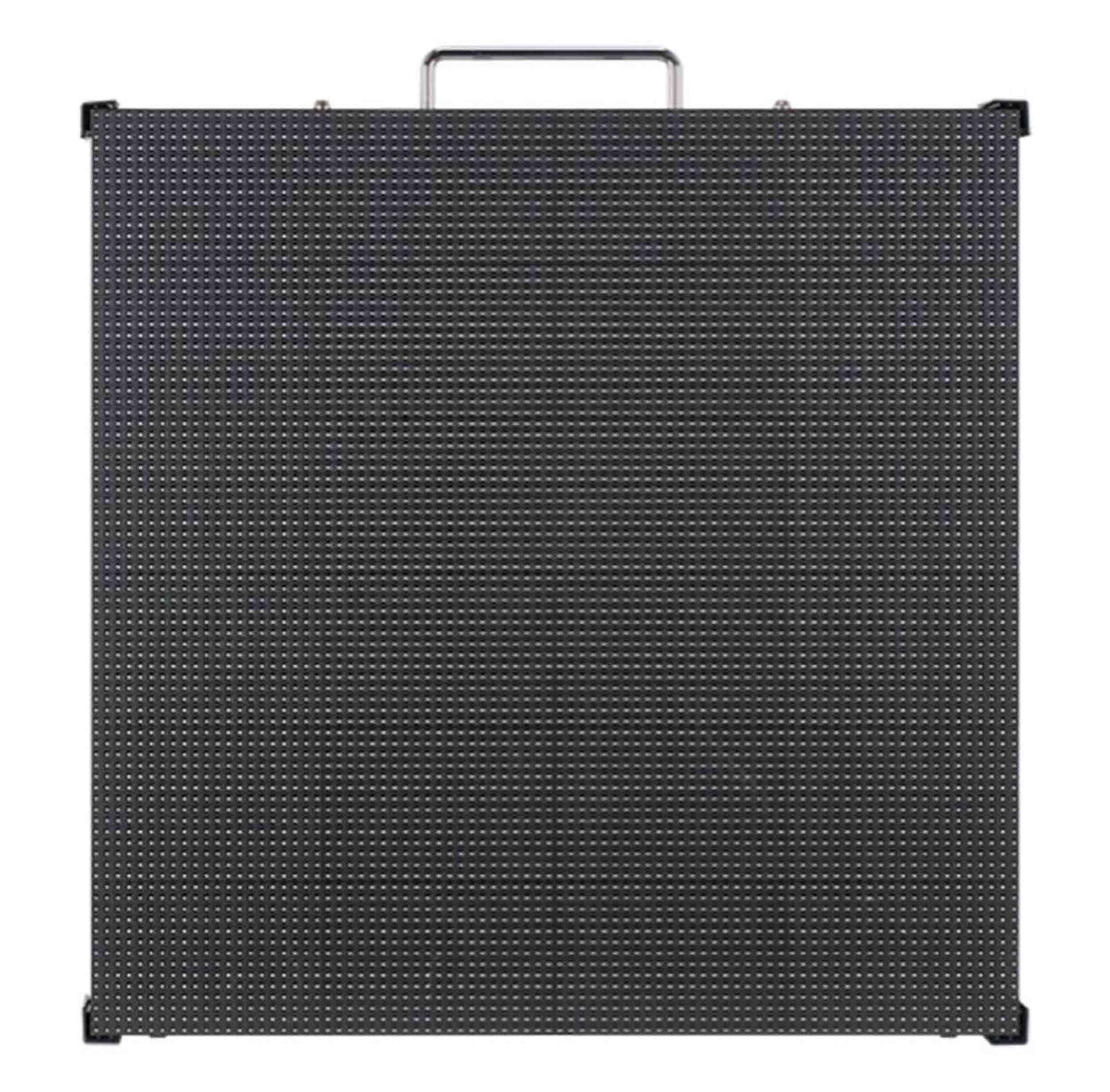

The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include Power Lock In/Out and Data Lock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS3 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

Product Specifications:

Specifications:

Pixel Pitch: 3.91mm (0.15”)

LED Configuration: 3-in-1 SMD2121 LED

Pixel Density: 128x128; 65536 per square meter

Size :19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm

Module Quantity: 4

Weight: 17 lbs. / 7.7kg.

Mechanical Ratings:

Surface Flatness: Gaps<0.5mm

Optical Ratings:

Brightness: 1000 NITS

View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)

Gray Scale: ≥14-bit

Display Color: 256

Brightness Adjustment: 0~100% 100 Levels

Contrast ratio: 5000:1

Processing: 14-bit

Power Supply:

Operation Power: 100~240V 50-60Hz

Max. Power Consumption: 170W/per panel

Ave. Power Consumption: 68W/per panel

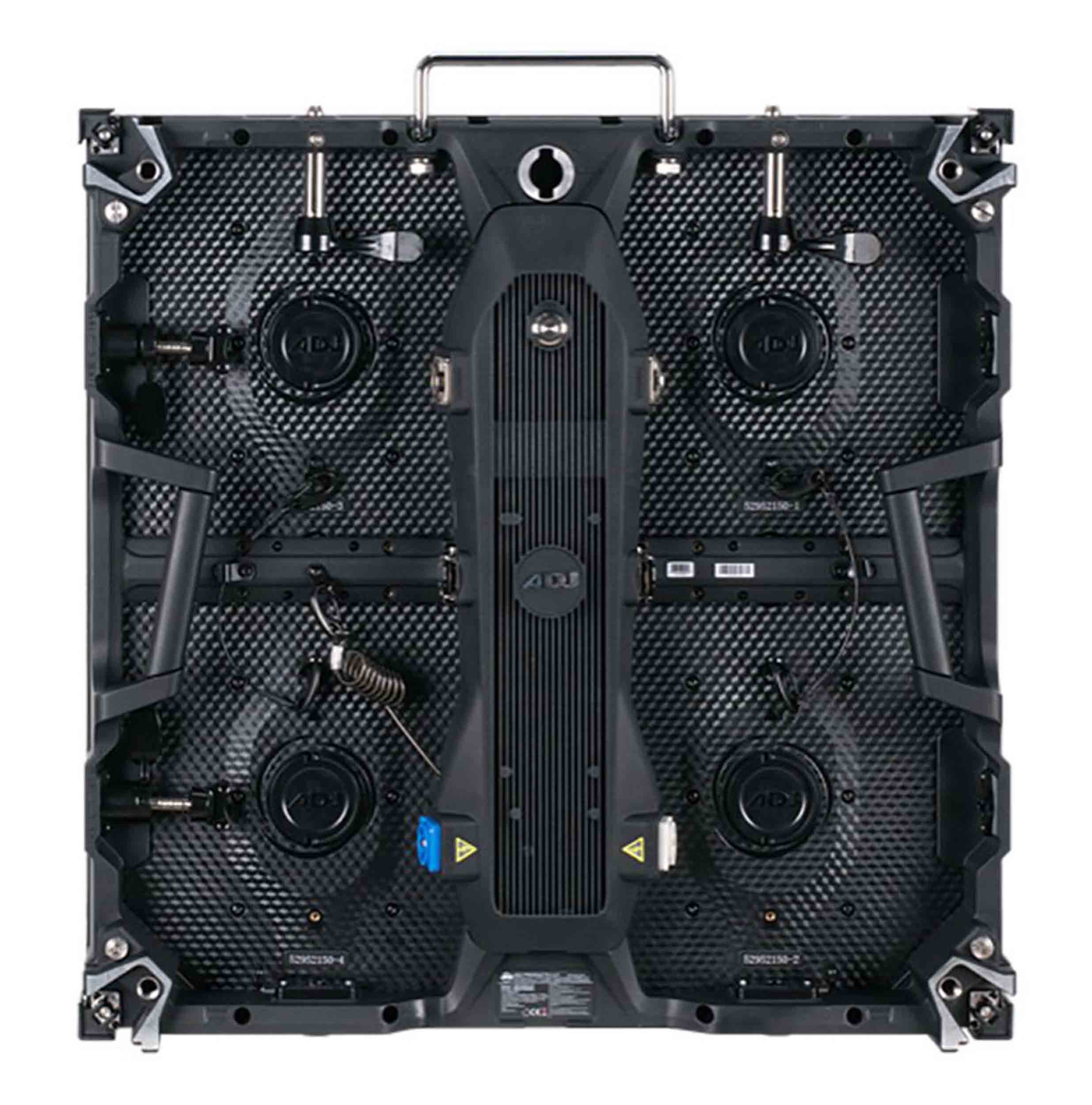

Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out

Control System:

Control Mode: Nova Star Synchronous System with Control via DVI

Frame Update Frequency: 50-75Hz

Scan Mode: 1/16

Refresh Rate: 3840Hz

Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance: Ethernet Cable <120m or Fiber Optic>120m

Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Temp: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

Operating Life / MTBF: 50,000 Hours / 5,000 Hours

Protection Level: IP20 (Front and Back)

Out of Control Rate: <0.02%

Optional Accessories for Vs2, Vs3 & Vs5 Video Panels:

VSFC8 (VS8100): Flight Case – Fits 8 Vision Series Video Panels

VSRB1 (VS1100): Rigging Bar – Hang up to 20 Vision Series Video Panels vertically

VS1RSB (VS1126) Rear Support Bracket for VS Series Panels

VSSCSB VSSCSB): Single Column Support Base

VSGSB (VSG100): Ground Support Base

VSGSLT (VSGSLT): Ground Support Ladder Truss

VSGSCSB (VSG155): Clamp Support Bar

Novastar VX4S: Video Processor

Novastar MCTRL-300: Video Processor

Novastar Nova Pro HD: Video Processor

Arkaos Media Master: Video Software

Arkaos Grand VJ 2.0: Video Software

Cables:

Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)

Power Locking Link Cables

Power Locking Main Power Cables

Certifications:

cETLus approved (Control #5015975)
