Description

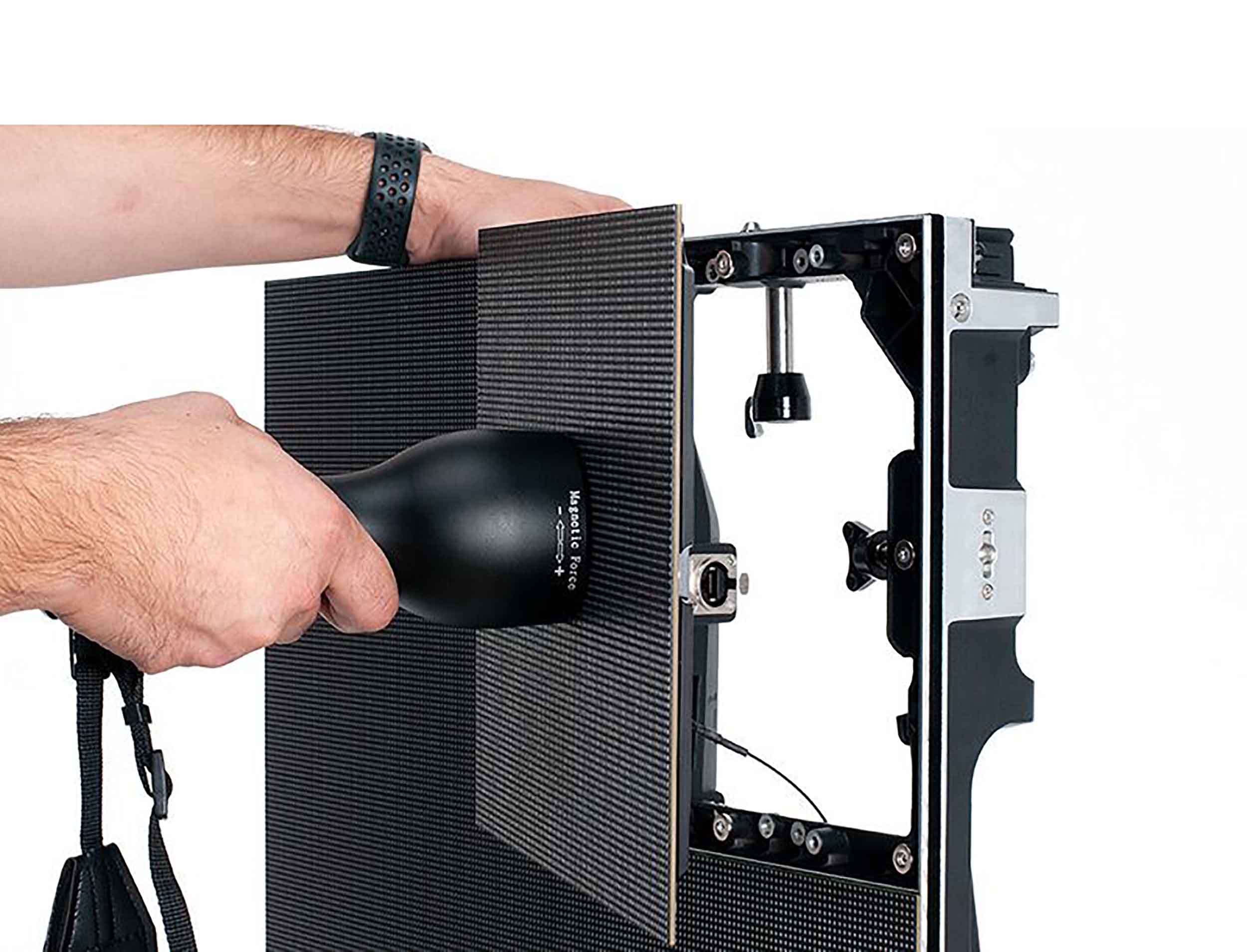

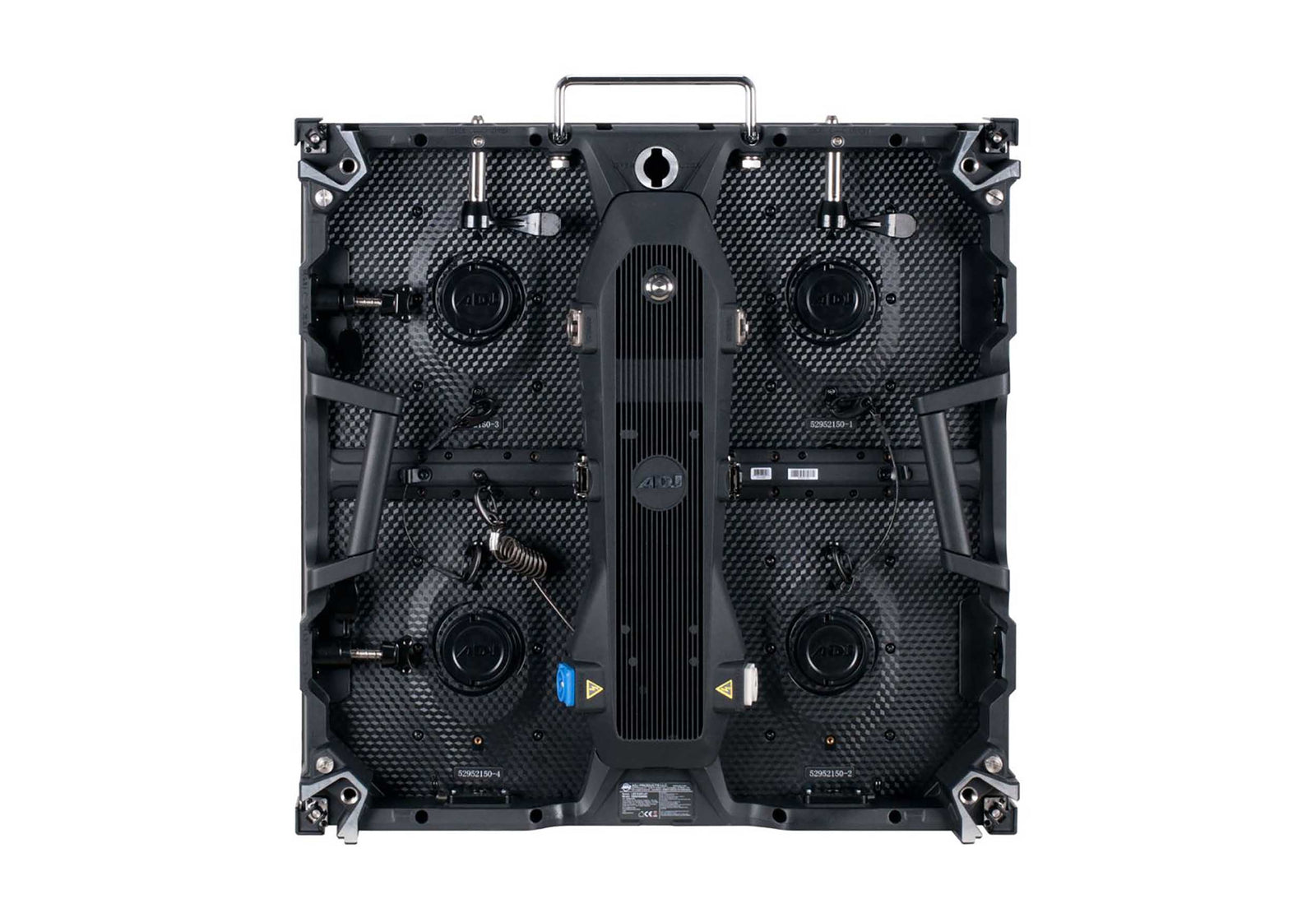

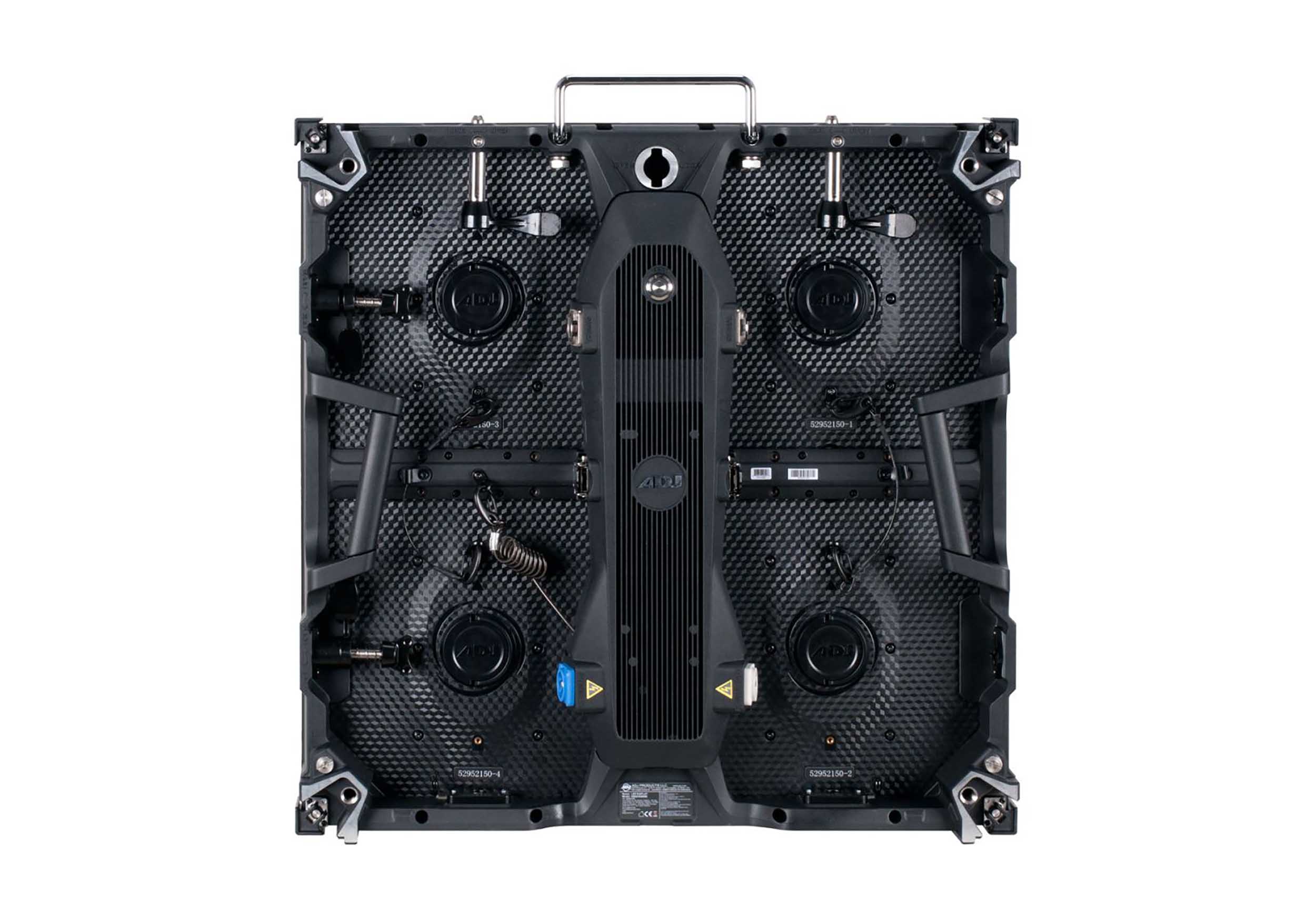

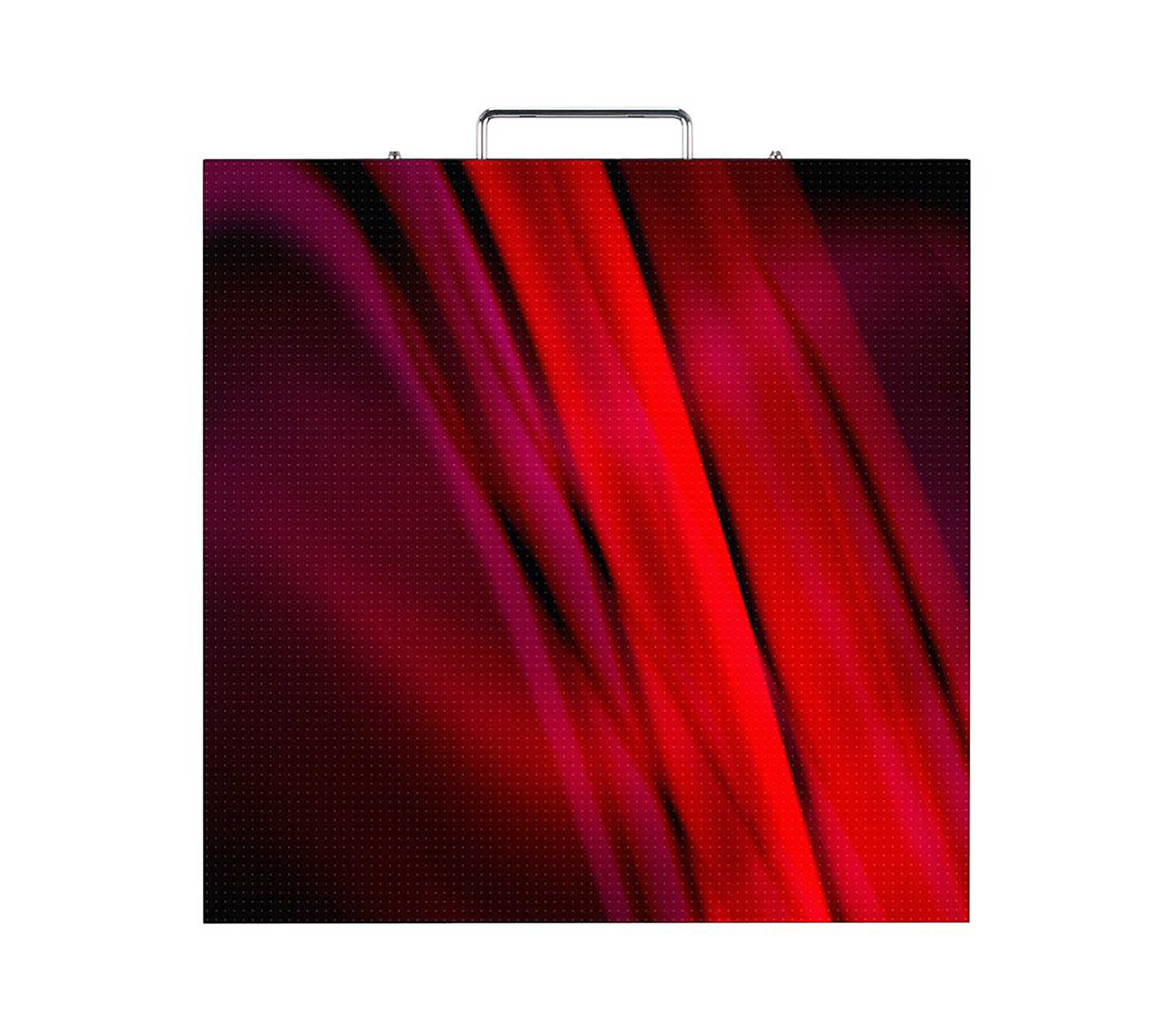

The ADJ VS5 5X3 Video Panel System, complete with 15 ADJ VS5, each boasting a pixel pitch of 5.95 mm and a 3-in-1 RGB SMD2121 LED configuration. The package includes power cables and data cables, rigging bars, along with a video processor and software, providing you with all the components necessary for a successful setup. Each VS5 panel has four individual mini modules and is front and rear serviceable. Up to 8 VS5 video panels fit inside the VSFC8 flight case. VSRB1 rigging bar allows you to hang up to 20 panels vertically. The VSRB1 rigging bar also allows for ground stacking of up to 8 Vision Series LED panels (VS2, VS3, or VS5).

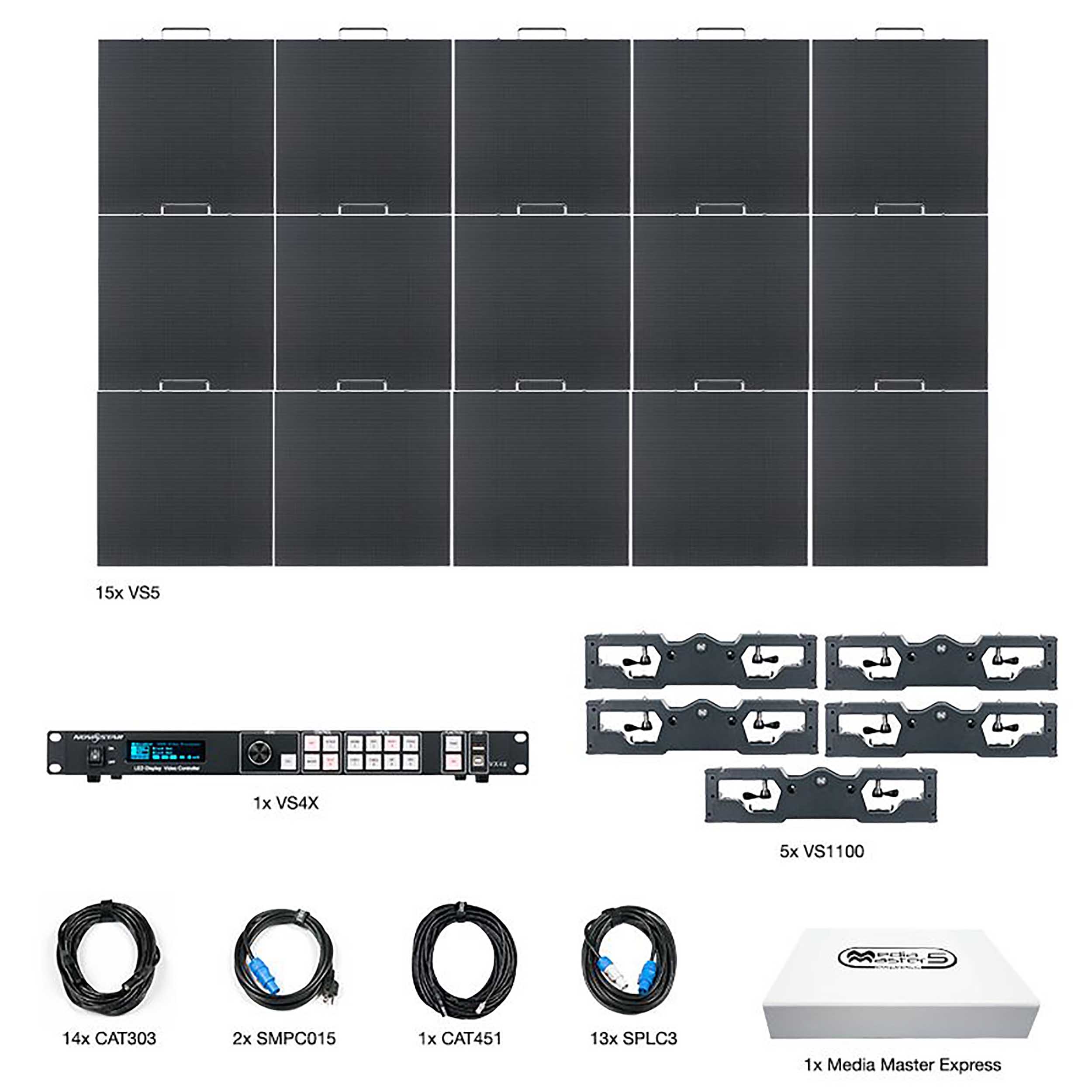

Video Panel System Includes:
15 x VS5 5.95mm Pixel Pitch Video Panels (VS5029)
14 x 3-foot Panel to Panel Data Cables (CAT303)
1 x 25-foot First Data Cable (CAT451)
13 x 3-foot Locking In/Out Power Cables (SPL013)
2 x 15-foot Locking In/Out Main Cables (SMP027)

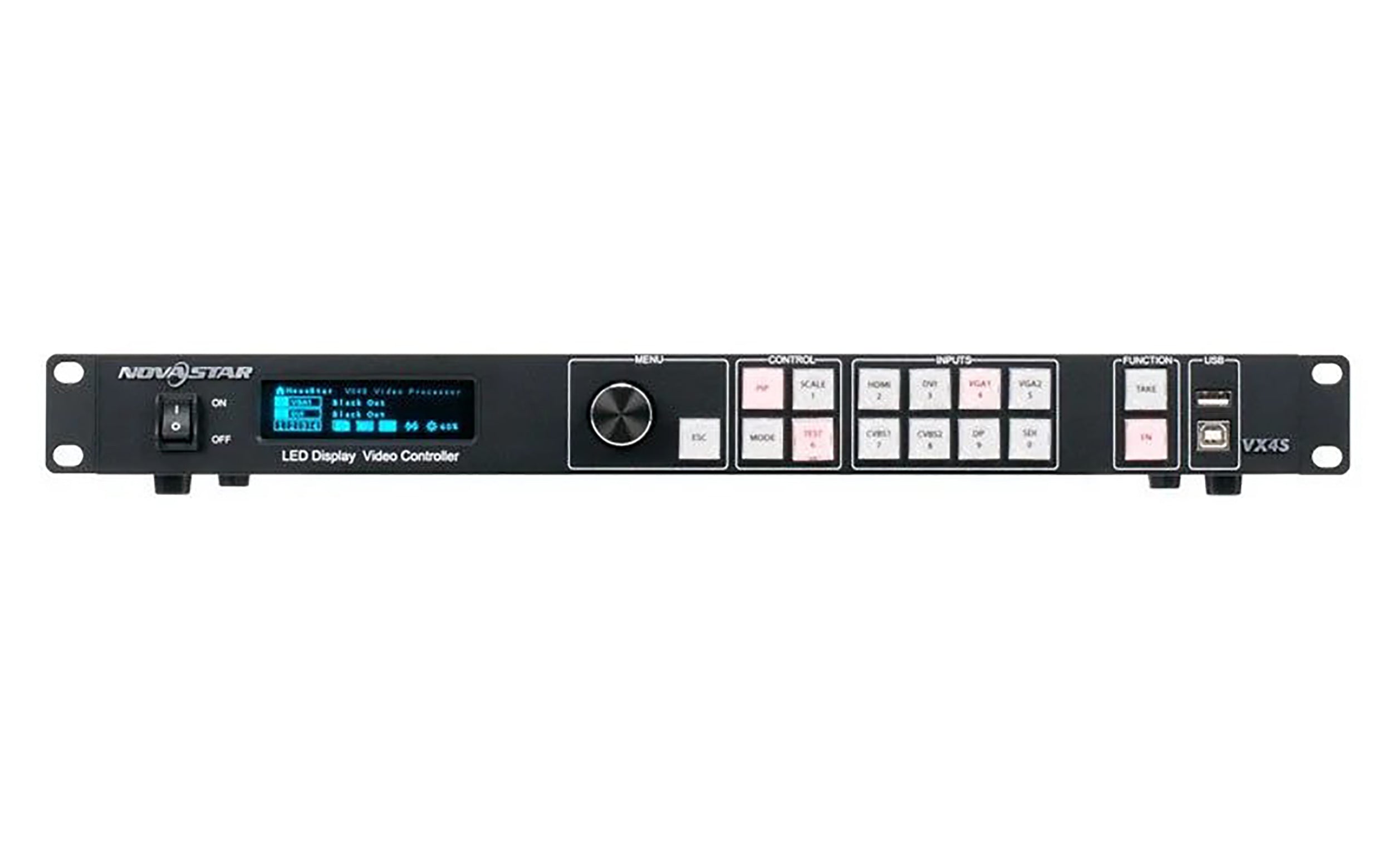

1 x Novastar VX4S-N Video Processor (VX4014)
1 x ArKaos Media Master Express Software

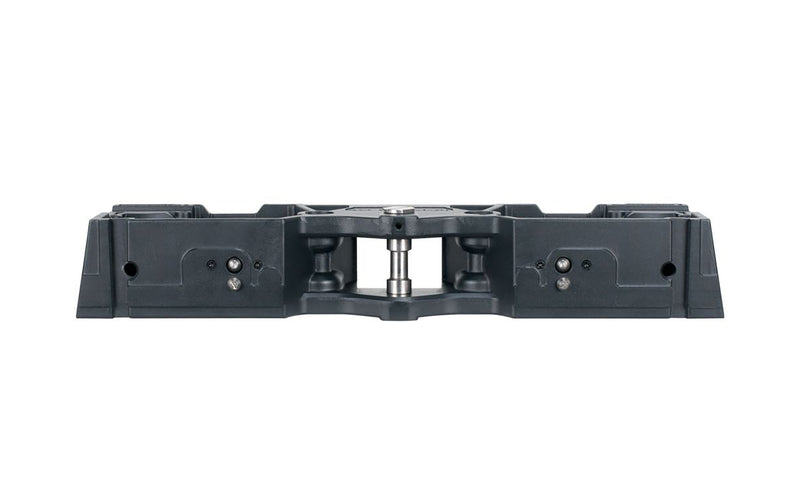

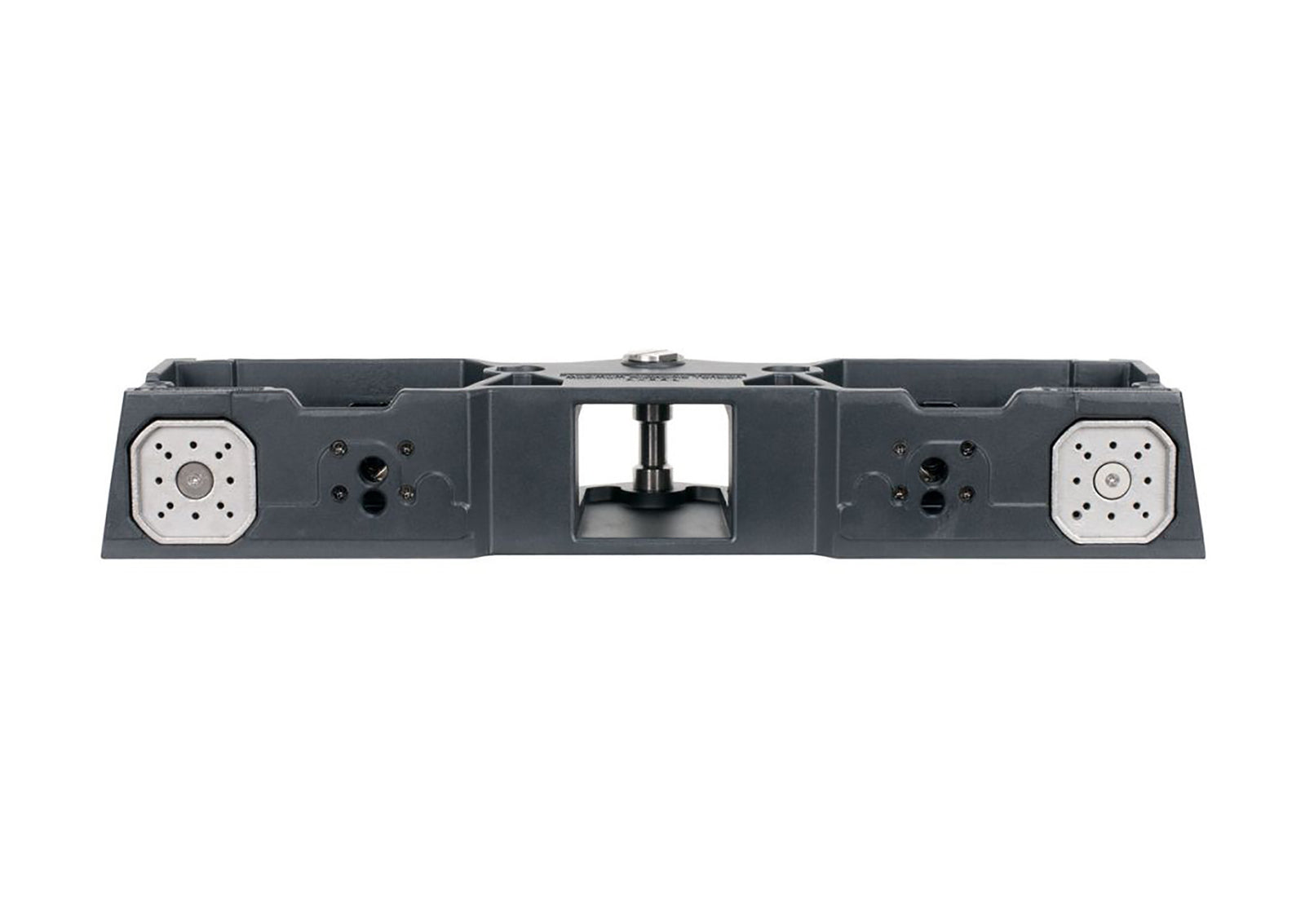

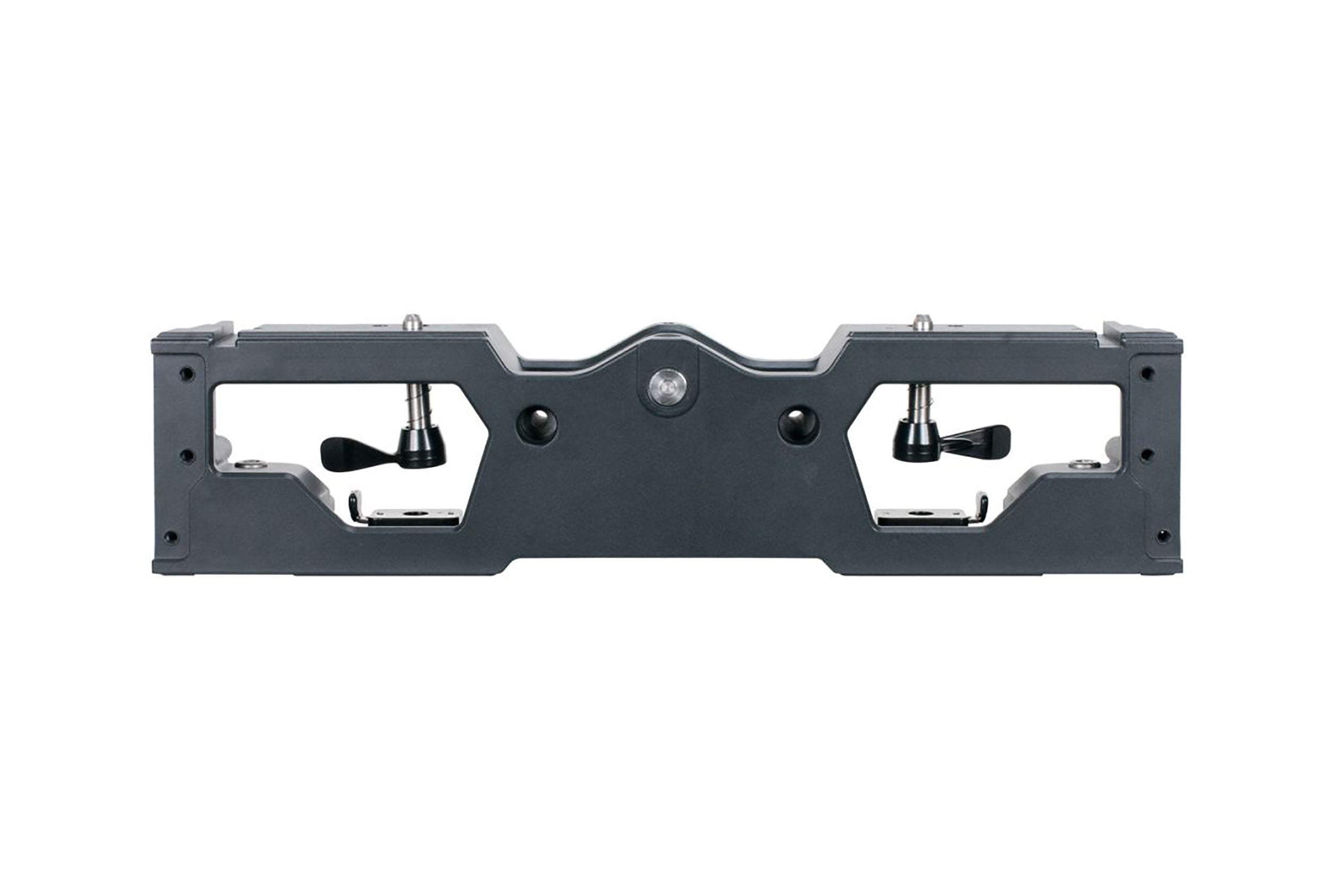

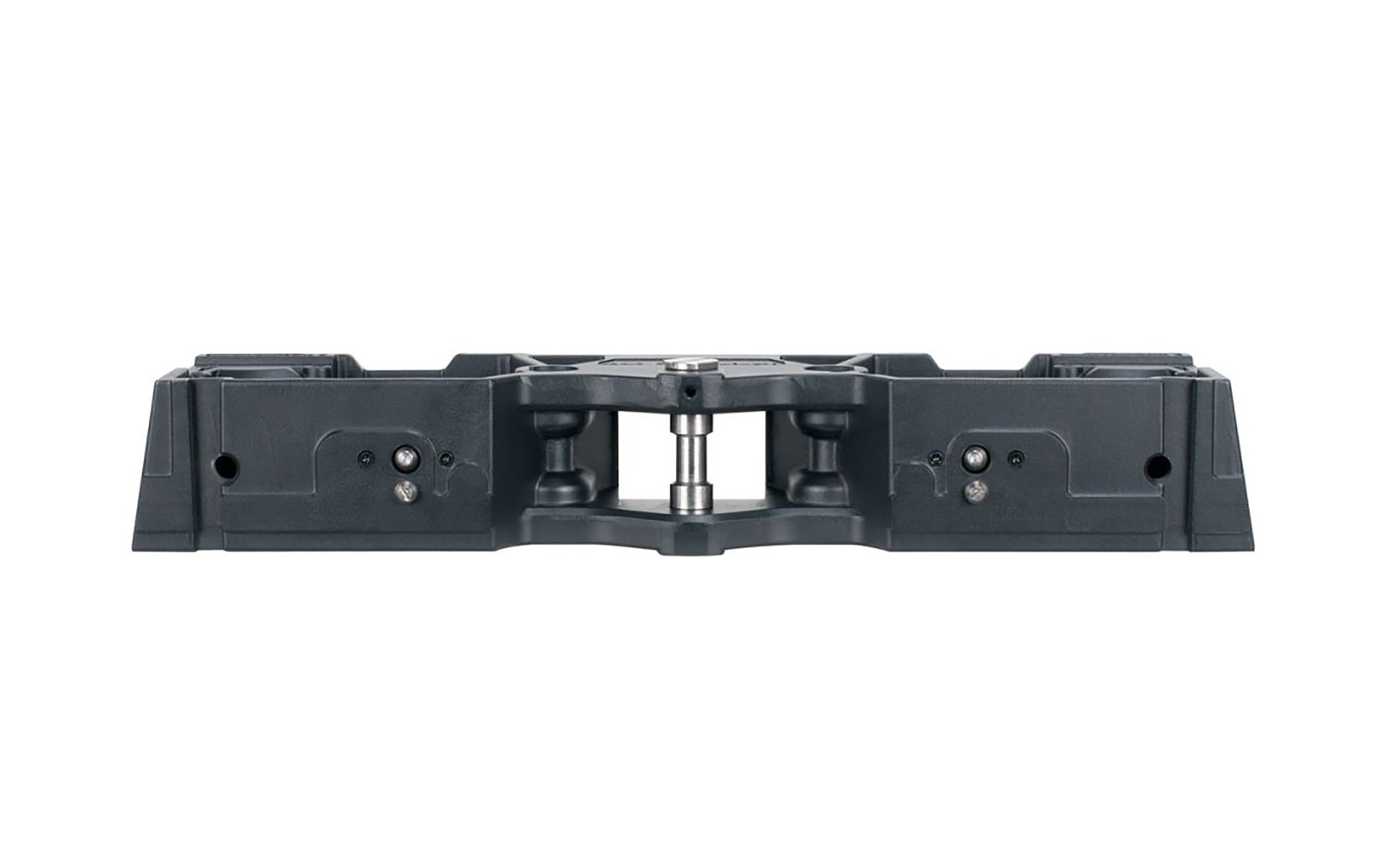

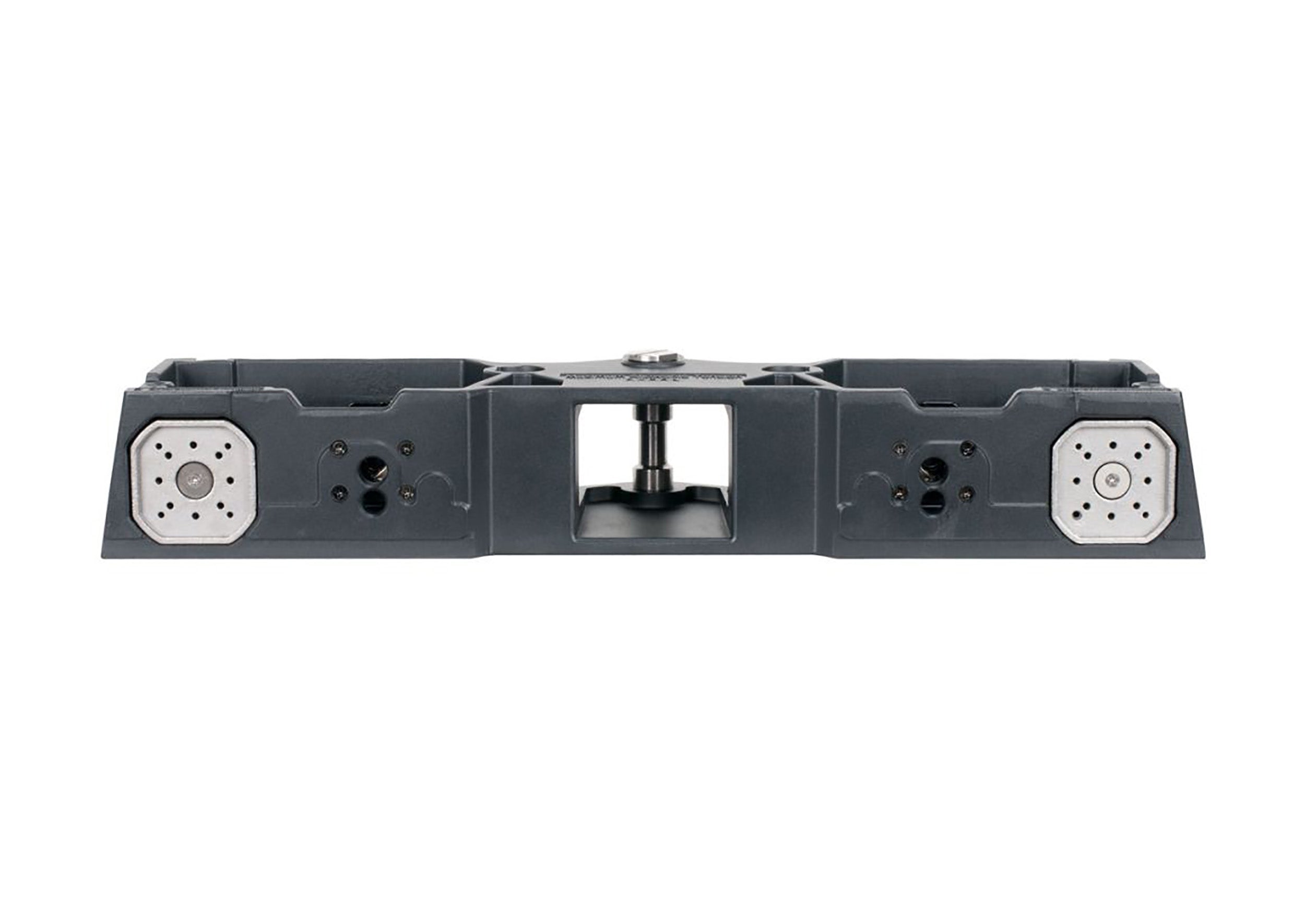

5 x VSRB1 Vision Series Rigging Bars (VS1100)
Product Specifications:
Per Panel:
Pixel Pitch: 5.95mm (0.23”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 84x84; 28224 per square meter
Size: 19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm
Module Quantity: 4
Weight: 17 lbs. / 7.7kg.
Mechanical Ratings:
Surface Flatness: Gaps
Optical Ratings:
Brightness: 1000 NITS
View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
Gray Scale: ≥14-bit
Display Color: 256
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Processing: 14-bit
Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 170W/per panel
Ave. Power Consumption: 68W/per panel
Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-75Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable 120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
Environmental:
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate:
Listings: cETLus (Pending)
Cables:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Power Locking Link Cables
Power Locking Main Power Cables
Certifications:
cETLus approved (Control #5015975)
VS1100 Mount Specs:
Dimensions (LxWxH): 19.6" x 3" x 4.75" / 498x76x120mm
