Description
The ADJ Video Panel System is a complete and professional-grade solution for creating high-quality video displays. This system features 28 ADJ VS5 video panels with a 5.95mm pixel pitch, configured to create a 7x4 video wall. It includes all the necessary components for a seamless setup, such as power cables, data cables, rigging bars, a video processor, and software, making it an ideal choice for various video display applications.

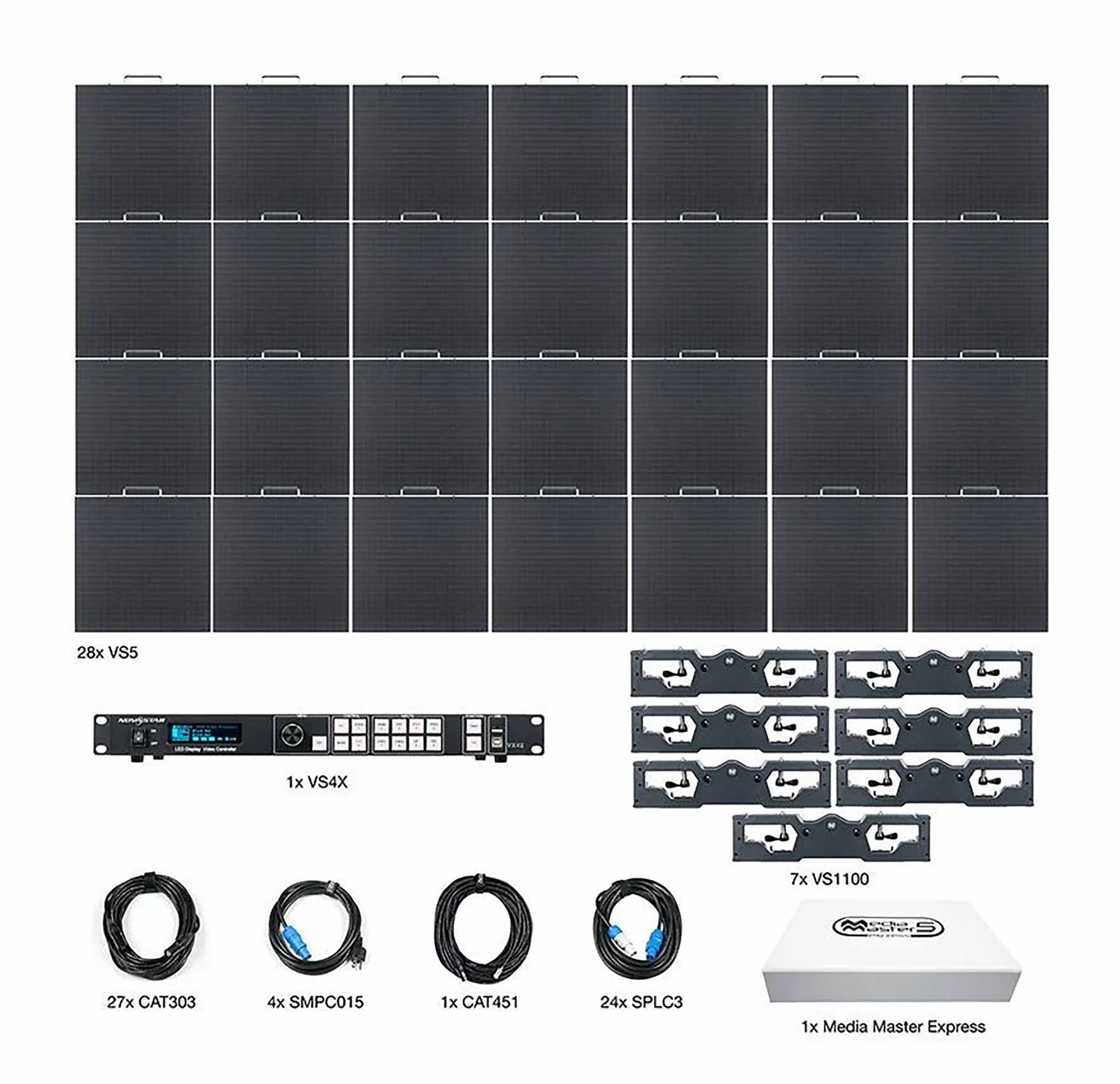

Video Panel System Includes:

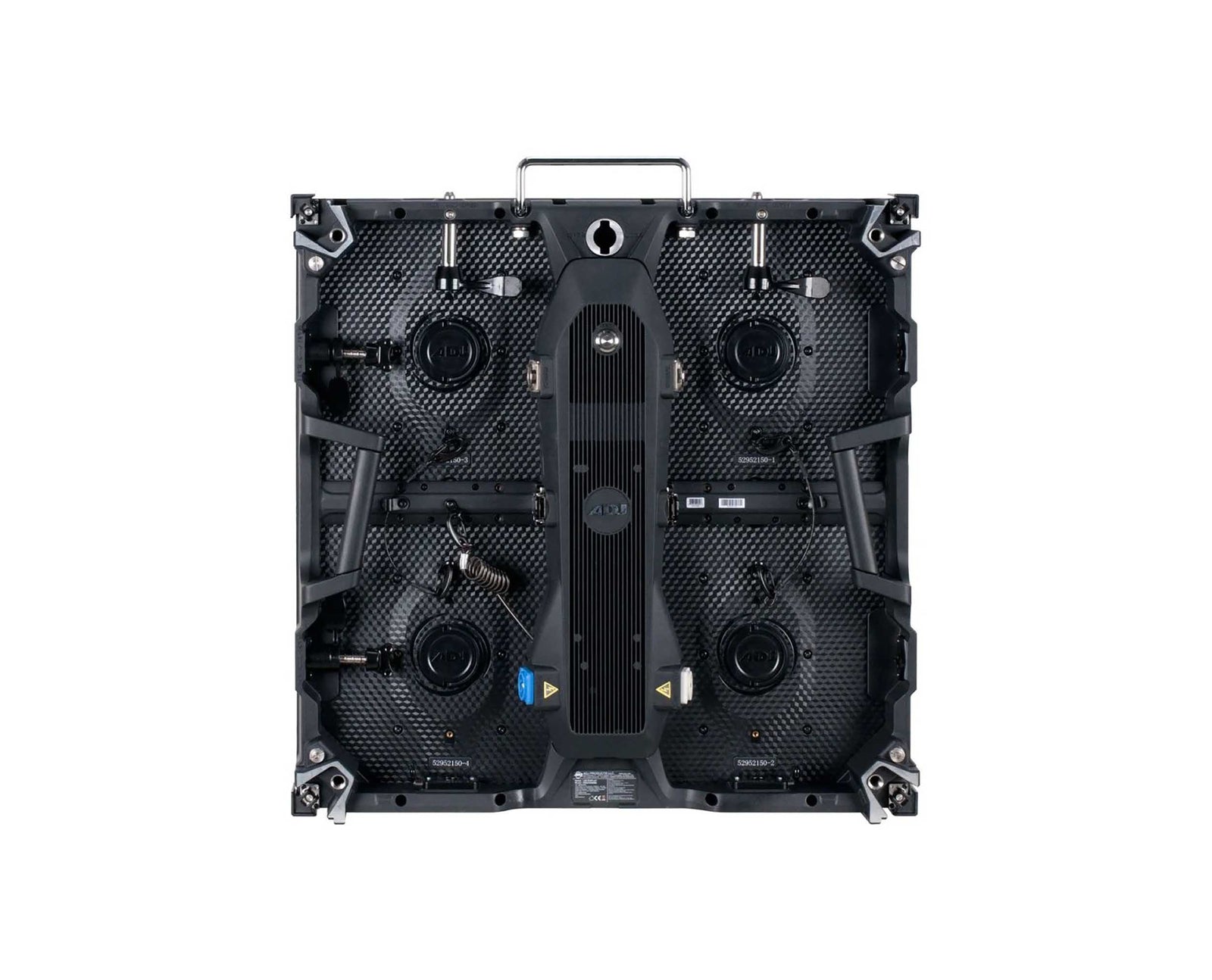

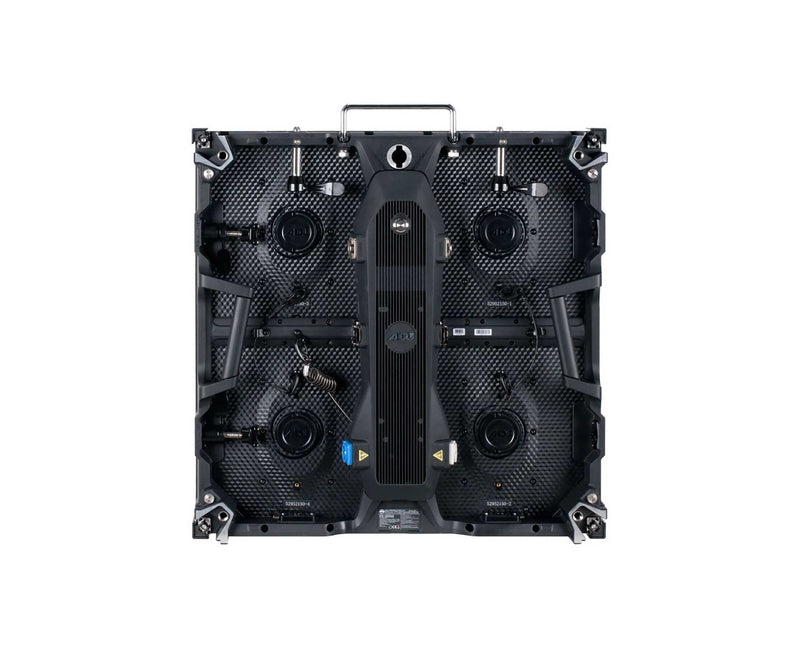

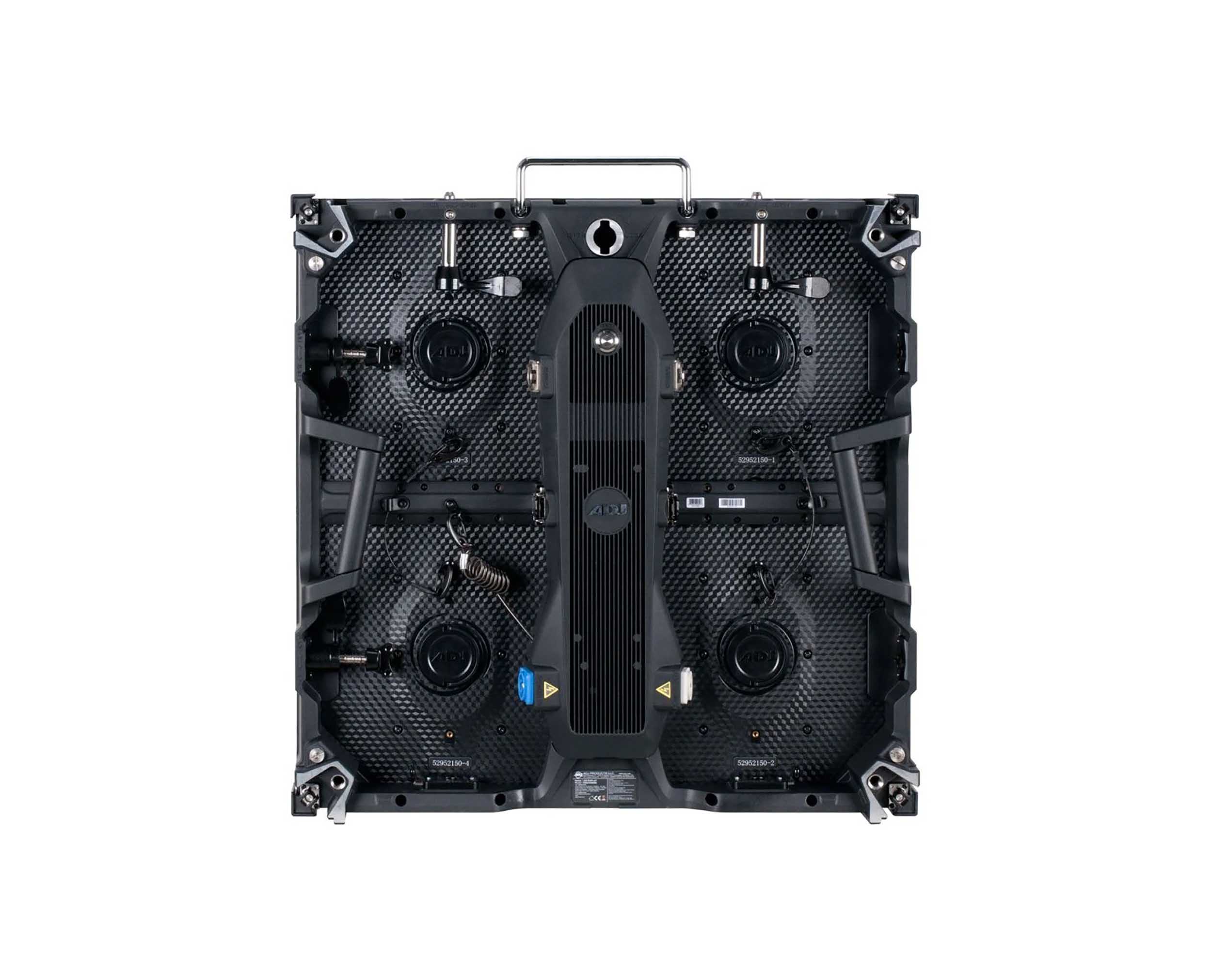

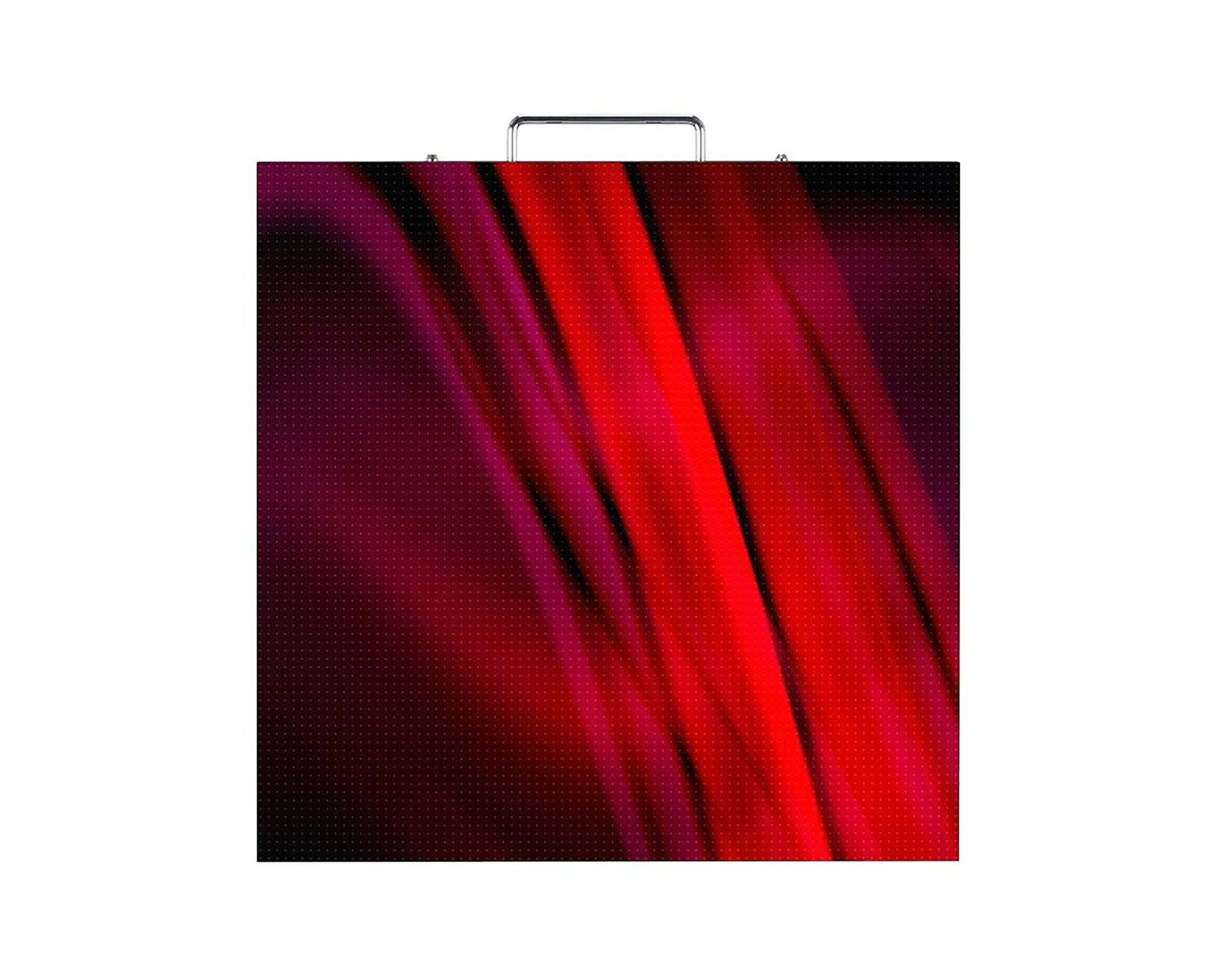

28 x VS5 5.95mm Pixel Pitch Video Panels (VS5029)
27 x 3-foot Panel to Panel Data Cables (CAT303)
1 x 25-foot First Data Cable (CAT451)
24 x 3-foot Locking In/Out Power Cables (SPL013)
4 x 15-foot Locking In/Out Main Cables (SMP027)

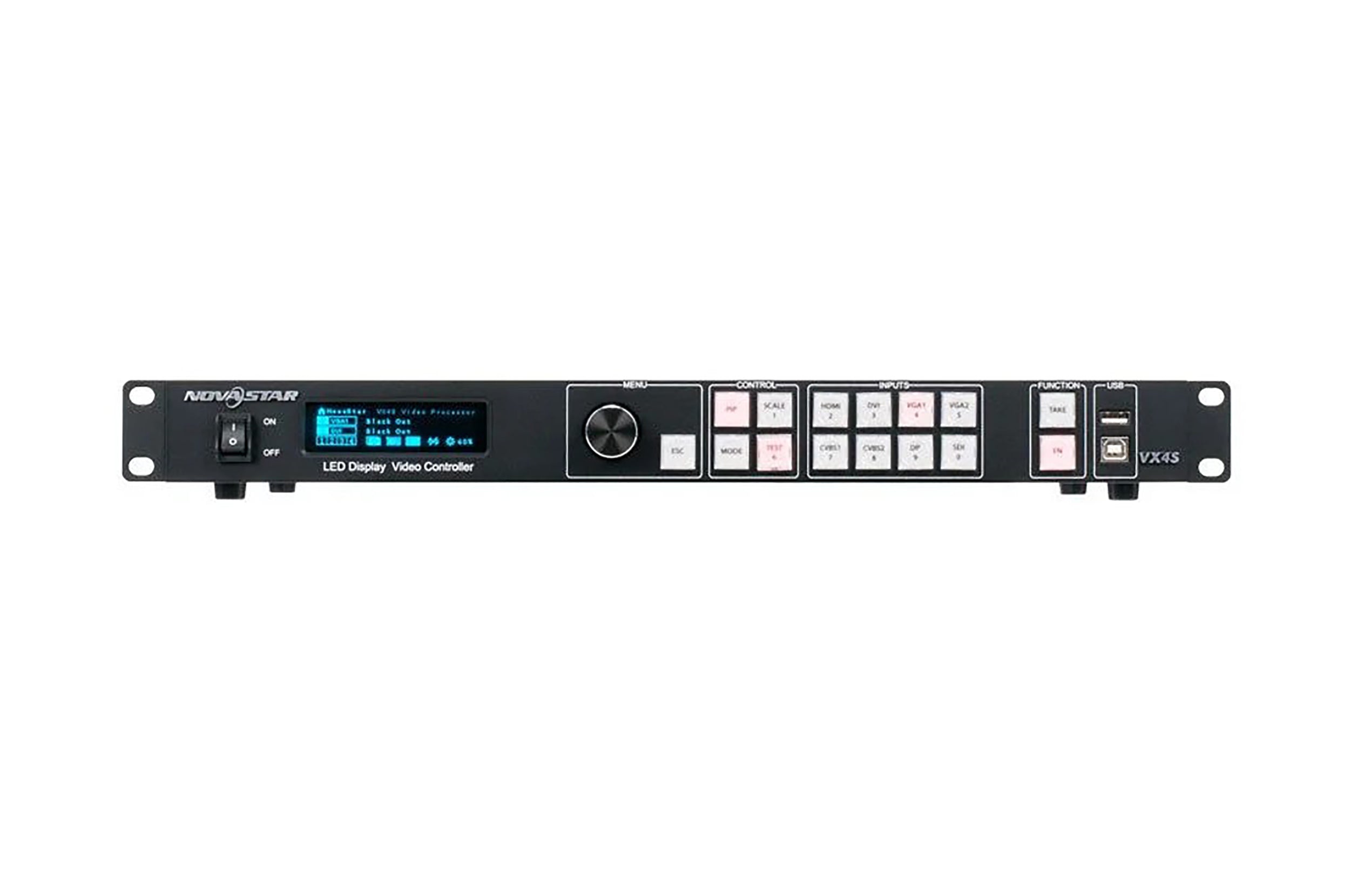

1 x Novastar VX4S-N Video Processor (VX4014)
1 x ArKaos Media Master Express Software

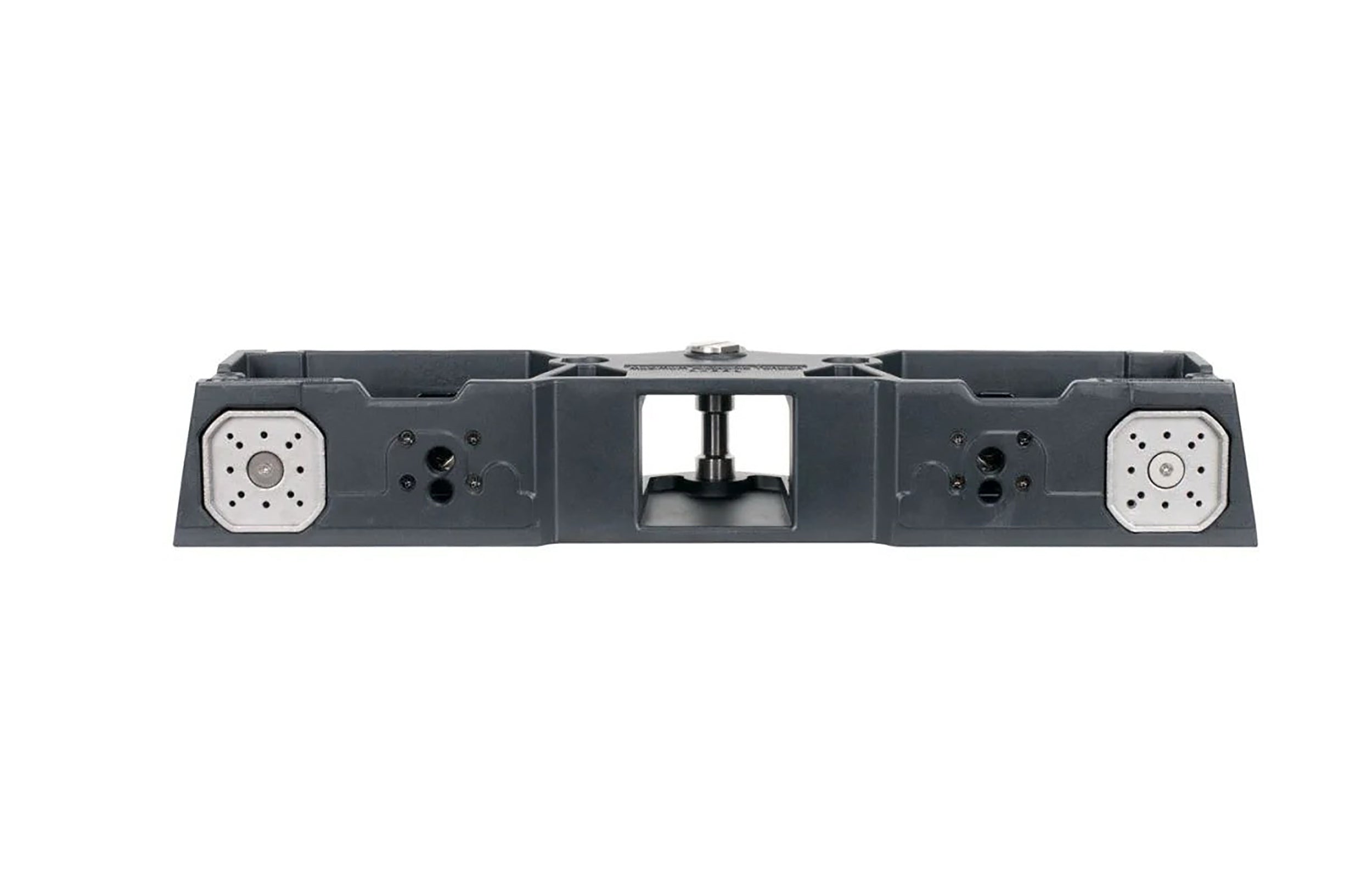

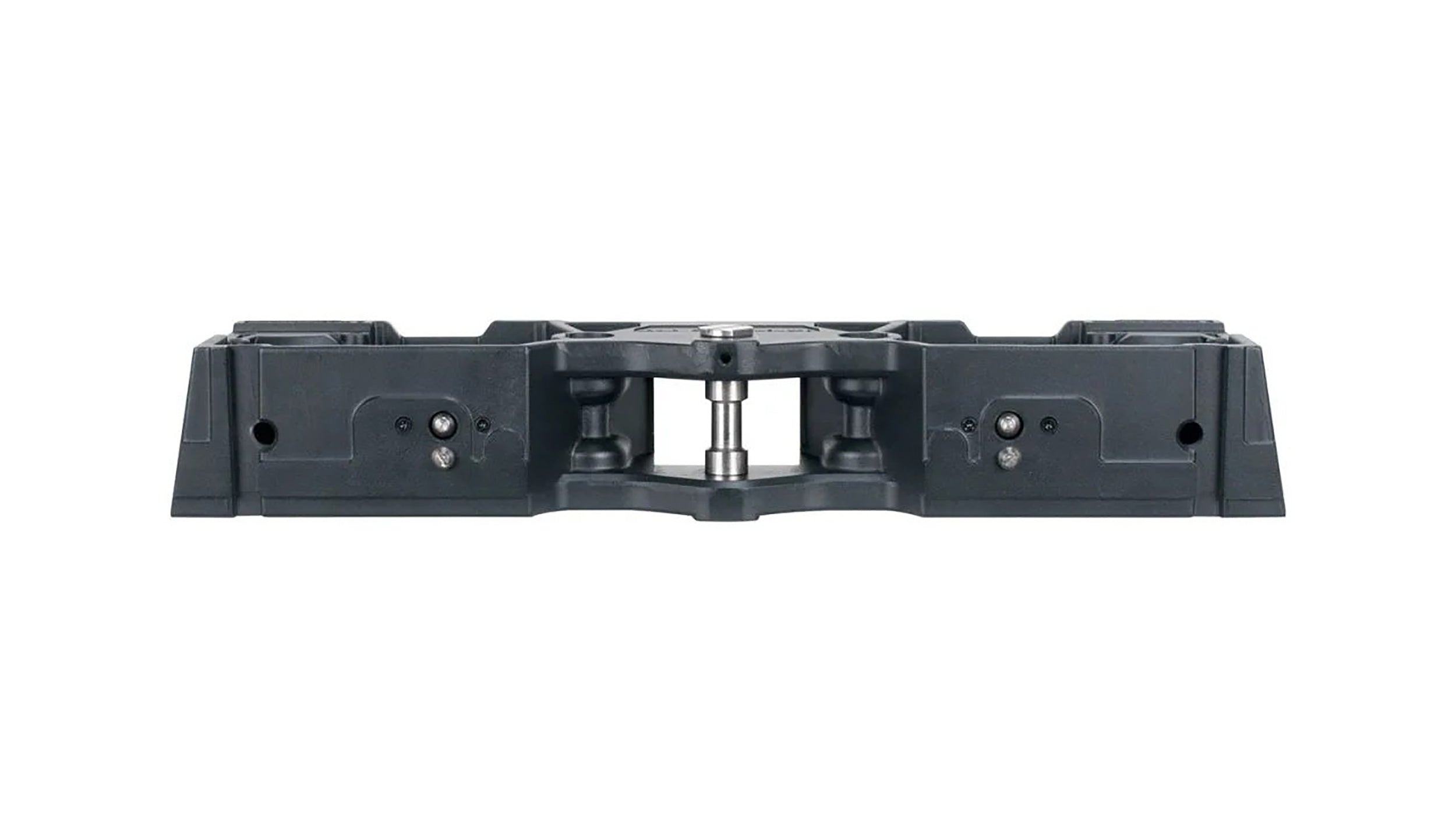

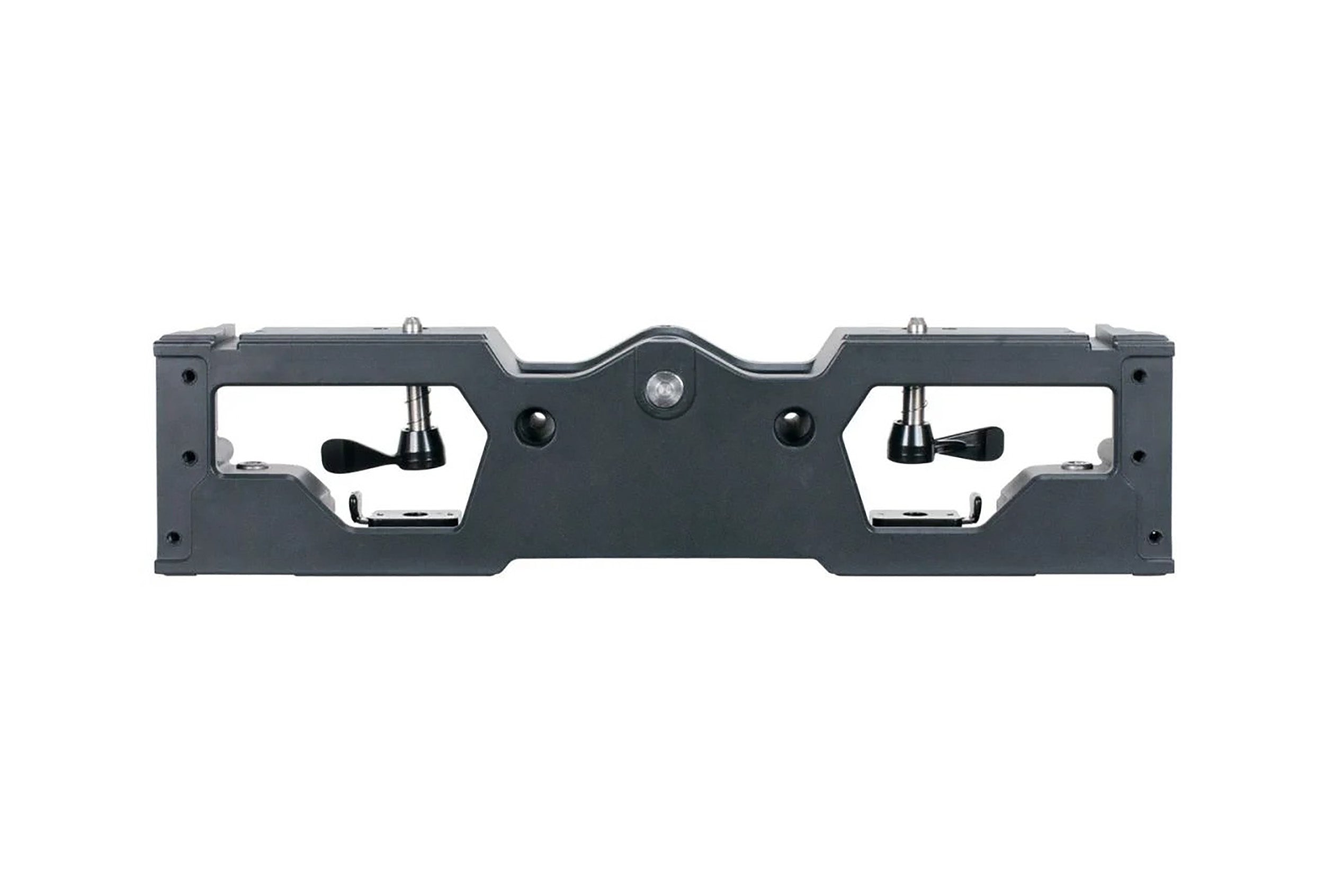

7 x VSRB1 Vision Series Rigging Bars (VS1100)
Product Specifications:
Pixel Pitch: 5.95mm (0.23”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 84x84; 28224 per square meter
Size: 19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm

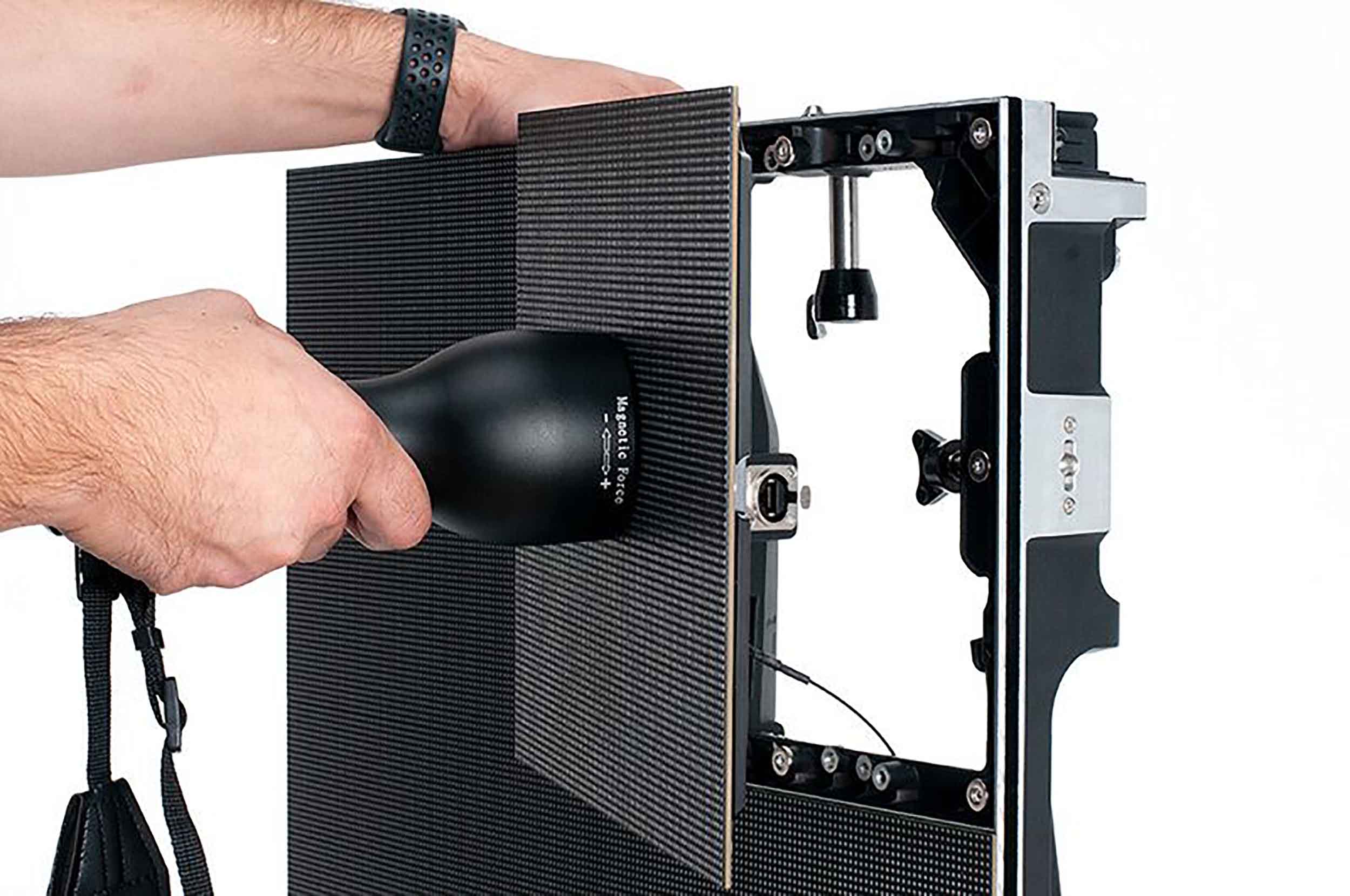

Module Quantity: 4
Weight: 17 lbs. / 7.7kg.
Mechanical Ratings:
Surface Flatness: Gaps<0.5mm
Optical Ratings:
Brightness: 1000 NITS
View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
Gray Scale: ≥14-bit
Display Color: 256
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Processing: 14-bit
Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 170W/per panel
Ave. Power Consumption: 68W/per panel
Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-75Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
Environmental:
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: cETLus (Pending)
Cables:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Power Locking Link Cables
Power Locking Main Power Cables
