Description

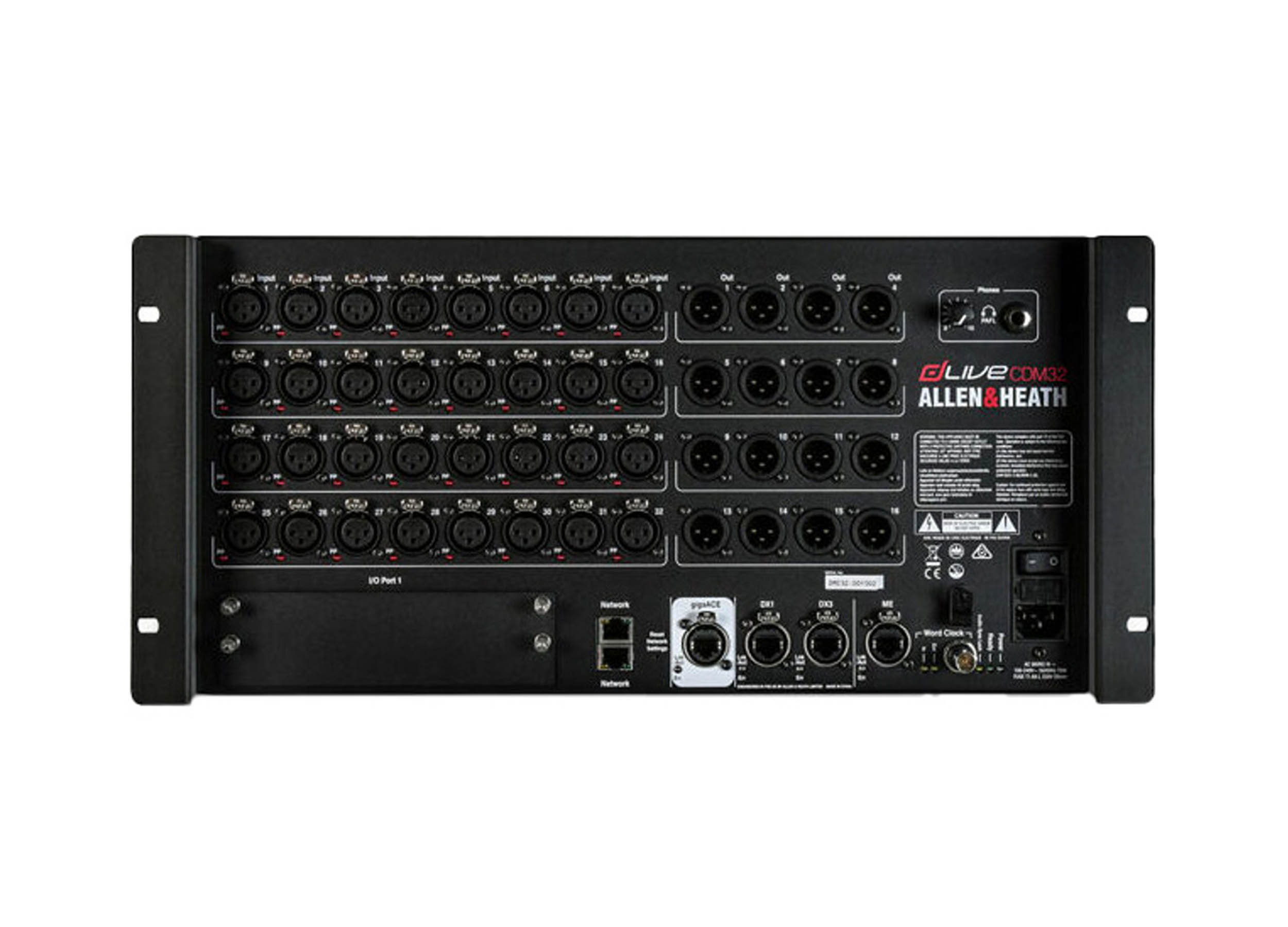

The Allen & Heath AH-DLIVE-CDM32-RUFX Digital MixRack Stage Box features the same mix engine - 128 input channels and 64 mix outputs with a configurable 64-bus architecture, class-leading 0.7ms latency and phase-aligned signal paths for maximum flexibility in all applications - but differ in the number of onboard analog I/O, redundancy options and digital I/O card slots.
The acclaimed preamp design, optimized for transparency and clarity, combined with our unique Active PAD circuit for consistent performance regardless of source, delivers the highest quality analogue signal to the MixRack’s XCVI processing core.
In the digital domain, the 96kHz signal path employs variable bit depth throughout for optimal noise performance and precision with virtually infinite dynamic range thanks to the 96-bit accumulator.
Product Specifications:
Measured balanced: XLR in to XLR out, 20-20kHz, minimum Gain, Pad out, signal @ 0dB (meter)
Dynamic Range: 110dB
System Signal to Noise: -92dB
Frequency Response: 20Hz - 30kHz +0/-0.8dB
THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
Headroom: +18dB
Internal operating Level: 0dBu
dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
Meter Peak indication: -3dBFS (+19dBu at XLR out)
ADC: 24-bit Delta-Sigma
DAC: 24-bit Delta-Sigma
Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
Mains Power 100-240V AC, 50-60Hz, 175W max
Inputs:
Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analog Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN: -127dB with 150Ω source
Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
Outputs:
Analog XLR Outputs: Balanced Sampling Rate 96kHz +/- 20 PPM
Output Impedance: <75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -92dBu (muted, 20-20kHz)
Product Weight: 22 lbs. / 10kg
Product Dimensions: 19x12.2x8.7"
Shipping Weight: 27 lbs. / 12kg
Shipping Dimensions: 23.7x17x15"
