Allen & Heath AH-DLIVE-S5 Control Surface with Dual 12" Touchscreens for MixRack


Sale price$31,799.00
In stock (10 units), ready to be shipped

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

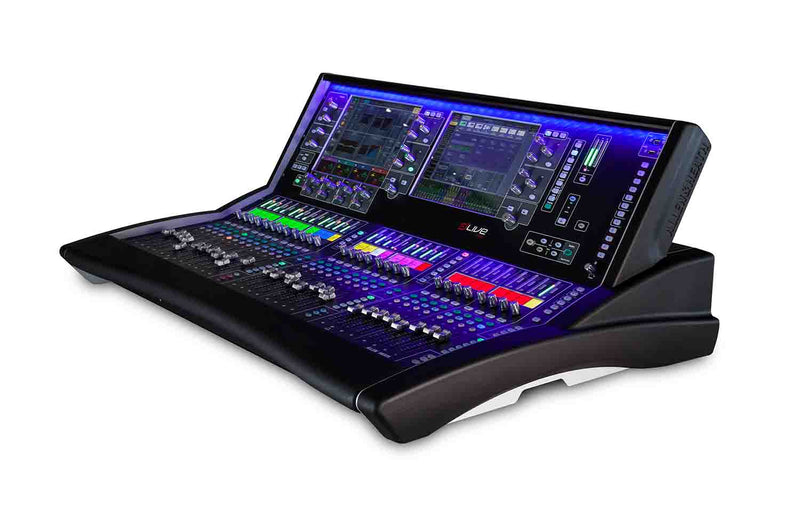

The Allen & Heath dLive S5000 is a Control Surface with Dual 12" Touchscreens for MixRack. The S5000 is a medium-sized control Surface for the dLive MixRack, with the addition of built-in audio I/O and audio networking ports. It features 28 faders over 6 layers, dual 12″ capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

Harmony User Interface

Where many digital consoles try to recreate the experience of using an analog mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. The single or twin 12” capacitive touchscreens on the dLive consoles feel instantly familiar, responding to every pinch, swipe, drag and drop exactly how you’d expect them to. Bespoke ‘widget’ areas can also be set up on the screens to keep track of scenes, meters, FX and other custom controls. The screen is framed by a set of one knob / one function rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen. The rotary knobs have been prototyped 20+ times to achieve optimal grip and precision control, and feature RGB illumination, with colours mapped to functions for instant visual orientation.

Transparent Workflow

As systems become ever more complex and as I/O counts grow exponentially, engineers can find themselves feeling increasingly removed from the action on stage as they are drawn more and more into managing the arsenal of technologies at their disposal. Throughout the dLive design process our guiding aim has been to create fast and transparent workflows that allow the engineer to focus on the mix, not the mixer. The dLive layout is fully customizable, allowing the user to create a mixing interface that matches their own mental map of the show. Every input or mix can be assigned to any and every bank and/or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and the engineer has no less than 26 assignable SoftKeys at their disposal, plus 3 pages of 6 assignable rotaries per screen.

Built to Endure

Maybe it’s no coincidence that our lead mechanical designer on the dLive project used to be a tank commander. All dLive consoles have been designed to deliver the optimal balance between strength and weight, employing higher grade metal on the sides and folded steel at key points for added rigidity. Not only does every console, MixRack and expander have dual power supply slots for redundancy, but we’ve also employed the same rugged, hot-swappable PSU design across the range for maximum peace of mind and minimum inventory. Dual redundancy is also built into every audio connection throughout the system. We have also paid particular attention to console illumination, conducting rigorous trials to ensure that dLive excels in the sunny, outdoor settings where many digital consoles become almost unusable.

Product Specifications:

Type: Digital Console

Channels: 28 channel faders with 6 layers

Inputs - Mic Preamps: 8 x XLR

Phantom Power: 8

Outputs - Other: 8 x XLR (line level)

Inputs - Digital: 2 x XLR (AES3)

Outputs - Digital: 3 x XLR (AES3)

Busses/Groups: 64 bus internal architecture (including all groups, aux, matrix, mains, effects)

Data I/O: 2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports

Headphones: 2 x 1/4" (headphones), 2 x 1/8" (headphones)

USB: 3 x USB Type A

Computer Connectivity: Ethernet, USB (2 x 2)

I/O Expansion Slots: 2 x card slots (128x128 channels each, iLive/GLD option cards)

Word Clock: In, Out

Faders: 20 x motorized faders

EQ Bands: 4-band parametric EQ

Effects: 16 RackFX

Height: 16.3"

Depth: 28.7"

Width: 34.3"

Weight: 62 lbs.
