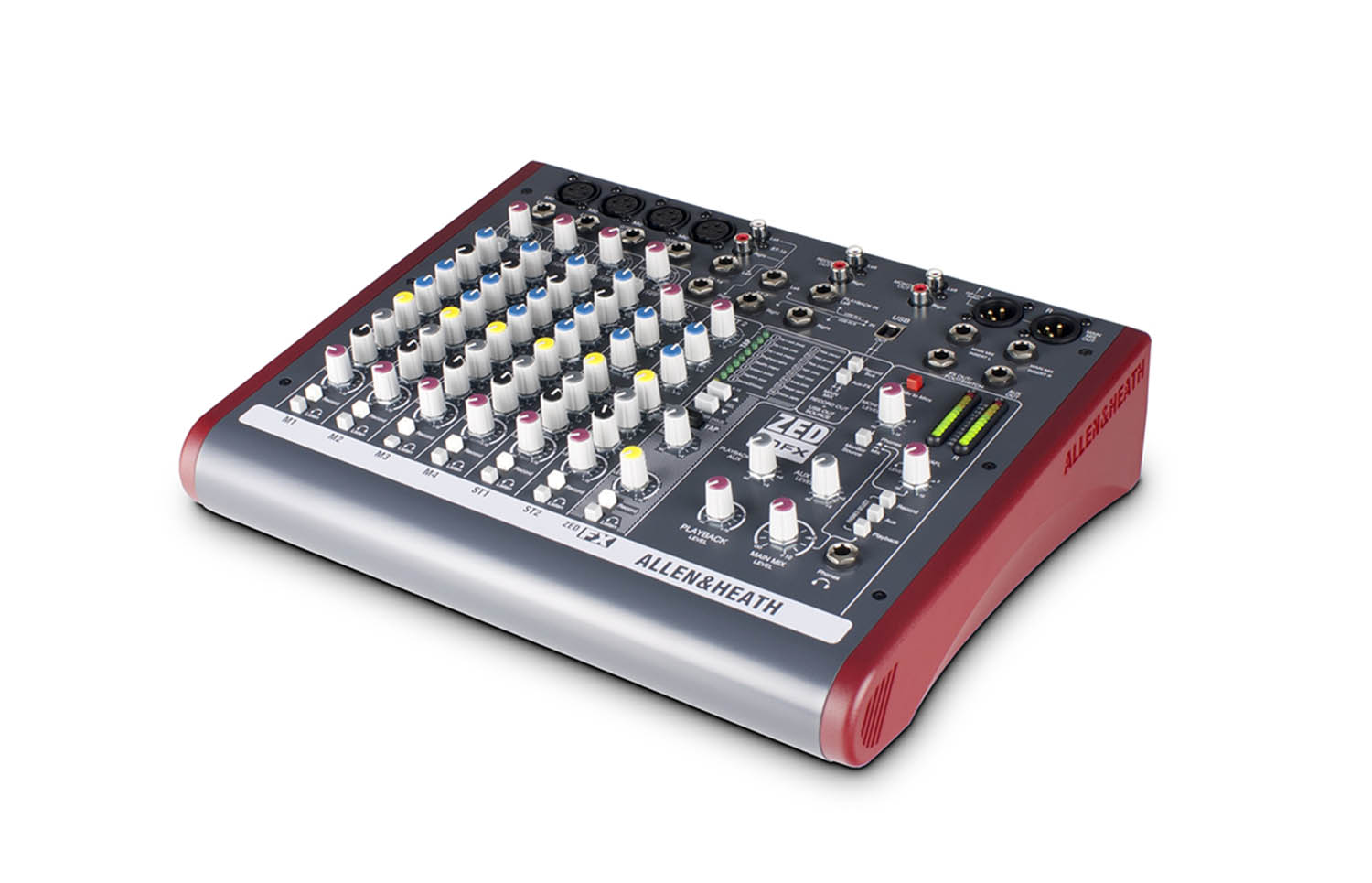

The Allen & Heath ZED-10FX is a Multipurpose Mixer with FX for Live Sound and Recording. ZED-10FX is an amazing little desk for small band mixing. It is ultra-portable for carrying to the gig, and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordings. Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards. Equipped with professional XLR stereo outputs and a flexible monitoring section with headphone and speaker feed outputs. We’ve added a set of fabulous effects to give shimmering reverbs and enhance your sound.
USB Audio Flexibility
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations.
ZED-10FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effect’s unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs.
ZED-10FX’s pre-amps are similar in design to our MixWizard range of mixers, but with a twist! Inputs 3 & 4 have a high impedance jack input capable of taking either a normal line level or a low-level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage.
Computer Connectivity: USB (2 x 2)
Inputs - Mic Preamps: 4 x XLR
Phantom Power: 4
Inputs Line: 4 x TRS (CH 1-4), 6 x TRS (CH 5-10 Stereo), 2 x RCA
Outputs Main: 2 x XLR (Main)
Send/Return I/O: 1 x 1/4" (Aux)
Channel Inserts: 2 x 1/4" (Main)
Headphones: 1 x 1/4"
USB: 1 x Type B
Weight: 7.3 lbs.
