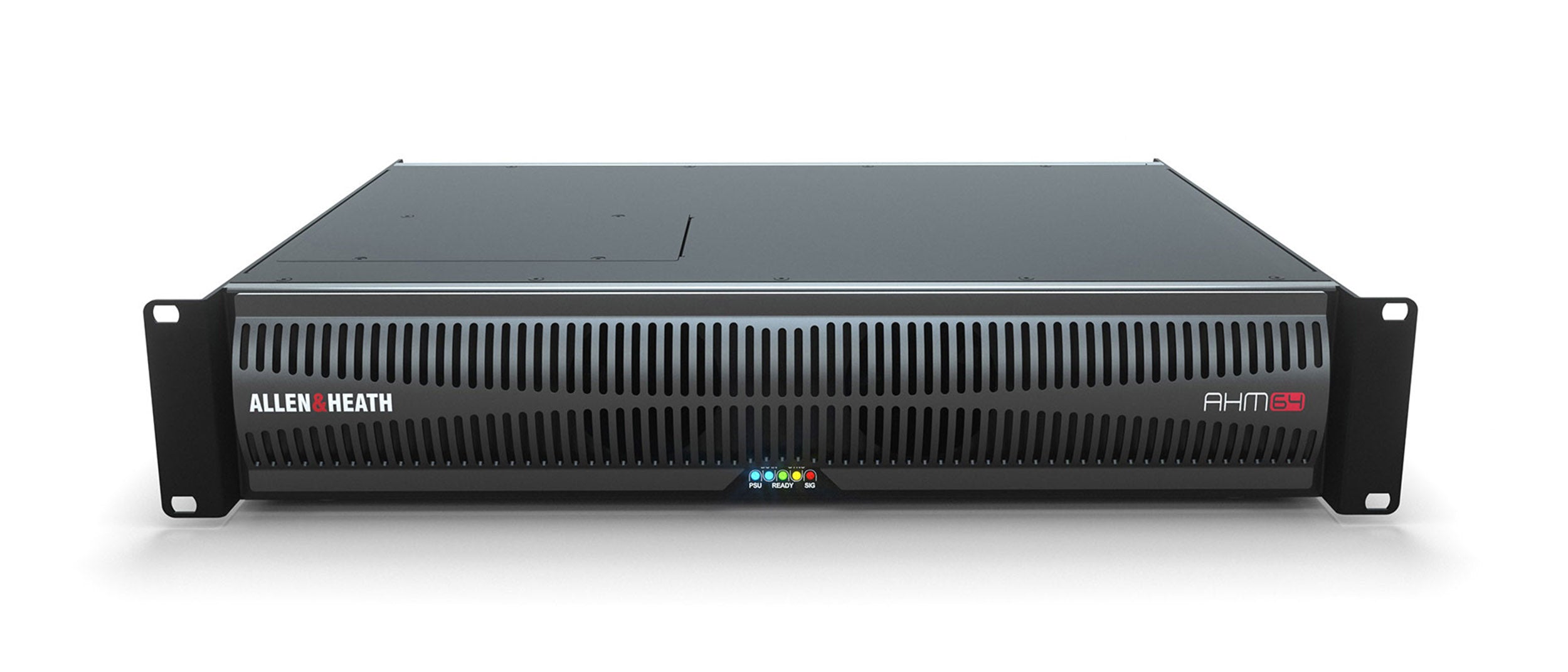

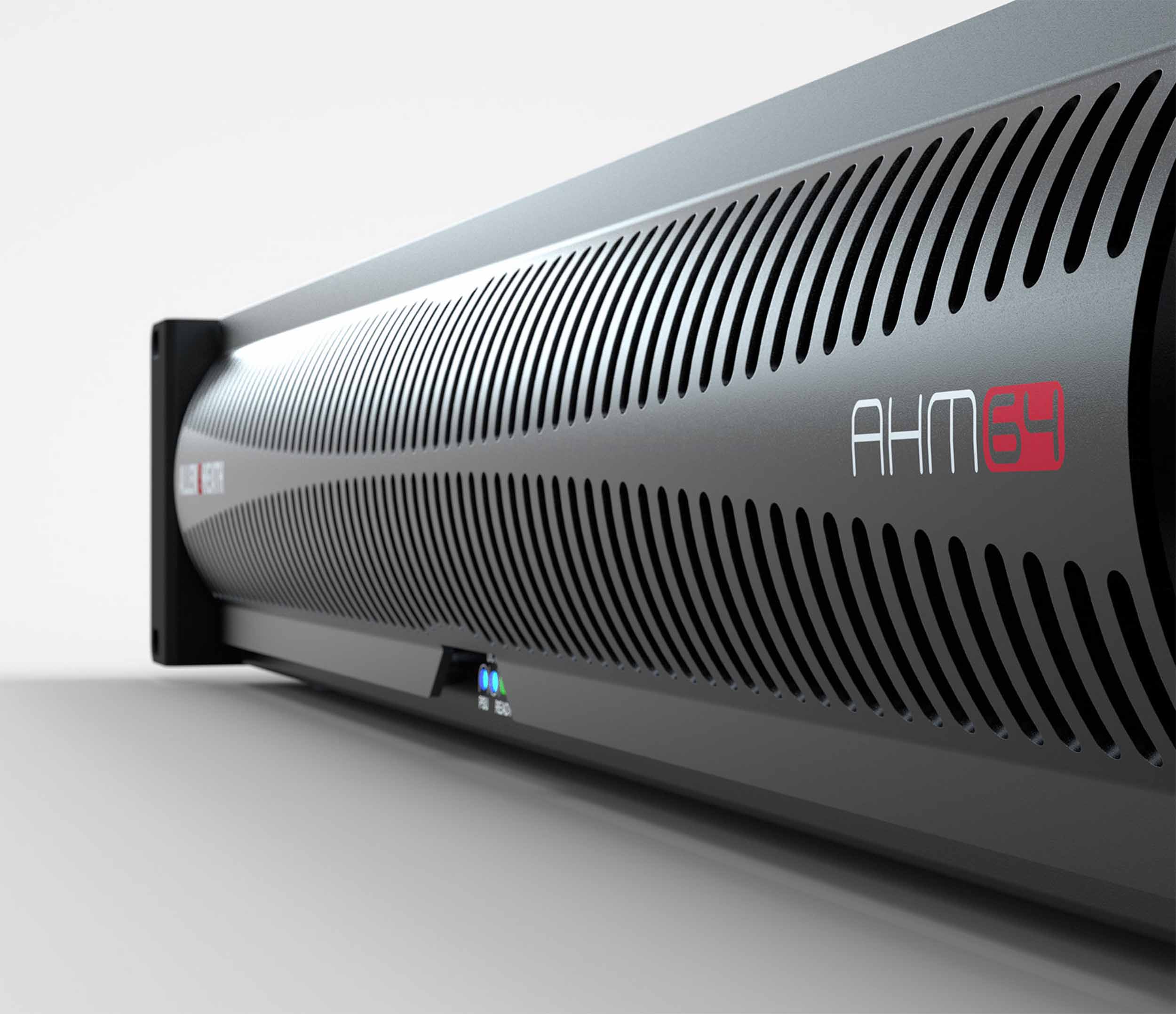

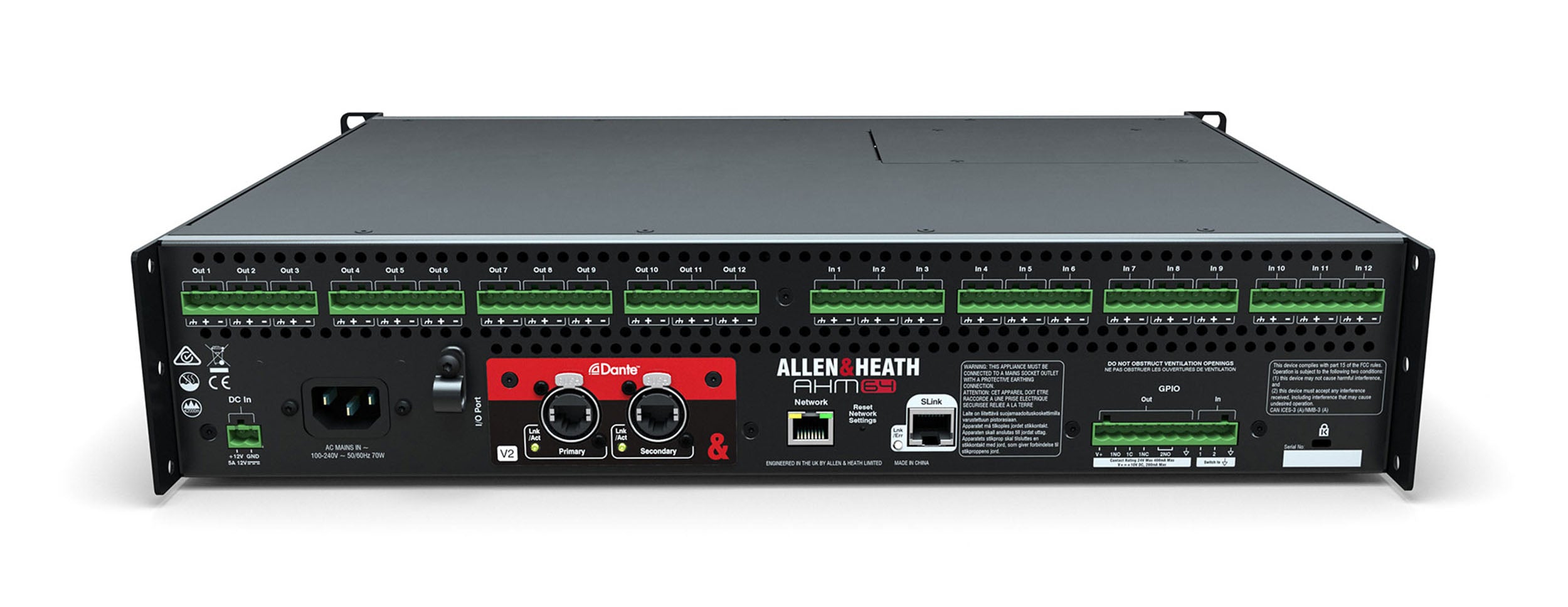

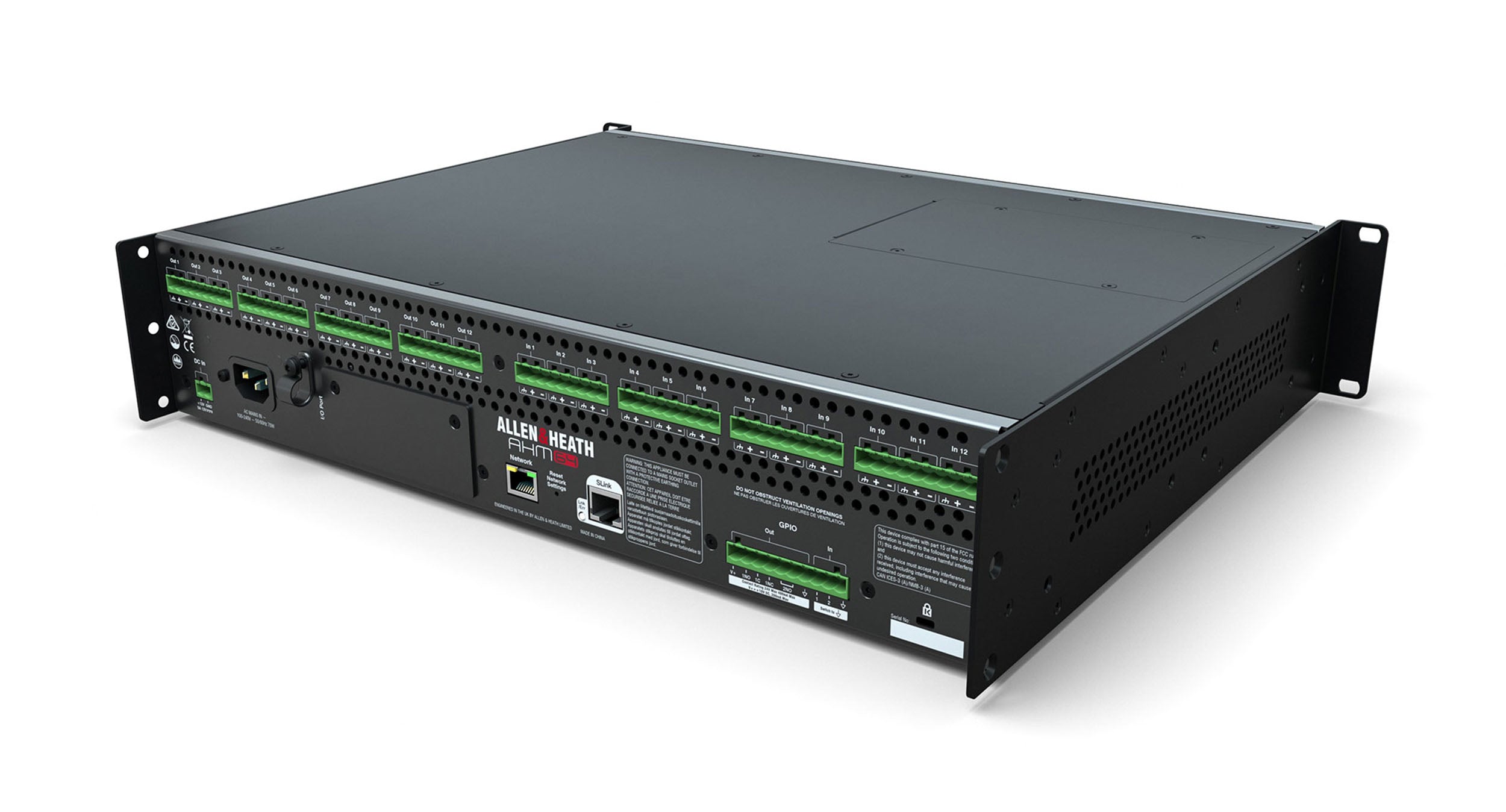

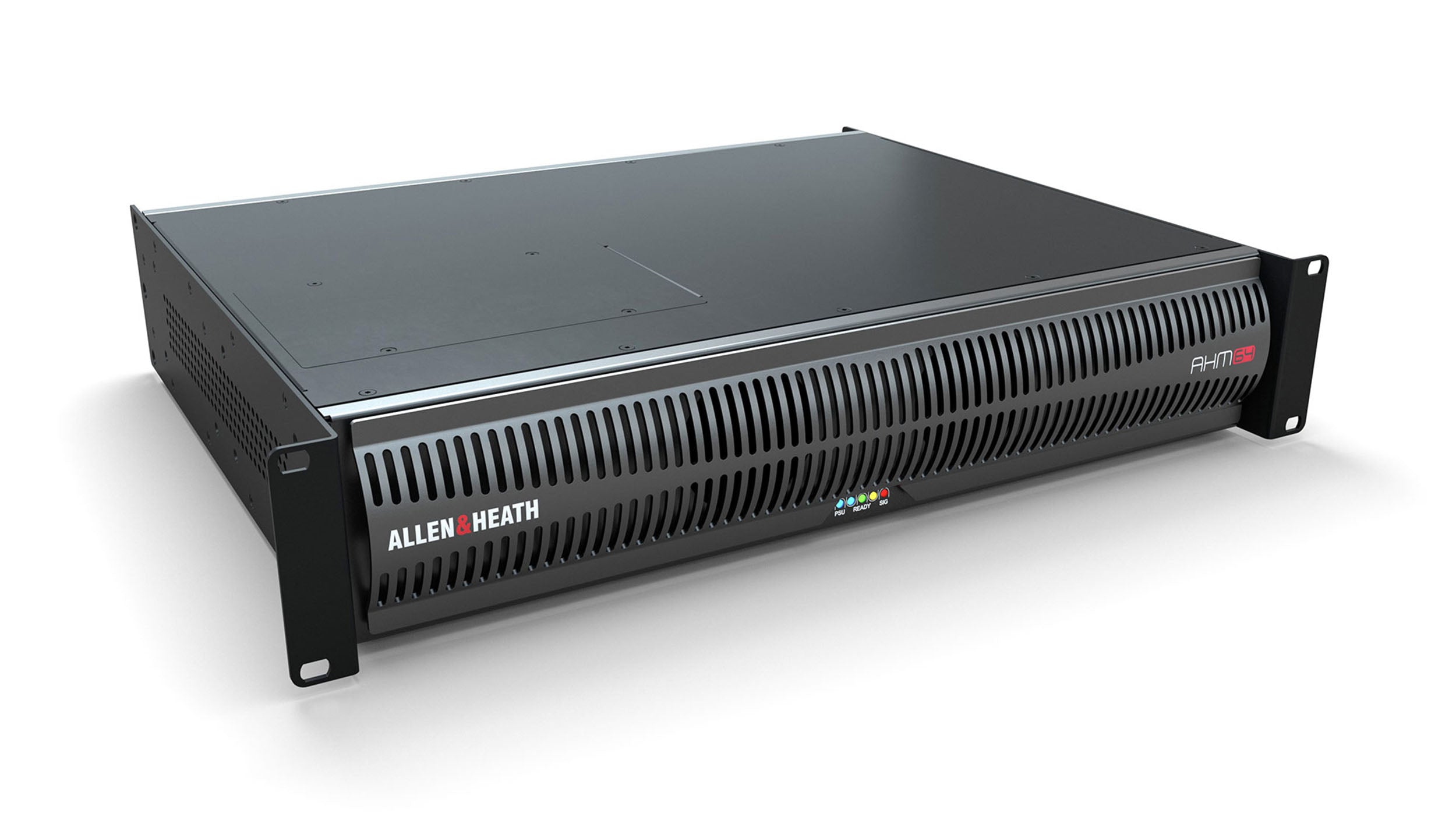

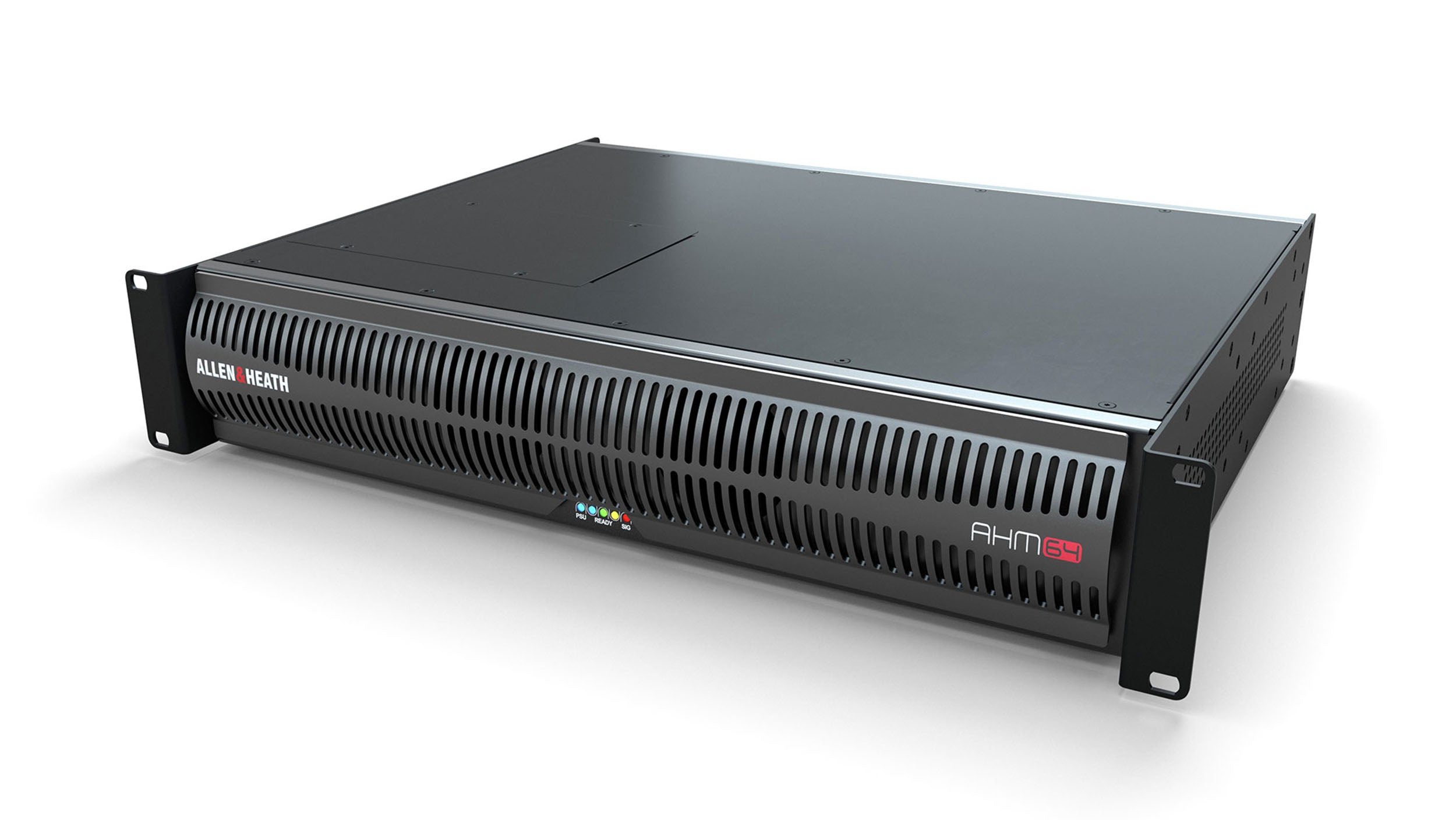

Allen & Heath AHM-64, 64x64 Audio Matrix Processor with 12x12 I/O

The Allen & Heath AHM-64, 64x64 Audio Matrix Processor with 12x12 I/O supported by a comprehensive ecosystem of scalable I/O, control and Dante solutions. Designed to excel in corporate, retail, hospitality and education environments, AHM-64 allows integrators to quickly create systems that build from a single boardroom to a complete campus.

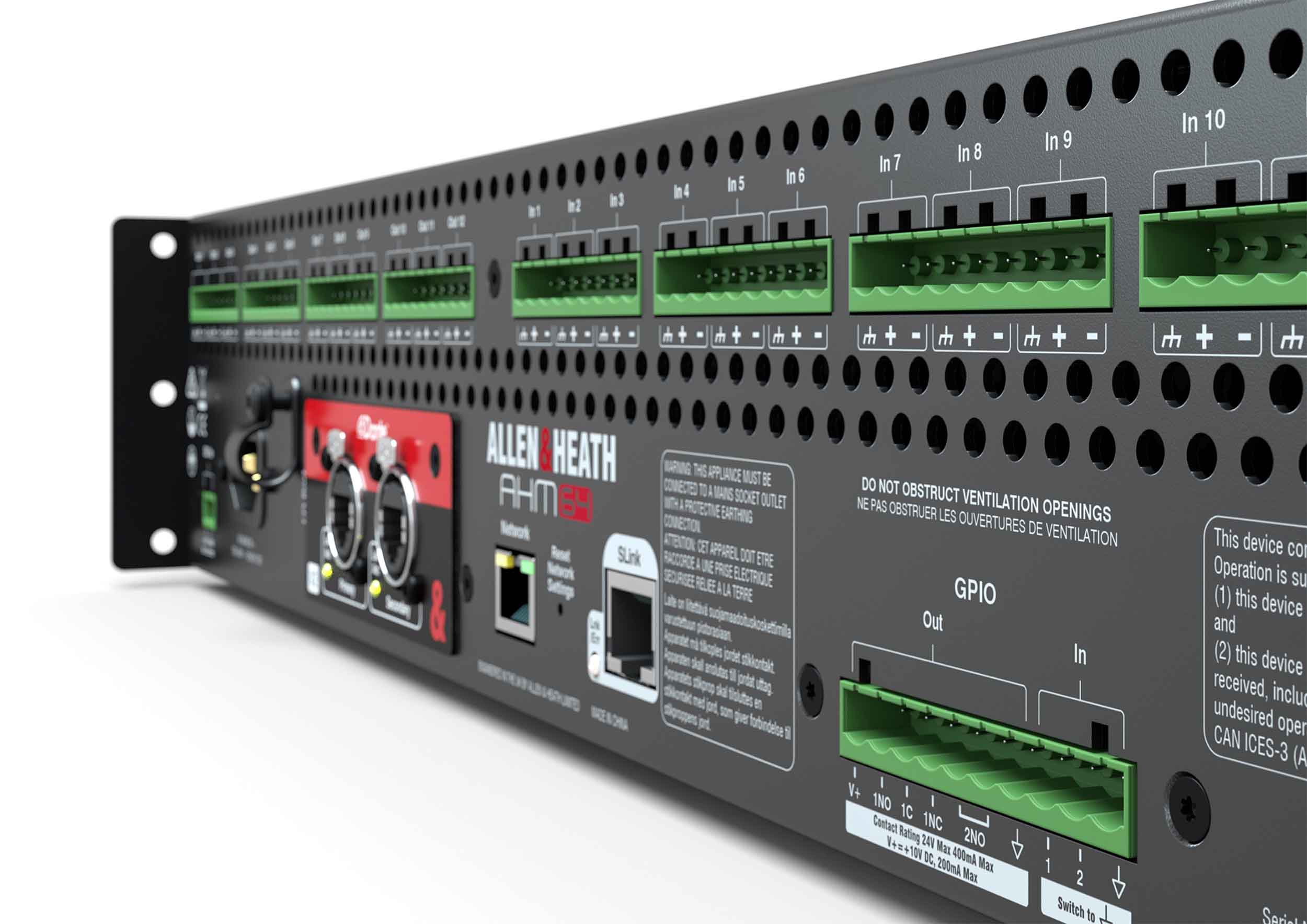

AHM-64’s SLink port allows plug 'n play connection to up to eight remote expanders from Allen & Heath’s extensive Everything I/O range, which includes wall mount, rack and portable options. With up to 268 routable system inputs and outputs, AHM-64 can cater for projects ranging from a single room to large, distributed spaces.

An AHM-64 system can be controlled using our range of remote controllers, GPIO and 3rd party devices. With up to 96 IP remote controllers over a standard TCP/IP network, every room can enjoy local volume control, source select and preset recall. Designing the perfect user interface for each type of user has never been so easy. Custom Control is a customizable, cross-platform control app, providing elegant, bespoke control over an AHM-64 system.

Product Specifications:

Compatibility: Not Specified by Manufacturer:

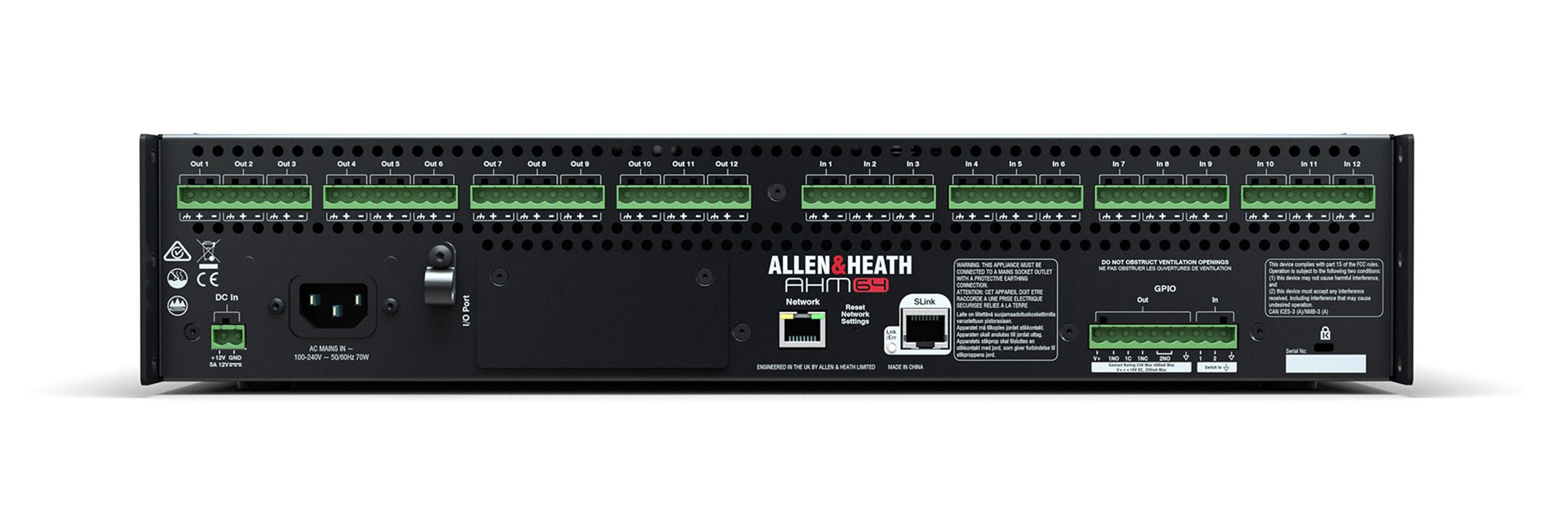

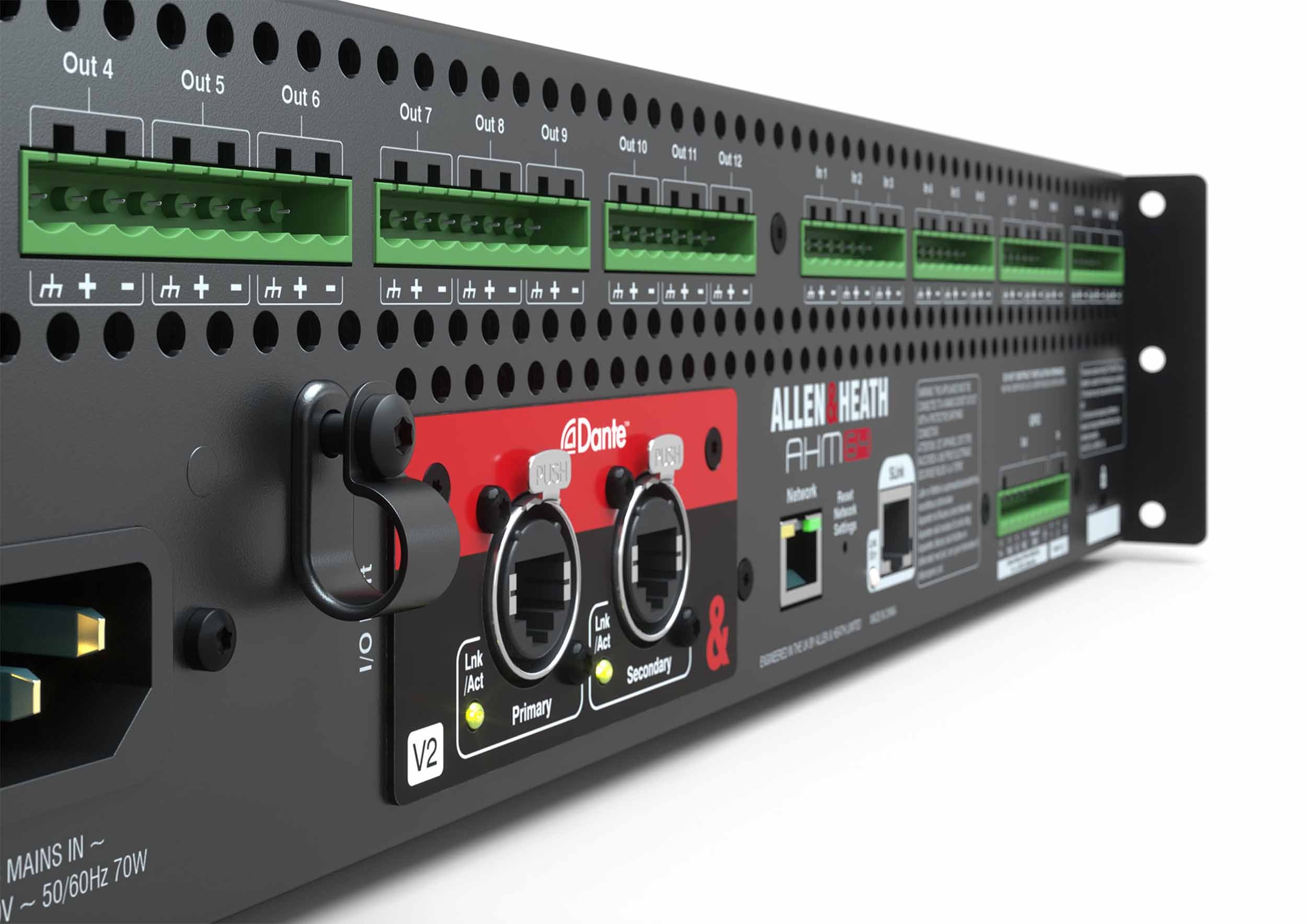

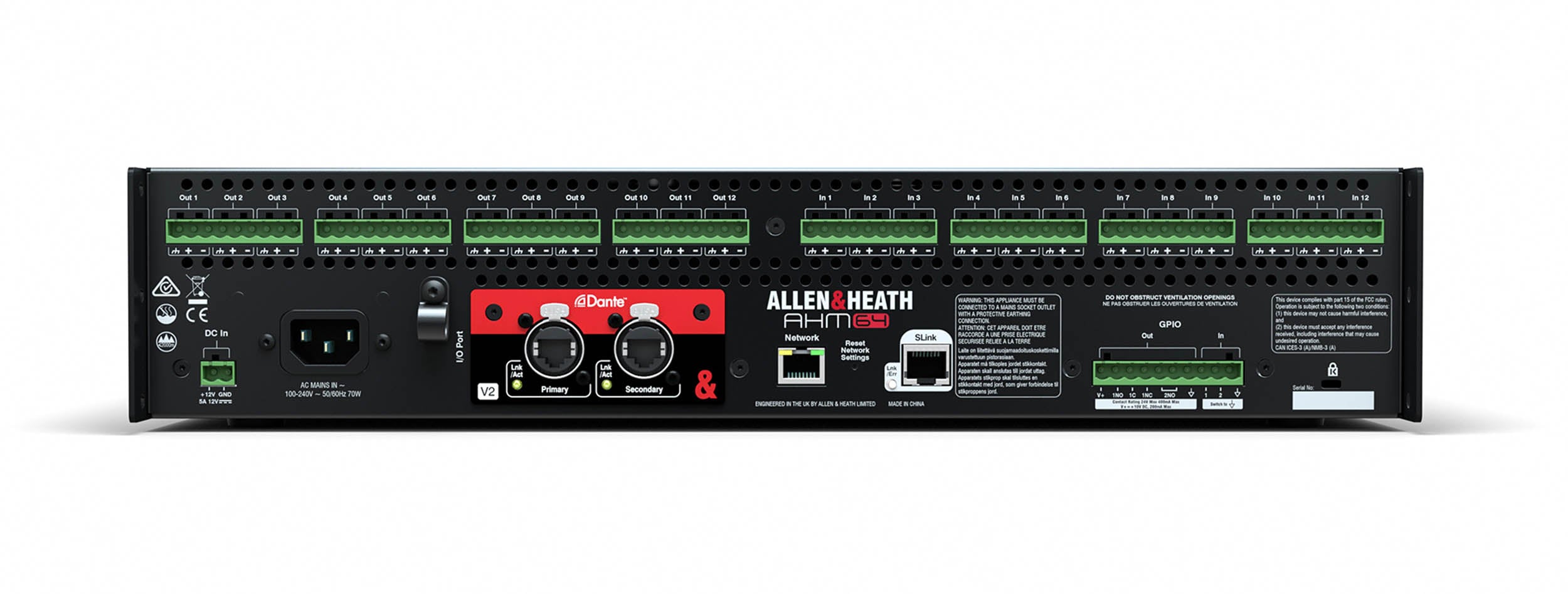

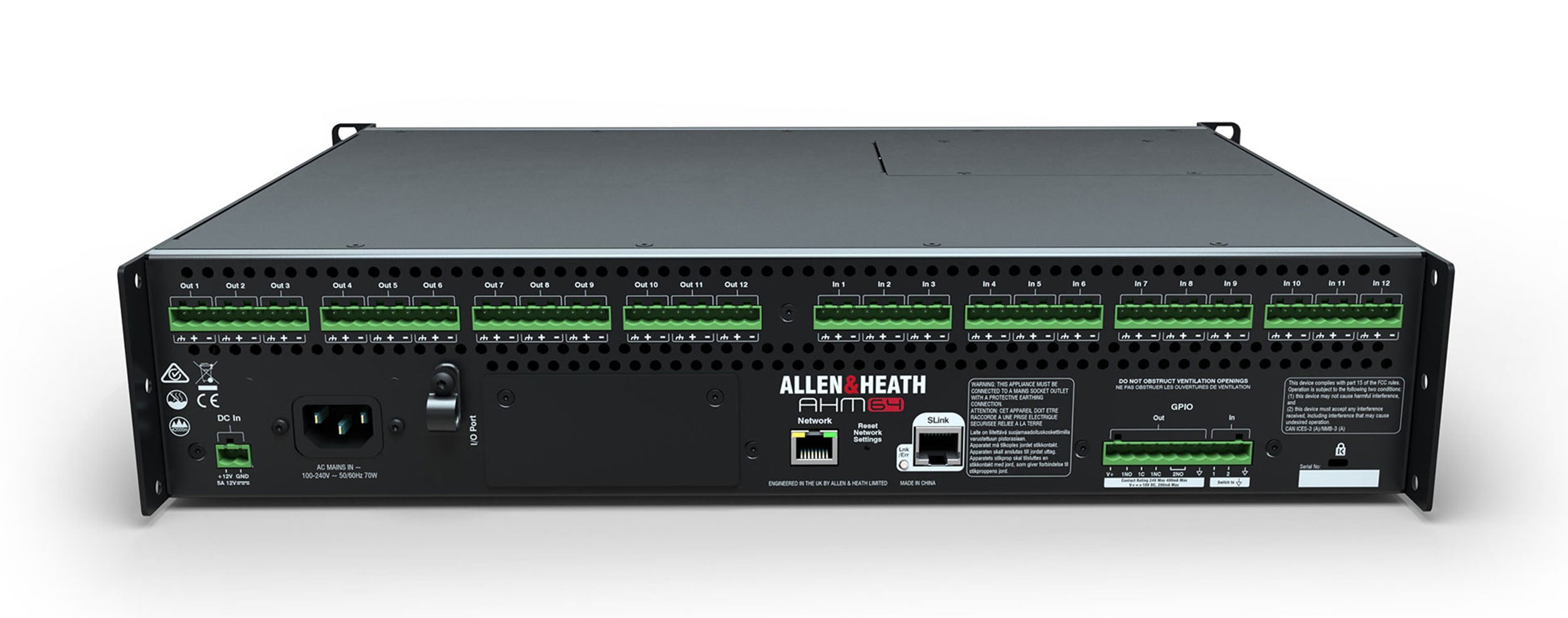

Audio I/O

12 x Block 3-Pin Line/Mic Input

12 x Block 3-Pin Line Output

Power Source: AC Input (Included)

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

DC Input Power: 12 VDC at 8 A

Power Consumption: 70 W (Maximum)

Operating Temperature: 32 to 72°F / 0 to 40°C

Color: Black

Cable Length: Not Specified by Manufacturer

Dimensions: 19 x 14.3 x 3.6" / 48.3 x 36.3 x 9.1 cm

Weight: 15.5 lb / 7 kg

Package Weight: 19.8 lb

Box Dimensions (LxWxH): 23.4 x 20.1 x 8.4"
