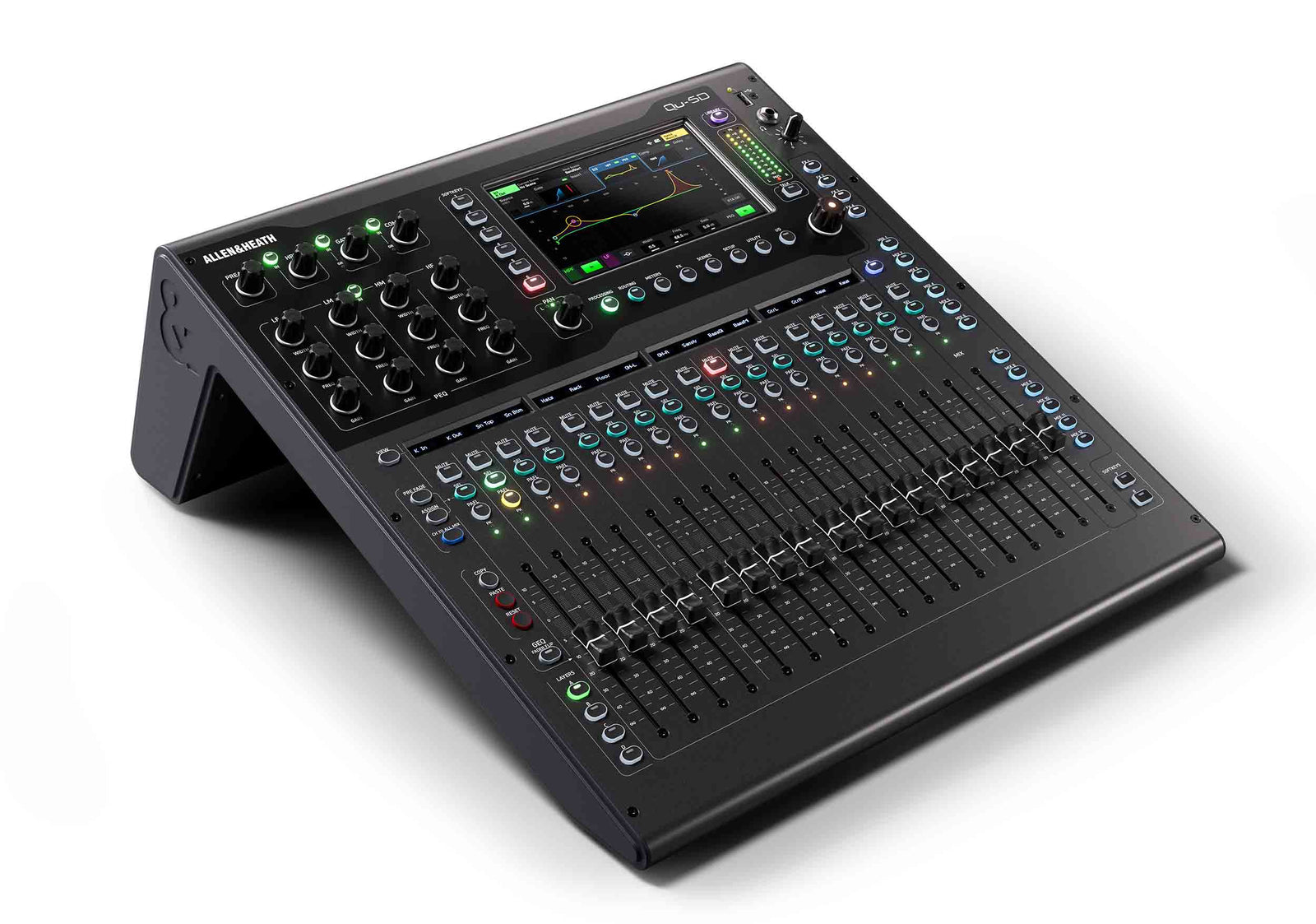

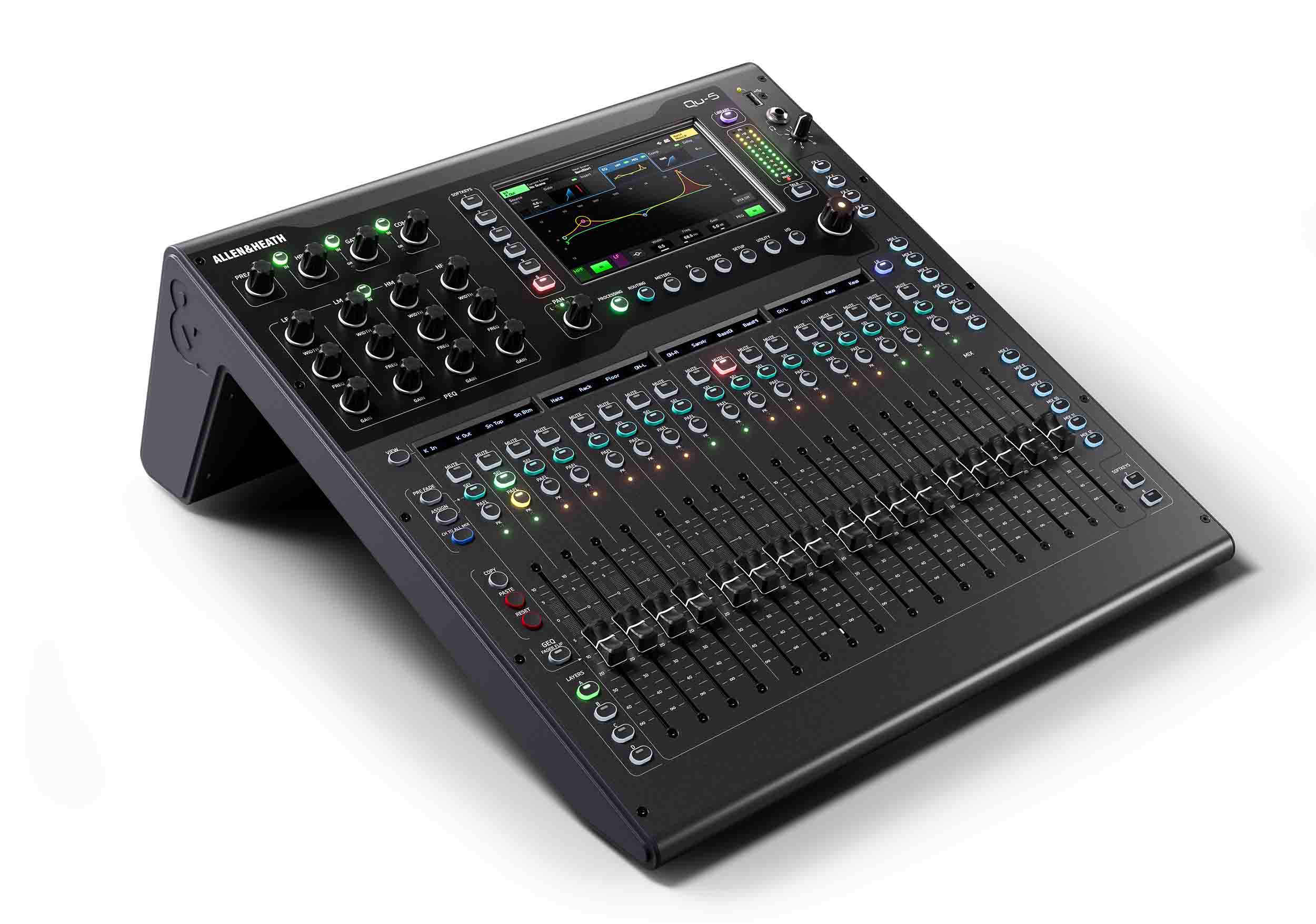

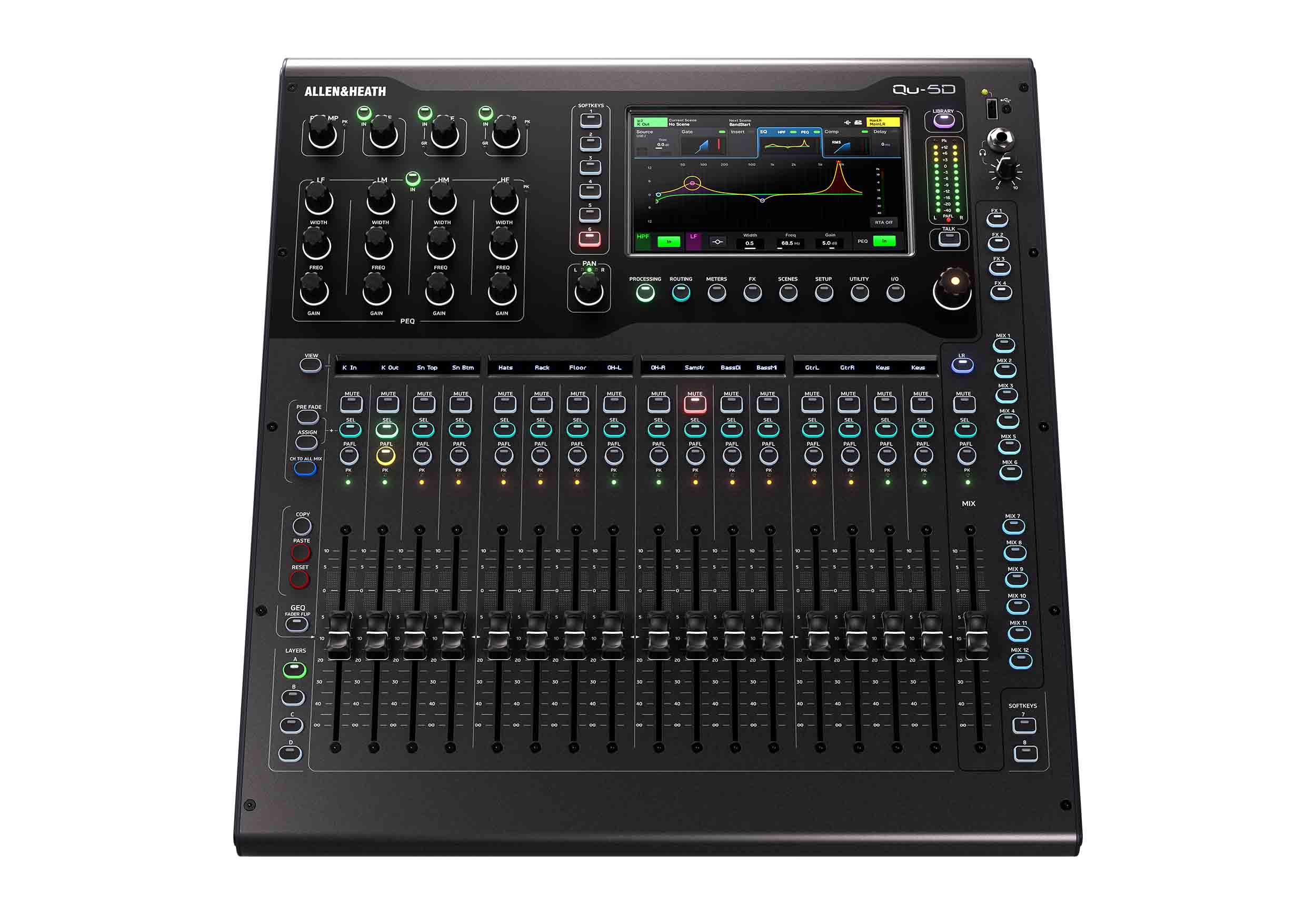

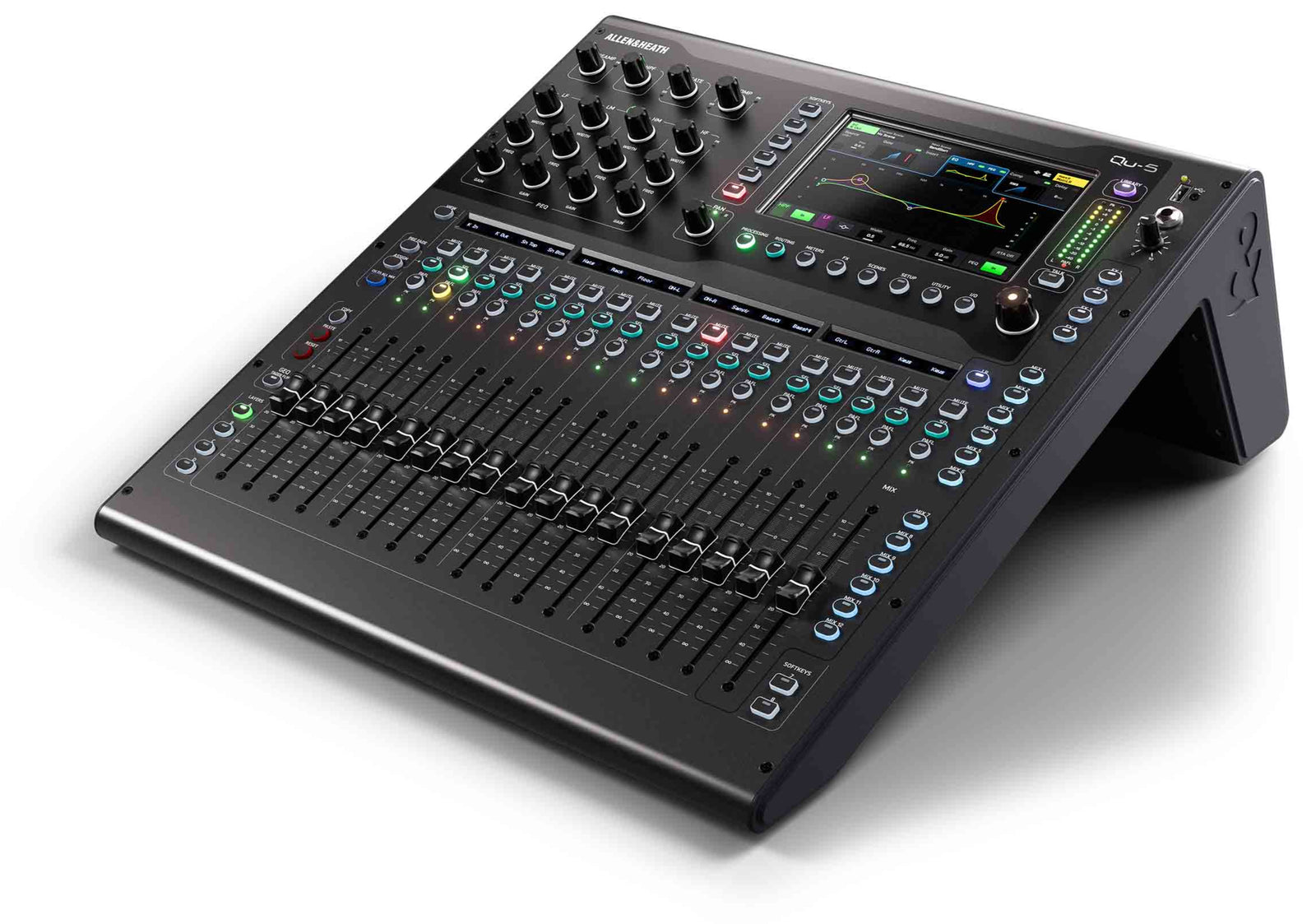

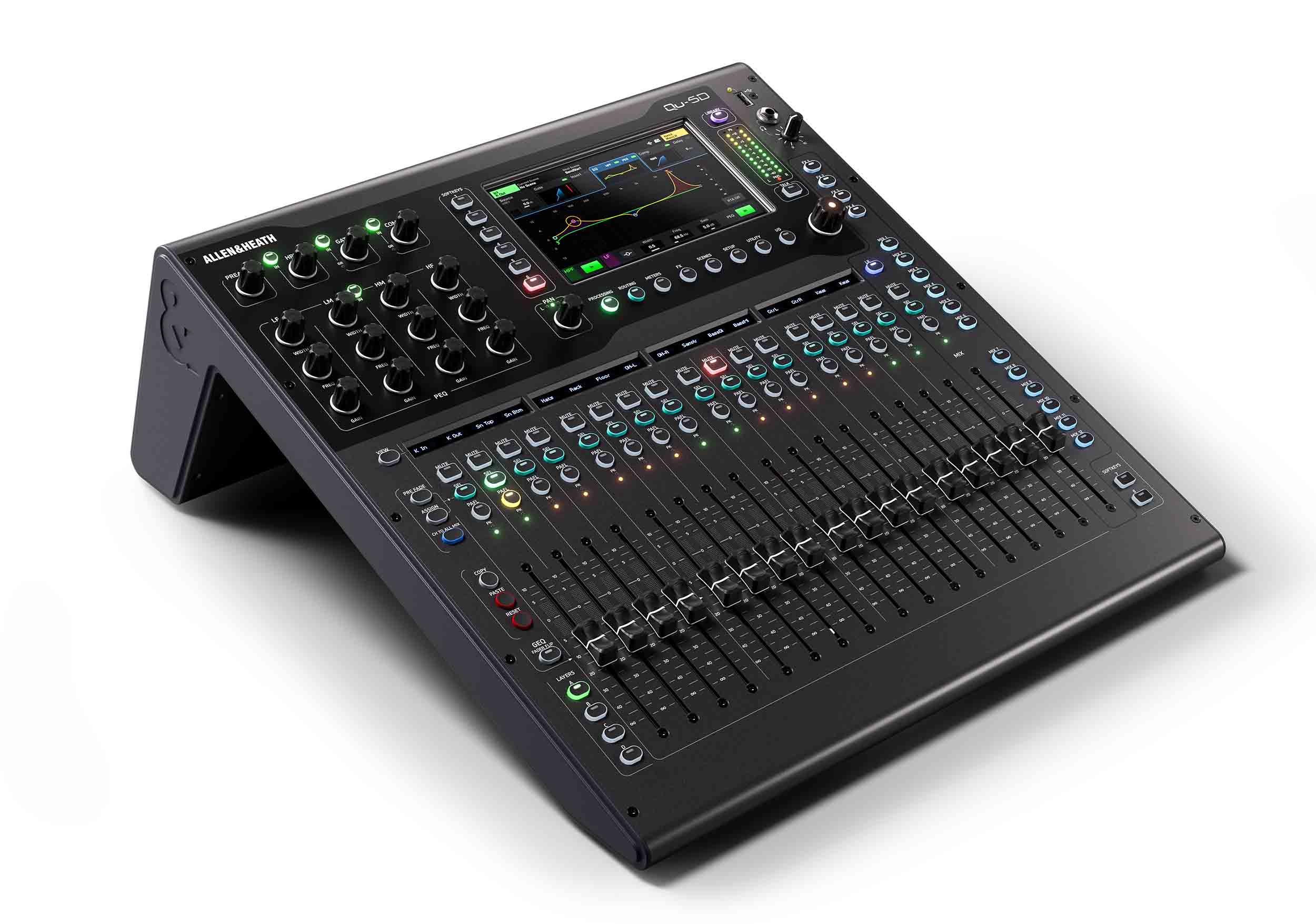

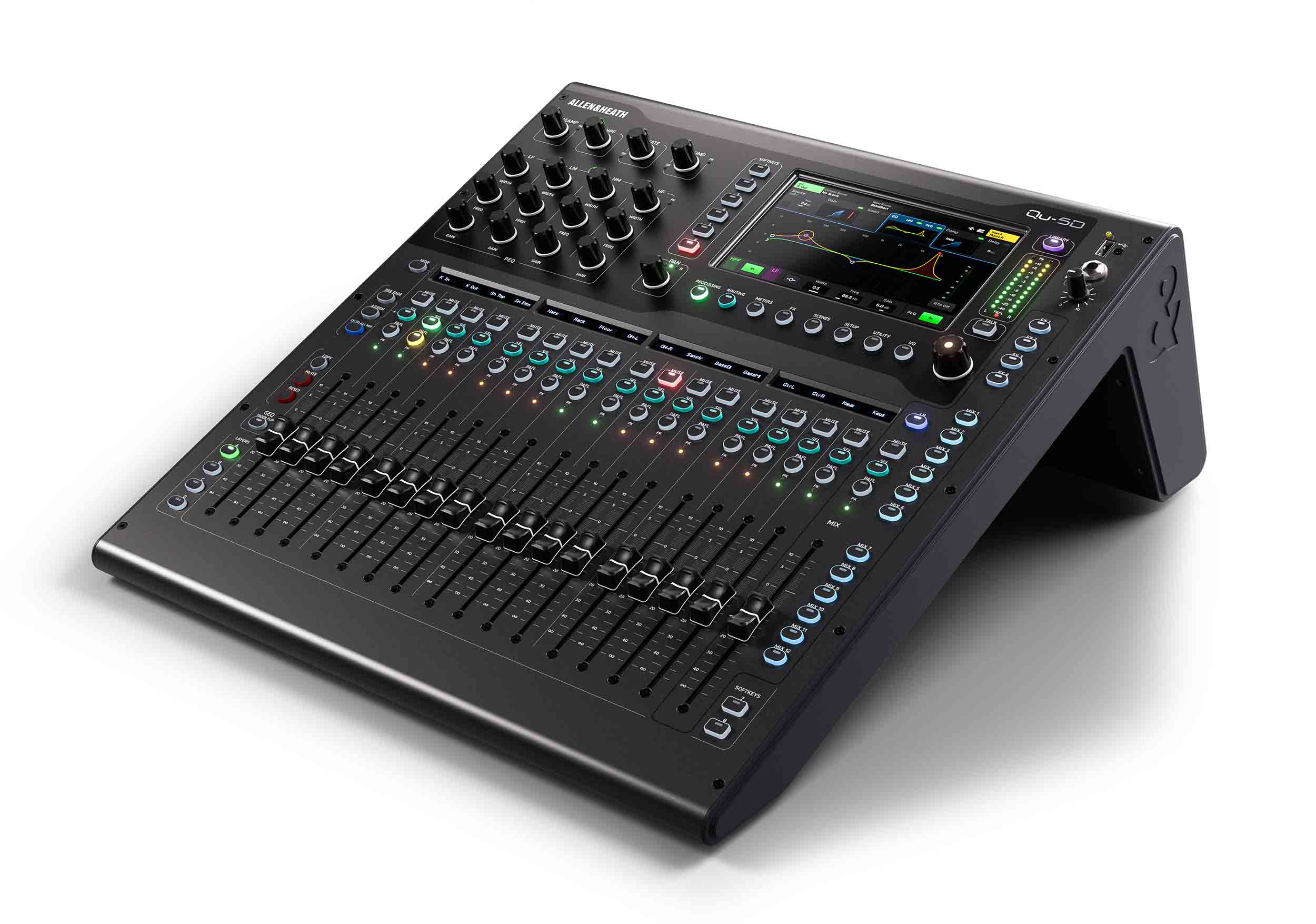

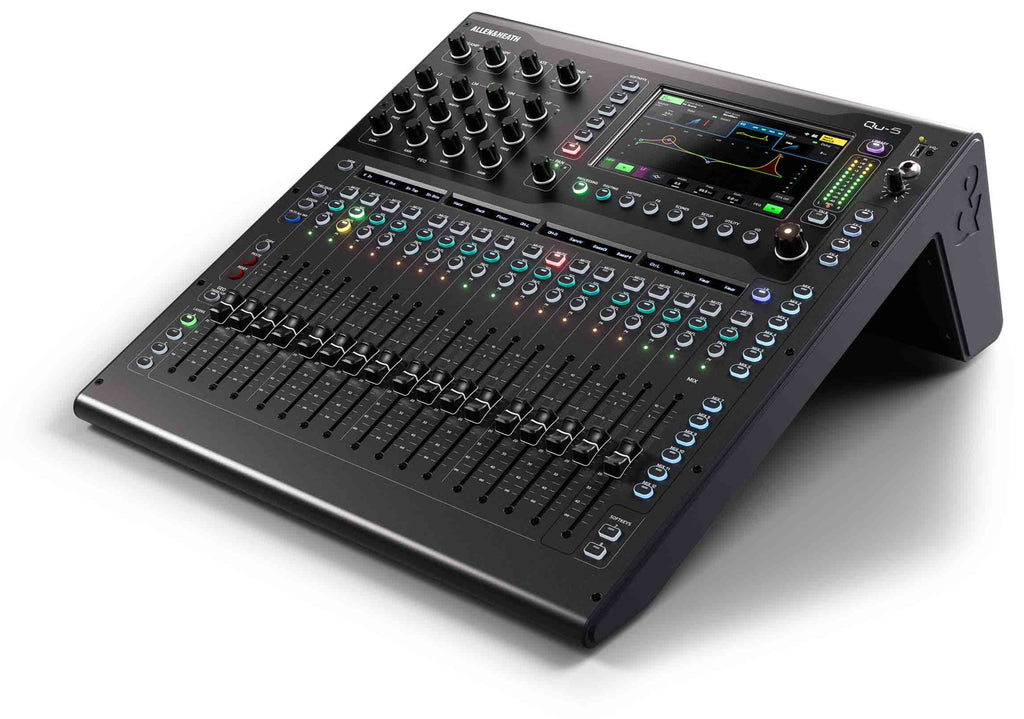

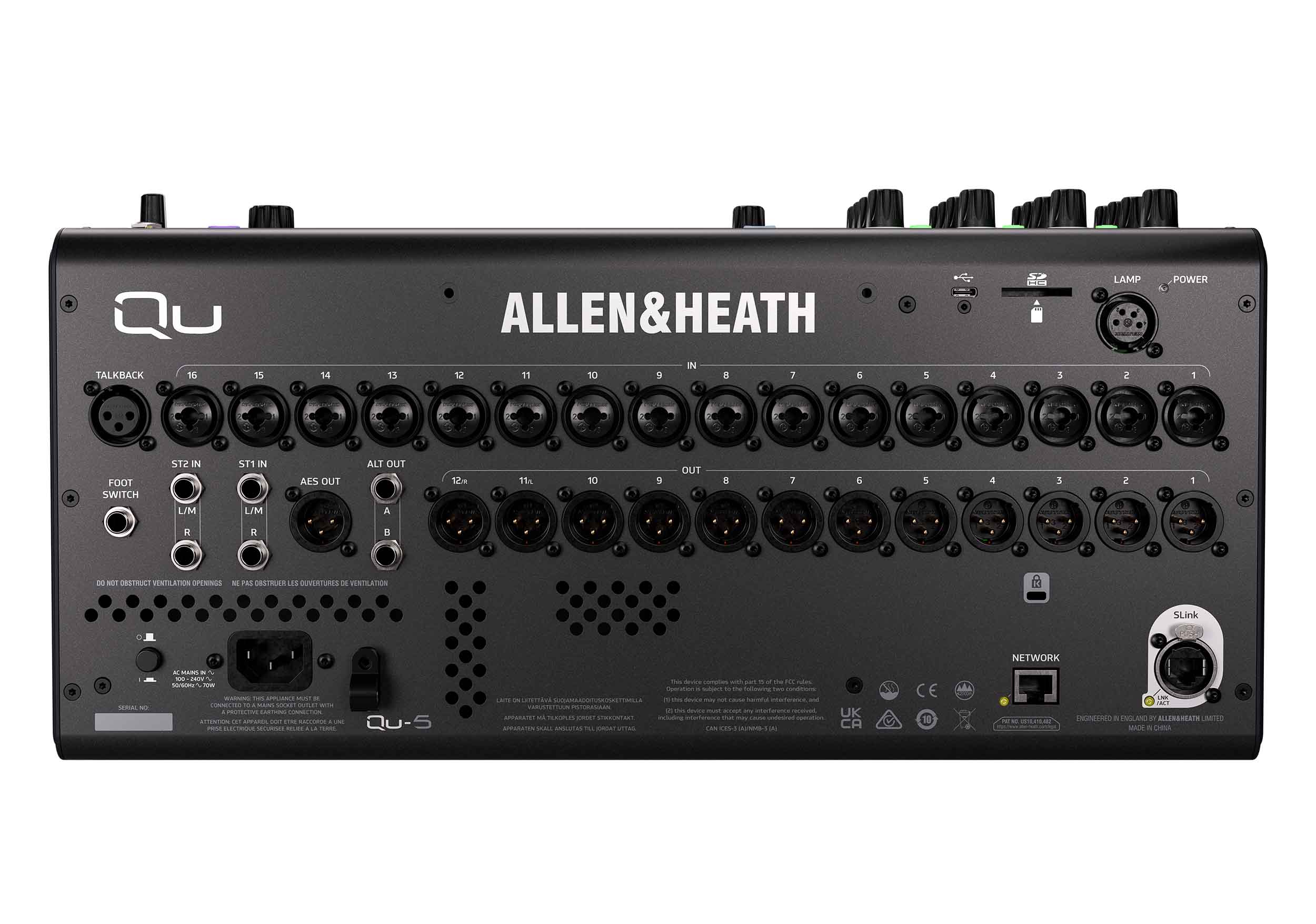

Allen & Heath Qu-5/Qu-5D Digital Mixer 38 Input / 24 output - 96kHz XCVI Core

The Allen & Heath Qu-5D is a powerful evolution of the Qu series, enhanced with a built-in 16×16 Dante interface for seamless integration into complex audio networks. Engineered around a 96kHz XCVI core, the Qu-5D delivers pristine audio quality, DEEP Processing readiness, and flexible connectivity - making it ideal for installations, live sound, and professional productions requiring high channel counts and Dante compatibility.

Retaining the user-friendly form factor of the original Qu series, Qu-5D introduces hardware upgrades such as updated mic preamps, high-quality 96kHz AD/DA converters, and a redesigned touchscreen interface with chromatic channel meters. It also features a customizable 4-layer fader layout, expanded SoftKeys, and modern workflow enhancements to meet the needs of fast-paced audio environments.

With the addition of the 16×16 Dante interface, the Qu-5D can easily connect to existing Dante networks, ensuring efficient signal routing in large-scale setups. The console supports multitrack recording/playback via USB-C, USB-A, and SD card, and features built-in tools like Gain Assistant and Feedback Assistant for optimized performance and quick setup.

For users requiring world-class processing and Dante integration in a compact format, the Qu-5D is a future-ready solution.

Product Specifications:

Processing Core: 96kHz XCVI Core

Total Inputs to Mix: 38 (32 mono/linkable, 3 stereo)

Mix Outputs: 12 (6 mono/linkable aux/group, 6 stereo aux/group)

Matrix Outputs: 4 mono/linkable

Main Output: Stereo LR

FX Engines: 6 multi-FX engines with dedicated stereo returns

DEEP Processing: Supported

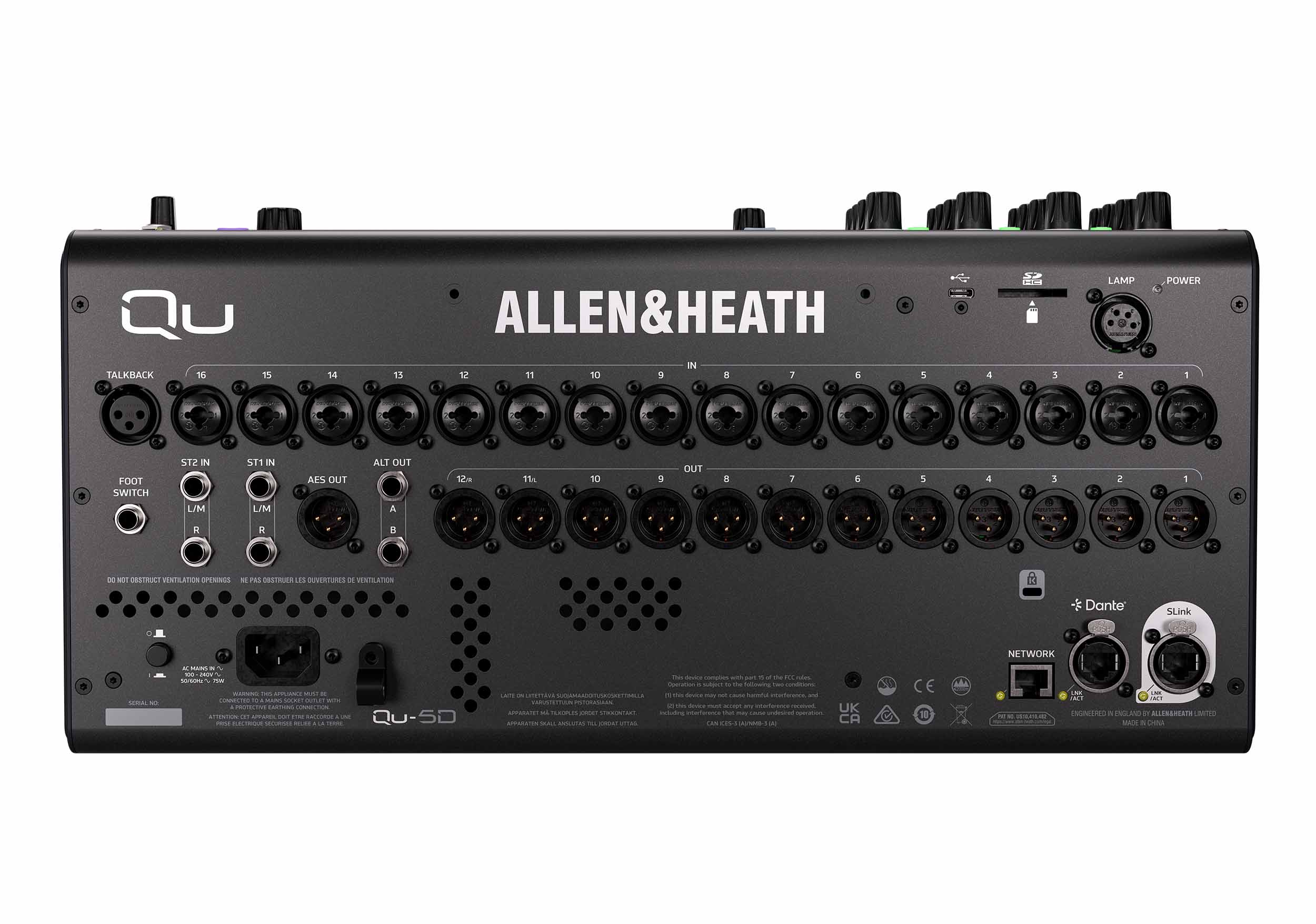

Mic/Line Inputs: 16 XLR/Jack ‘Combi’ sockets

Stereo Line Inputs: 2 (each 2x TRS)

Analog Outputs: 12 XLR + 2 TRS

Digital Output: 1 AES3 stereo

Headphone Output: Stereo

Talkback Input: 1 XLR socket

Metering: Configurable chromatic channel LED meters

Remote Control: Supported via apps for Windows, macOS, iOS, Android

Networking/Expansion: 128×128 SLink Port for remote I/O and system expansion

Recording & Playback:

USB-A for stereo record/playback

USB-C 32×32 computer interface

SD Card Slot: 16×16 @96kHz or 32×32 @48kHz multitrack

Faders: 17 motorised 100mm

Touchscreen: 7” capacitive touchscreen

Layers: 4 user-assignable channel layers

SoftKeys: 8 programmable

Footswitch: Single/Dual configurable footswitch input

AMM (Automatic Mic Mixer): 32 channels

Mounting: 19” rack-mountable (with optional kit)

Lamp Socket: 12V

Dante Interface: 16×16 channels at 48/96kHz with locking EtherCon
