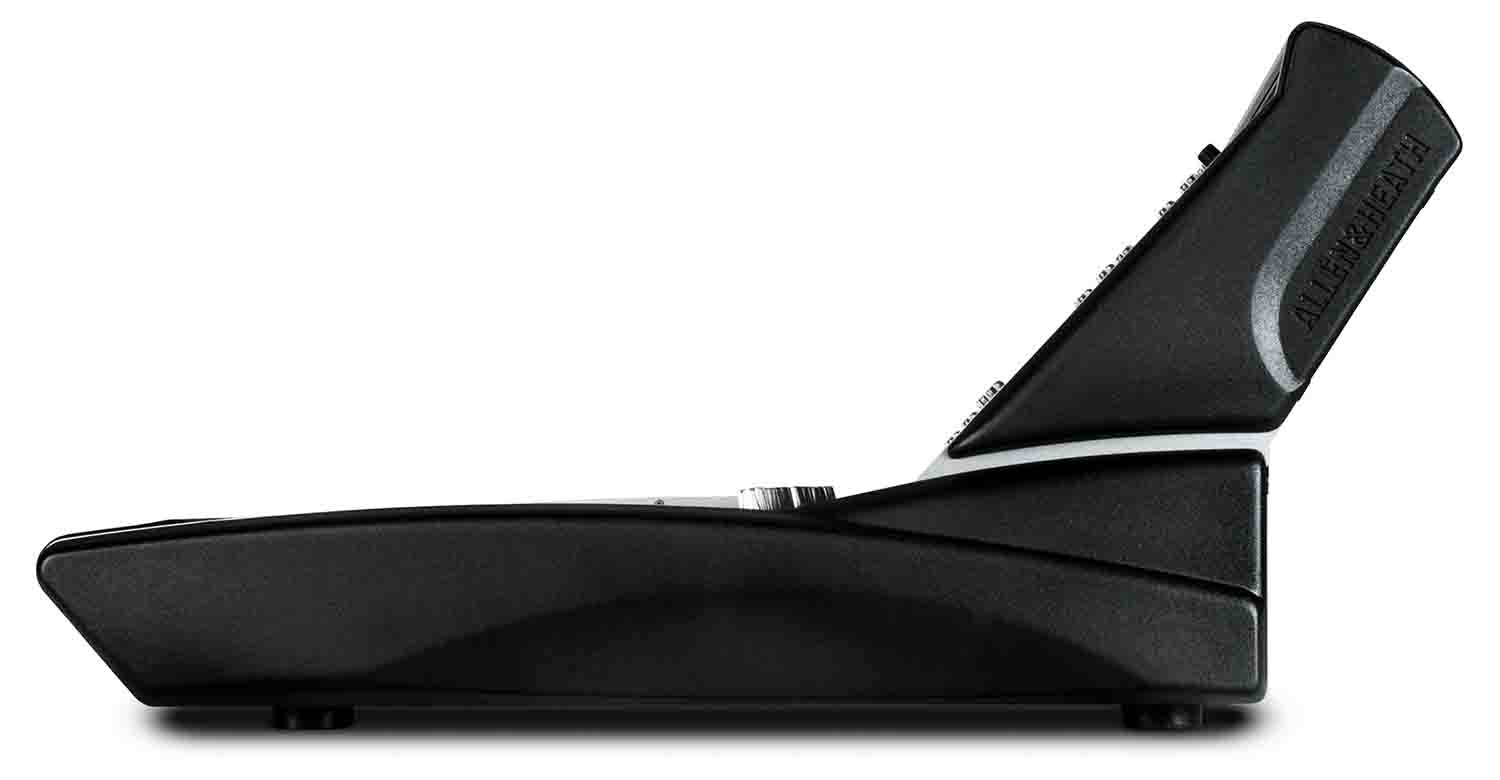

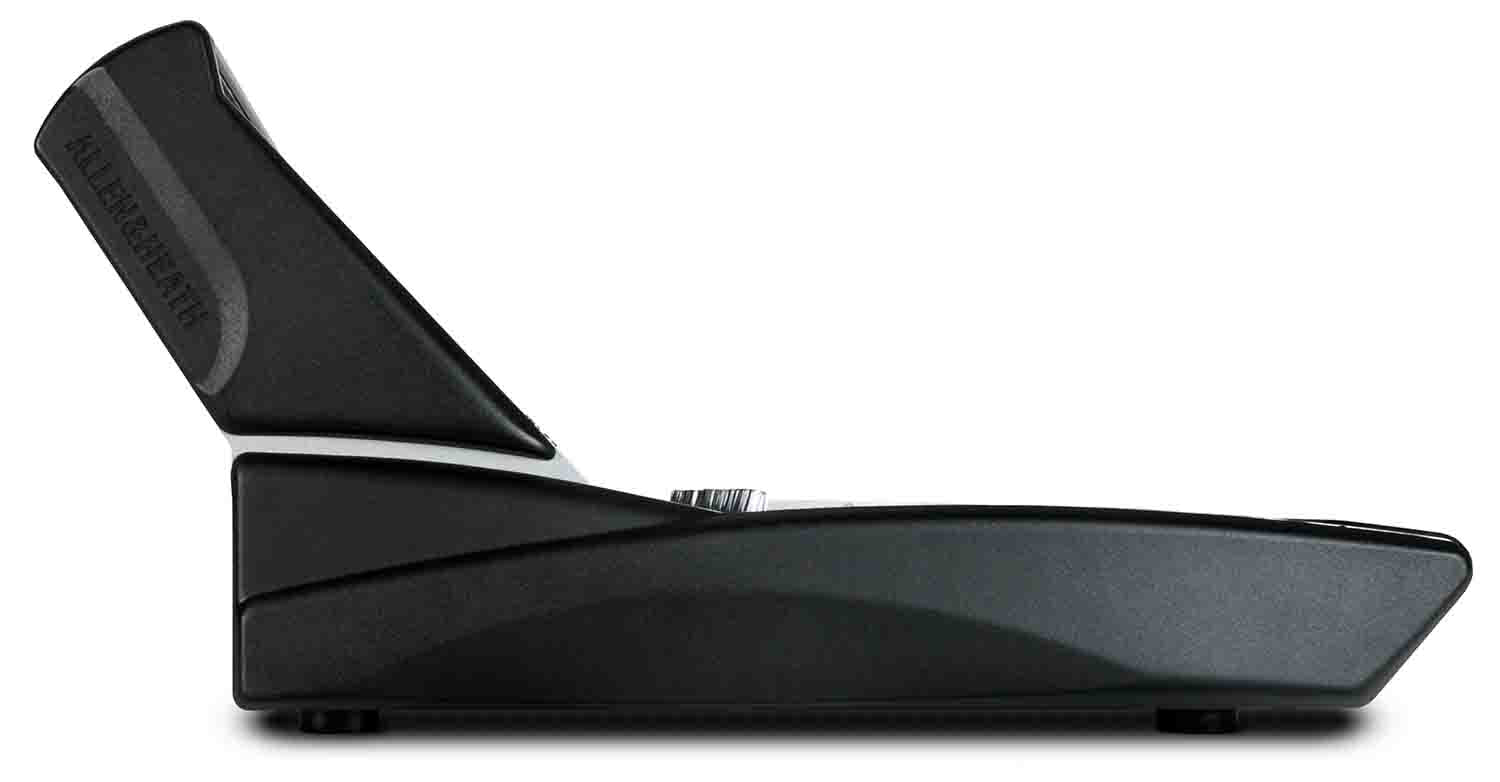

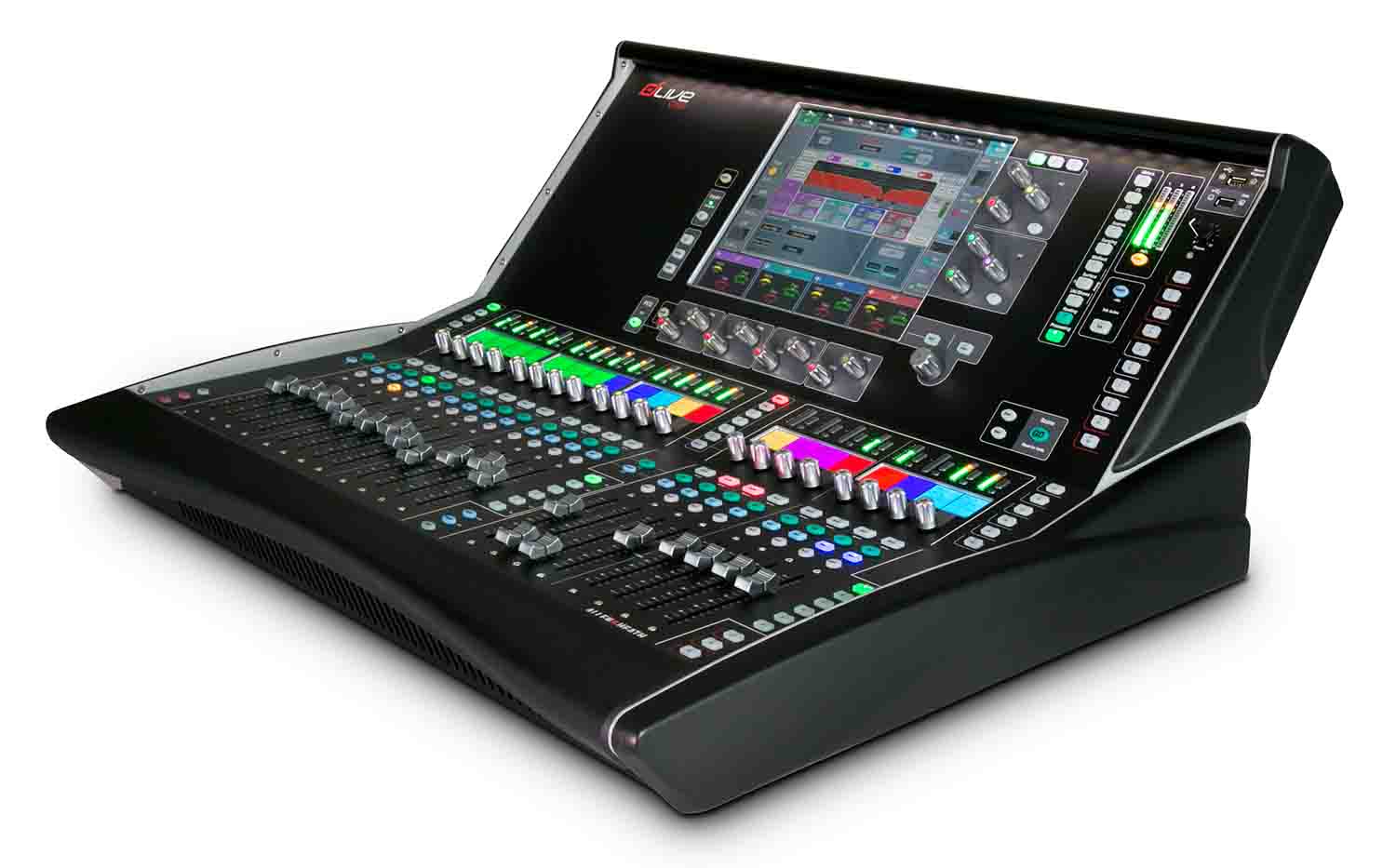

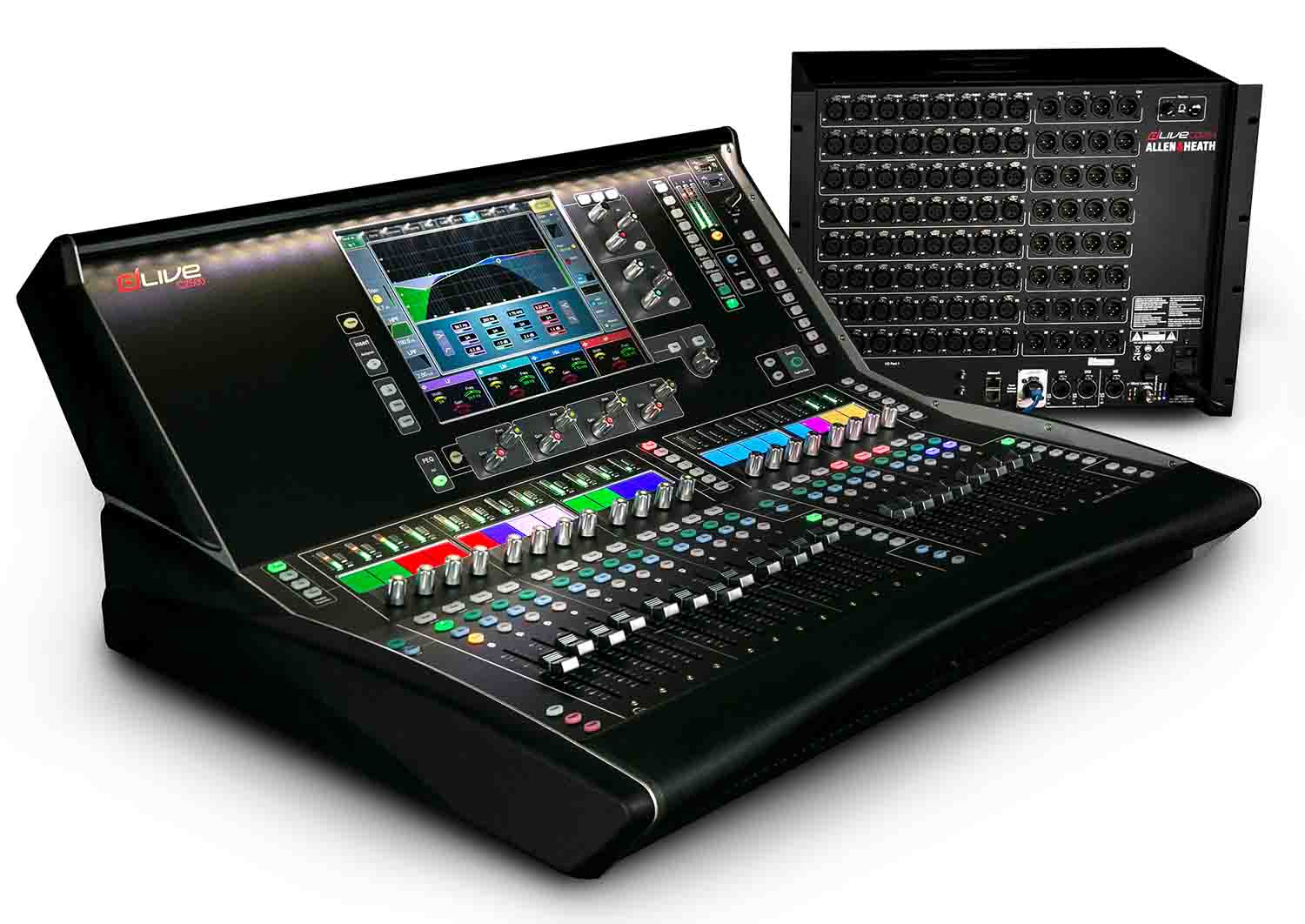

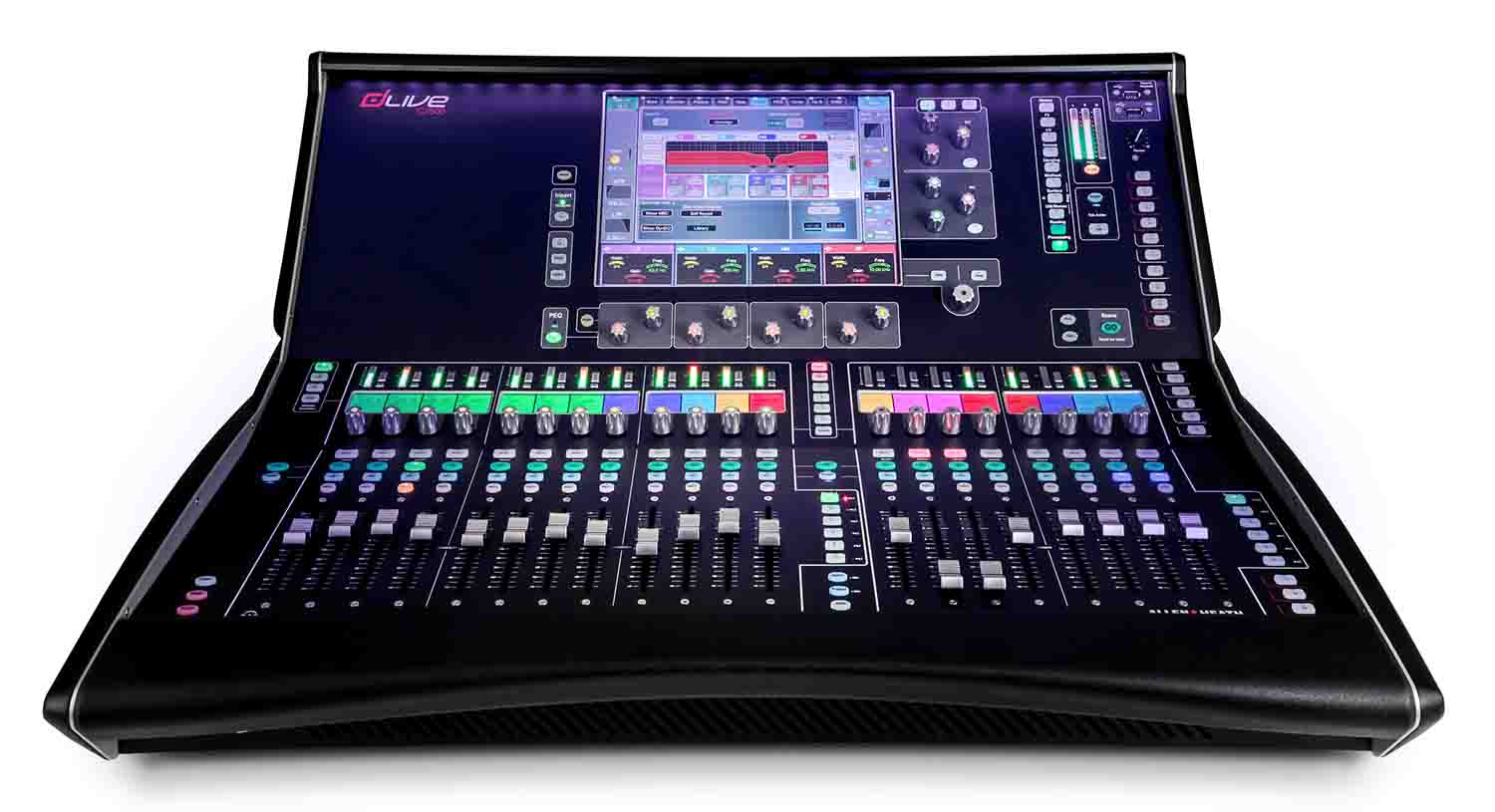

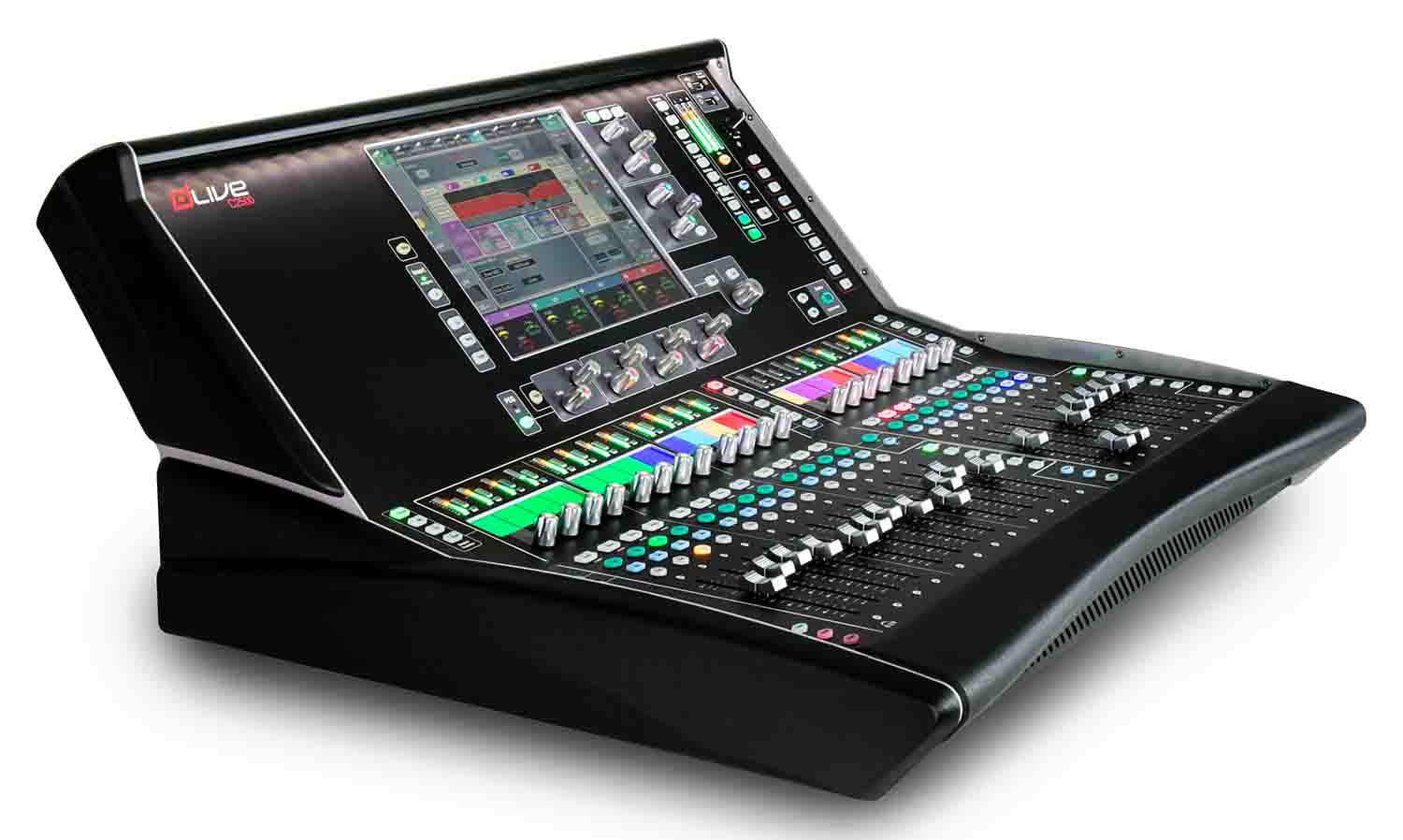

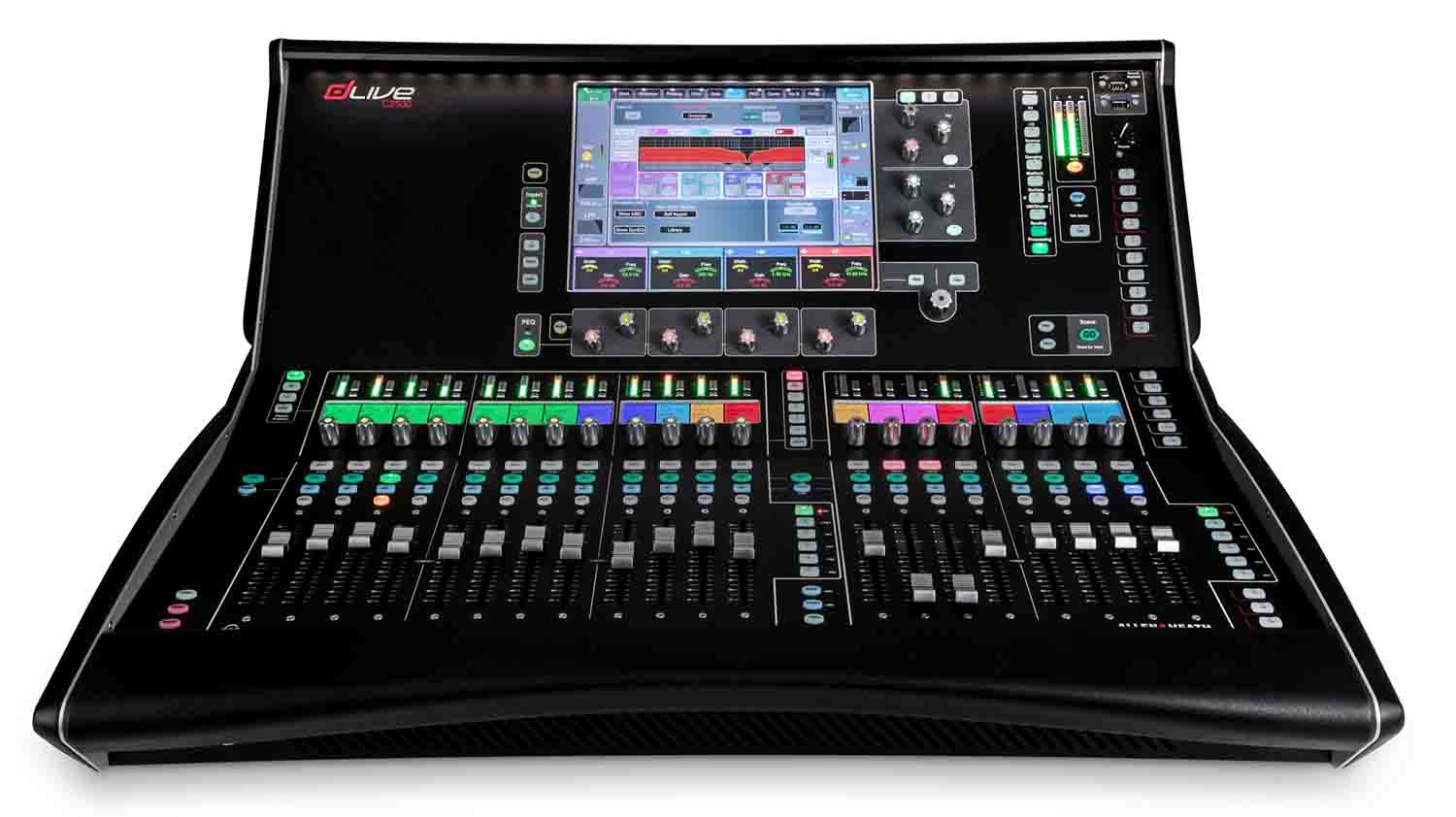

Allen & Heath dLive C2500 20 Fader Control Surface for MixRack

The Allen & Heath dLive C2500 20 Fader Control Surface for MixRack. The C2500 is a small-footprint yet powerful control Surface for the dLive MixRack. It features 20 faders over 6 layers, built-in audio I/O, an audio networking port, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

Harmony User Interface

Where many digital consoles are still trying to recreate the experience of using an analogue mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. C2500’s 12” capacitive touchscreen feels instantly familiar, responding to every pinch, swipe, drag and drop exactly how you’d expect them to. Bespoke ‘widget’ areas can also be set up on the screen to keep track of scenes, meters, FX and other custom controls. The screen is complemented by a set of rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen. The high-grip rotary knobs offer precision control, and feature RGB illumination, with colours mapped to functions for instant

Transparent Workflow

C2500’s layout is fully customisable, allowing the user to create a mixing interface that reflects their own mental map of the show, or for an installer to set up the surface to match the venue and the experience levels of the operators. Throughout the dLive journey our guiding aim has been to create fast and transparent workflows that allow the operator to focus on the mix, not the mixer. Every input or mix can be assigned to any and every bank and / or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and there are 19 assignable SoftKeys, plus 3 pages of 6 assignable rotaries.

Product Specifications:

Type: dLive Control Surface

Channels: 20 channel faders with 6 layers

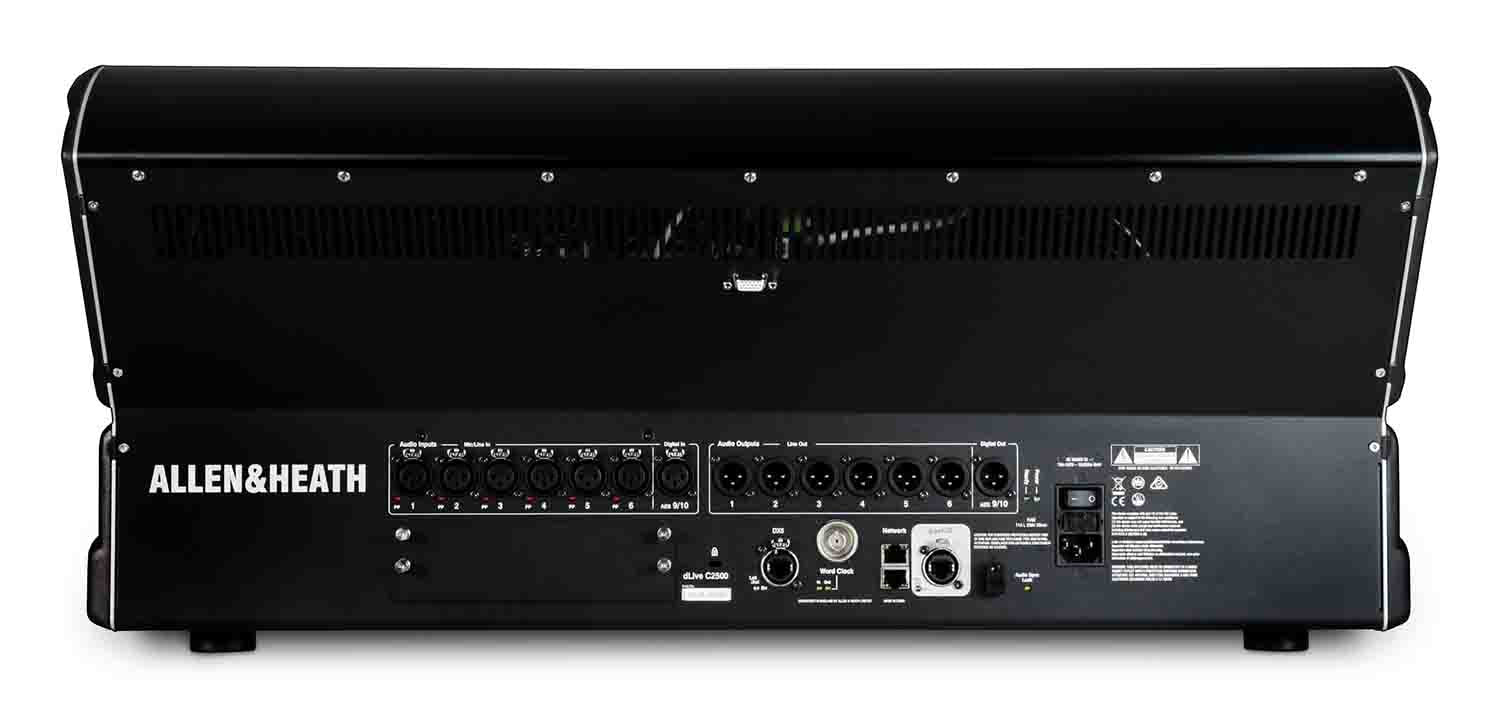

Inputs - Mic Preamps: 6 x XLR (mic/line)

Phantom Power: 6 channels

Outputs - Main: 6 x XLR

Outputs - Digital: 1 x XLR (AES3)

Headphones: 1 x 1/4", 1 x 1/8"

USB: 2 x Type A

Computer Connectivity: USB (2 x 2)

I/O Expansion Slots: 1 x Expansion slot (iLive/GLD option cards)

Word Clock: 1 x BNC In/Out

Faders: 20 x motorized faders

EQ Bands: 4-band parametric, graphic EQ

Effects: 16 RackExtra FX

Features: Touch screen features pinch, swipe, drag'n drop gestures, 19 assignable soft keys, video out

Screen: 12" touchscreen

Height: 12.8"

Depth: 26.2"

Width: 30.5"

Weight: 54 lbs.
