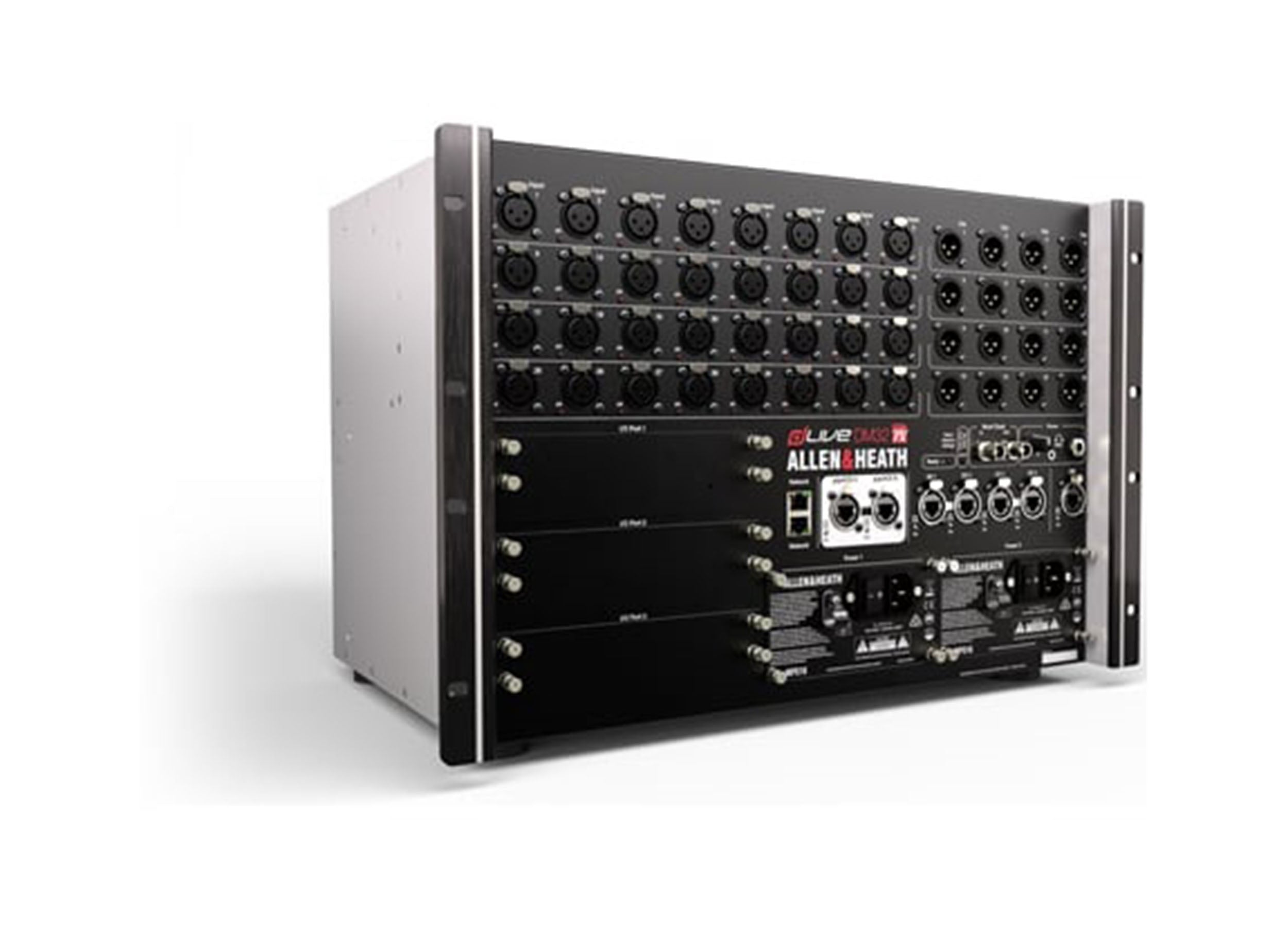

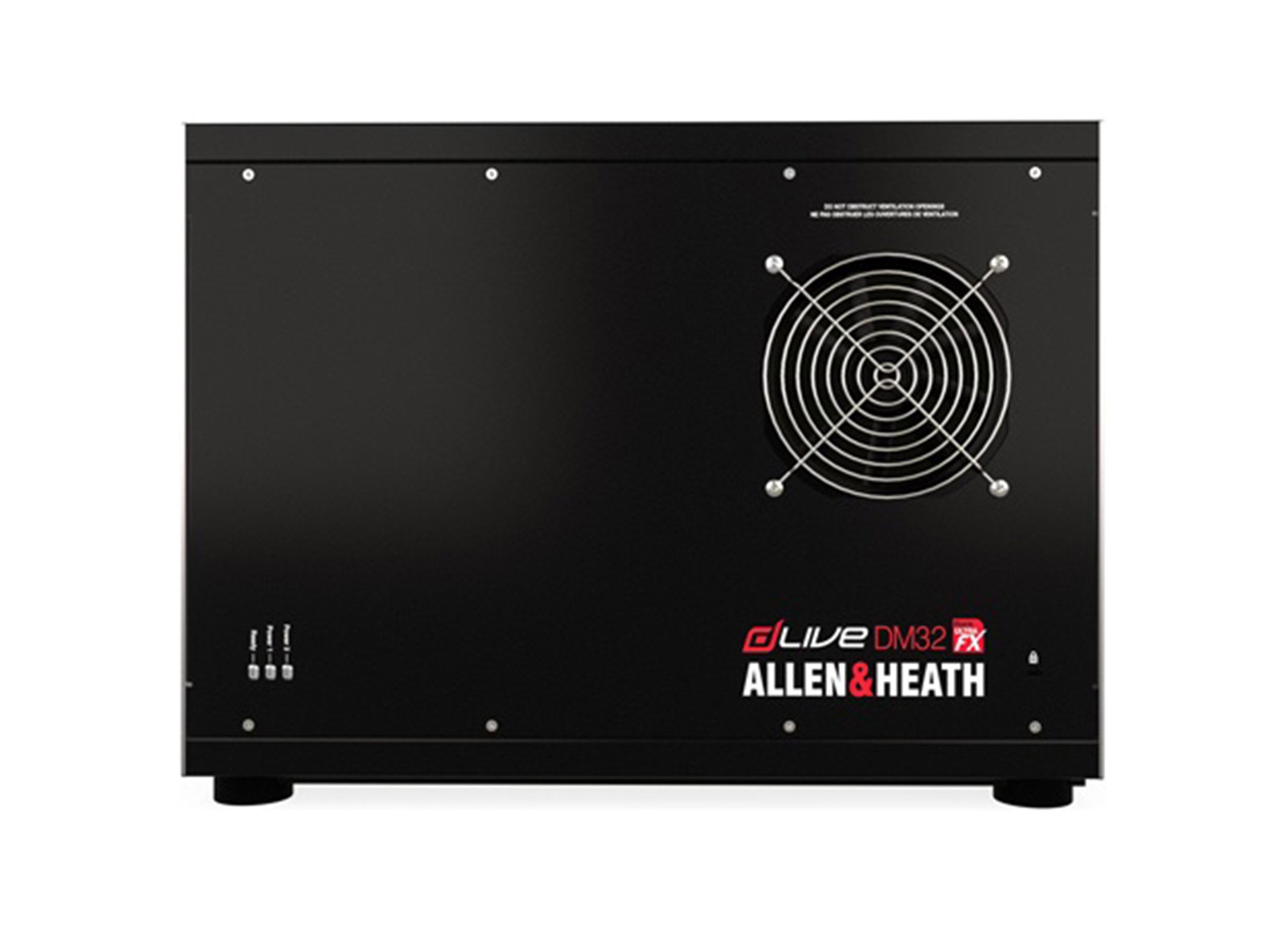

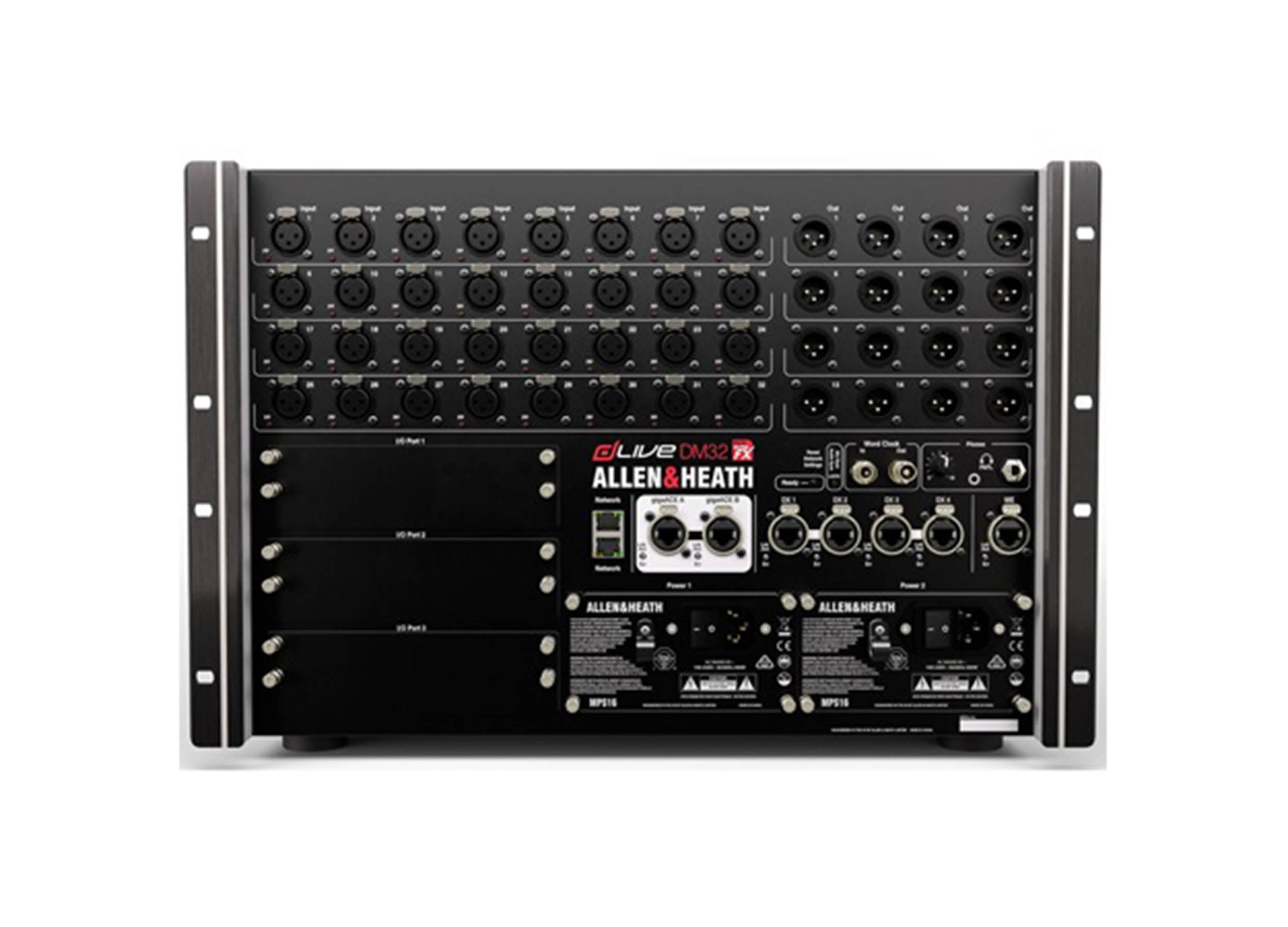

Allen & Heath DLIVE-DM32-RUFX MixRack Stage Box

The Allen & Heath DLIVE-DM32-RUFX MixRack Stage Box is a powerful and versatile stage box designed for the dLive system, the DM32-RUFX delivers cutting-edge performance with pristine audio quality and flexible connectivity. All dLive MixRacks feature the same mix engine - 128 input channels and 64 mix outputs with a configurable 64-bus architecture, class-leading 0.7ms latency and phase-aligned signal paths for maximum flexibility in all applications - but differ in the number of onboard analog I/O, redundancy options and digital I/O card slots.

Class-Leading Audio - Sound quality is at the core of dLive, and it all starts with the MixRack

Allen & Heath's acclaimed preamp design, optimised for transparency and clarity, combined with their unique Active PAD circuit for consistent performance regardless of source, delivers the highest quality analog signal to the MixRack's XCVI processing core.

In the digital domain, the 96kHz signal path employs variable bit depth throughout for optimal noise performance and precision with virtually infinite dynamic range thanks to the 96-bit accumulator.

RackUltra FX - Cutting Edge technology. Next-generation effects

The RackUltra FX collection, powered by the new RackUltra FX card, brings together a collection of 10 new algorithms that rival the most advanced plug-ins on the market.

This cutting-edge hardware enables a suite of advanced vocal tools, including Vocal Shifter for radical alterations, Vocal Tuner for natural pitch correction, and Vocal Gridder for snappy, modern pitch effects.

Beyond vocals, the RackUltra FX card offers Spaces Reverb Designer and Plate Reverb Designer for crafting stunning reverberation, a trio of Harmonisers for rich vocal layering, and powerful tone-shaping tools like the Saturator and Amp+Cab Distortion. These professional-grade effects bring unparalleled sonic versatility to dLive, empowering engineers across all genres to achieve studio-quality results in live settings.

Everything I/O - Scale Up Your System

Additional analog I/O can be easily added to a dLive system via their comprehensive range of 96kHz I/O expanders with multiple form factors provided to meet the demands of any application.

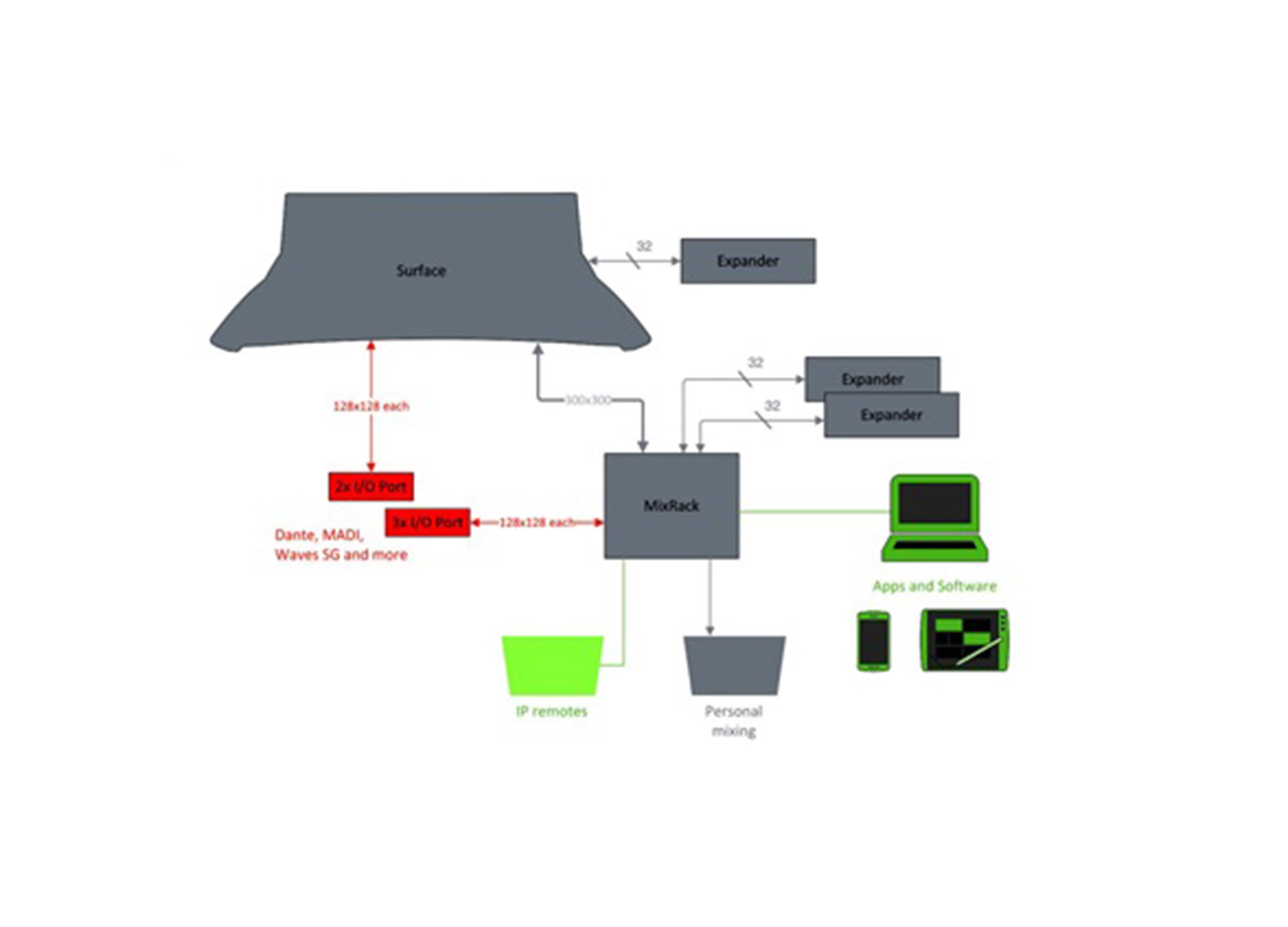

All dLive MixRacks include 2 DX ports, both capable of 32x32 channels of I/O expansion, with the ability to add more I/O via optional gigaACE or DX Link cards. Setup and configuration is quick and easy with plug-and-play connectivity and an ultra-low transport latency (8 samples).

Control - Surfaceless Mixing

One or more dLive Surfaces can be connected to a dLive MixRack for the hands-on control. However, if space is an issue, it is possible to run a dLive system with no Surface connected thanks to a range of control options.

Product Specifications:

Inputs:

Mic/Line XLR Inputs: Balanced XLR, +48V phantom power

Mic/Line Preamp: Fully recallable

Input Sensitivity: -60dBu - +15dBu

Analog Gain: +5dB - +60dB, 1dB steps

Pad: -20dB Active PAD

Maximum Input Level: +30dBu (PAD in)

Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)

Mic EIN: -127dB with 150Ω source

Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V

System:

Measured Balanced XLR in to XLR out, 20Hz - 20kHz, minimum Gain, Pad out, signal @ 0dB (meter)

Dynamic Range: 110dB

System Signal to Noise: -92dB

Frequency Response: 20Hz - 30kHz +0dB/-0.8dB

THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain

Headroom: +18dB

Internal Operating Level: 0dBu

dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)

Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)

Meter Peak indication: -3dBFS (+19dBu at XLR out)

Sampling Rate: 96kHz ±20 PPM

ADC: 24-bit Delta-Sigma

DAC: 24-bit Delta-Sigma

Latency:

-0.7ms (MixRack XLR in to XLR out, input to Mix)

+5 samples, Surface to Mixrack (GigaACE hop)

+8 samples, DX32 to Mixrack (DX hop)

Outputs:

Analog XLR Outputs: Balanced, Relay protected

Output Impedance: <75Ω

Nominal Output +4dBu= 0dB meter reading

DAC: 24-bit Delta-Sigma

Maximum Output Level: +22dBu

Residual Output Noise:

-92dBu (muted, 20Hz - 20kHz)

-90dBu (muted, 20Hz - 40kHz)

Power/Temperature:

Operating Temperature Range:

- Fitted with MPS16 V1 300W: 32°F - 95°F

- FItted with MPS16 V2 250W: 35°F - 104°F

Mains Power Consumption (MPS16):

- 300W Max (MPS16 V1 300W)

- 250W Max (MPS16 V2 250W)

Mains Voltage Operating Range: 100V - 240V AC, 50/60Hz

Item Includes:

1x Allen & Heath AH-DLIVE-DM32-RUFX dLive S Class RackUltra FX MixRack - 32x16 I/O/128x64 FPGA/ME-1 Port/Hot Swap PSU

Shipping Weigh: 40 lbs.

Shipping Dimensions: 17 x 24 x 21"
