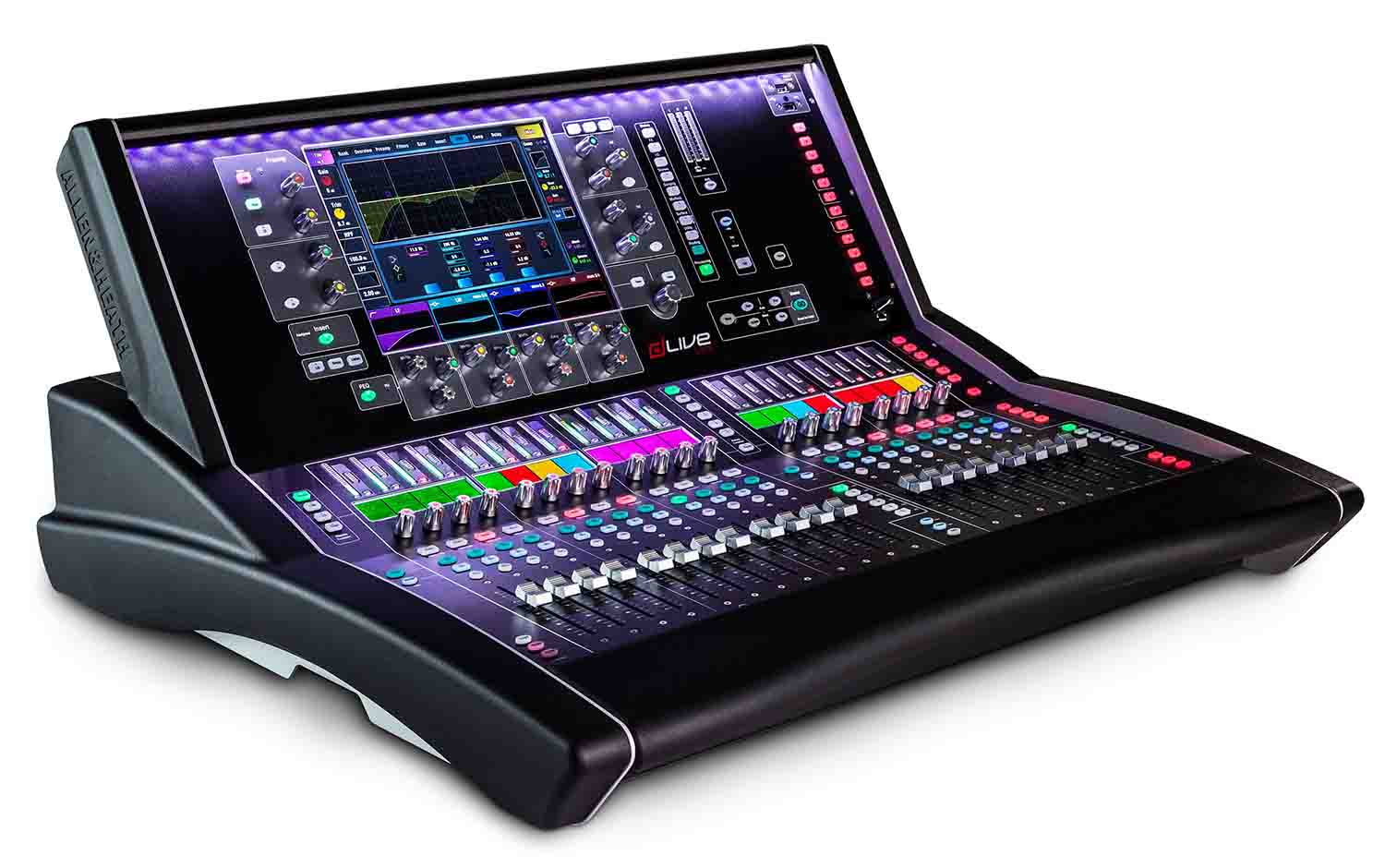

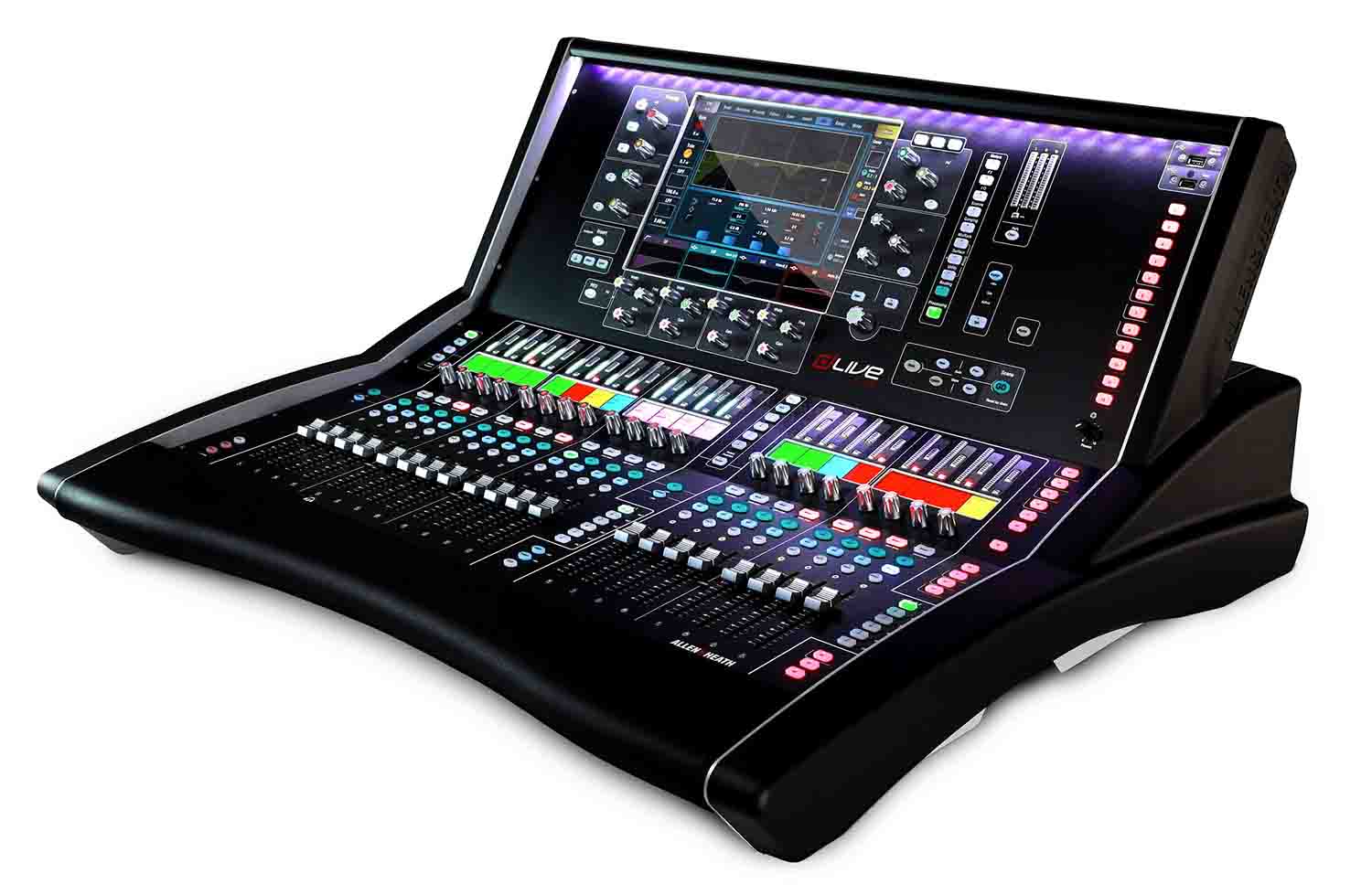

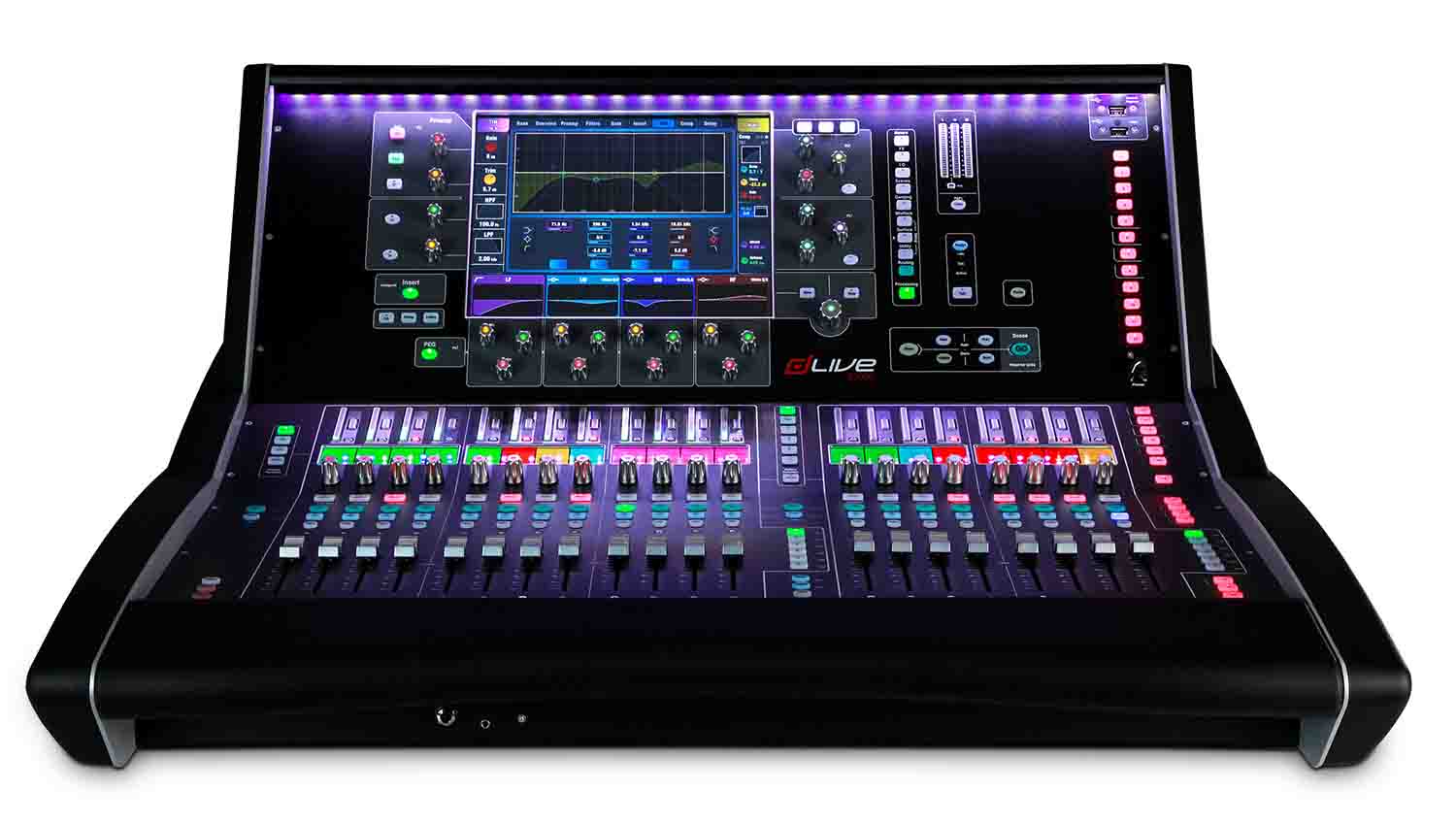

Allen & Heath dLive S3000 20 Fader Control Surface for MixRack

The Allen & Heath dLive S3000 20 Fader Control Surface for MixRack with the addition of built-in audio I/O and audio networking ports. It features 20 faders over 6 layers, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

Harmony User Interface

Where many digital consoles try to recreate the experience of using an analogue mixer, dLive is a true digital native, drawing on our familiarity with the ubiquitous smartphones and tablets that we all use without thinking. The single or twin 12” capacitive touchscreens on the dLive consoles feel instantly familiar, responding to every pinch, swipe, drag and drop exactly how you’d expect them to. Bespoke ‘widget’ areas can also be set up on the screens to keep track of scenes, meters, FX and other custom controls.

Transparent Workflow

As systems become ever more complex and as I/O counts grow exponentially, engineers can find themselves feeling increasingly removed from the action on stage as they are drawn more and more into managing the arsenal of technologies at their disposal. Throughout the dLive design process our guiding aim has been to create fast and transparent workflows that allow the engineer to focus on the mix, not the mixer. The dLive layout is fully customisable, allowing the user to create a mixing interface that matches their own mental map of the show.

Built to Endure

Maybe it’s no coincidence that our lead mechanical designer on the dLive project used to be a tank commander. All dLive consoles have been designed to deliver the optimal balance between strength and weight, employing higher grade metal on the sides and folded steel at key points for added rigidity. Not only does every console, MixRack and expander have dual power supply slots for redundancy, but we’ve also employed the same rugged, hot-swappable PSU design across the range for maximum peace of mind and minimum inventory.

Product Specifications:

Type: Digital Console

Channels: 20 channel faders with 6 layers

Inputs - Mic Preamps: 8 x XLR

Phantom Power: 8

Outputs - Other: 8 x XLR (line level)

Inputs - Digital: 2 x XLR (AES3)

Outputs - Digital: 3 x XLR (AES3)

USB: 3 x USB Type A

Computer Connectivity: Ethernet, USB

Word Clock:  n, Out

Faders: 20 x motorized faders

EQ Bands: 4-band parametric EQ

Effects: 16 RackFX

Height: 16.3"

Depth: 28.7"

Width: 34.3"

Weight: 62 lbs.
