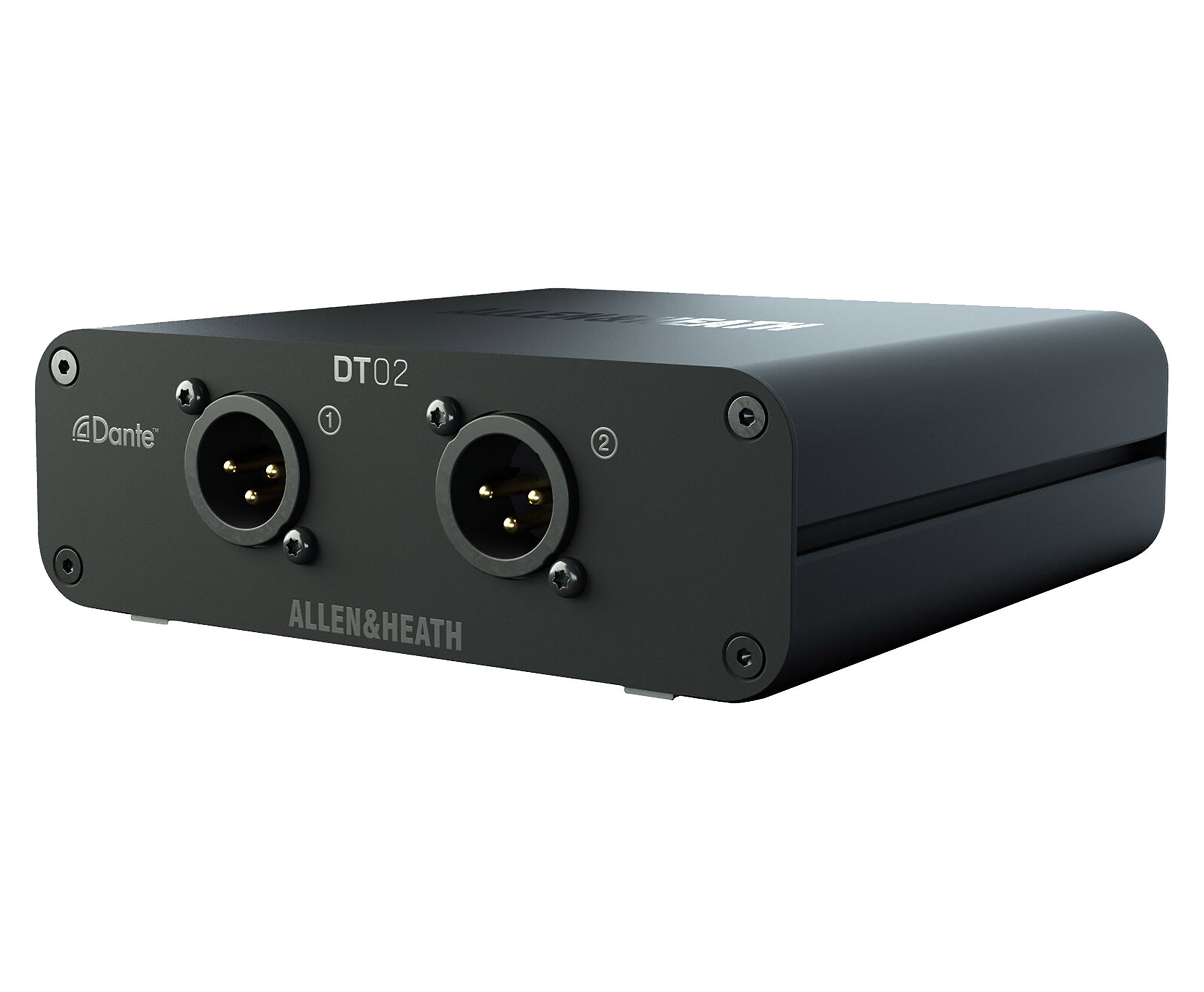

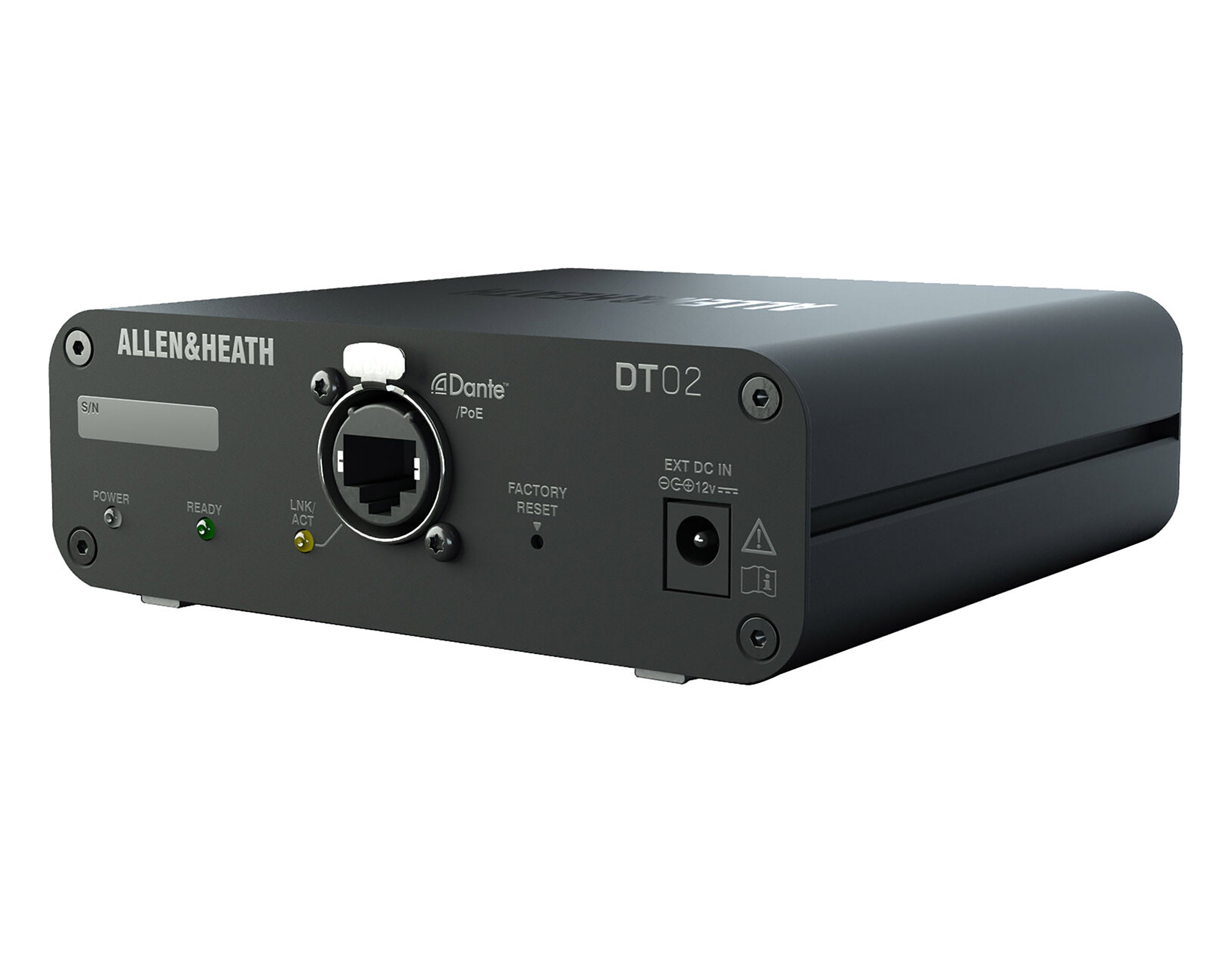

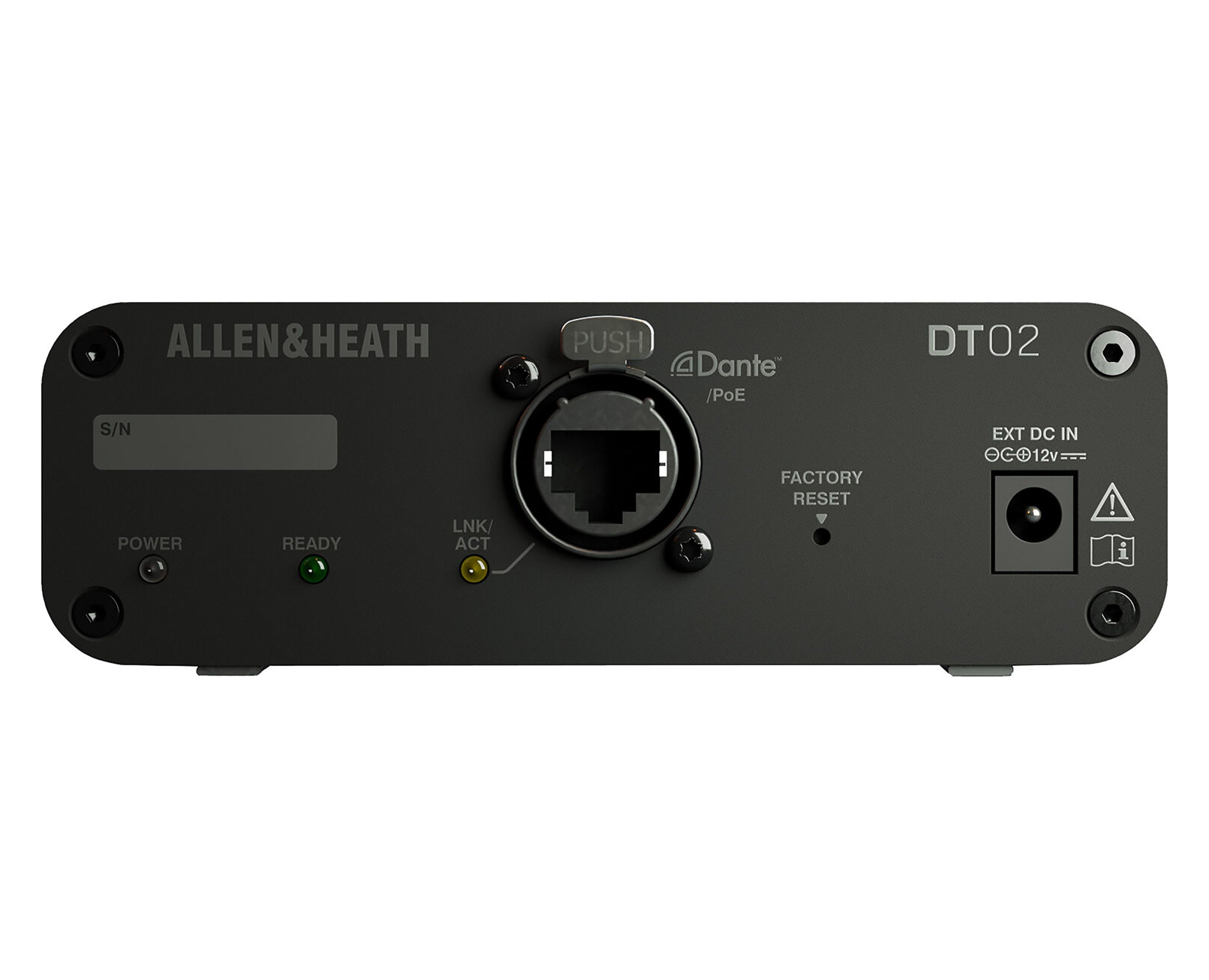

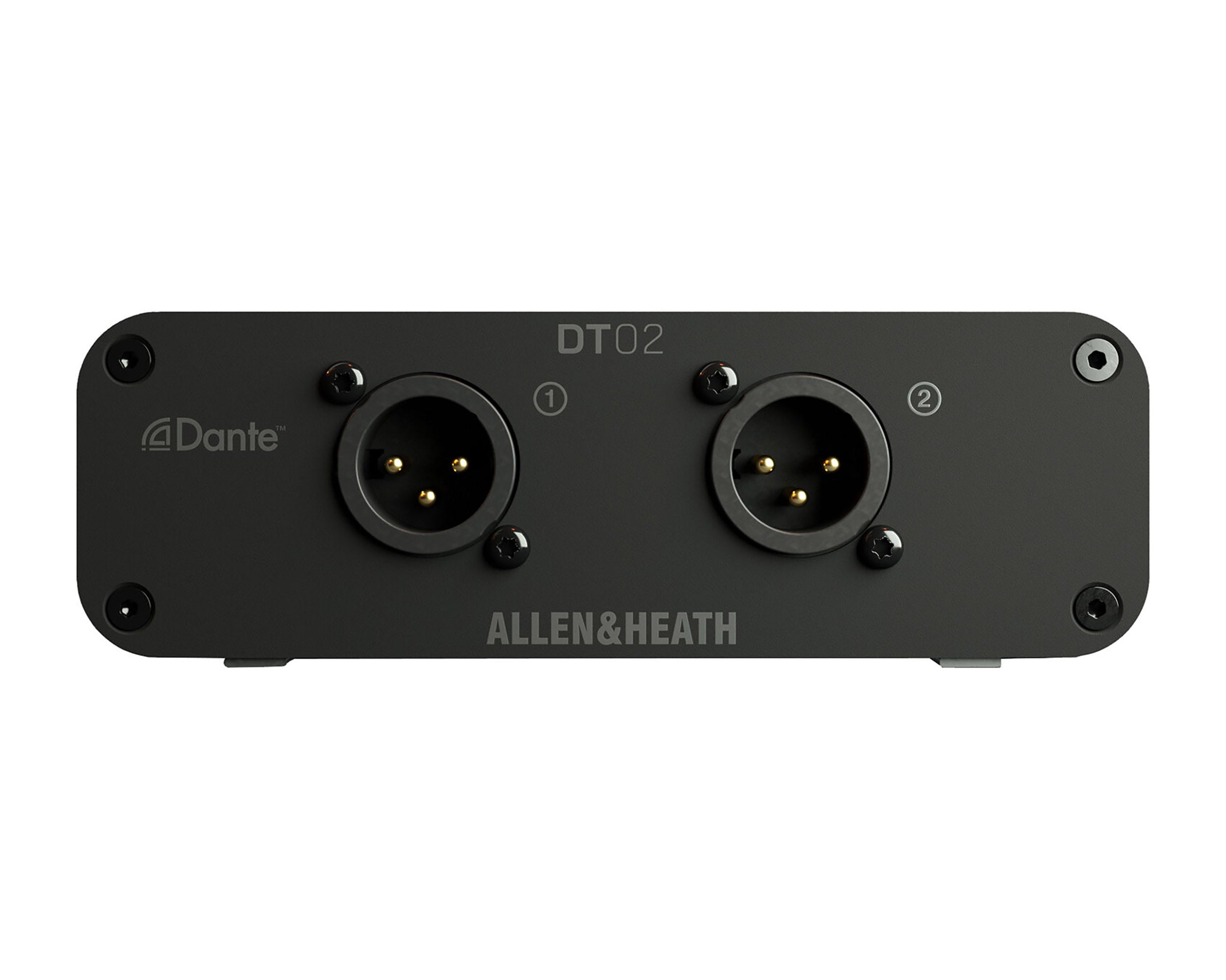

Allen & Heath DT02-X Output Expander with Power Supply and Rubber Feet

The Allen & Heath DT02 is a Output Expander with XLR, PoE or DC, Power Supply & Rubber Feet. The compact and portable DT02 converts two channels of Dante audio to a pair of XLR line-outputs, enabling simple break-out to analogue equipped hardware for install and live applications.

Dante Output Interface - 2 Out

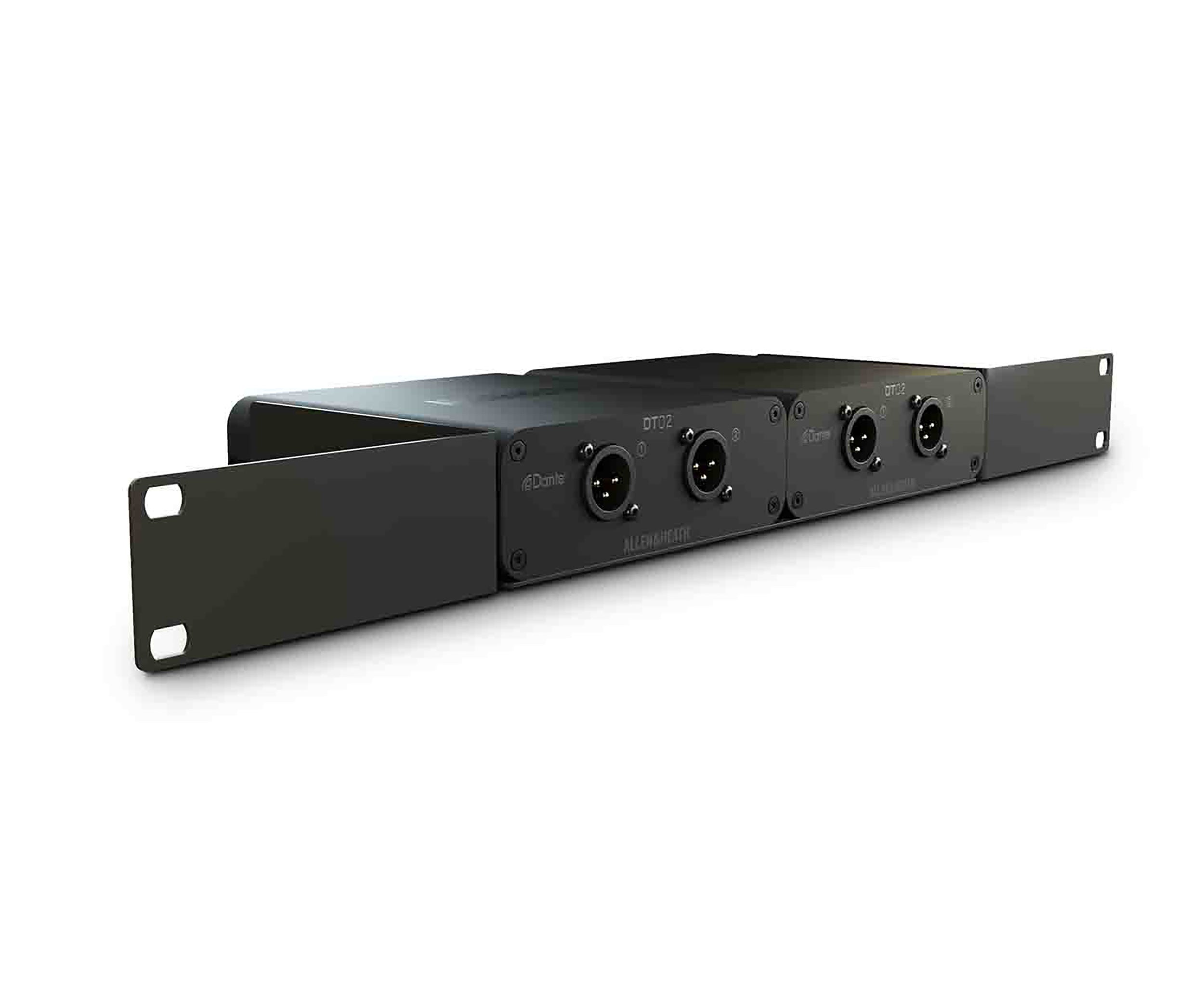

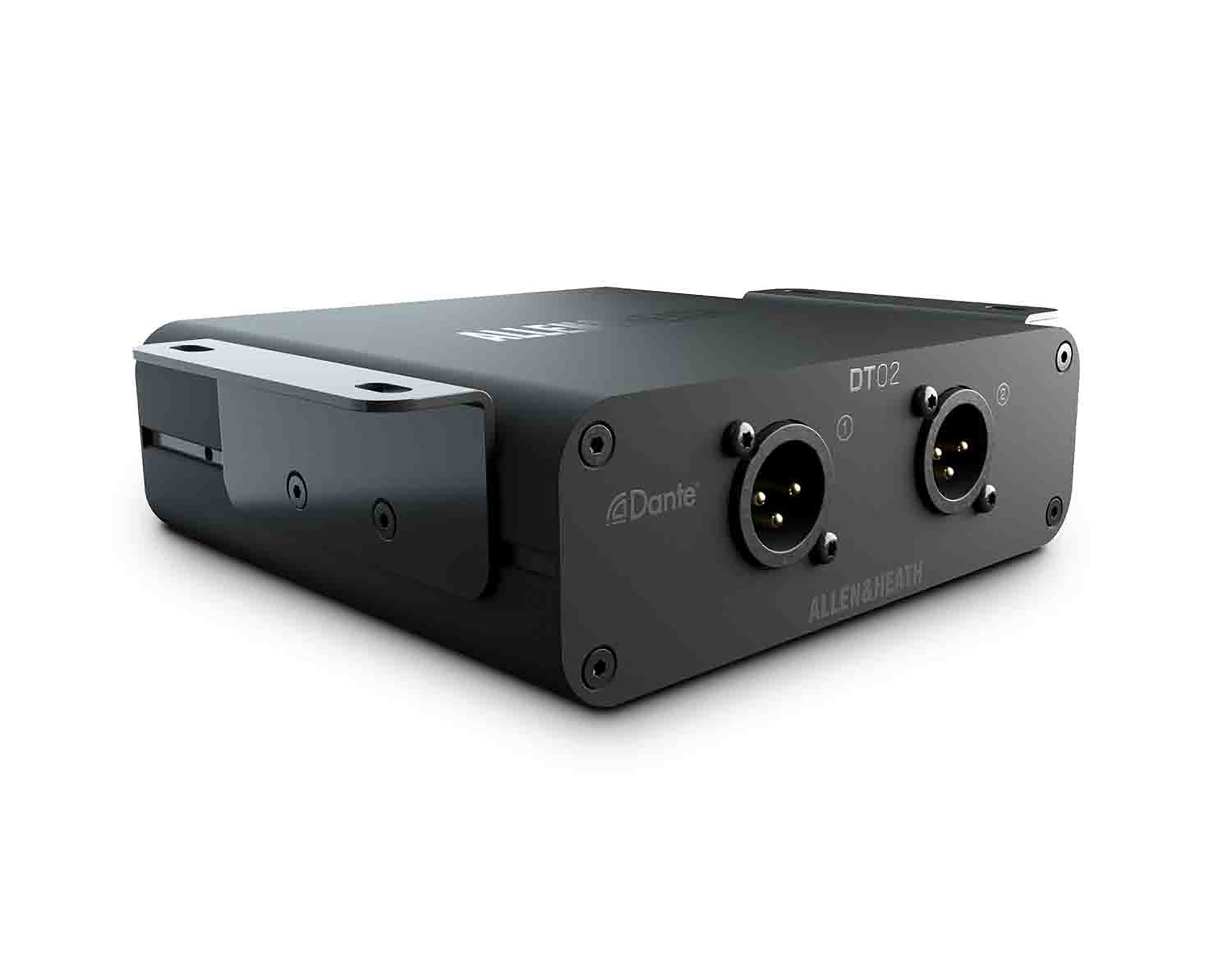

DT02 is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems. Housed in a compact rugged aluminium box, and with optional mounting ears or rack kit, DT02 can be easily deployed wherever you need it, either mounted in proximity of active speakers or monitors, or placed in the equipment rack.

The unit can be PoE powered or powered via a DC 12V supply. Two versions are available, the standard DT02 with power supply and rubber feet.

Product Specifications:

XLR Outputs: Balanced and relay protected

Nominal Output: +4dBu = 0dB meter reading

Max. Output Level: +22dBu

Dante: 48kHz/96kHz

DC Input: +12VDC.1.25A

Power Consumption: 10W max.

PoE Requirements: 802.3af 15W

Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)

Dimensions: 5.1” wide x 5.2” deep x 1.7” high (130 x 131 x 43 mm)

Weight: 1.0 lb. (0.5 kg)
