Allen & Heath DT164-W 16x4 Wallmount Dante Audio Expander - 96kHz Dante

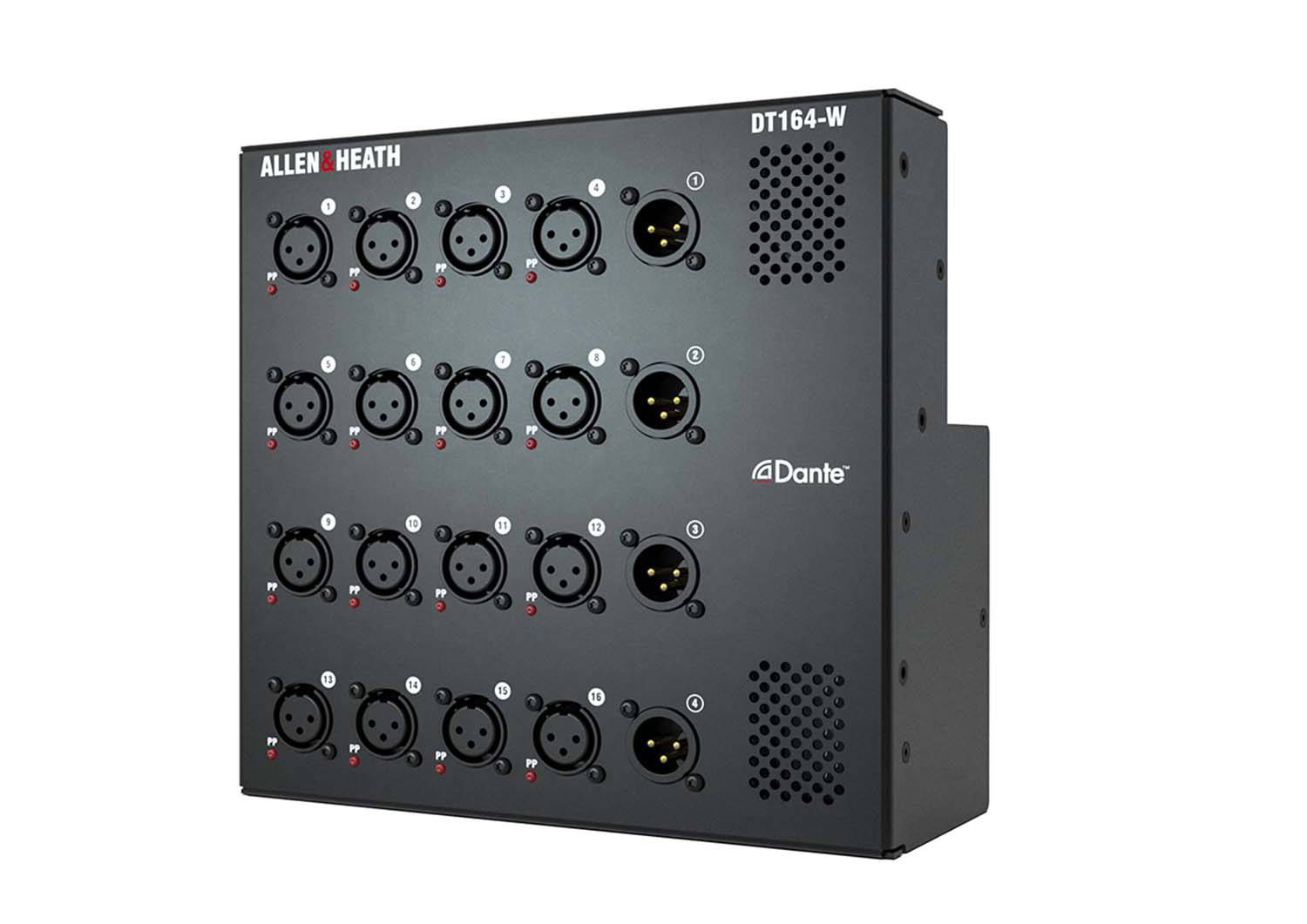

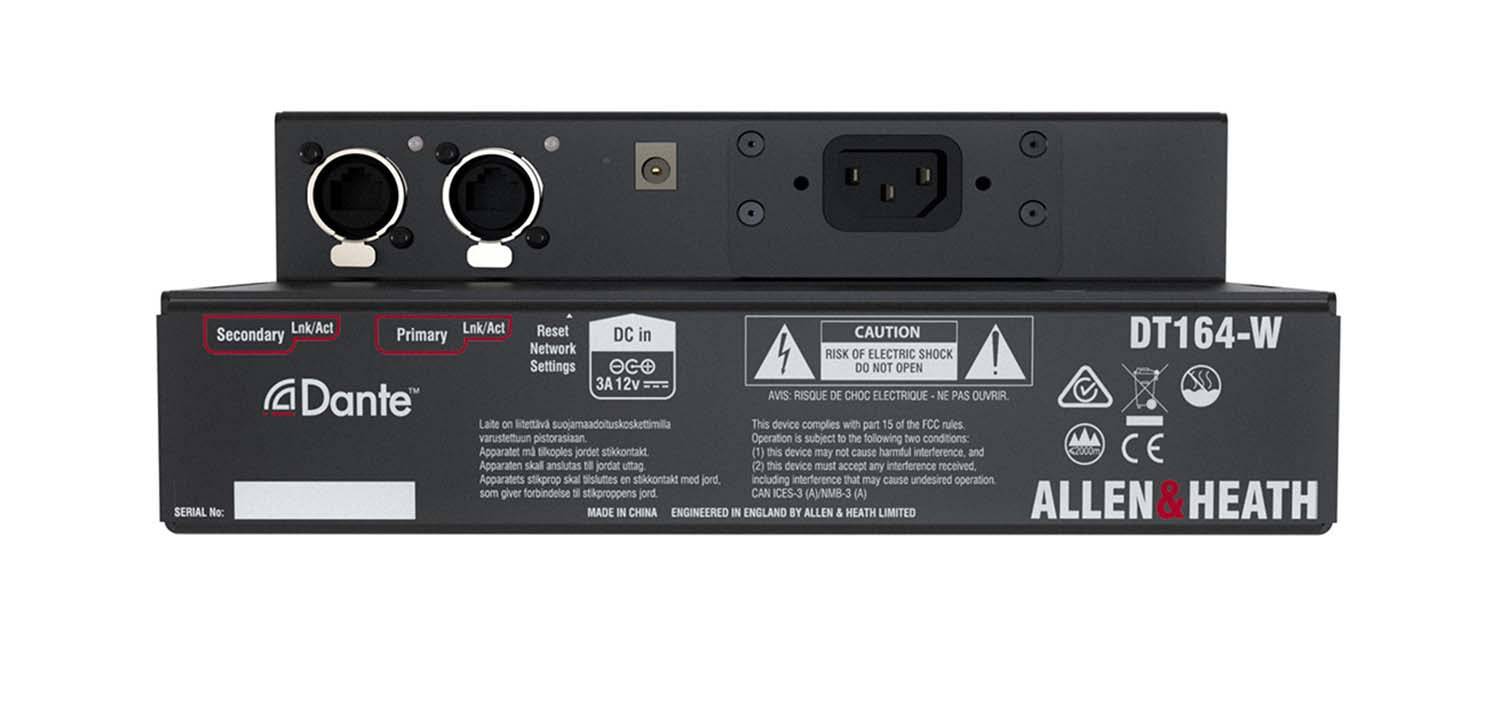

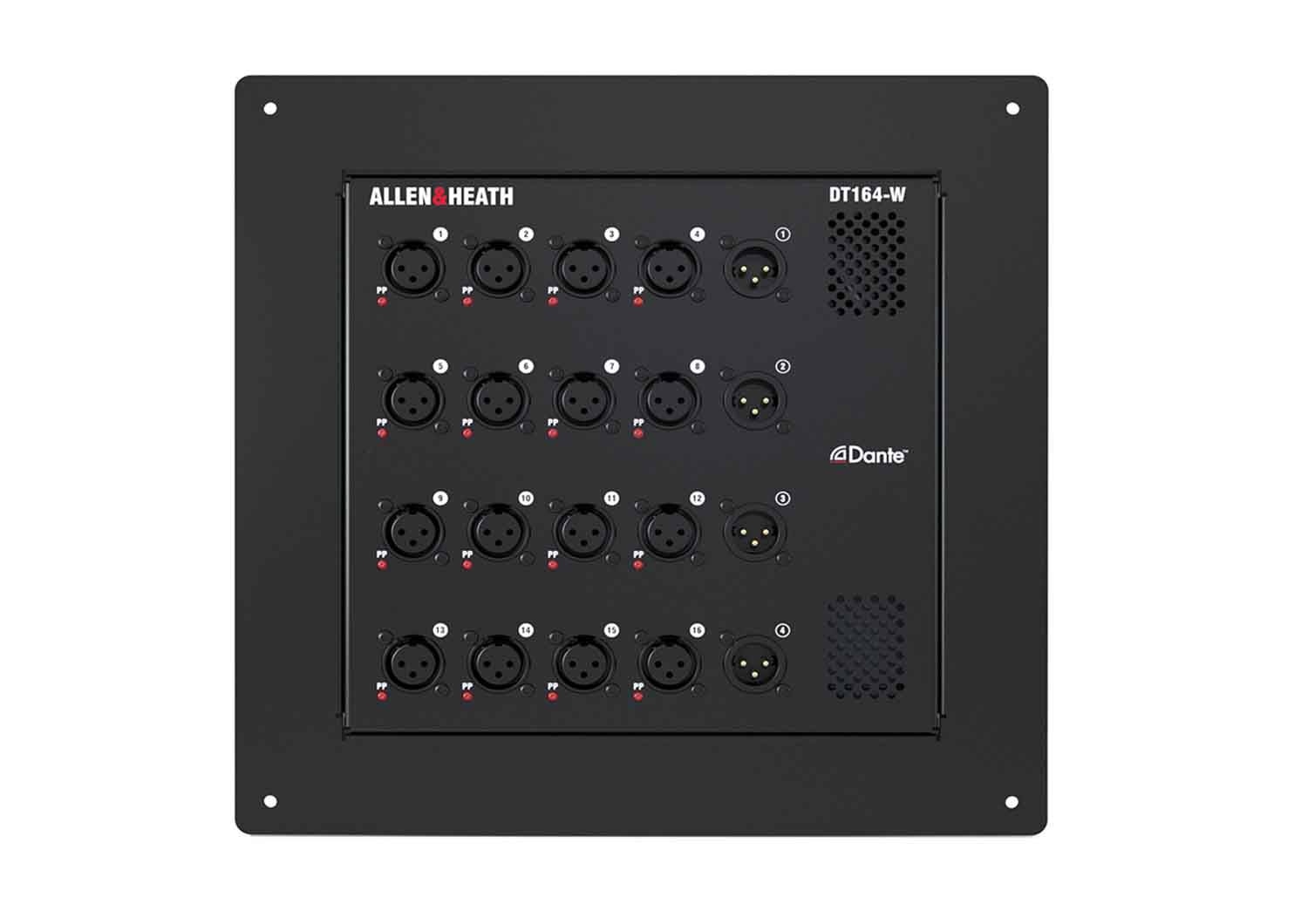

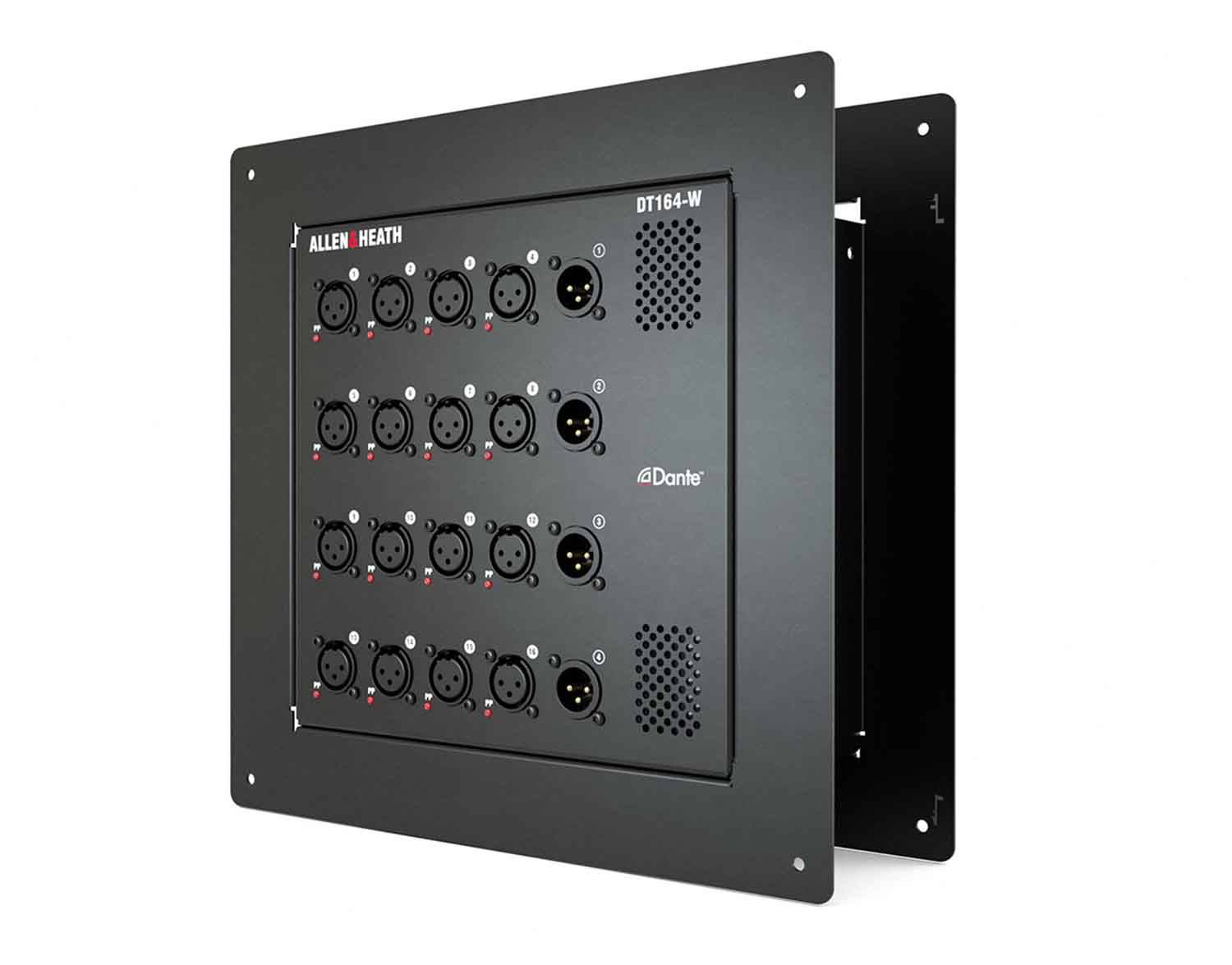

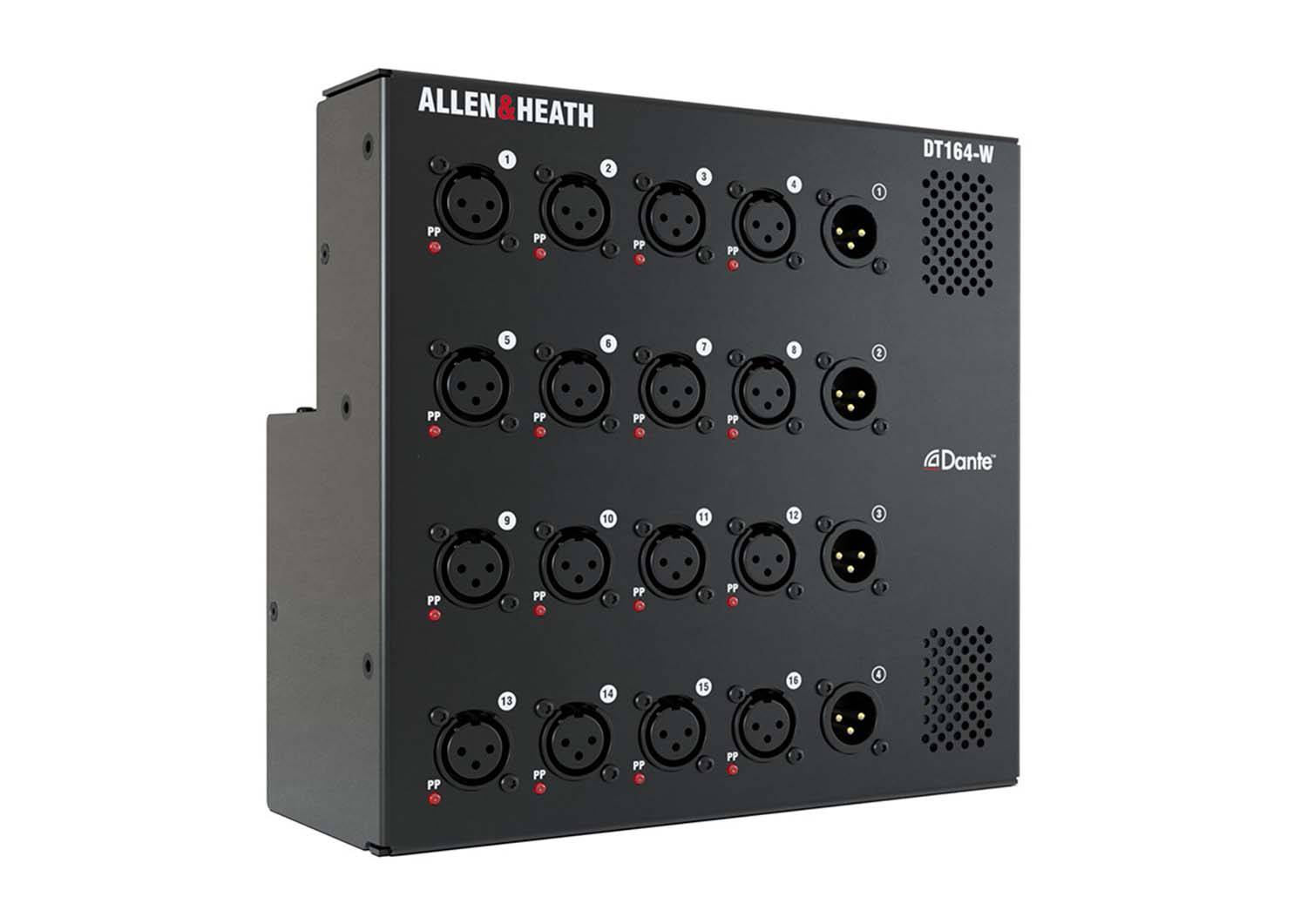

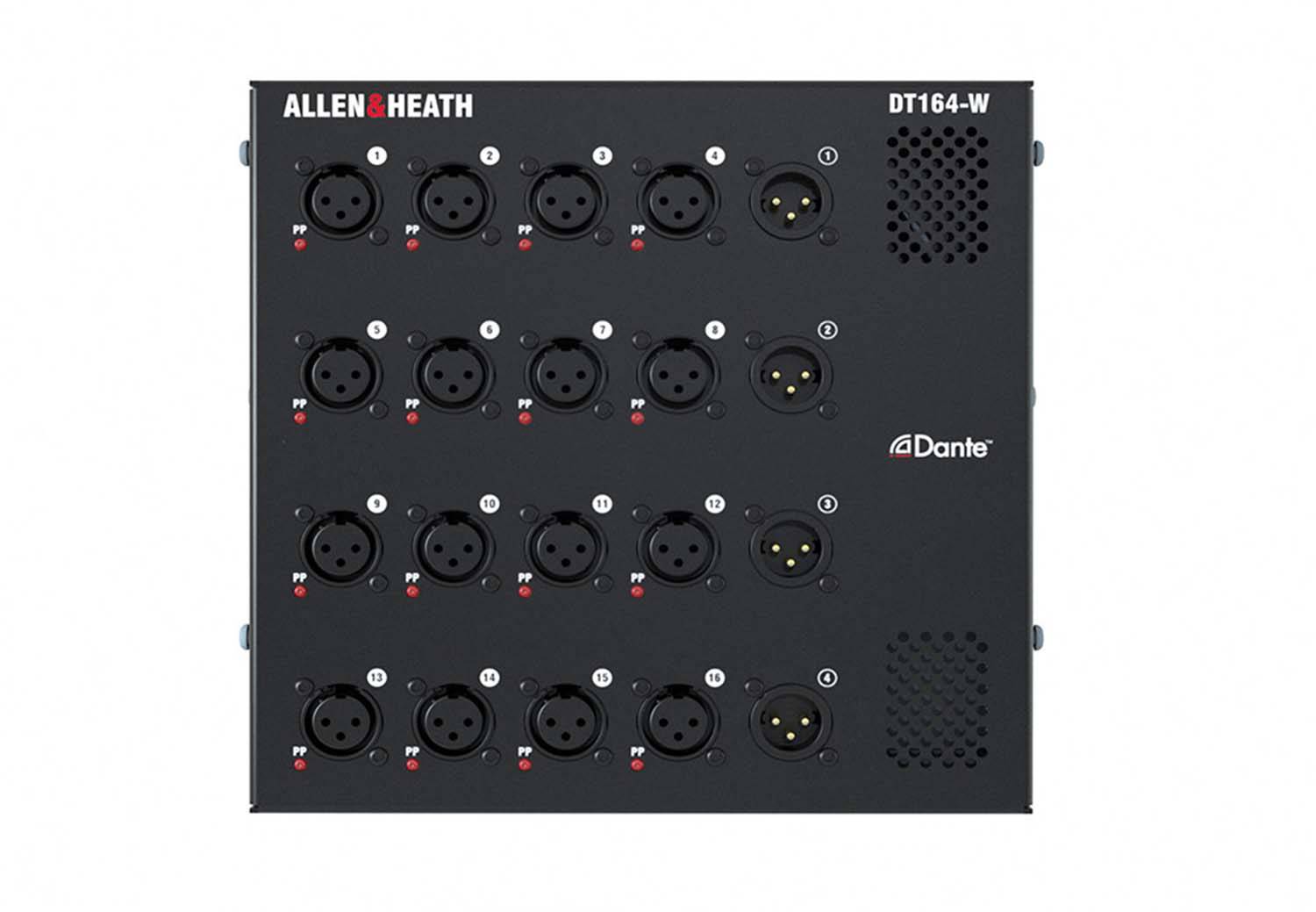

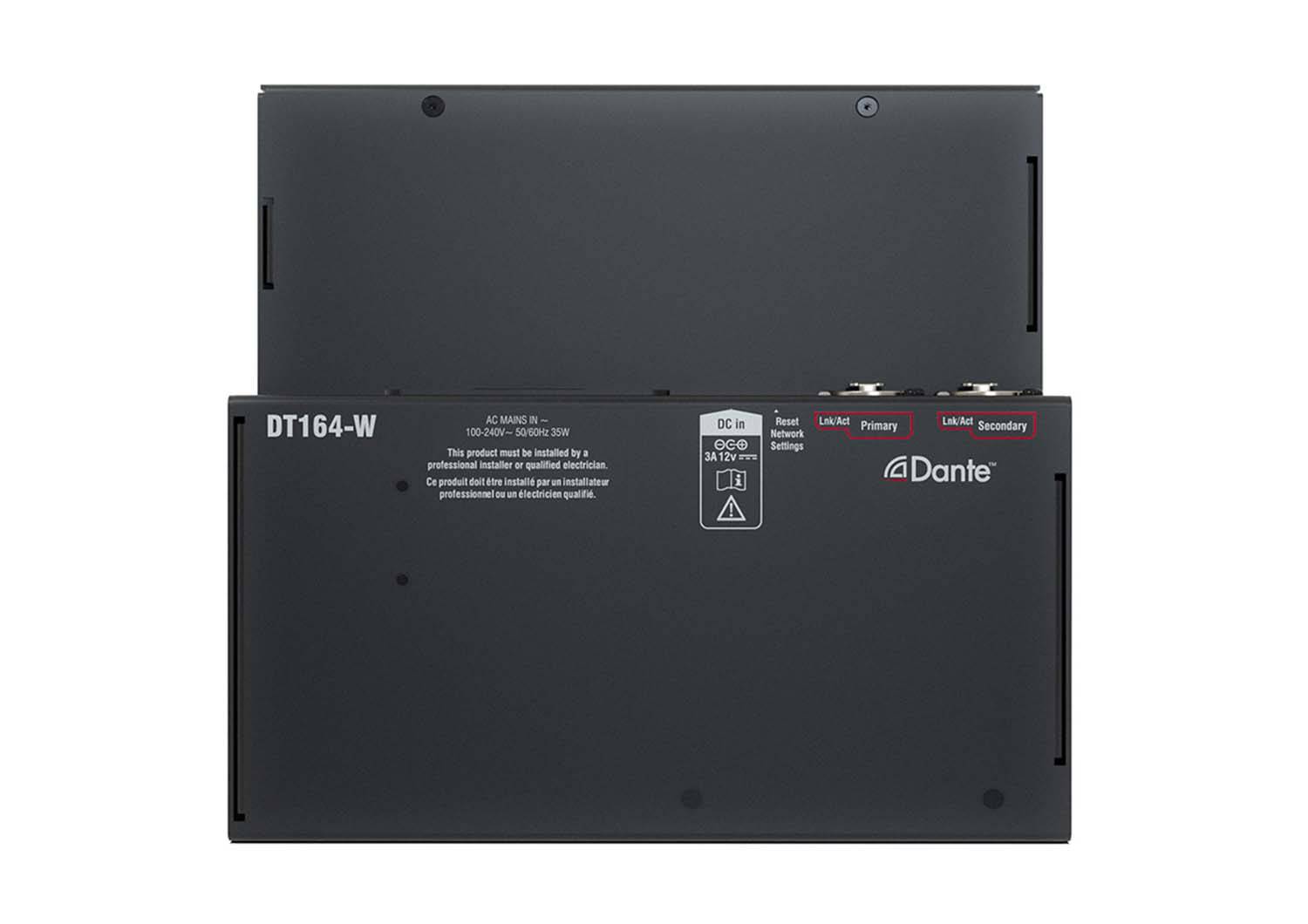

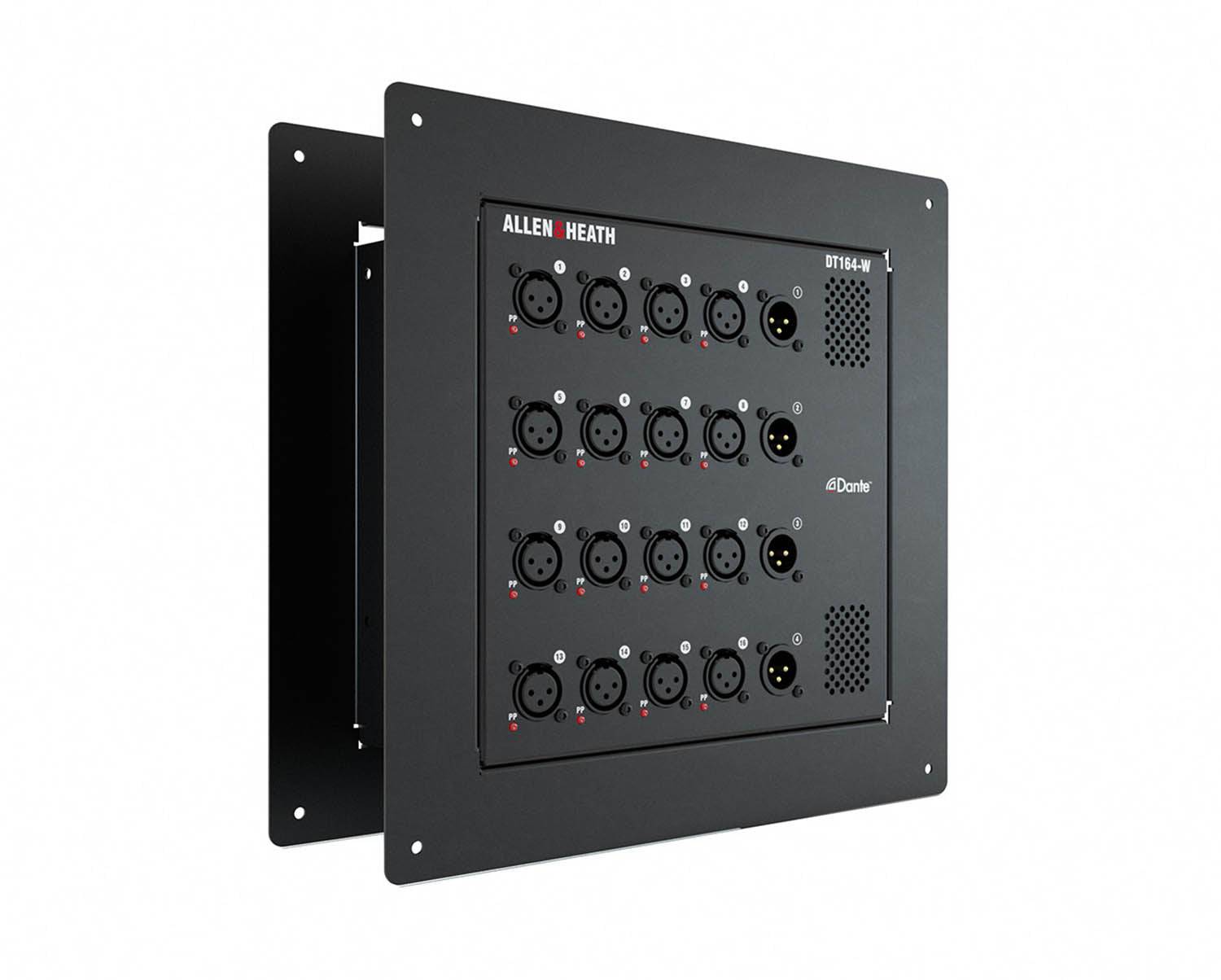

The DT164-W provides 16 microphone preamps and 4-line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.

DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors. Up to 16 units can be added to an AHM-64, SQ, Avantis, or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card. DT Preamp Control software allows remote control of multiple DT expanders and enables the use of DT expanders with Dante-equipped 3rd party digital mixers and sound management systems.

Product Specifications:

Power Source: AC Input, AC Adapter with Power Brick (Included)

AC Input Power : 100 to 240 VAC, 50 / 60 Hz

DC Input Power : 12 VDC at 3 A

Power Consumption: 40 W (Maximum)

Operating Temperature: 32 to 104°F / 0 to 40°C

Dimensions:

Excluding Box: 8.3 x 8.3 x 3.4" / 21.1 x 21.1 x 8.6 cm

Including Box: 16.3 x 14.8 x 9.8" / 41.4 x 37.6 x 24.9 cm

Weight:

Excluding Box: 7.1 lb / 3.2 kg

Including Box: 12.5 lb / 5.7 kg
