Description

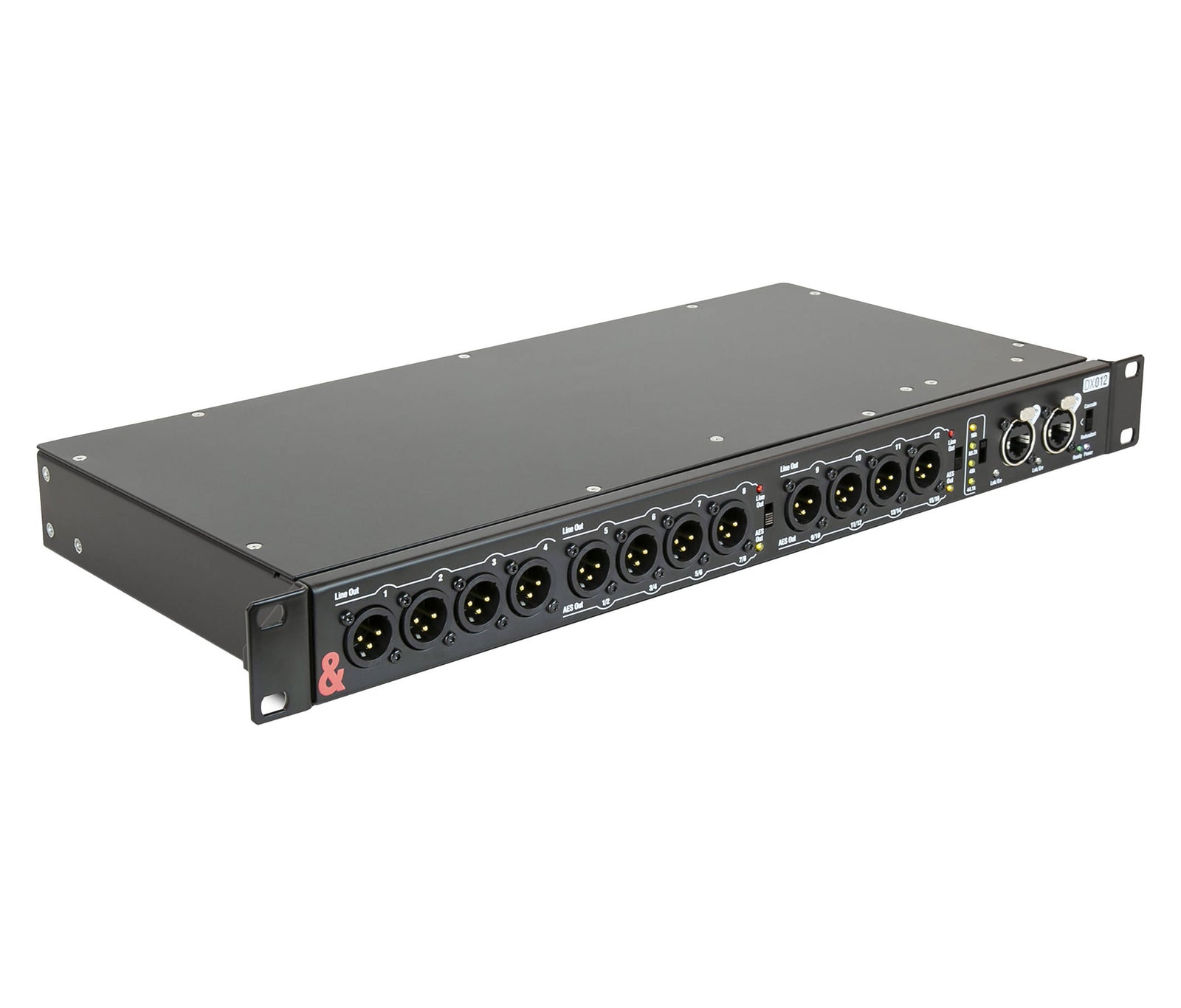

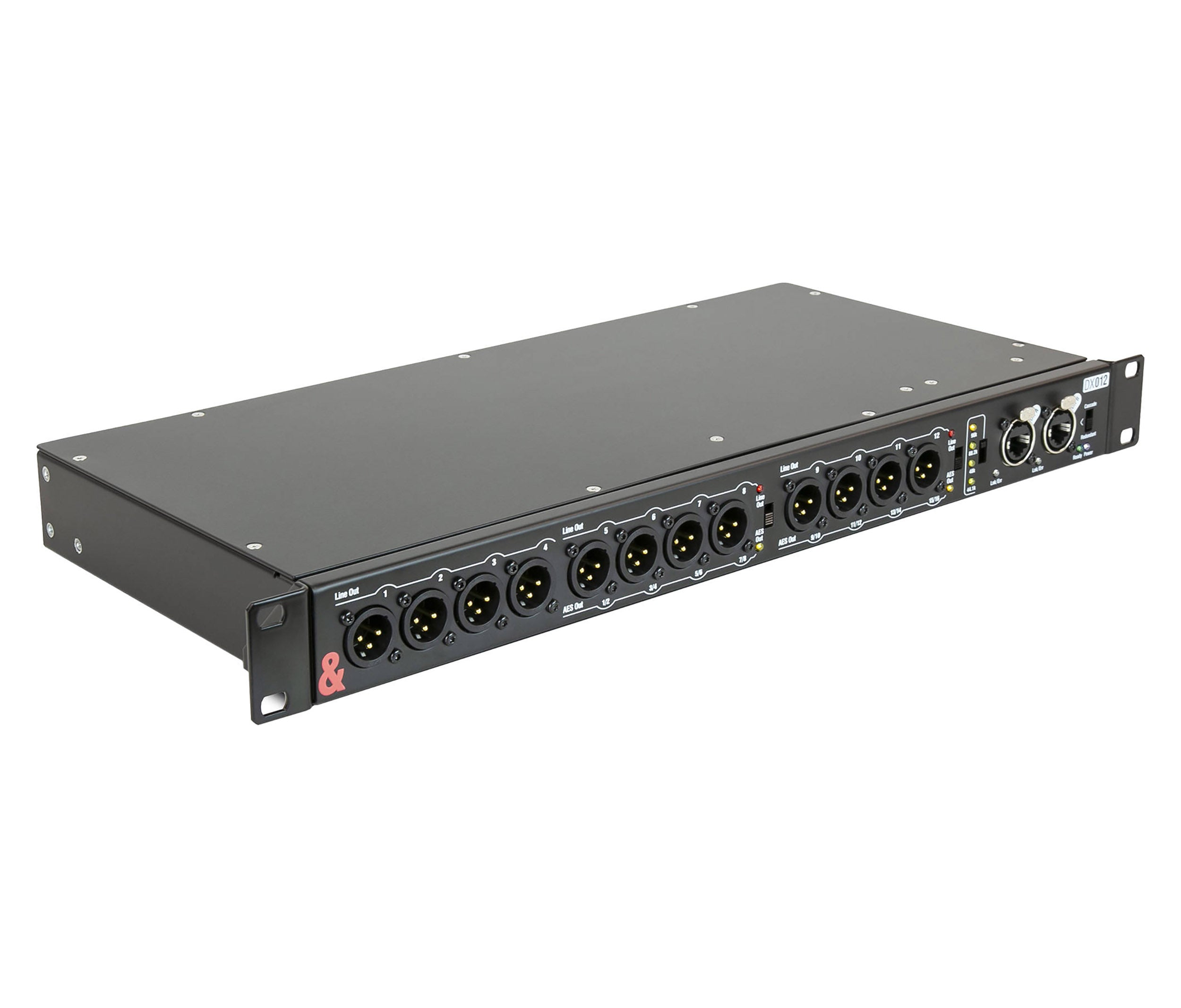

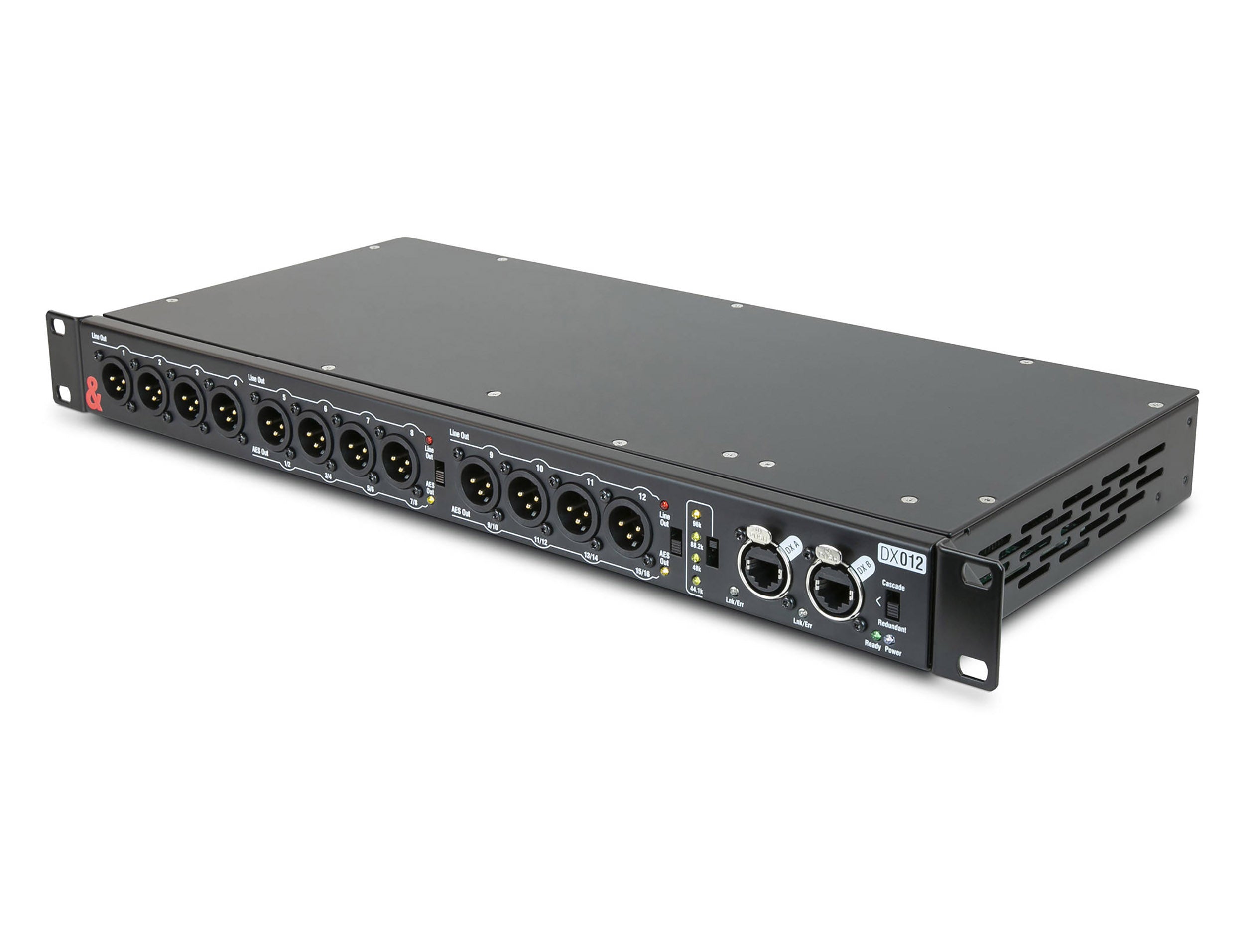

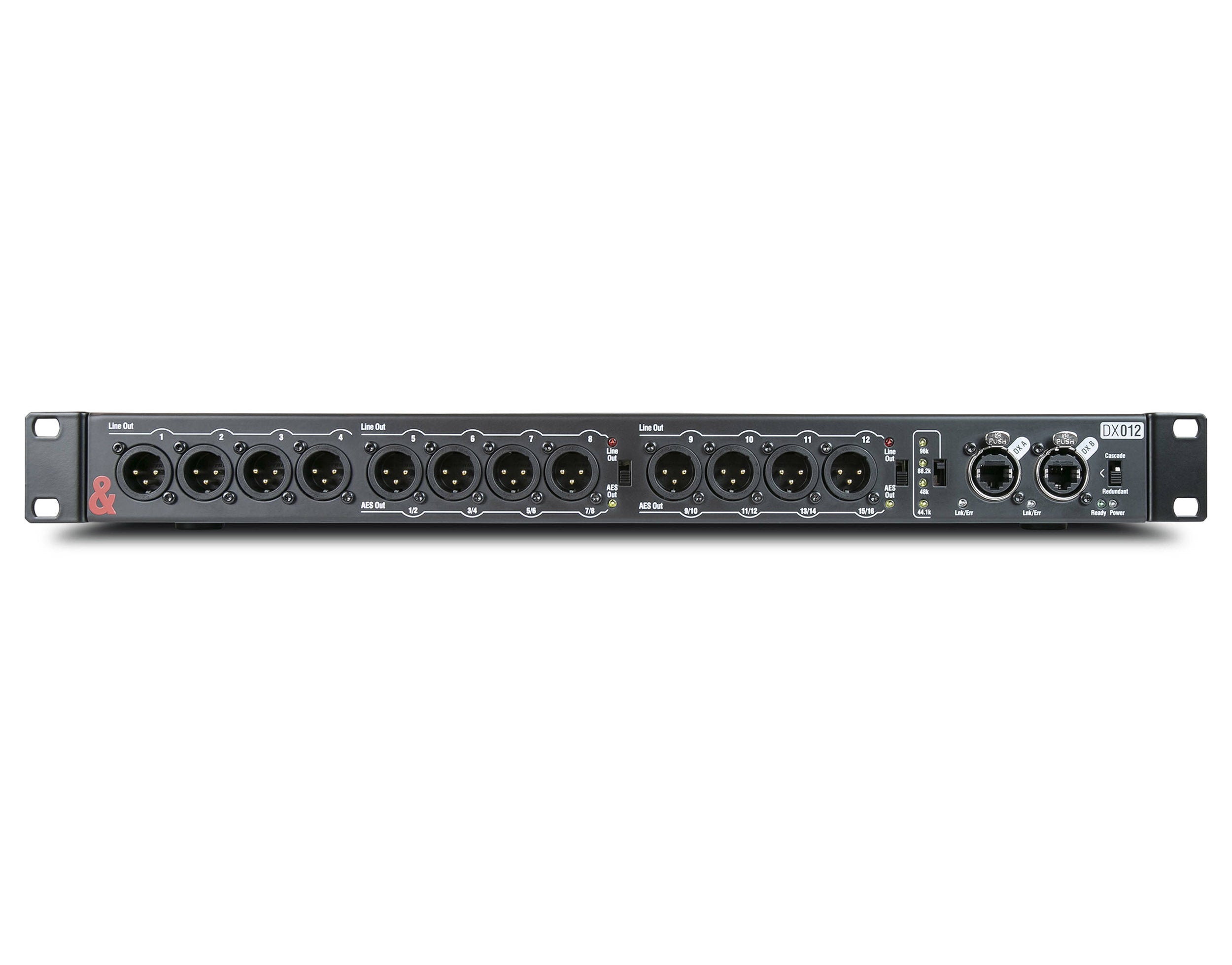

The Allen & Heath DX012 is a 12 XLR Output Analogue or AES Portable DX Expander. Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive mixers, and for the AHM-64 audio matrix processor. Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor. The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.
A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.
Product Specifications:
Sample Rate: 44.1 to 96 kHz
Analog Output: XLR, Balanced, Relay Protected
Output Impedance: <60 Ohms
Nominal Output: +4 dBu = 0 dB on Meter
Maximum Output Level: +22 dBu
Residual Output Noise: -95 dBu (22 Hz to 22 kHz)
THD+N: -98 dB (0 dBu, 1 kHz)
Mains Voltage: 100 to 240 VAC, 50/60 Hz
Mains Power: 35 W, Max
Operating Temperature Range: 32 to 104°F / 0 to 40°C
Dimensions: 19.0 x 1.9 x 8.5" / 48.3 x 4.8 x 21.5 cm
Weight: 6.5 lb / 3 kg
