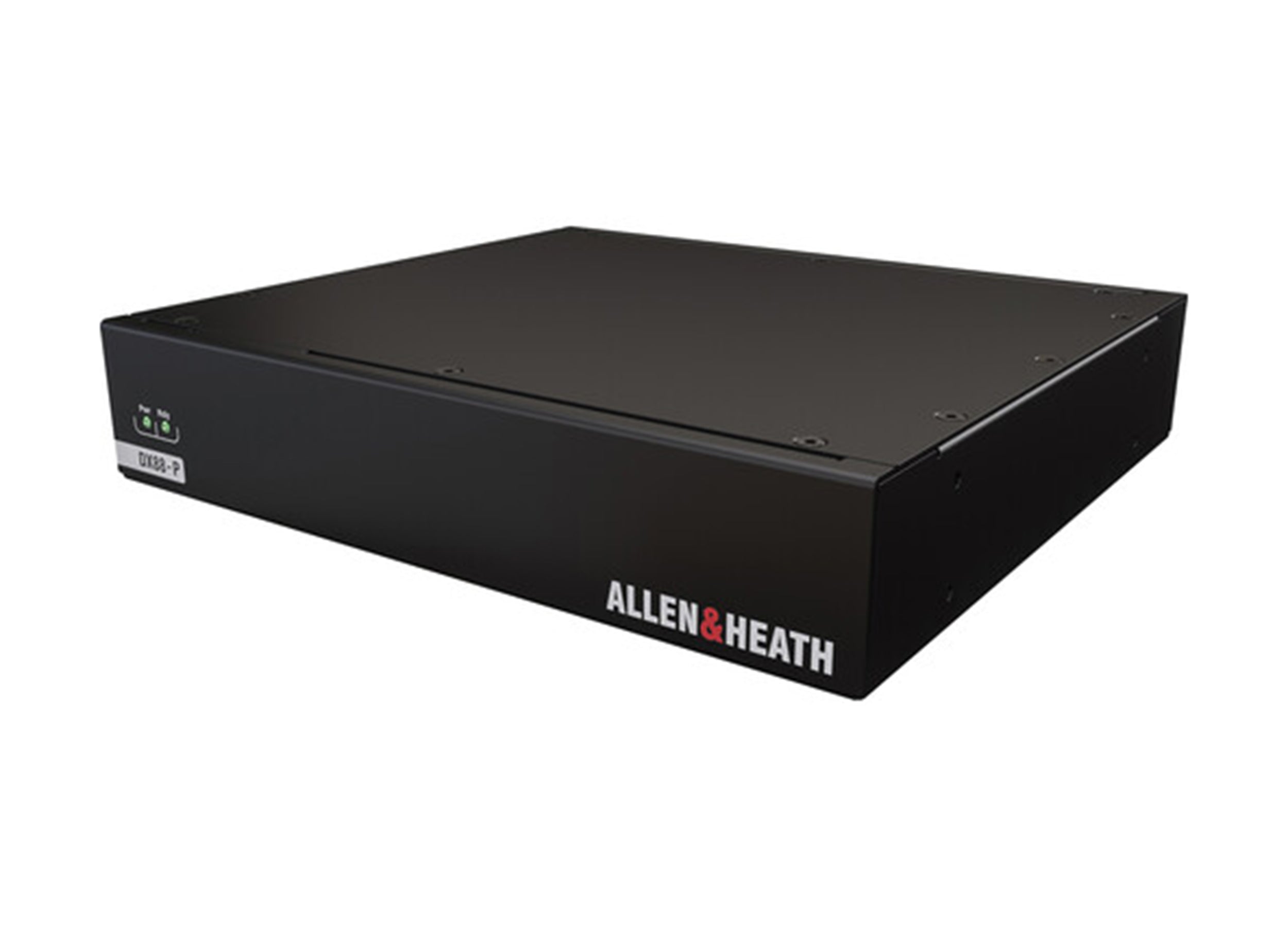

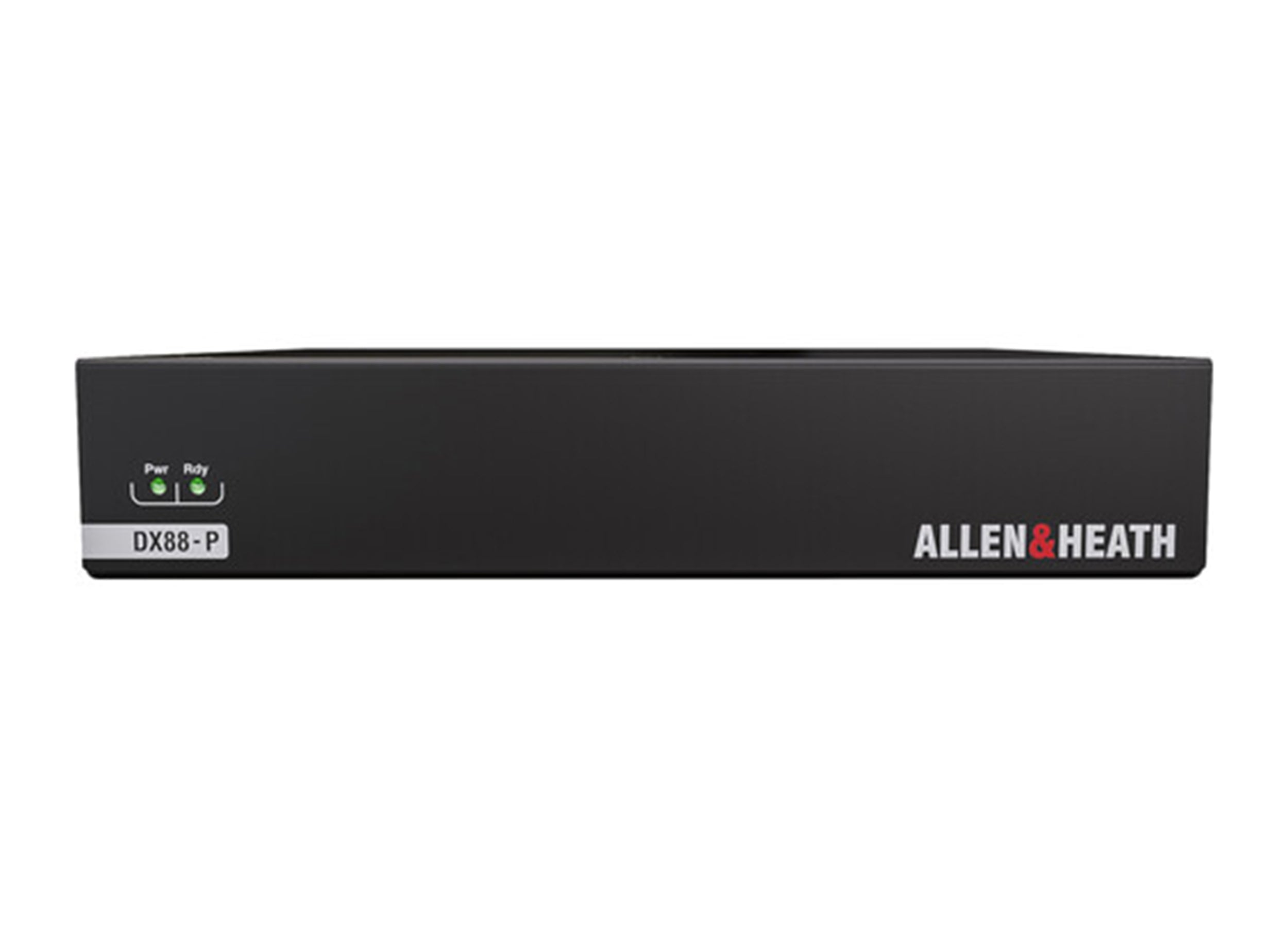

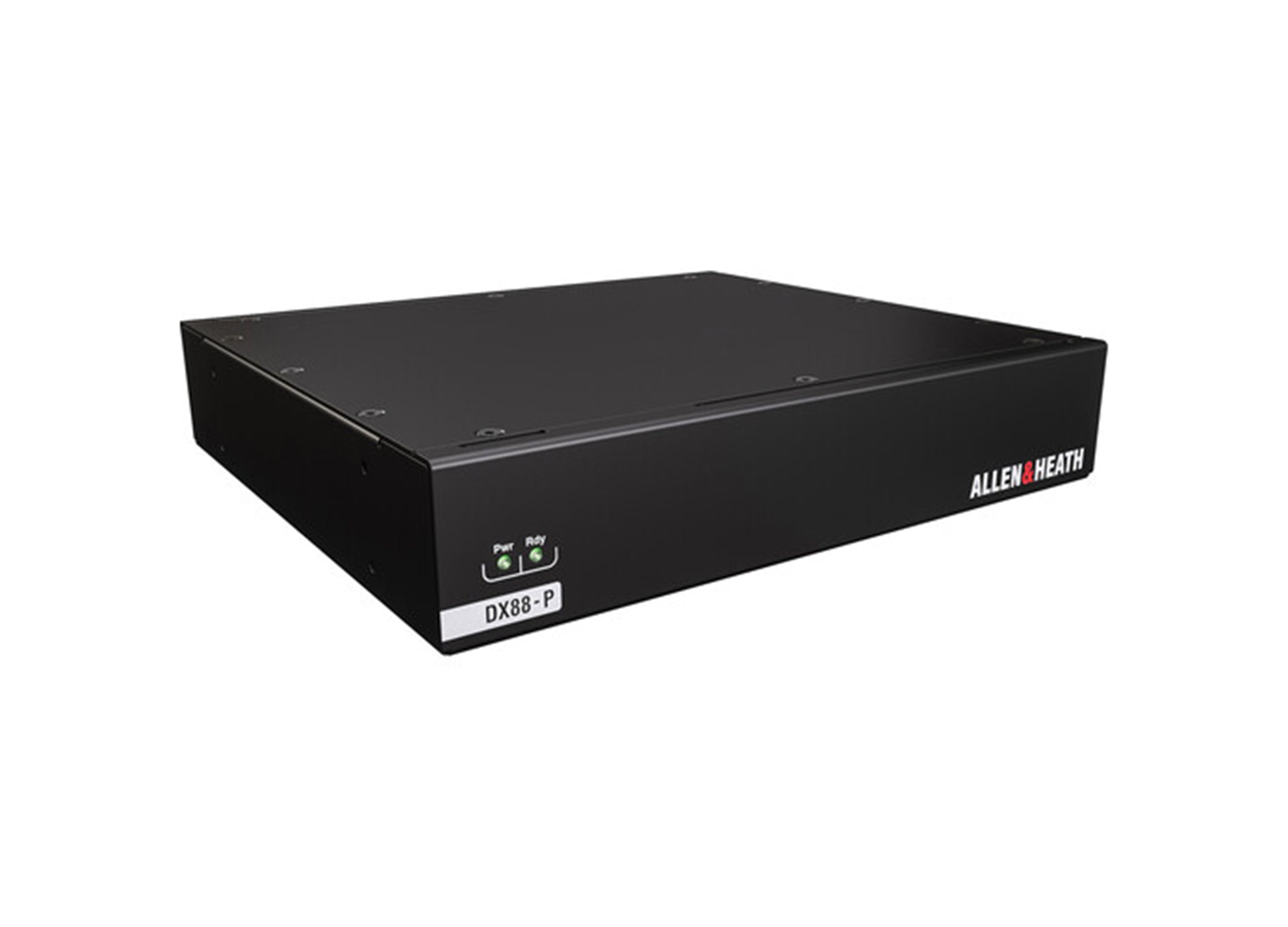

Allen & Heath DX88-P Remtoe Control Expander Rack

The Allen & Heath DX88-P Remtoe Control Expander Rack is designed to expand the I/O and remote control capabilities of AHM, SQ, Avantis, and dLive audio mixing systems, the DX88-P from Allen & Heath sports eight mic/line inputs and eight line outputs via standard block connections, allowing you to greatly expand the flexibility of installed audio systems. The DX88-P connects to audio systems or upstream DX Expander units via a single Cat 5e cable, facilitating long cable runs of up to 220' and sporting convenient plug and play operation—no IP addressing required.

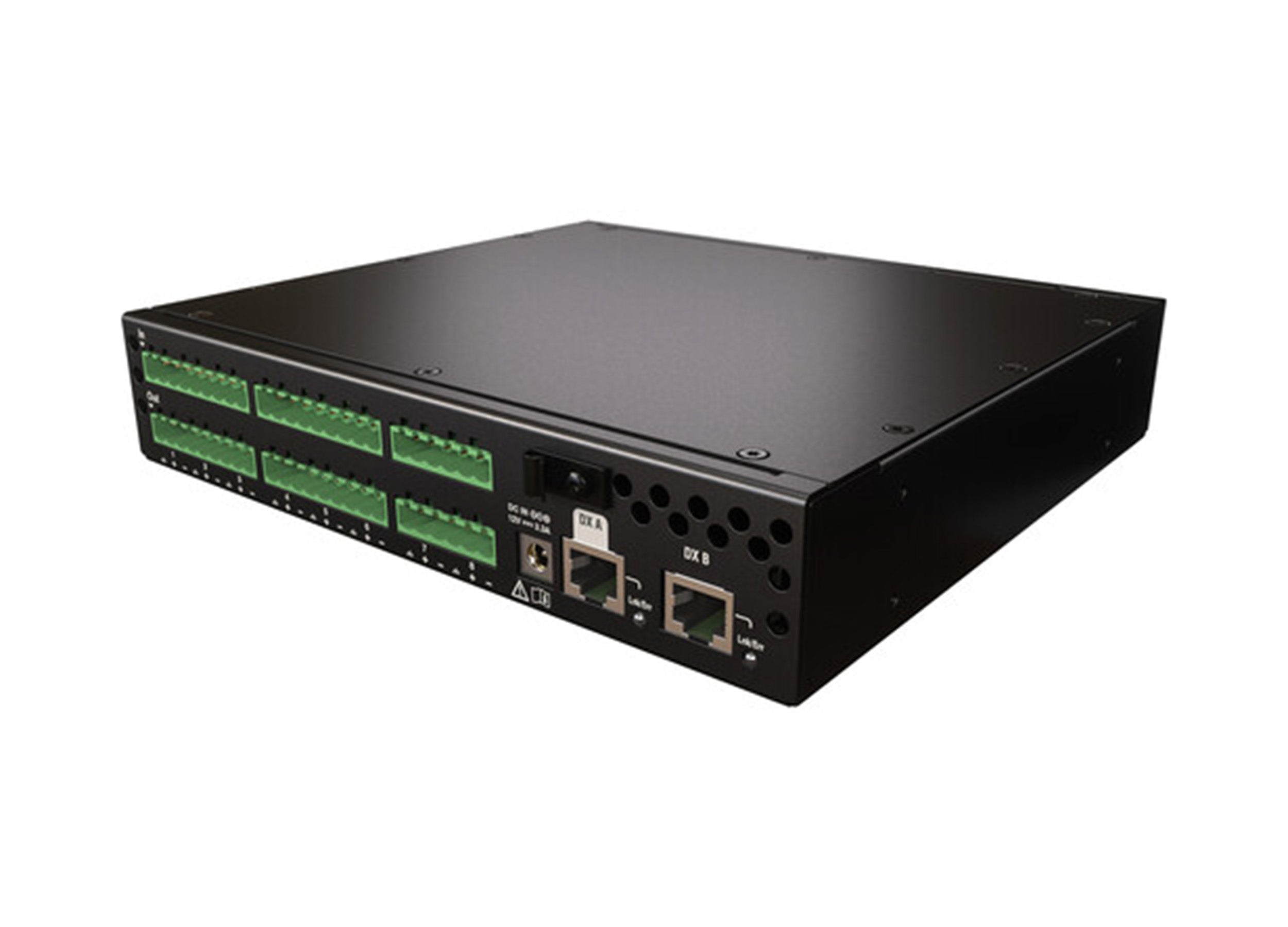

A secondary RJ45 port is provided for daisy-chaining to a downstream expander unit for additional remote I/O. Each input channel features phantom power and a -20 dB pad for maximum versatility in live sound reinforcement. An optional rackmount kit is also available, for fitting the unit into a 1 RU slot in a standard audio equipment rack. The DX88-P includes a 12 VDC power supply and a 16 x 3-way contact plug.

Product Specifications:

Compatibility: Allen & Heath SQ Digital Mixers / AHM Audio Matrix Processors / Avantis Digital Mixers / dLive Digital Mixers

Input Impedance:

>4 Kilohms (Pad Out)

>10 Kilohms (Pad In)

Maximum Input Level: +30 dBu (Pad In)

Maximum Output Level: +21 dBu

Output Impedance: <75 Ohms

Gain: +5 to +60 dB (1 dB Steps)

EIN: -127 dB (With 150 Ohm Source)

Input Sensitivity: -60 to +15 dBu

Pad: -20 dB

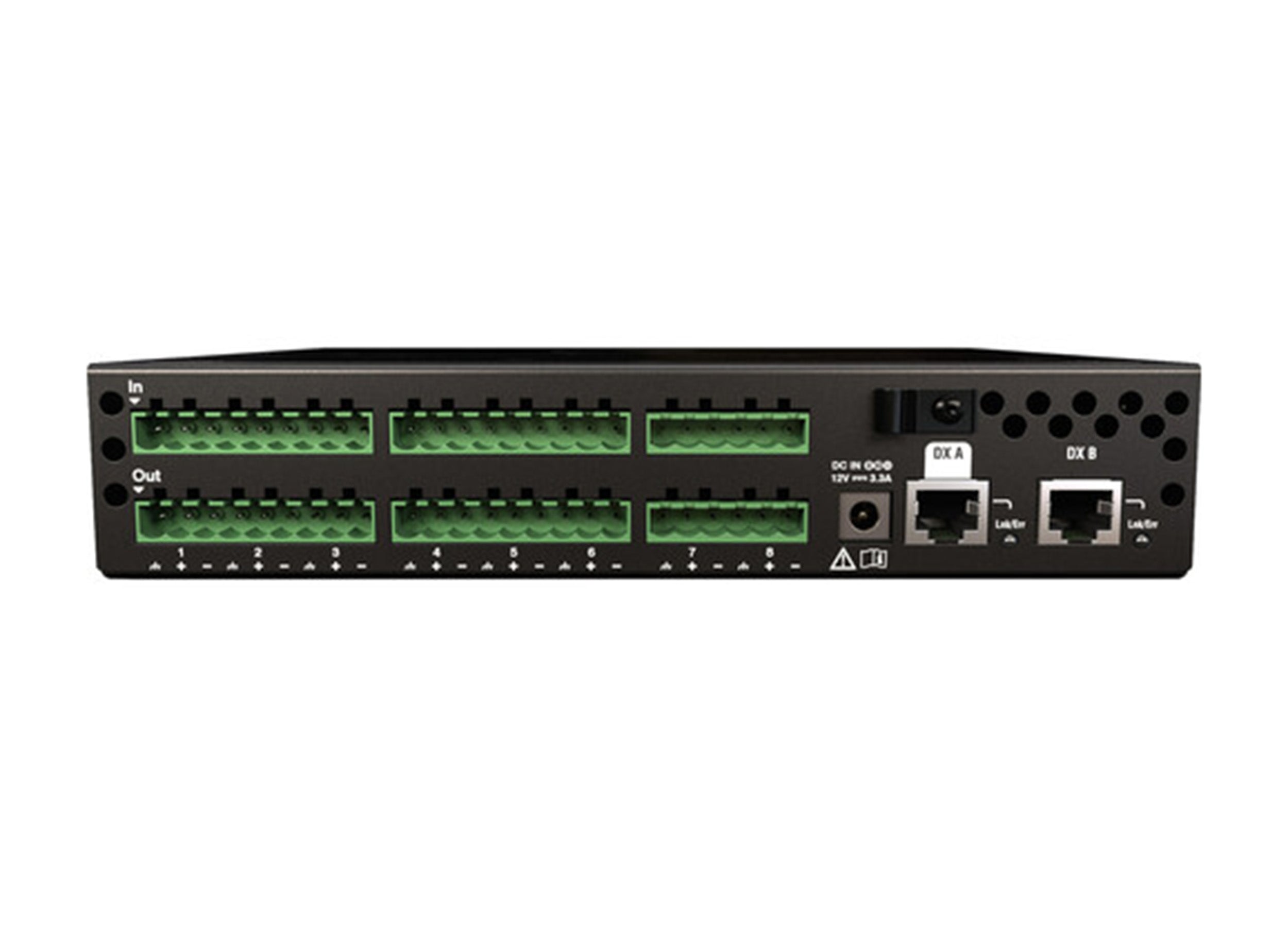

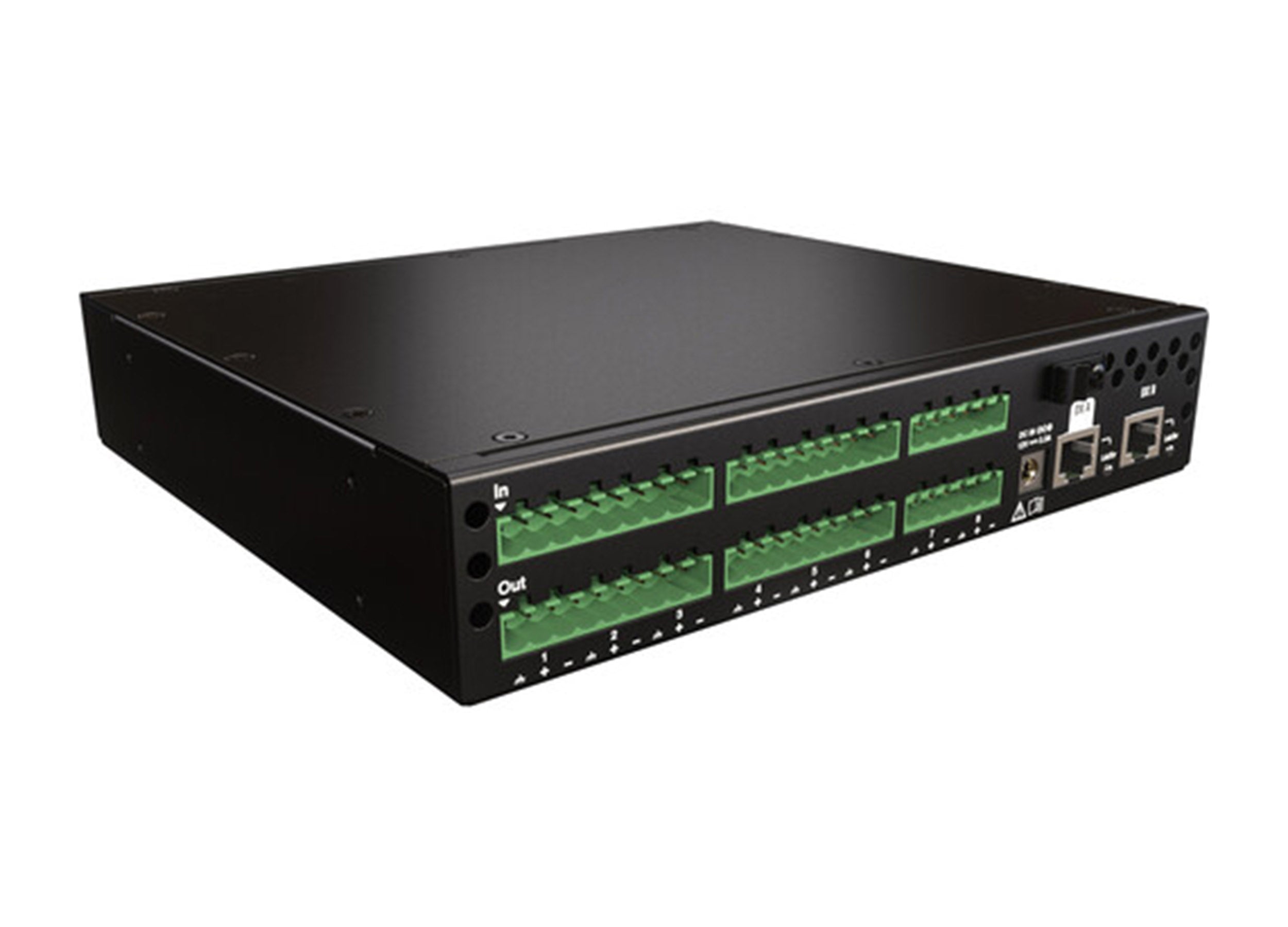

Audio I/O:

8x Block 3-Pin Line/Mic Input

8x Block 3-Pin Line Output

Power:

Power Source: AC Adapter with Power Brick (Included)

DC Input Power: 12 VDC at 3.3 A

Power Consumption: 39.6 W

Operating Current: 3.3 A

Mounting:

Side: 1x Optional Rackmount

Color: Black

Material of Construction: Metal

Operating Conditions: 32 to 104°F / 0 to 40°C

Weight: 3.33 lbs. / 1.51 kg

Shipping Weight: 8 lbs.

Shipping Dimensions: 15 x 15 x 6"
