Description

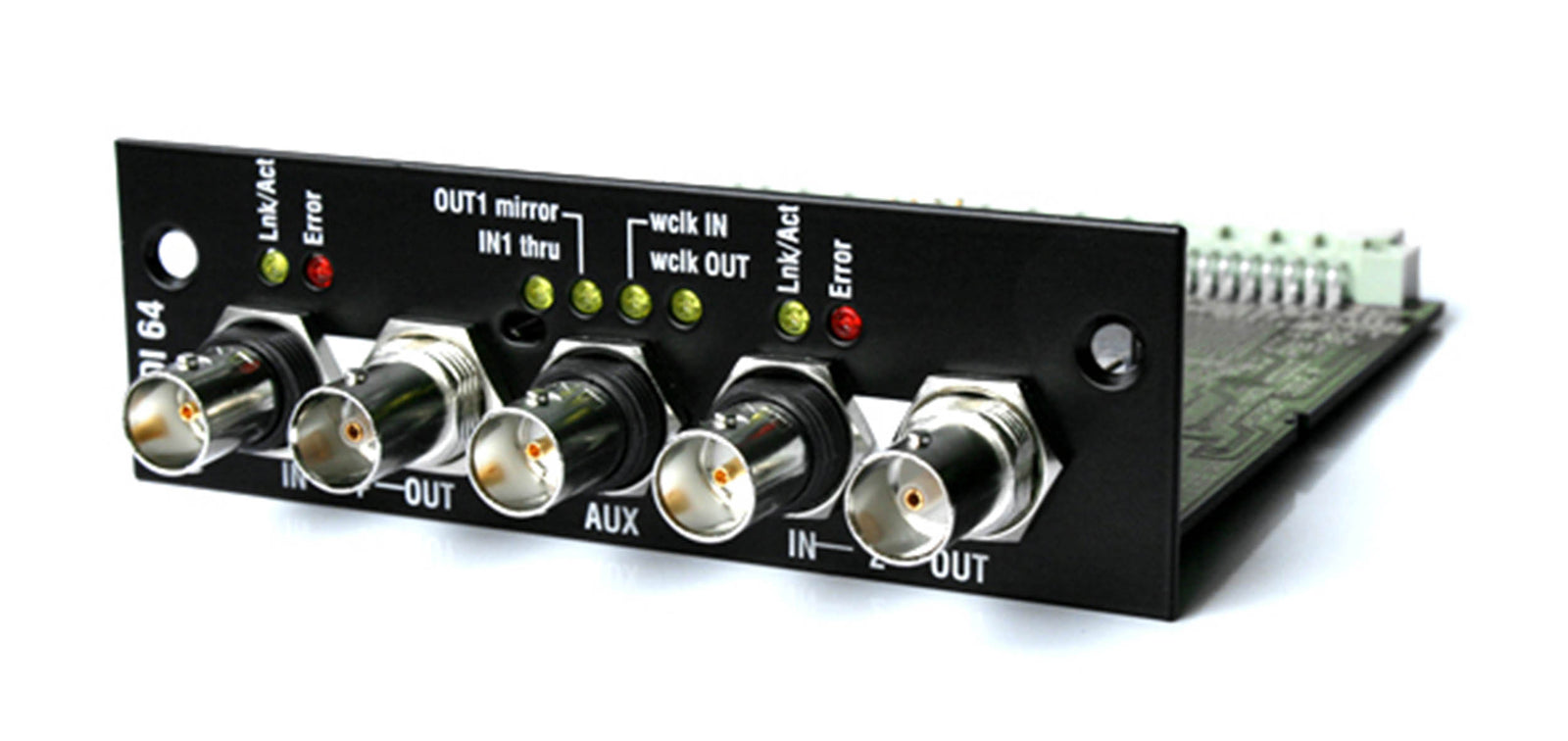

The Allen & Heath M-MADI2-A, iLive MADI 64x64 Module for iLive and GLD Mixers allows for the connection and synchronization with broadcast or recording systems, OB vans, and 3rd-party consoles for high-channel-count feeds over coaxial cables.
The dual-port iLive MADI card supports two streams of 64-channel bidirectional 24-bit / 48 kHz serial digital audio transmission using two 75-ohm coaxial cables per port. An additional aux connector can be configured to mirror stream-1 outputs, pass thru stream-1 inputs, or as a word clock input or output. Daisy-chain or split signals to multiple devices. Sync with either stream or an external word clock.
The second port can be configured as an independent stream or as a redundant backup connection using a second cable. Signals from either stream can be routed to the iLive channels in blocks of 8. iLive and GLD outputs can be patched to MADI and appear at both stream outputs.
Product Specifications:
Connectors: 5 x BNC (2 Links + Aux)
Sample Rate: 48 kHz
Sync Source: MADI Input Link 1, Link 2, Aux Word Clock
Status Indicators: Aux Modes, Per MADI Input: Link/Activity (Yellow), Stream Error (Red)
Sync Range: Audio Clock Sync Range: 48 kHz ±100 ppm
Package Weight: 0.65 lb
Box Dimensions (LxWxH): 9.2 x 6.1 x 2.7"
