Description

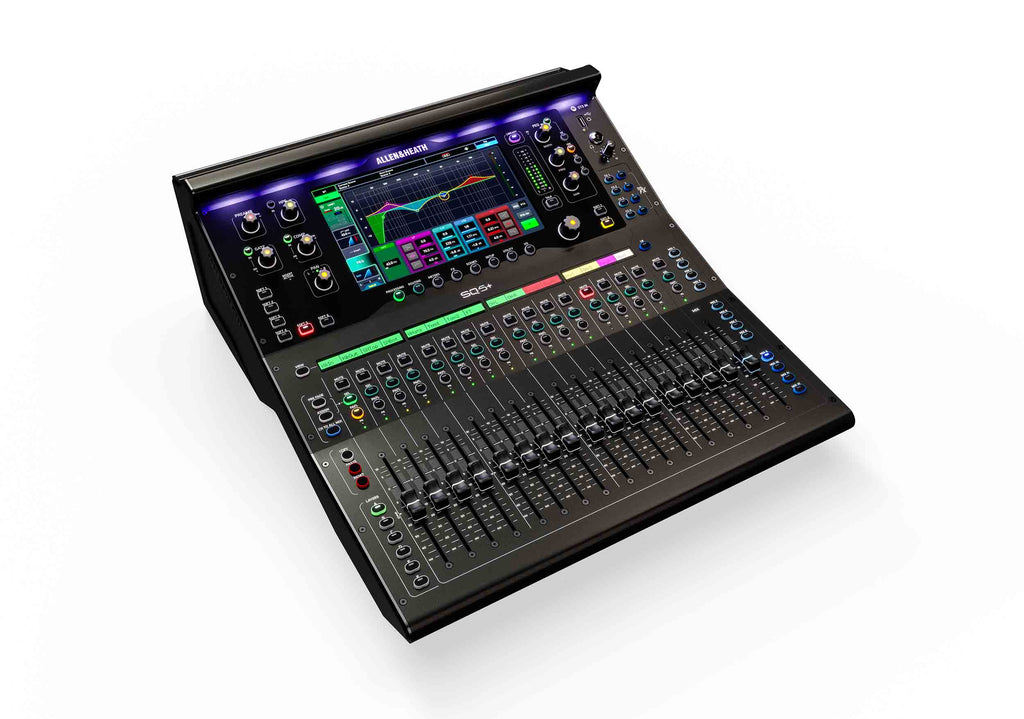

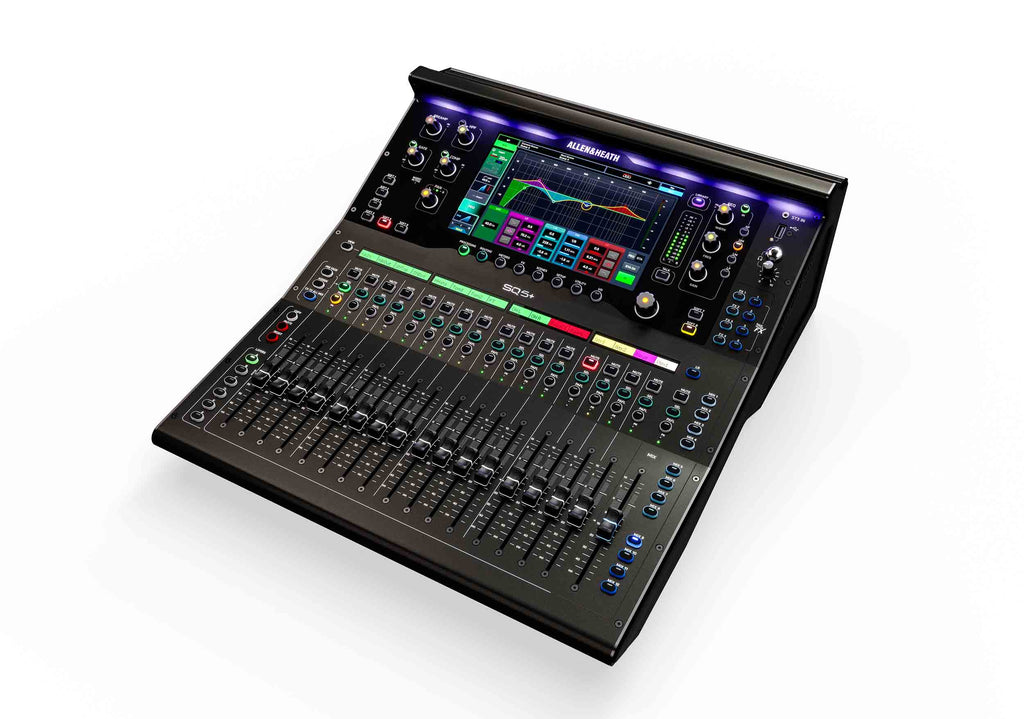

The Allen & Heath SQ-5-PLUS is a next-generation digital mixing console built around a powerful 96kHz XCVI core, delivering ultra-low latency performance and phase-coherent mixing for professional live sound environments. Designed for owner-operators, mid-sized venues, small touring setups, and high-demand AV applications, it offers exceptional audio quality, flexibility, and system integration in a compact, intelligent format. With its expanded processing power and upgraded user interface, the SQ5+ elevates the already industry-trusted SQ series to a new level of performance and usability.
At its core, the SQ5+ features 48 input processing channels, a stereo main LR bus, and extensive mixing architecture including 12 mono/stereo mix outputs, 6 mono/linkable matrix outputs, 4 FX sends, and 4 dedicated RackUltra FX engines. These advanced processing capabilities are complemented by DEEP processing support, allowing engineers to run high-end channel modeling and effects directly within the console. Connectivity is equally robust, featuring 16 XLR mic/line inputs, 3 stereo line inputs (including TRS and 3.5mm options), 12 XLR outputs, 2 TRS outputs, and a dedicated XLR talkback input for professional communication workflows.

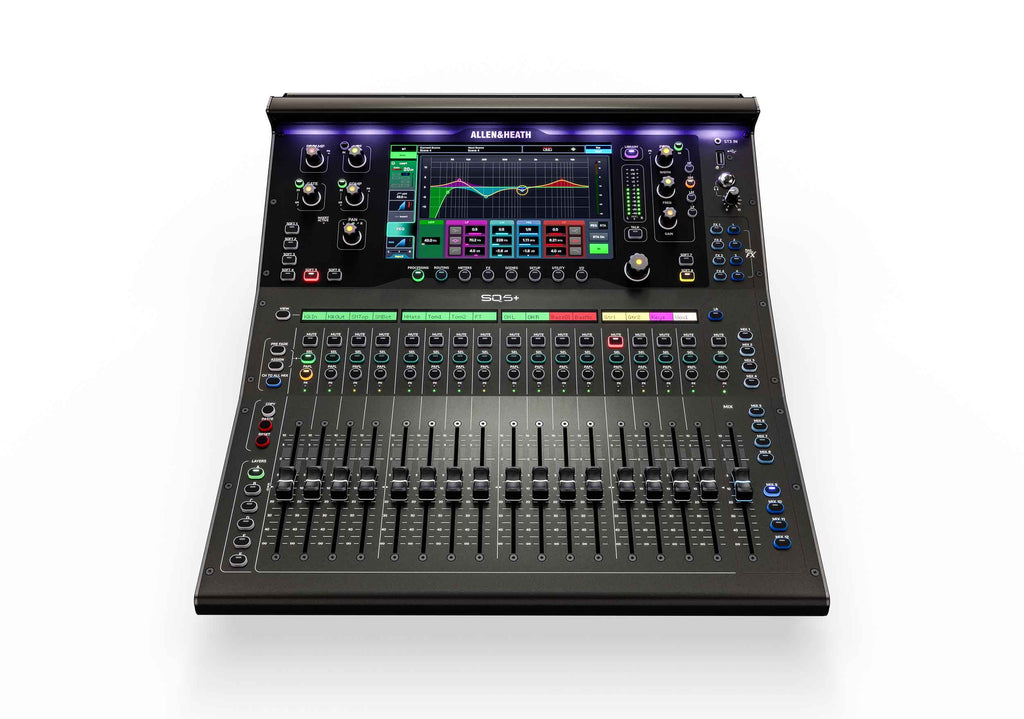

The SQ5+ also introduces a refined hardware design, including a larger 9” touchscreen with an updated graphical interface and a sleek carbon-on-graphite control surface that enhances workflow speed and clarity. Built for demanding live environments, it combines intuitive control with powerful routing and processing flexibility, making it a reliable choice for concerts, installations, corporate AV, and touring applications where performance, speed, and audio fidelity are critical.
Product Specifications:
Audio Engine: 96kHz XCVI core
Input Processing Channels: 48
Main Output: Stereo LR
Mixes: 12x mono/stereo group/aux mixes
FX Sends: 4
RackUltra FX Sends: 4
Matrix Outputs: 6x mono/linkable
FX Engines: 8 (with dedicated stereo return channels)
RackUltra FX Engines: 4 (with dedicated stereo return channels)

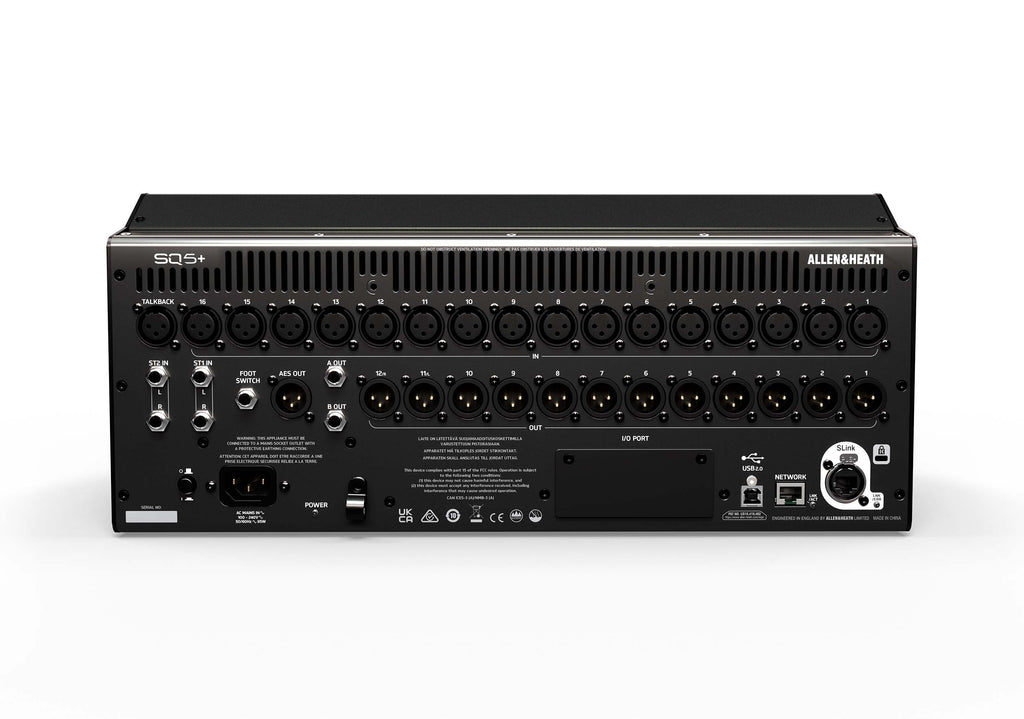

Mic/Line Inputs: 16 x XLR
Stereo Line Inputs: 3 (2x TRS, 1x 3.5mm stereo jack)
Talkback Input: 1 x XLR
XLR Outputs: 12
TRS Outputs: 2
Digital Output: 1 x AES3 stereo
SLink Port: 128x128 intelligent expansion port
Headphone Output: Stereo
Touchscreen: 9” capacitive display
Faders: 17 x 100mm motorized faders
Channel Layers: 6 customizable layers
Soft Keys: 8
USB-A: Stereo/multichannel playback and data transfer
USB-B: 32x32 multichannel audio interface
Footswitch Inputs: Dual configurable
LED Metering: Configurable chromatic channel strip LEDs
Rack Mount: 19” rack mountable (optional kit)
Power Input: IEC mains connection with worldwide PSU
Network: RJ45 Ethernet port
Remote Control: Supported via network apps
Shipping Weight: 32.8 lbs.
Shipping Dimensions (L x W x H): 23.8 x 27.6 x 13.9 in
