Description
The Allen & Heath SQ-7-PLUS is a flagship digital mixing console built around a powerful 96kHz XCVI core, delivering ultra-low latency performance and phase-coherent audio processing for professional live sound environments. Designed for touring engineers, production companies, houses of worship, corporate AV, and mid-to-large venues, the SQ-7-PLUS combines exceptional audio quality with advanced routing flexibility and extensive onboard connectivity. Its upgraded processing platform and enhanced user interface make it an ideal solution for demanding applications where speed, reliability, and sonic precision are critical.
At the core of the SQ-7-PLUS are 48 input processing channels, a stereo main LR bus, 12 mono/stereo group or aux mixes, 6 mono/linkable matrix outputs, and 4 dedicated FX sends alongside 4 RackUltra FX engines with independent send and return channels. The console also supports the latest DEEP processing technology, allowing premium channel emulations and advanced dynamics processing directly within the mixer. Connectivity is extensive, featuring 32 XLR mic/line inputs, 3 stereo line inputs (2 TRS and 1 stereo 3.5mm jack), 16 XLR outputs, 2 TRS outputs, a dedicated XLR talkback input, and an AES3 stereo digital output for professional digital audio integration.

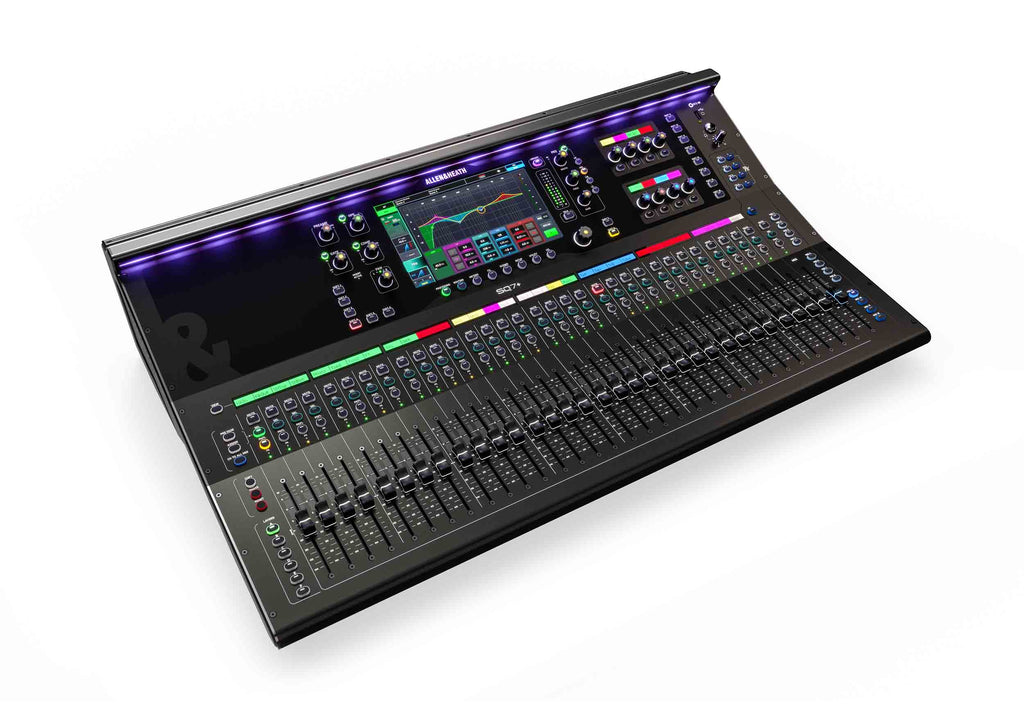

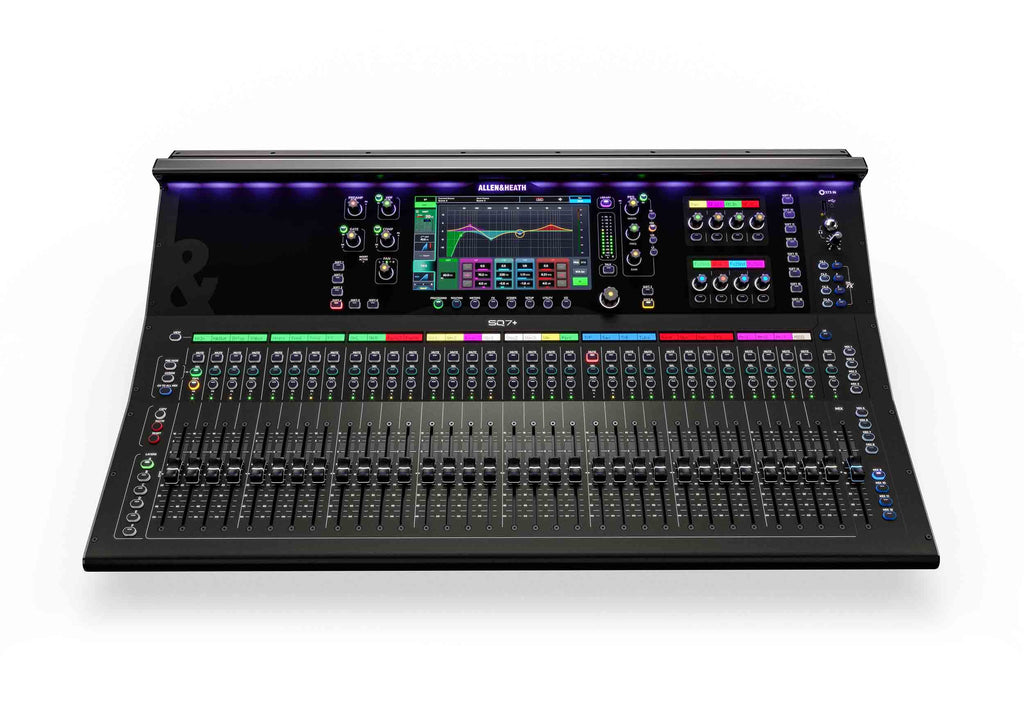

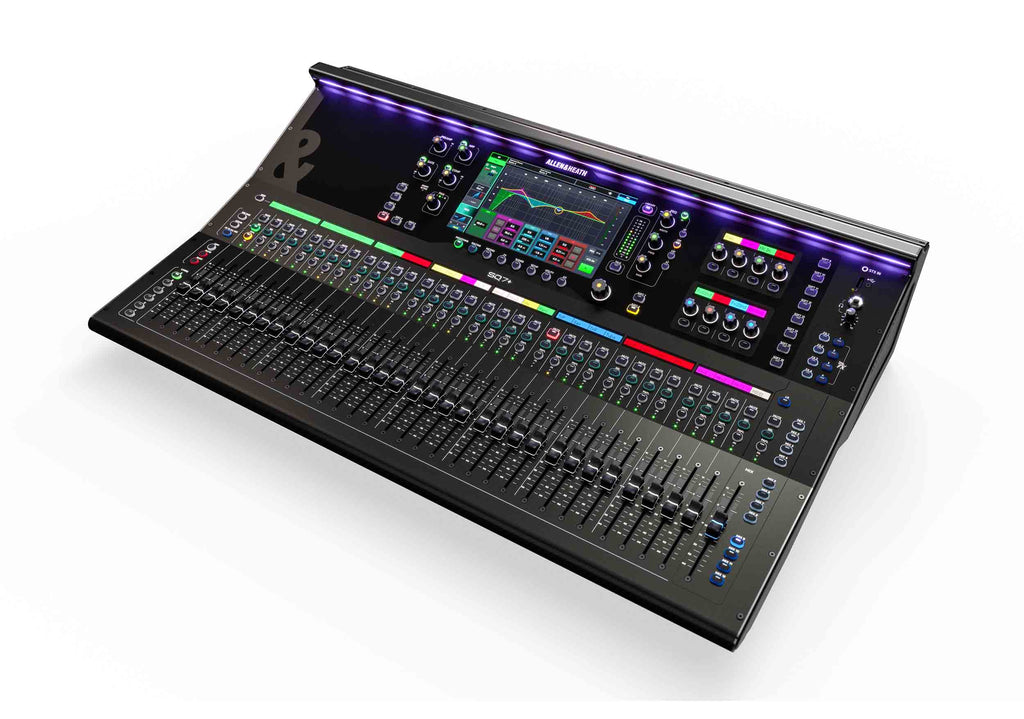

The SQ-7-PLUS introduces a refined carbon-on-graphite control surface design paired with a larger 9” touchscreen and a reimagined graphical user interface for faster workflow navigation and improved operational efficiency. Engineered for modern live production environments, it delivers the processing power, connectivity, and hands-on control required for complex mixing applications while maintaining the intuitive workflow and reliability the SQ series is known for. Whether used for concerts, broadcast productions, installed sound systems, or touring applications, the Allen & Heath SQ-7-PLUS provides a powerful and flexible digital mixing platform for professional audio engineers.
Product Specifications:
Audio Engine: 96kHz XCVI core
Input Processing Channels: 48
Main Output: Stereo LR
Mixes: 12x mono/stereo group/aux mixes
FX Sends: 4
RackUltra FX Sends: 4
Matrix Outputs: 6x mono/linkable
FX Engines: 8 (with dedicated stereo return channels)
RackUltra FX Engines: 4 (with dedicated stereo return channels)

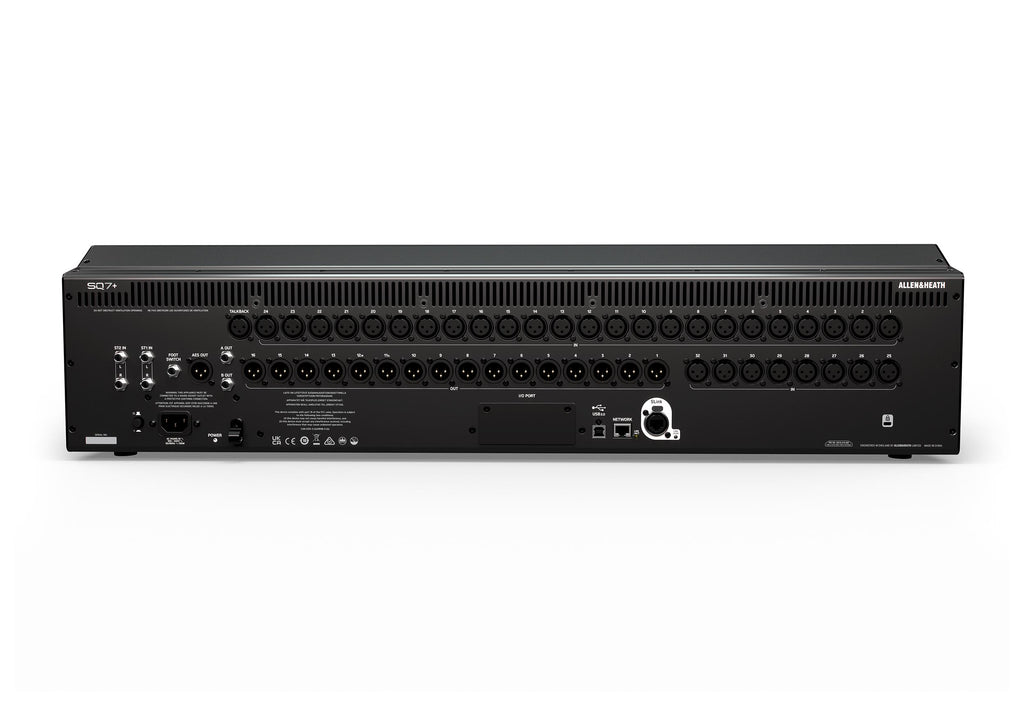

Mic/Line Inputs: 32 x XLR
Stereo Line Inputs: 3 (2x TRS, 1x 3.5mm stereo jack)
Talkback Input: 1 x XLR
XLR Outputs: 16
TRS Outputs: 2
Digital Output: 1 x AES3 stereo
SLink Port: 128x128 intelligent expansion port
Headphone Output: Stereo
Touchscreen: 9” capacitive display
Faders: 33 x 100mm motorized faders
Channel Layers: 6 customizable layers
Soft Keys: 16
Soft Rotaries: 8
USB-A: Stereo/multichannel playback and data transfer
USB-B: 32x32 multichannel audio interface
Footswitch Inputs: Dual configurable
LED Metering: Configurable chromatic channel strip LEDs
Power Input: IEC mains connection with worldwide PSU
Network: RJ45 Ethernet port
Remote Control: Supported via network apps
Shipping Weight: 52.2 lbs.
Shipping Dimensions (L x W x H): 27.6 x 38.2 x 14.2 in
