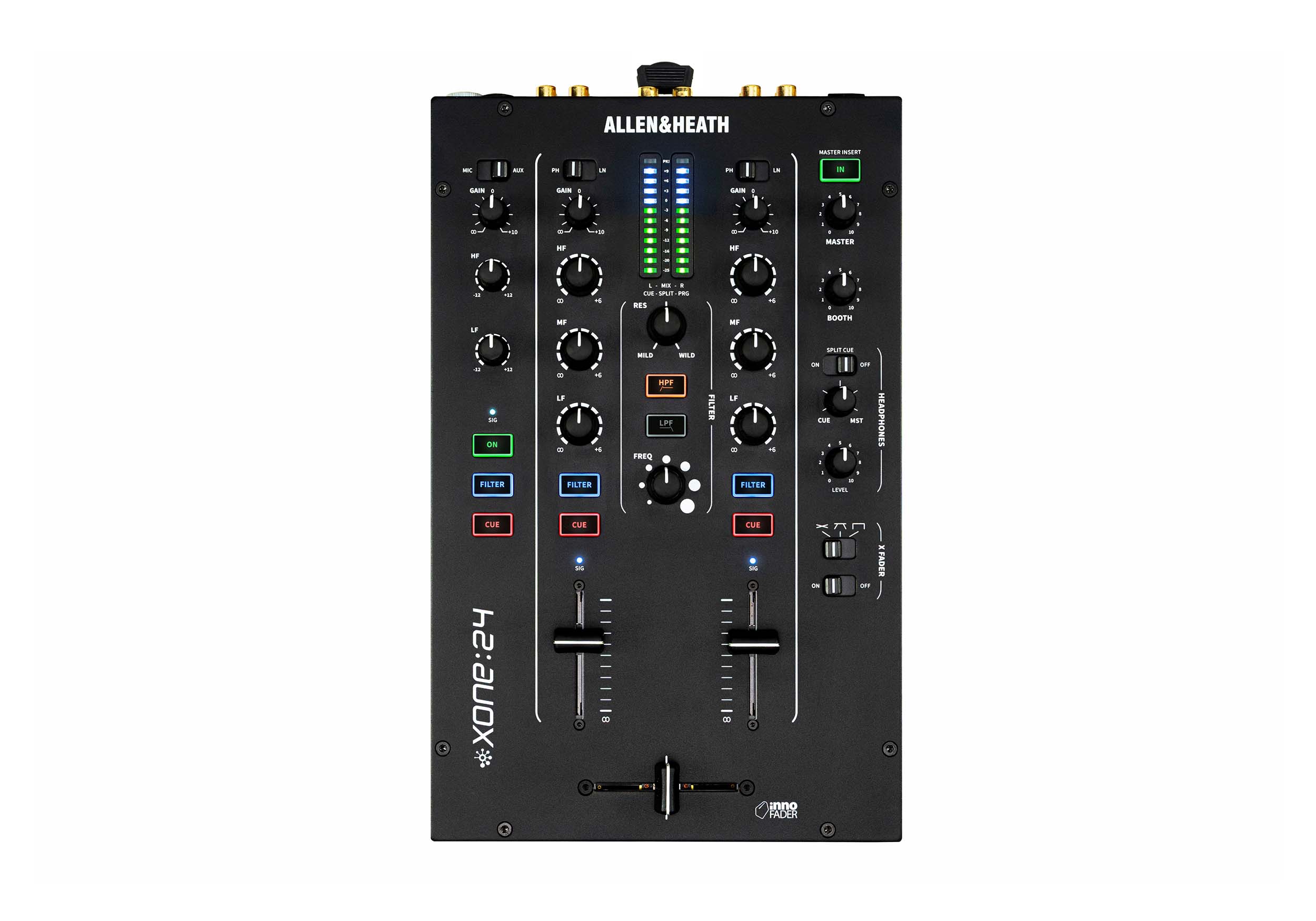

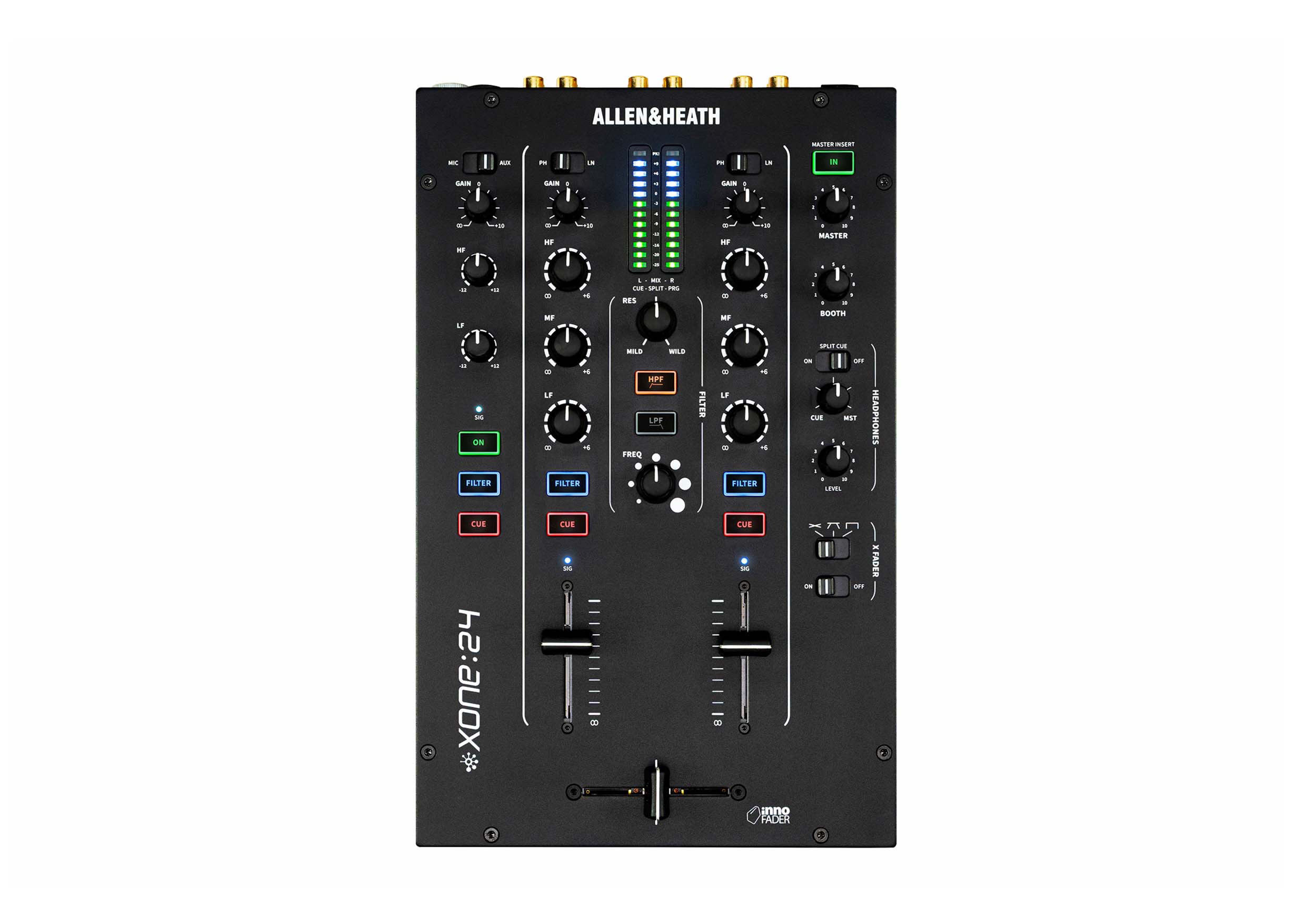

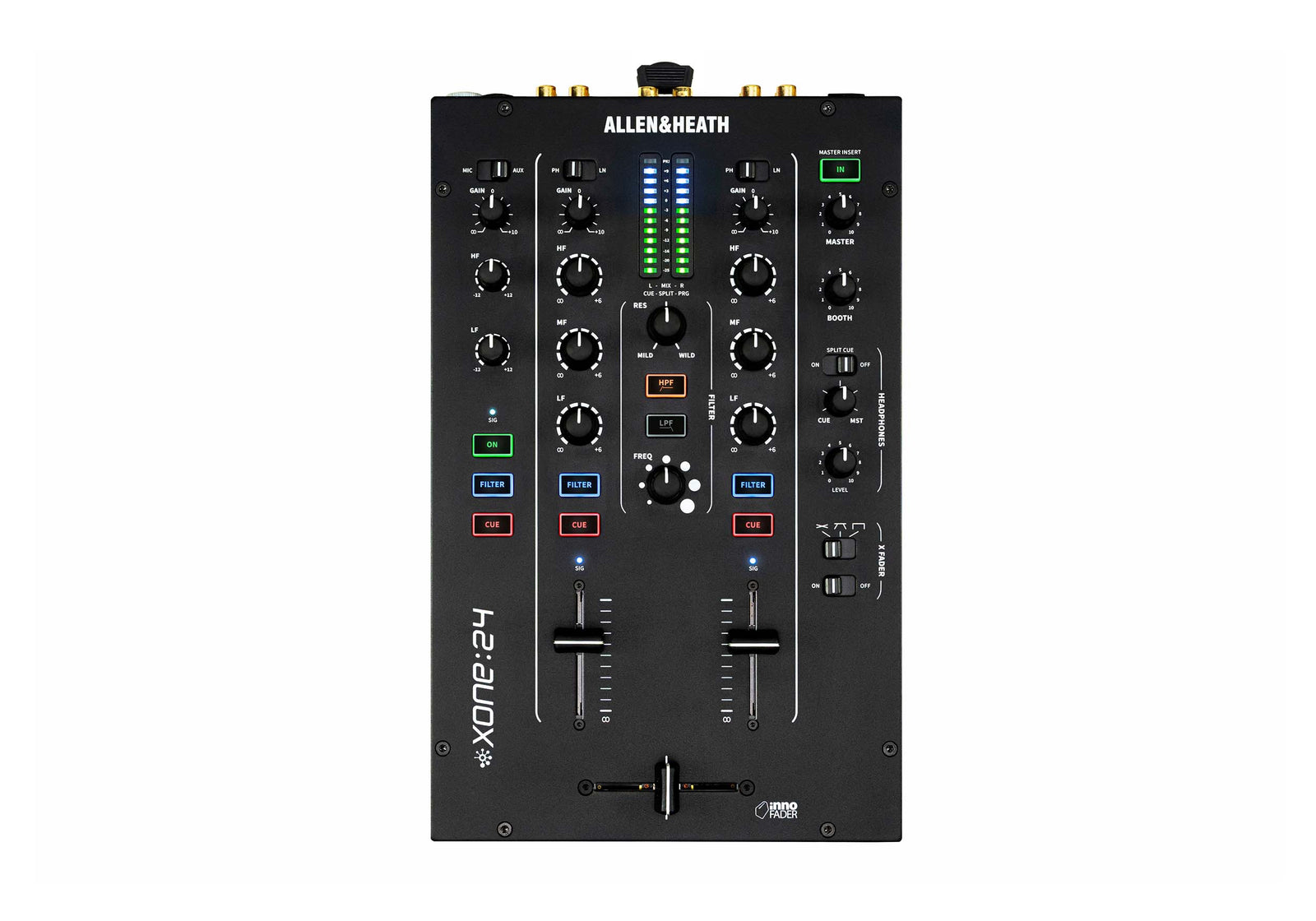

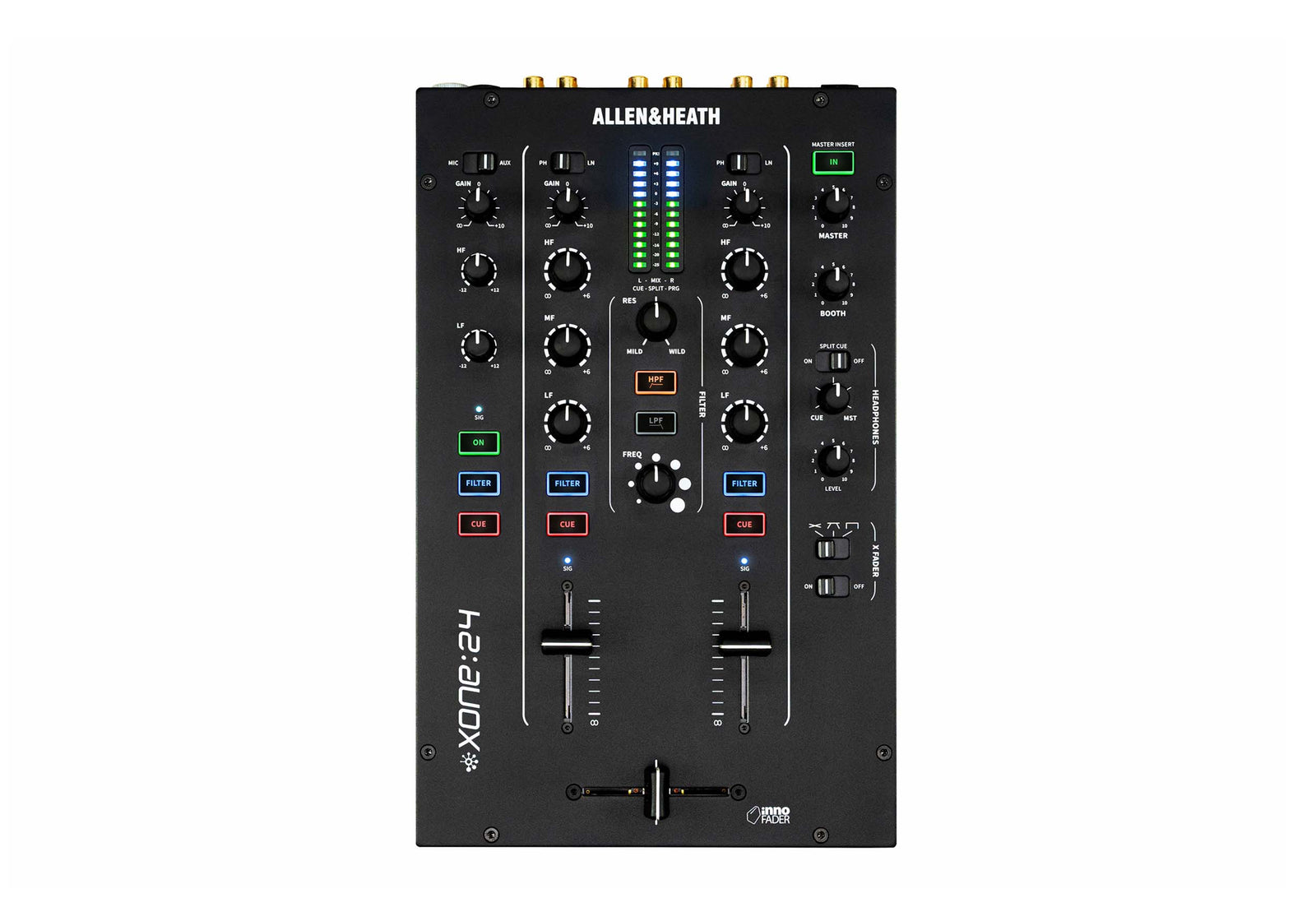

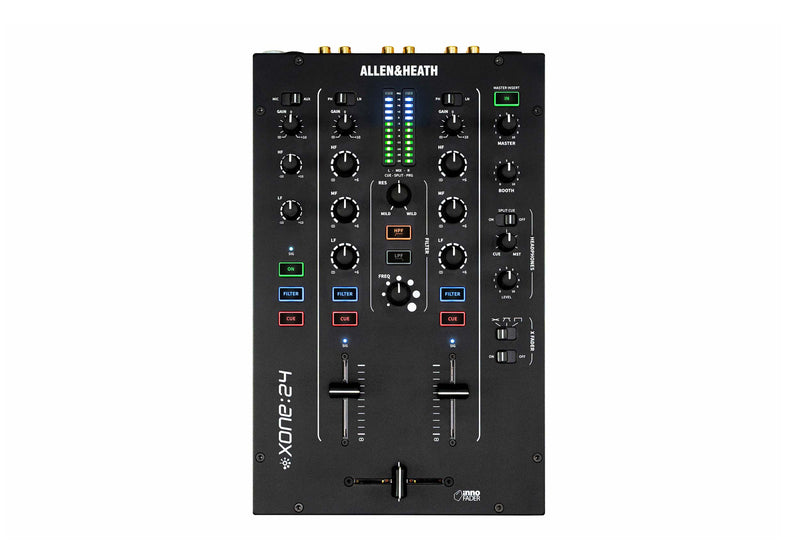

Allen & Heath XONE:24, 2+1 Channel Compact Analogue DJ Mixer

The Allen & Heath XONE:24, 2+1 Channel Compact Analogue DJ Mixer is designed for DJs who value professional sound and hands-on control in smaller setups. Whether you're spinning vinyl, playing from digital media players, or simply looking for high[1]quality analogue performance, Xone:24 offers club grade sound in an easy-to-use package.

Essential Tools Professional Sound

Built for smaller spaces, home setups, or mobile rigs, Xone:24 delivers the same core tools found in flagship Xone mixers - including the Xone filter and mini InnoFADER - in a compact and accessible format. It doesn’t matter if you’re learning your craft, performing live, listening at home, or creating in the studio, the Xone:24 offers a no-compromise path into the world of Xone.

The Sound of Analogue

At the heart of the Xone:24 is the meticulously engineered all-analogue signal path, designed to deliver the clarity, warmth and punch that define the Xone sound. A pair of high-gain, low-noise RIAA preamps ensure faithful reproduction of vinyl sources, while the matched Phono/Line inputs allow seamless switching between decks and digital players without compromising gain structure. The 3-band isolator EQ offers precise, creative control for sculpting your mix, from swapping bass lines to expressive transitions. Underpinning it all is carefully tuned, pure analogue summing that delivers deep, powerful low end and open, detailed highs, giving your mixes that professional full-bodied sound that can only be achieved in an analogue mixer.

Legendary Xone Filter

The Xone:24 includes the iconic Xone:VCF for creative and precise sound shaping. Offering

low-pass and high-pass modes, frequency sweep, and the renowned mild-to-wild resonance

control, it’s the same filter topology found in Allen & Heath’s flagship Xone mixers.

Built to Perform

Xone:24 features the Mini innoFADER crossfader, trusted by DJs worldwide for its smooth response and

durability. Backlit switches, responsive metering, and comprehensive I/O round

out a mixer built to deliver reliable performances, no matter where you find yourself performing.

Flexible Effects Integration

The Xone:24 introduces a new Master Insert FX loop, offering easy integration with external

effects via rear-panel send/return connections, making it simple to integrate the most popular

effects hardware into your mixes. For venues, the Master Insert can be connected to dynamic

processors, offering control over the main output for environmental or system management

needs.

Product Specifications:

Type: Analogue

Channels: 2 + 1

EQ:

3-Band: +6dBu / Total Kill (CH 1 & 2)

High Frequency: 3.5kHz

Mid Frequency: 1.1kHz

Low Frequency: 500Hz

2-Band: ±12dBu (AUX CH)

High Frequency: 900Hz

Low Frequency: 750Hz

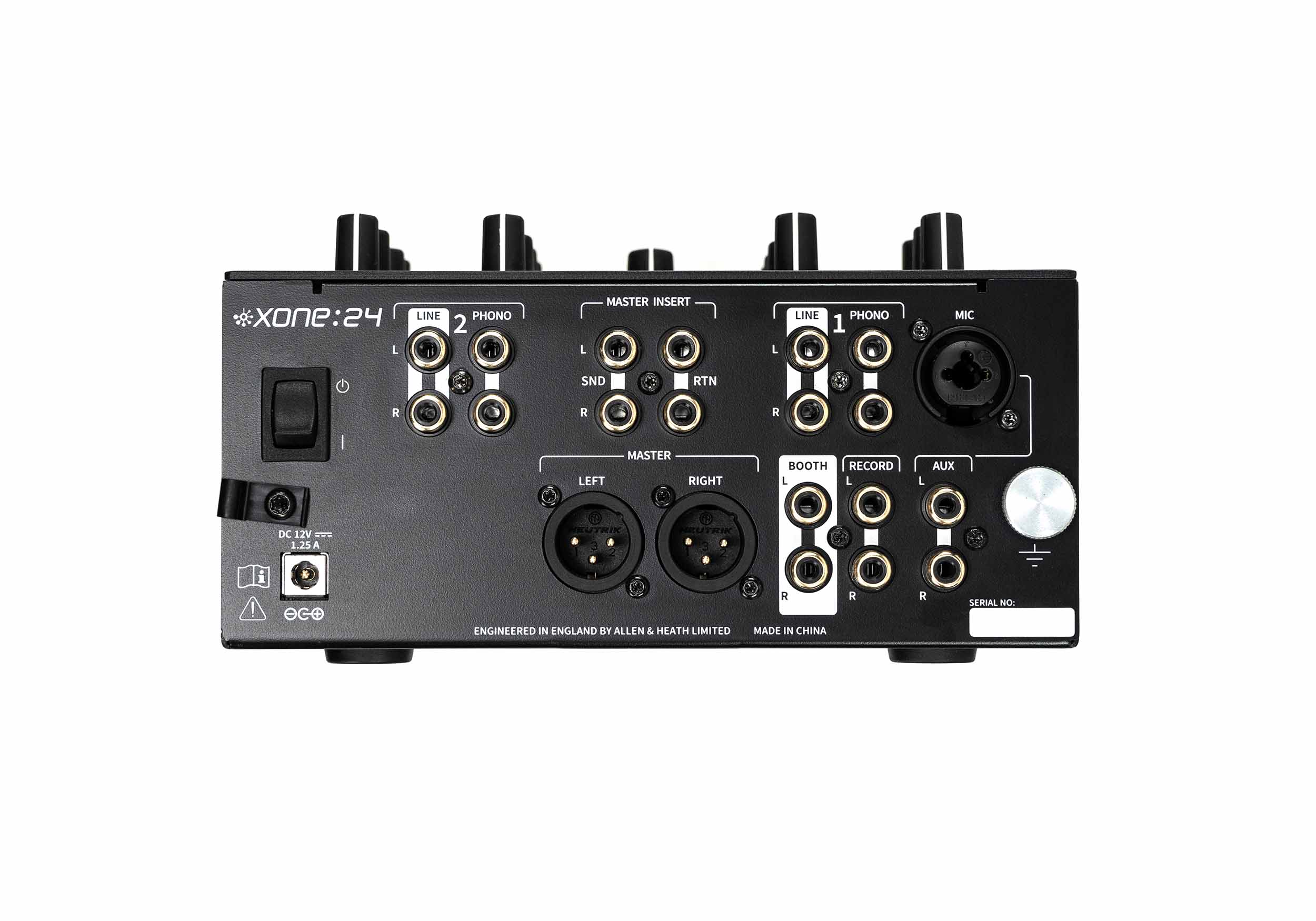

Inputs:

Line Inputs: 3 × RCA (CH 1 & 2 + Aux CH)

Phono Inputs: 2 × RCA (CH 1 & 2)

Mic Input: 1 × Combi (XLR + TRS)

Outputs:

Master Output: 1 × XLR (Balanced)

Booth Output: 1 × RCA (Unbalanced)

Record Output: 1 × RCA (Unbalanced)

Master Insert / FX Loop:

Send: 1 × RCA MASTER INSERT Send

Return: 1 × RCA MASTER INSERT Return

FX Send: 1 × Master Insert IN

Filter:

1 × Voltage Controlled Filter (HPF / LPF)

Adjustable Frequency & Resonance

Assignable to CH 1 & 2 + Aux CH

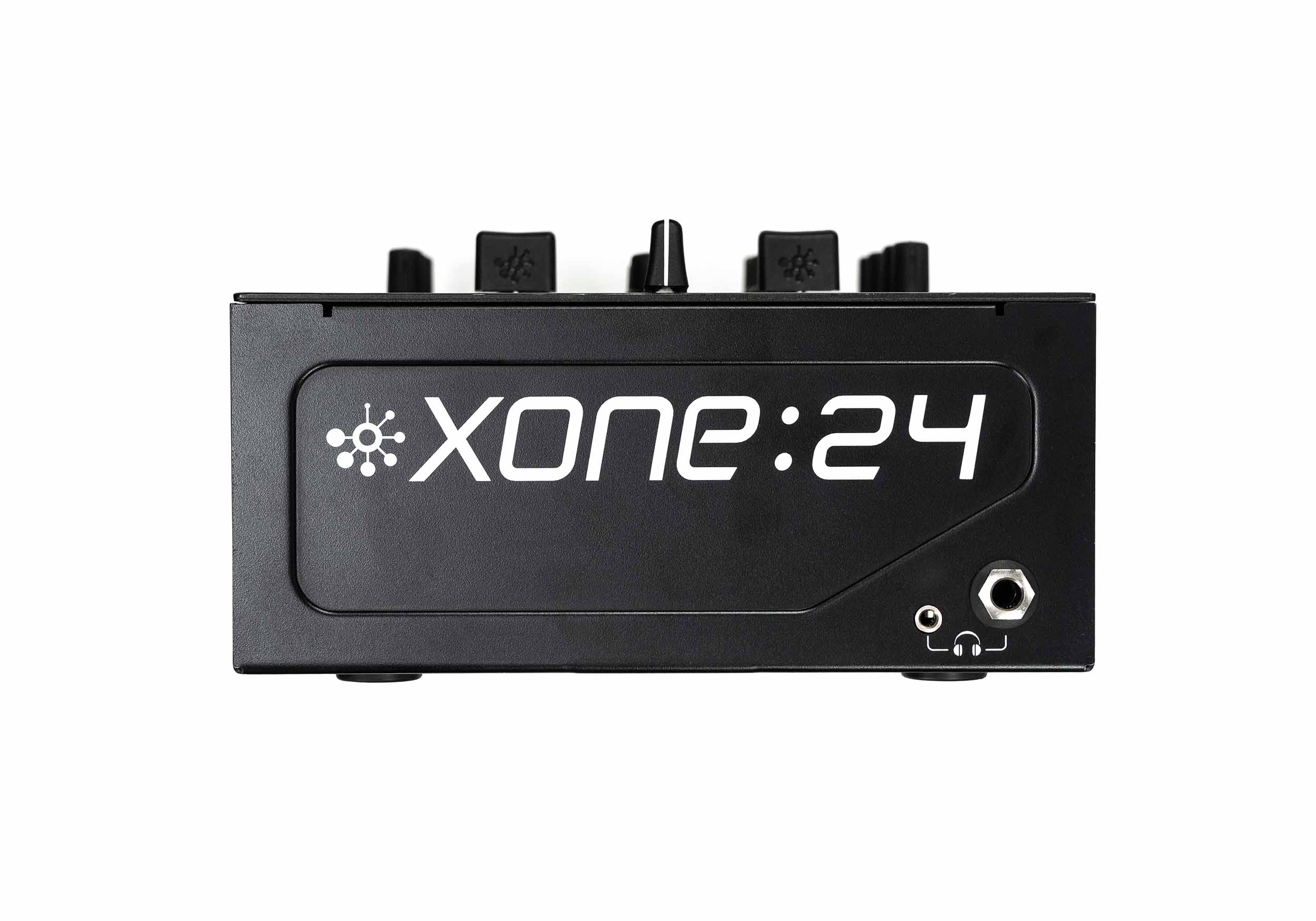

Headphones:

1 × 1/4"

1 × 3.5mm

Split Cue Monitoring

Faders & Meters:

Channel Faders: 45mm Voltage Controlled Amplifier

Channel Meters: Single tri-Colour LED

Mix Meters: 12 LED

X-Fader: 45mm VCA mini innoFADER

X-Fader Curve Settings: 2 Types (Fast-cut / Blend)

Other Features:

Earth Ground Terminals: ×1

Headroom: +18dB

Power:

DC Mains: 100–240V AC, 50/60Hz

Consumption: 35W max

Mains Adaptor: 2-pin DC socket with cable clamp

Output Levels (Nom / Max):

Master Mix: +4dBu / +22dBu

Booth: 0dBu / +18dBu

Master Insert Send: -2dBu / +18dBu

Record RCA: -10dBV / +8dBV

Performance:

Internal Headroom (Channels): +18dB

Frequency Response (Line in to Master Out): ±0.5dB from 20Hz to 30kHz

Distortion: Typically, 0.01% @ 1kHz 0dBu

Crosstalk (Inter-channel): < -85dB @ 1kHz +10dBu

Residual Noise:

Master Mix: -93dBu

Booth: -93dBu

Mix Noise:

Master Mix: -83dBu

Booth: -83dBu

Record RCA: -83dBu

Mic Gain: +40dB, EIN = -115dB (@ 40dB gain with 150Ω source)

RIAA Gain: +42dB @ 1kHz (6mV RMS = 0VU @ 1kHz)

Meters:

Master Meters: 12 LED (-25dBu to +12dBu)

Channel Meter (Tri-Colour LED)

Green: -25dBu to 0dBu

Blue: >0dBu to +12dBu

Red: >+12dBu

EQ Ranges:

Channel EQ: LF 500Hz / MF 1.1kHz / HF 3.5kHz

+6dB Boost to Total Kill

Total Kill Attenuation: -75dB

Auxiliary Channel EQ: LF 750Hz / HF 900Hz (±12dBu)

Channel Fader: 45mm Voltage Controlled Amplifier (Shutoff < -90dB @ 1kHz +10dBu)

Cross-Fader: 45mm Voltage Controlled Amplifier (Shutoff < -90dB @ 1kHz +10dBu)

Filter:

Stereo Dual-Mode Analogue Voltage Controlled Filter

High-Pass & Low-Pass Outputs

Frequency Sweep and Resonance Controls

Shipping Weight: 5.95 lbs.

Shipping Dimensions: 15.75 x 12.25 x 8.25”
