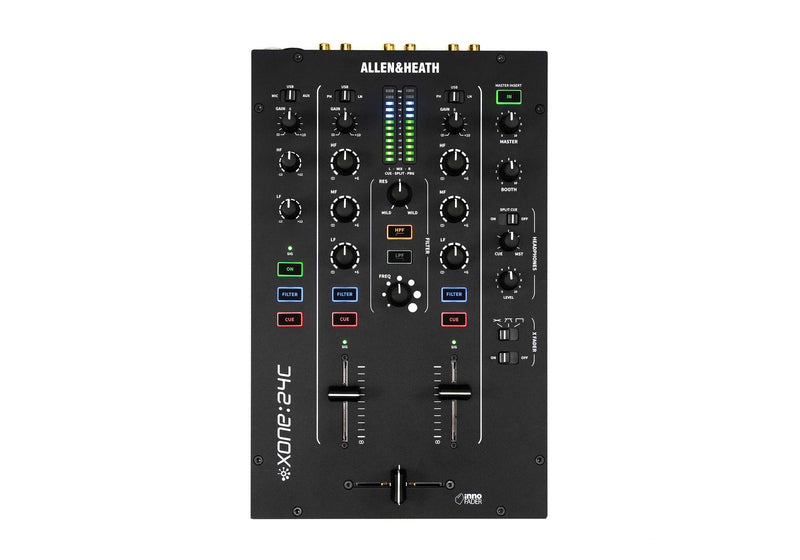

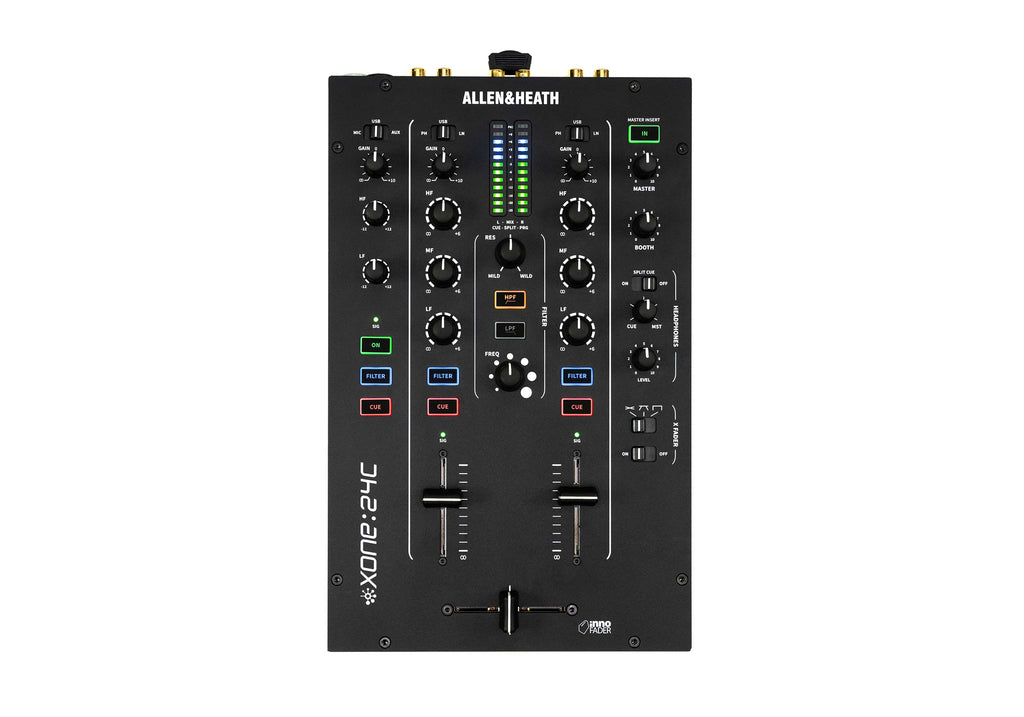

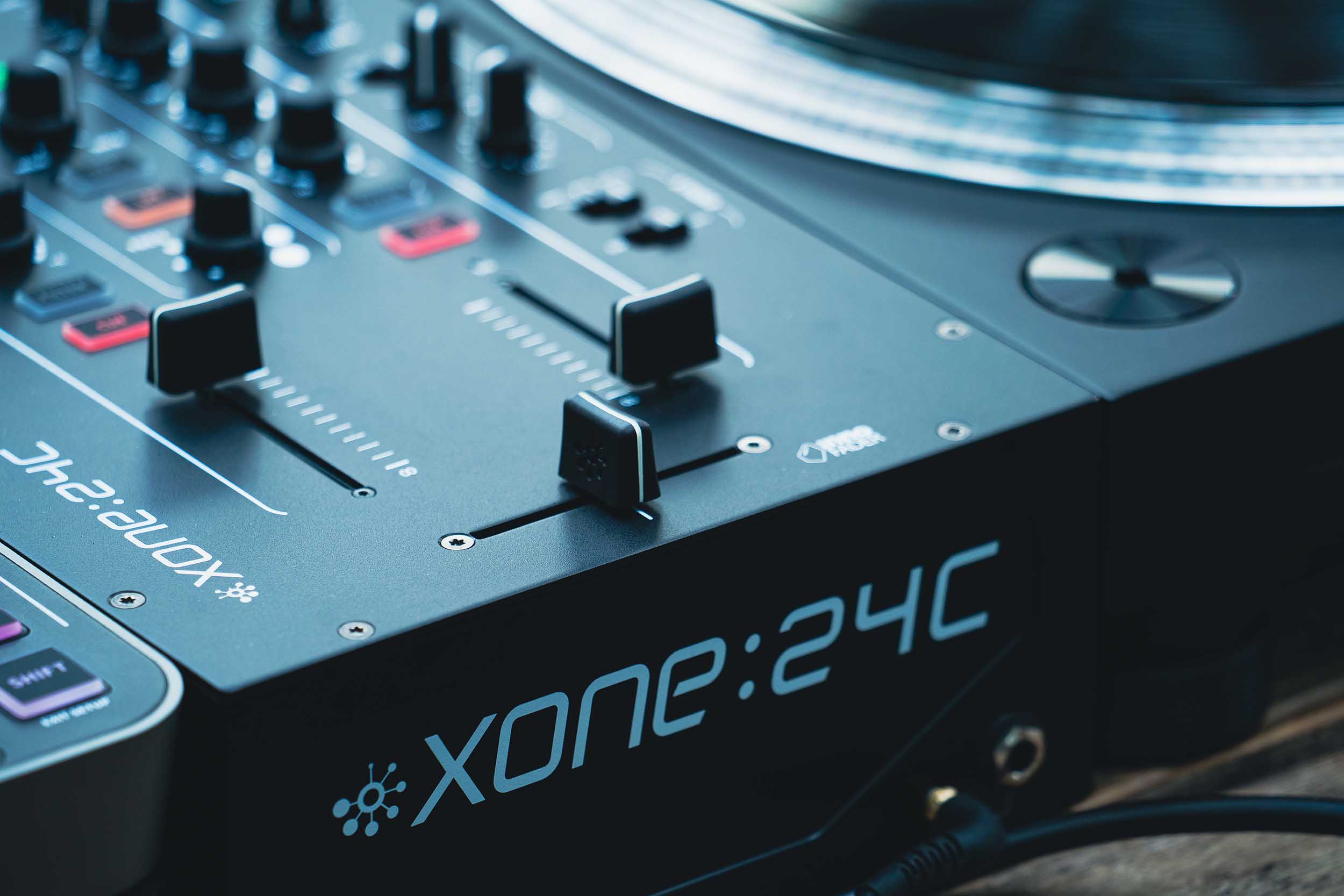

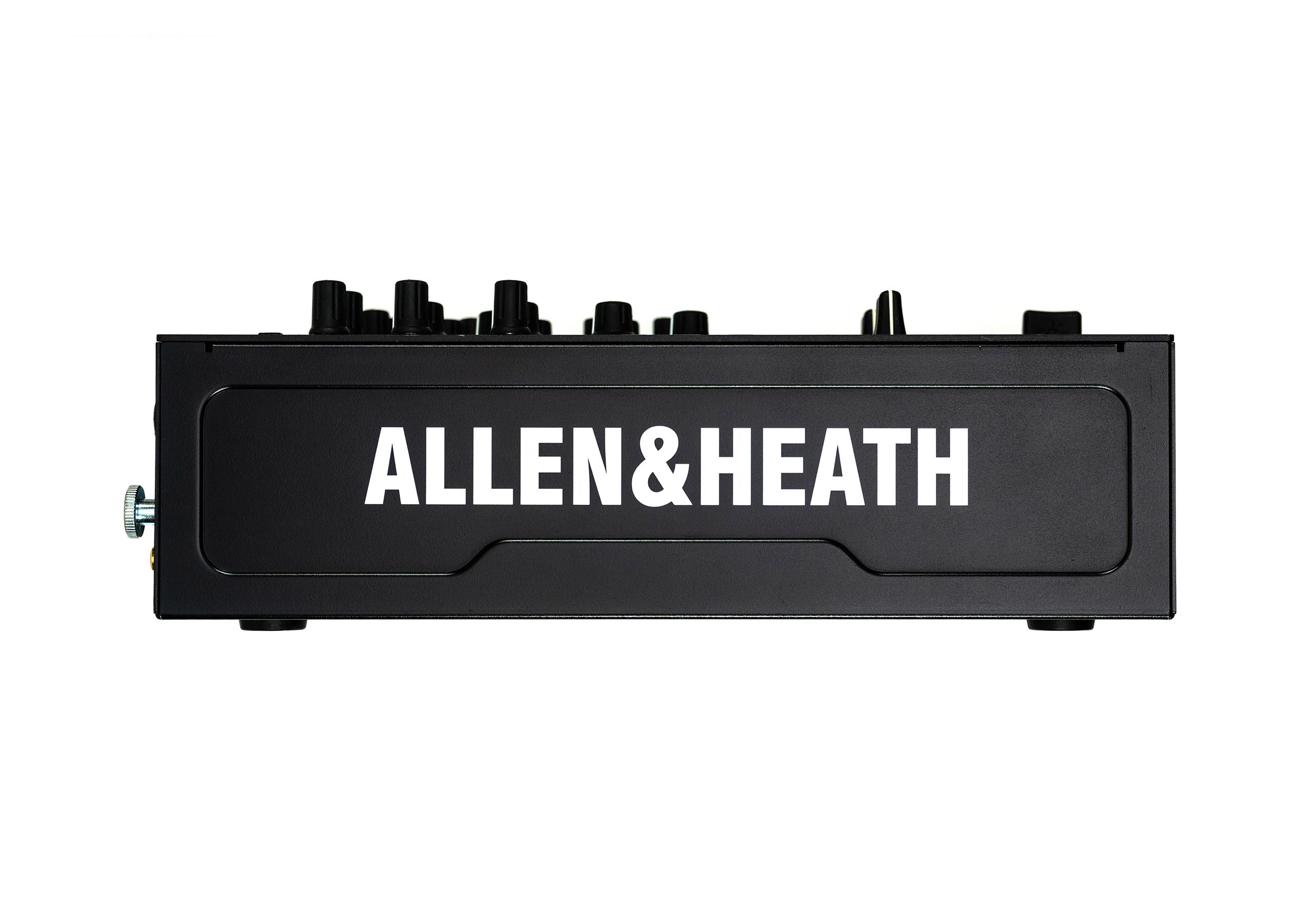

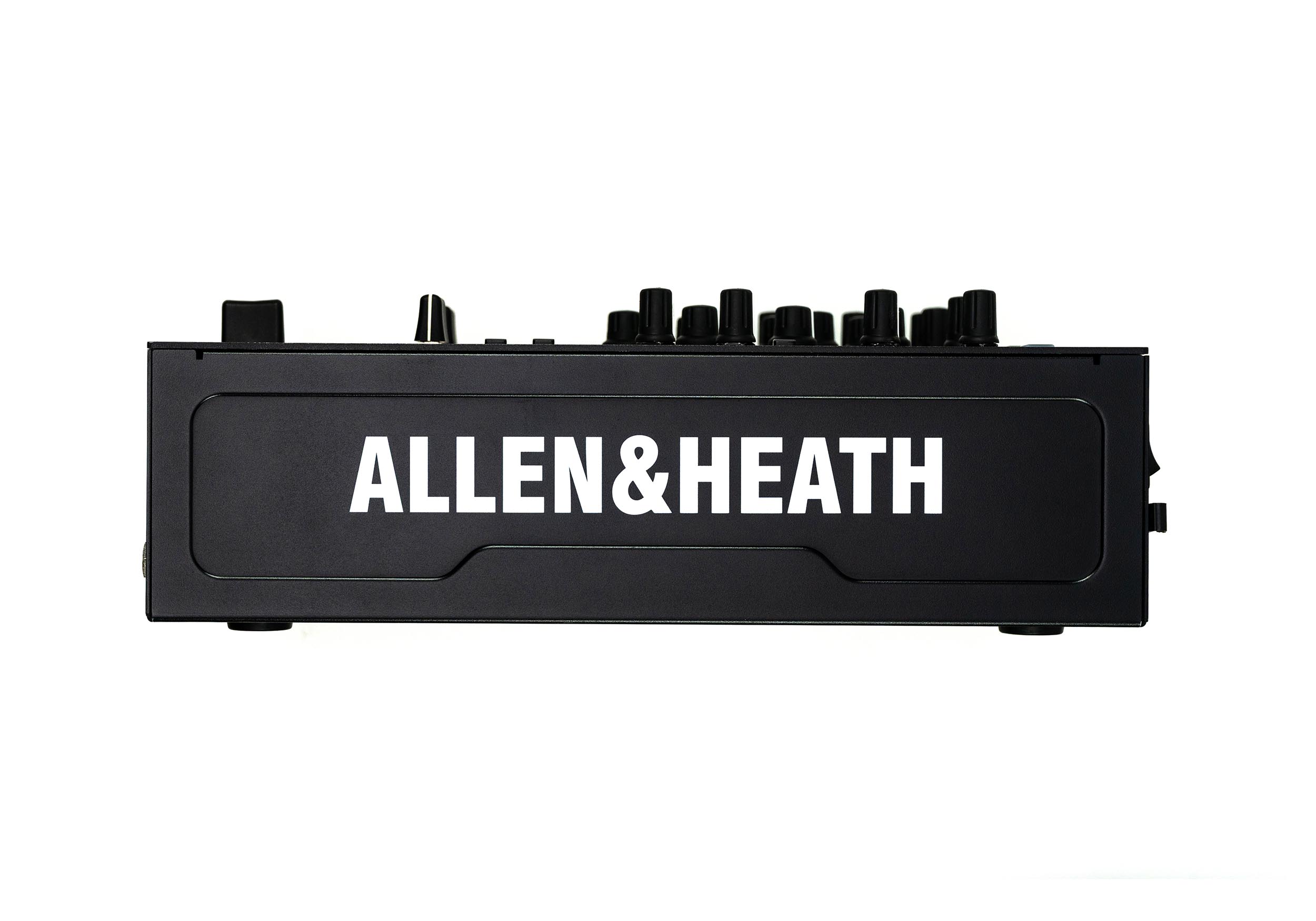

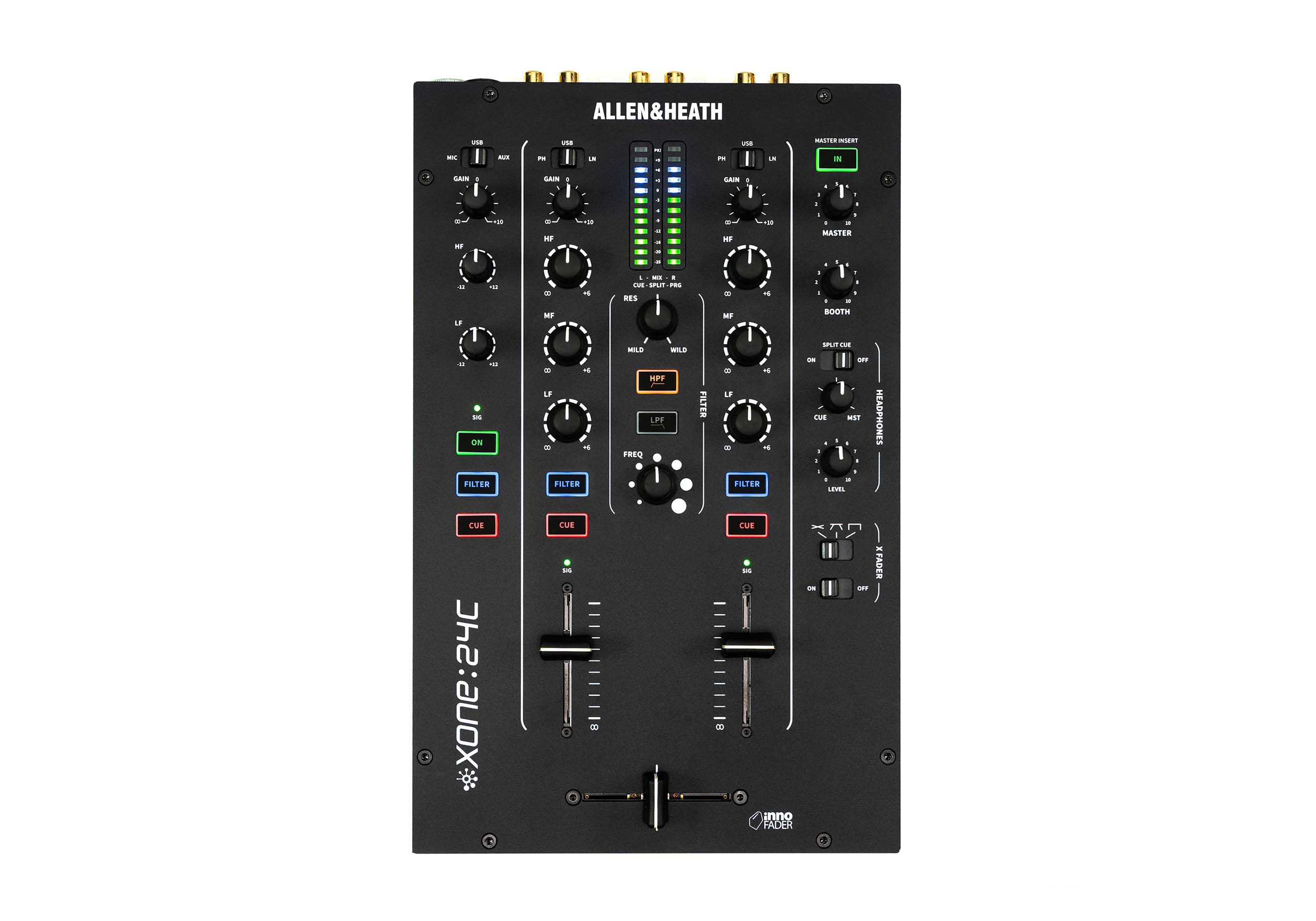

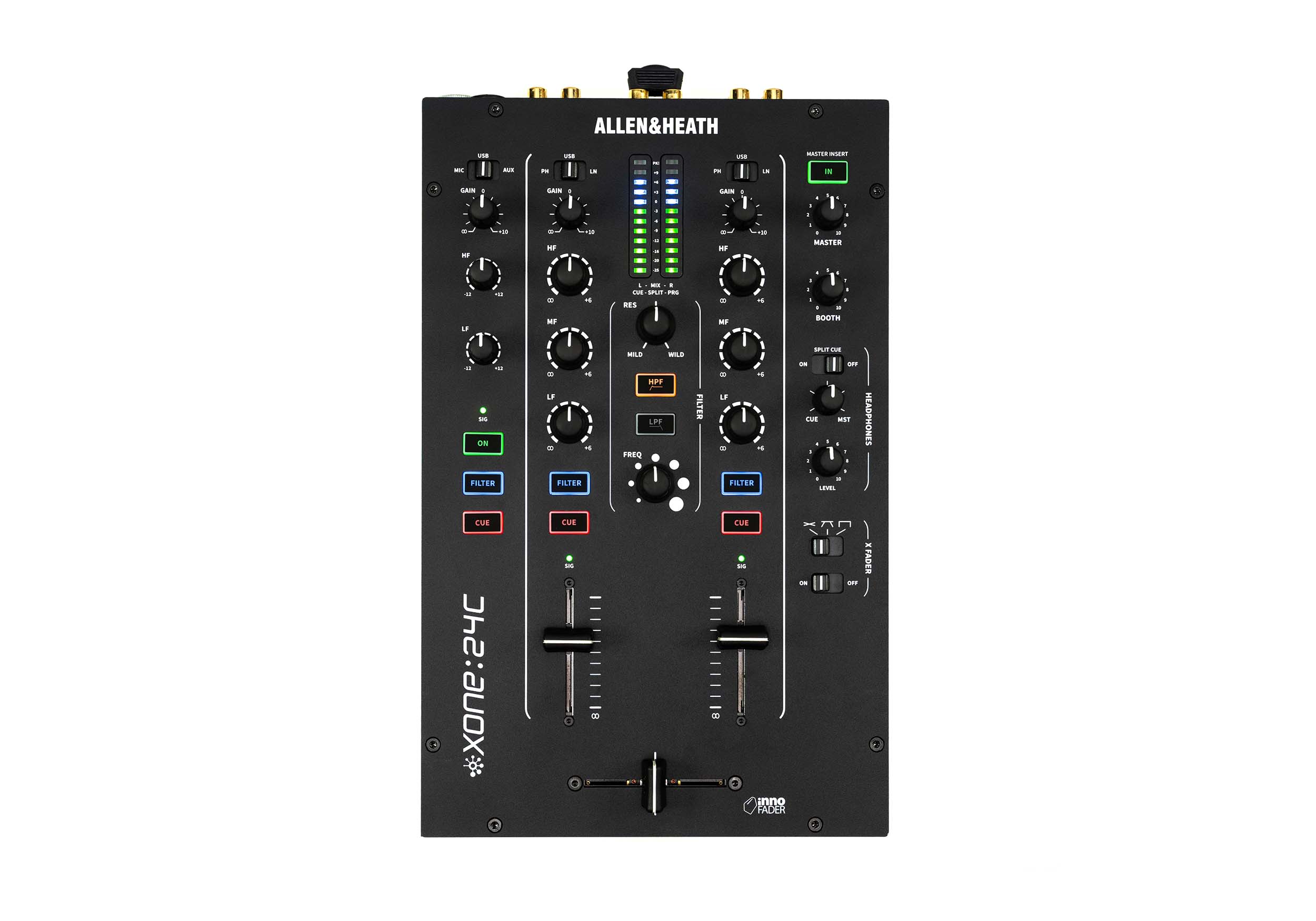

Allen & Heath XONE:24C, 2+1 Channel Analogue DJ Mixer with Interface

The Allen & Heath XONE:24C, 2+1 Channel Analogue DJ Mixer with Interface that blends analogue sound quality with flexible digital connectivity. Building on the foundations of the all-analogue Xone:24, the Xone:24C adds a high-quality USB[1]C interface and powered USB hub for easy integration with DVS, streaming, and production setups.

Essential Tools Professional Sound

Built for smaller spaces, home setups, or mobile rigs, Xone:24C delivers the same core tools found in flagship Xone mixers - including the Xone filter and mini InnoFADER - in a compact and accessible format. It doesn’t matter if you’re learning your craft, performing live, listening at home, or creating in the studio, the Xone:24C offers a no-compromise path into the world of Xone.

The Sound of Analogue

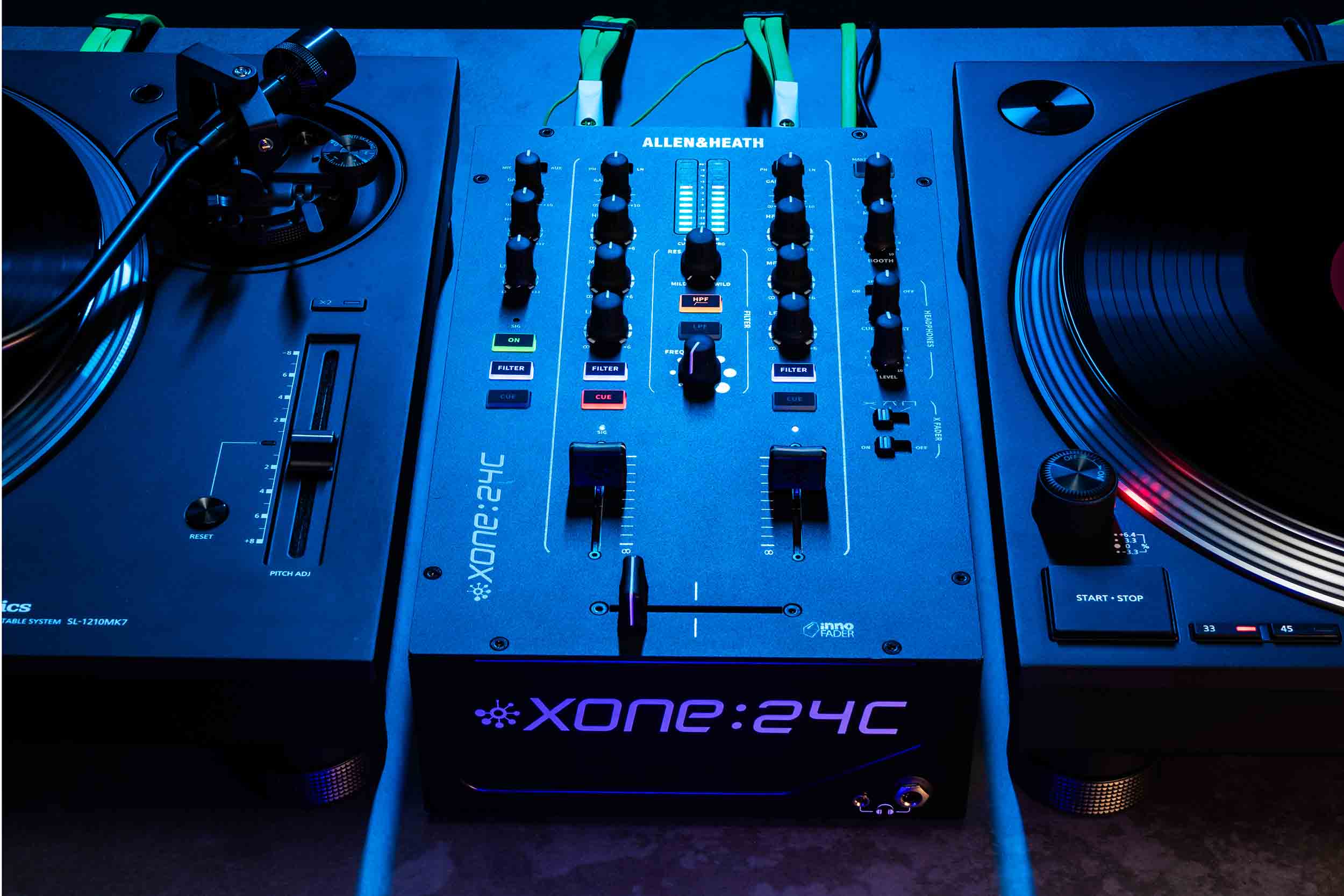

At the heart of the Xone:24 is the meticulously engineered all-analogue signal path, designed to deliver the clarity, warmth and punch that define the Xone sound. A pair of high-gain, low-noise RIAA preamps ensure faithful reproduction of vinyl sources, while the matched Phono/Line inputs allow seamless switching between decks and digital players without compromising gain structure. The 3-band isolator EQ offers precise, creative control for sculpting your mix, from swapping bass lines to expressive transitions. Underpinning it all is carefully tuned, pure analogue summing that delivers deep, powerful low end and open, detailed highs, giving your mixes that professional full-bodied sound that can only be achieved in an analogue mixer.

Hybrid Workflow Simplified

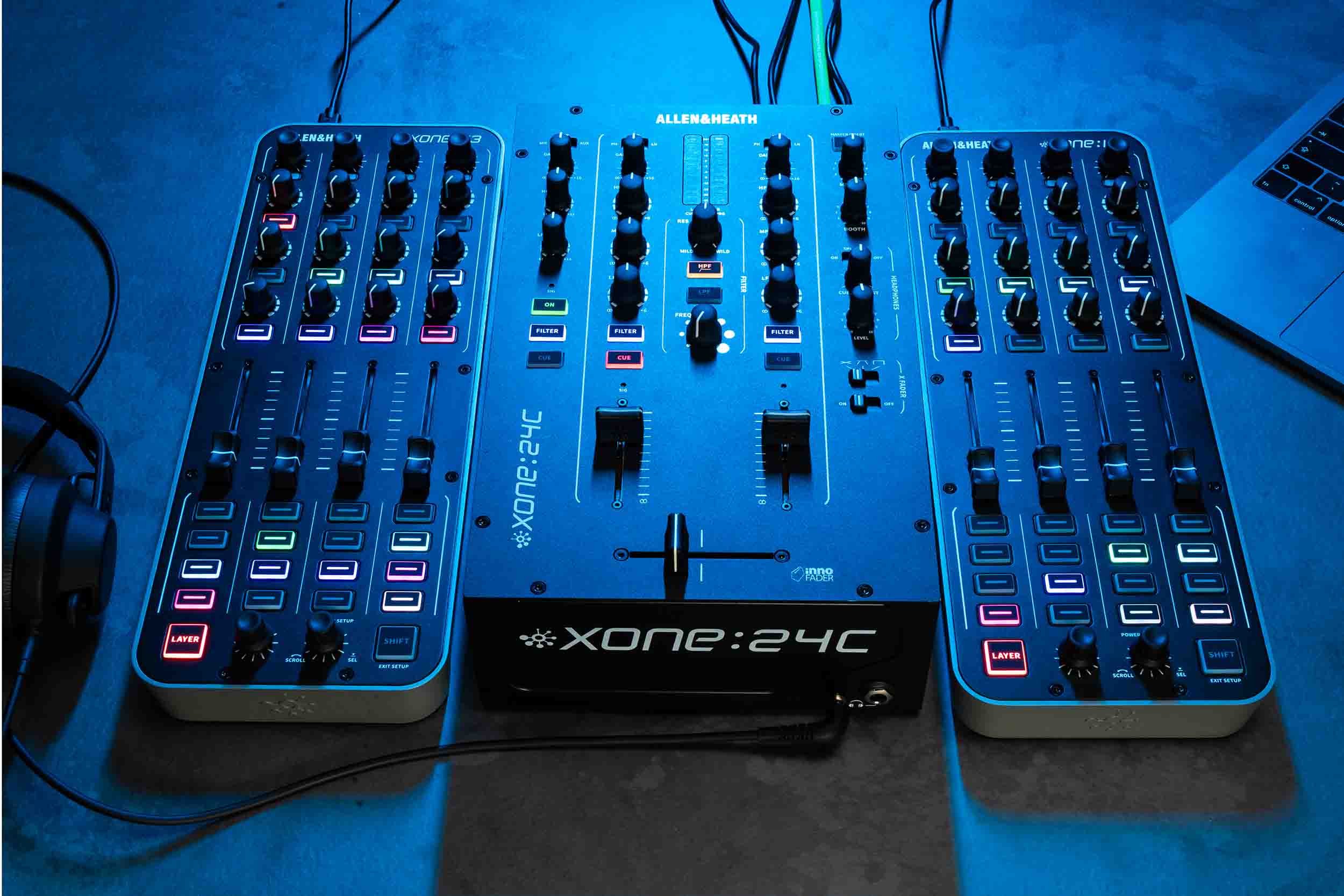

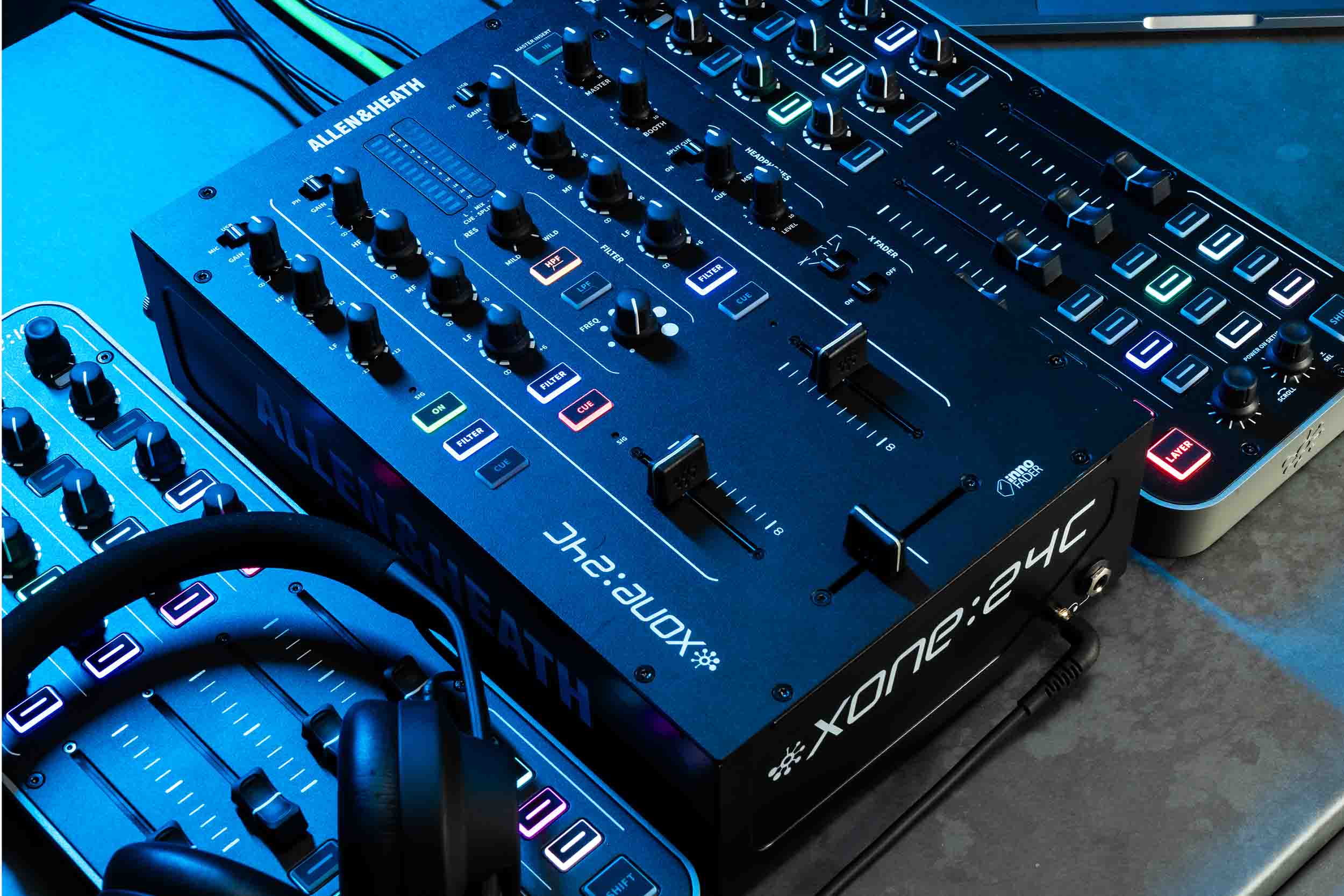

Whether you're using timecode vinyl, streaming live sets, or integrating with a DAW, Xone:24C offers plug-and-play digital connectivity while retaining the unmistakable feel and sound of a true analogue mixer. Its class-compliant 96kHz USB audio interface delivers pristine sound quality with three operating modes - Streaming, DAW, and DVS Pro – to simplify setup. The powered USB-C hub ports allow connection of controllers like the Xone: K series, or any class-compliant USB-C MIDI/audio device, creating a simple, centralised connection hub. Additionally, MIDI is output from key mixer controls to the connected host system.

Legendary Xone Filter

The Xone:24C includes the iconic Xone:VCF for creative and precise sound shaping. Offering low-pass and high-pass modes, frequency sweep, and the renowned mild-to-wild resonance control, it’s the same filter topology found in Allen & Heath’s flagship Xone mixers.

Built to Perform

Xone:24C features the Mini innoFADER crossfader, trusted by DJs worldwide for its smooth response and durability. Backlit switches, responsive metering, and comprehensive I/O round out a mixer built to deliver reliable performances, no matter where you find yourself performing. Flexible Effects Integration the Xone:24C introduces a new Master Insert FX loop, offering easy integration with external effects via rear-panel send/return connections, making it simple to integrate the most popular effects hardware into your mixes. For venues, the Master Insert can be connected to dynamic processors, offering control over the main output for environmental or system management needs.

Product Specifications:

Type:

Hybrid: Analogue + Internal USB-C Soundcard and Dual-Port USB-C Hub

Channels: 2 + 1 (CH1 & CH2: PHONO/USB/LINE | AUX CH: MIC/USB/LINE)

EQ:

3-Band Isolator EQ: -∞/ +6dBu (CH1 & CH2)

High Frequency: 3.5kHz

Mid Frequency: 1.1kHz

Low Frequency: 500Hz

2-Band ±12dBu (Auxiliary Channel)

High Frequency: 900Hz

Low Frequency: 750Hz

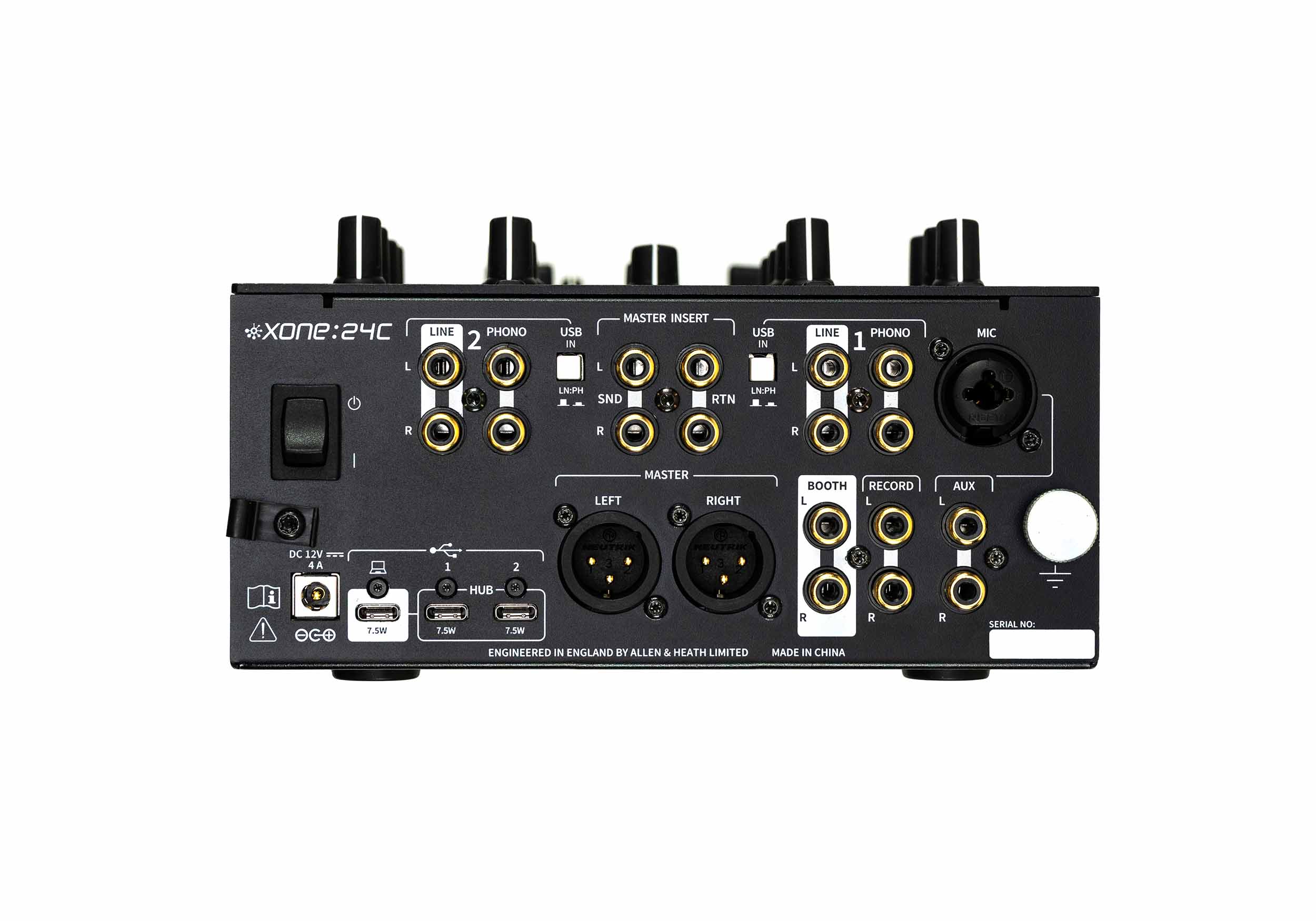

Inputs:

3 × Stereo RCA Line (CH1 & CH2 + AUX CH)

2 × Stereo RCA Phono (CH1 & CH2)

1 × Combi (XLR + TRS) Mic

Outputs:

1 × Stereo XLR Master (Balanced)

1 × Stereo RCA Booth (Unbalanced)

1 × Stereo RCA Record (Unbalanced)

1 × Stereo RCA Master Insert FX Loop (Send/Return)

Filter:

Stereo Analogue Voltage Controlled Filter (HPF / LPF)

Adjustable Frequency & Resonance

Assignable to CH1, CH2, and AUX CH

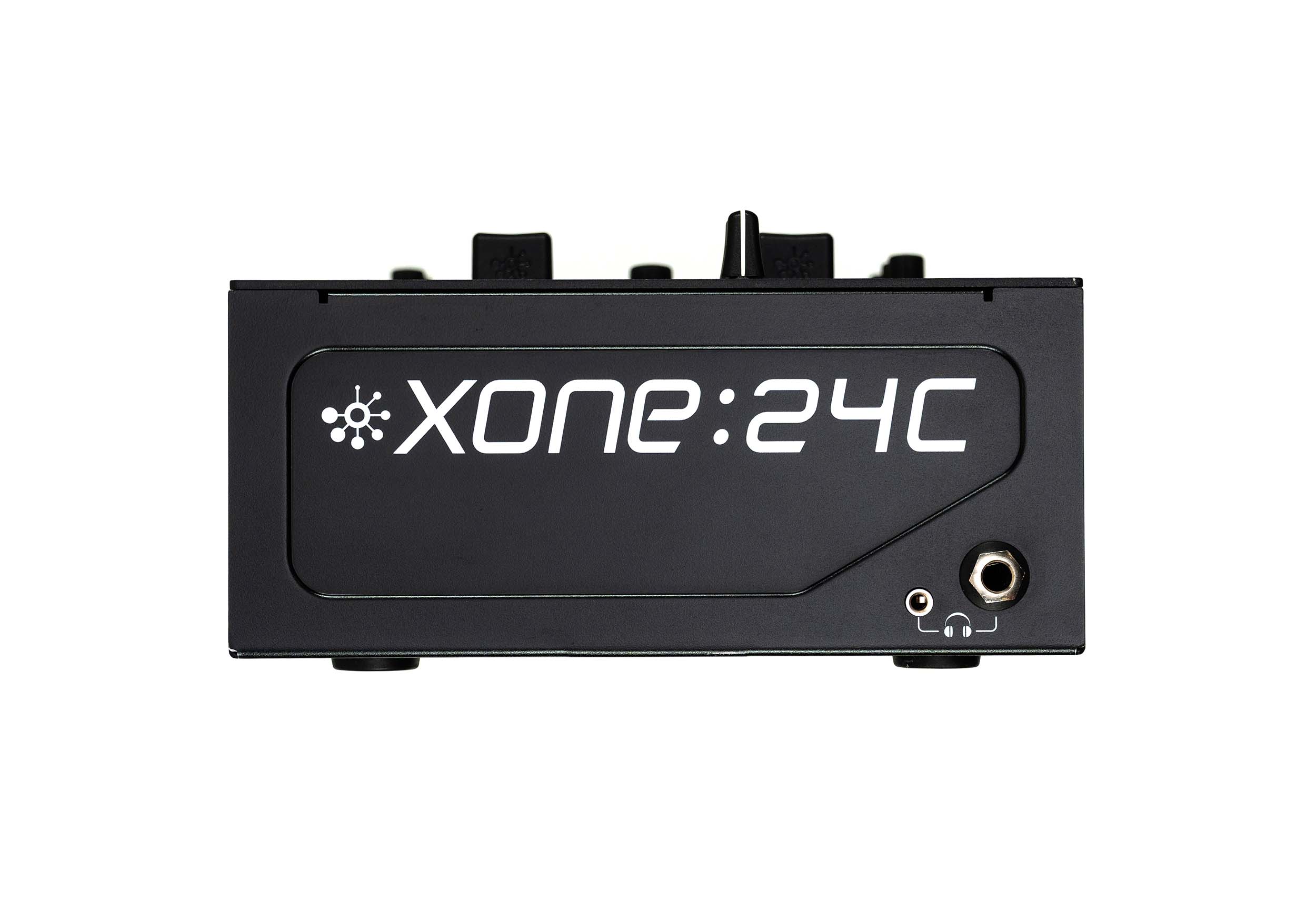

Headphones:

1 × 6.35mm Stereo Jack

1 × 3.5mm Stereo Jack

Split Cue Monitoring

Channel Faders: 45mm Linear Voltage Controlled Amplifier

Channel Meters: Single Tri-Colour LED

Crossfader: 45mm Linear VCA mini InnoFADER

Curve Settings: 2 Types (Fast-Cut / Blend)

Internal Soundcard:

6 Channel | 32-bit / 96kHz | USB 2.0

3 × Stereo In (CH1 / CH2 / Master)

3 × Stereo Out (CH1 / CH2 / AUX CH)

MIDI:

Assignable: YES (MIDI CC – CH1 & CH2 Faders, Crossfader, VCF FREQ; NOTE ON/OFF – CUE, FILTER, HPF, LPF, MASTER INSERT IN)

MIDI Out:

1 × USB Host Port (Type-C)

2 × USB Hub Ports (Type-C, Hub-to-Host / Host-to-Hub only)

Earth Ground Terminals: x1

Power Supply:

DC Mains: 100–240V, AC 50/60Hz

Consumption: 35W max

USB Power Delivery: USB Host 7.5W (Type-C), USB Hub 2 × 7.5W (Type-C)

Mains Adaptor: 2-pin DC Socket with Cable Clamp

Output Levels (Nom / Max):

Master Mix: +4dBu / +22dBu

Booth: 0dBu / +18dBu

Master Insert Send: -2dBu / +18dBu

Record RCA: -10dBV / +8dBV

Performance:

Internal Headroom: +18dB

Frequency Response: ±0.5dB (20Hz–30kHz)

Distortion: 0.01% @1kHz 0dBu

Crosstalk Inter-Channel: < -85dB @1kHz +10dBu

Noise:

Master Mix Residual: -93dBu

Booth Residual: -93dBu

Mix Noise: Master Mix -83dBu | Booth -83dBu | Record RCA -83dBu

Mic Gain: +40dB, EIN = -115dB (@40dB Gain with 150Ω Source)

RIAA Gain: +42dB @1kHz (6mV RMS = 0VU @1kHz)

Meters:

Master Meters: 12 LED (-25dBu to +12dBu)

Channel Meter: Tri-Colour LED (Green: -25–0dBu | Blue: 0–+12dBu | Red: >+12dBu)

EQ Ranges:

Channel EQ: LF 500Hz | MF 1.1kHz | HF 3.5kHz (+6dB Boost, -75dB Kill)

Auxiliary EQ: LF 750Hz | HF 900Hz (±12dBu)

Fader Control:

Channel & Crossfader: 45mm VCA

Shutoff: < -90dB @1kHz +10dBu

Filter:

Stereo Dual-Mode Analogue Voltage Controlled Filter

High Pass & Low Pass Response Outputs

Frequency Sweep & Resonance Controls

Digital Architecture (USB) Specification:

6 Channel | 24-bit / 96kHz Capable | USB 2.0

USB Audio & MIDI I/O: 1 × Host Port (Full-Duplex Audio & MIDI Out)

2 × Hub Ports (Full-Duplex Audio & MIDI)

USB Audio Channels: 3 × Stereo In, 3 × Stereo Out

3-Mode Operation: STREAM / DVS PRO / DAW

Analogue/Digital Line-Up: 0dBu = -15dBFS

Supported Buffer Sizes: 32–8192 Samples

Supported Sample Rates: 44.1 / 48 / 88.2 / 96kHz

Supported Bit Depths: 16-bit / 24-bit

Shipping Weight: 9 lbs.

Shipping Dimensions (LxWxH): 15.75 x 12.25 x 8.25 inches
