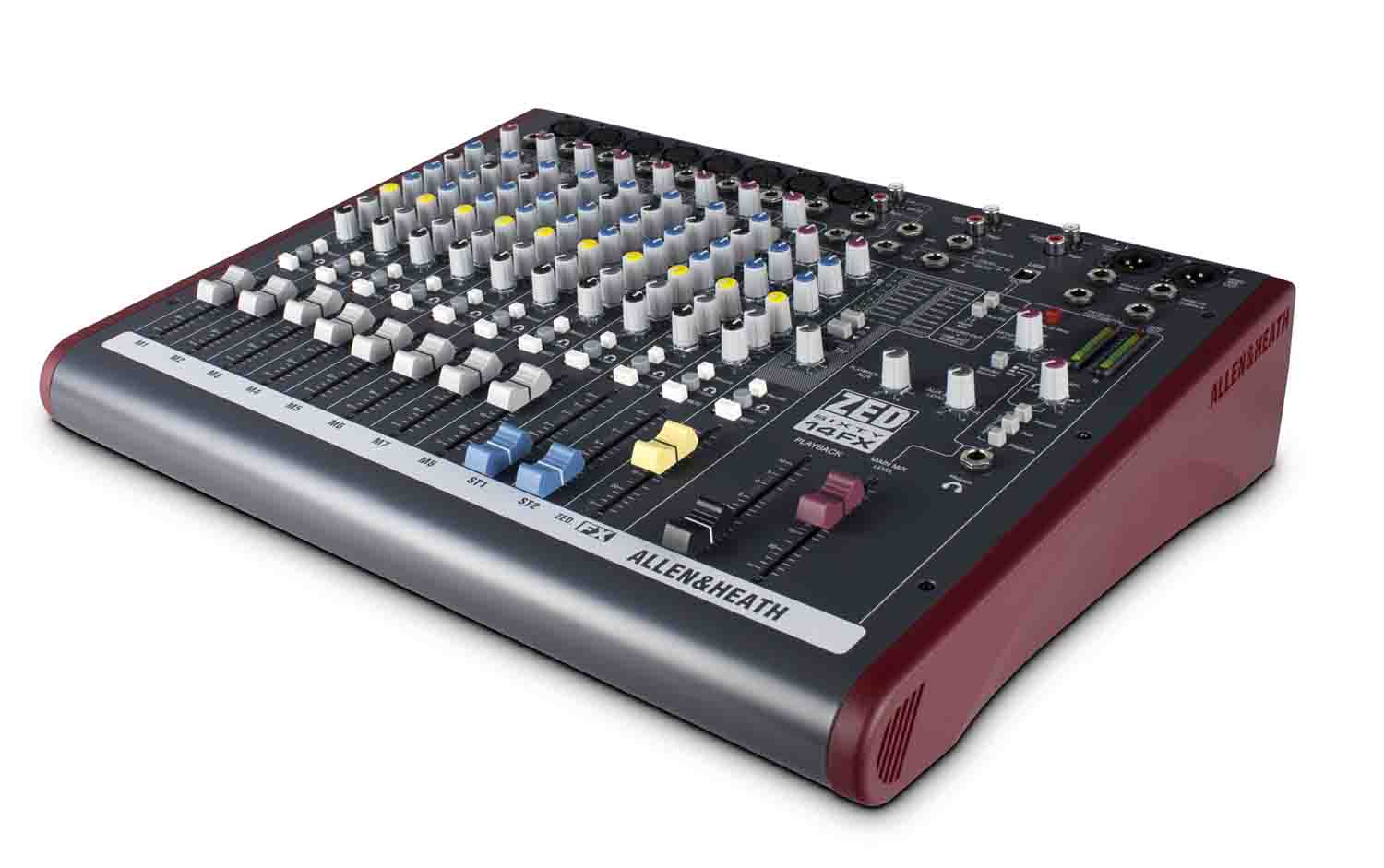

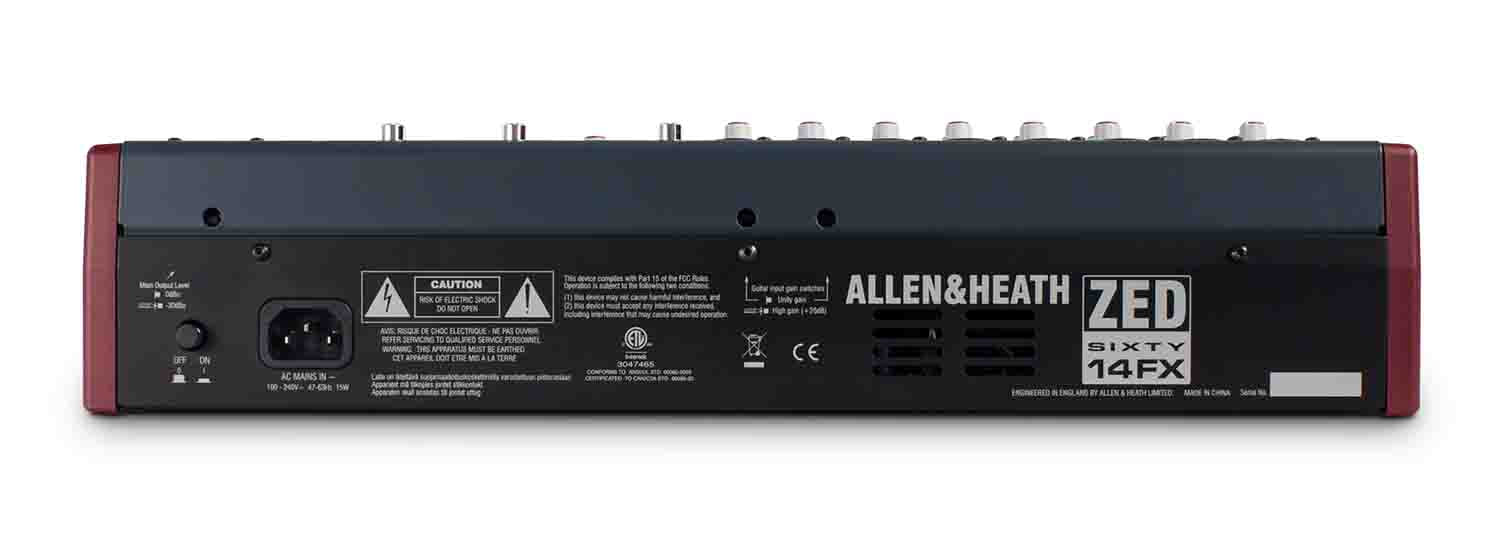

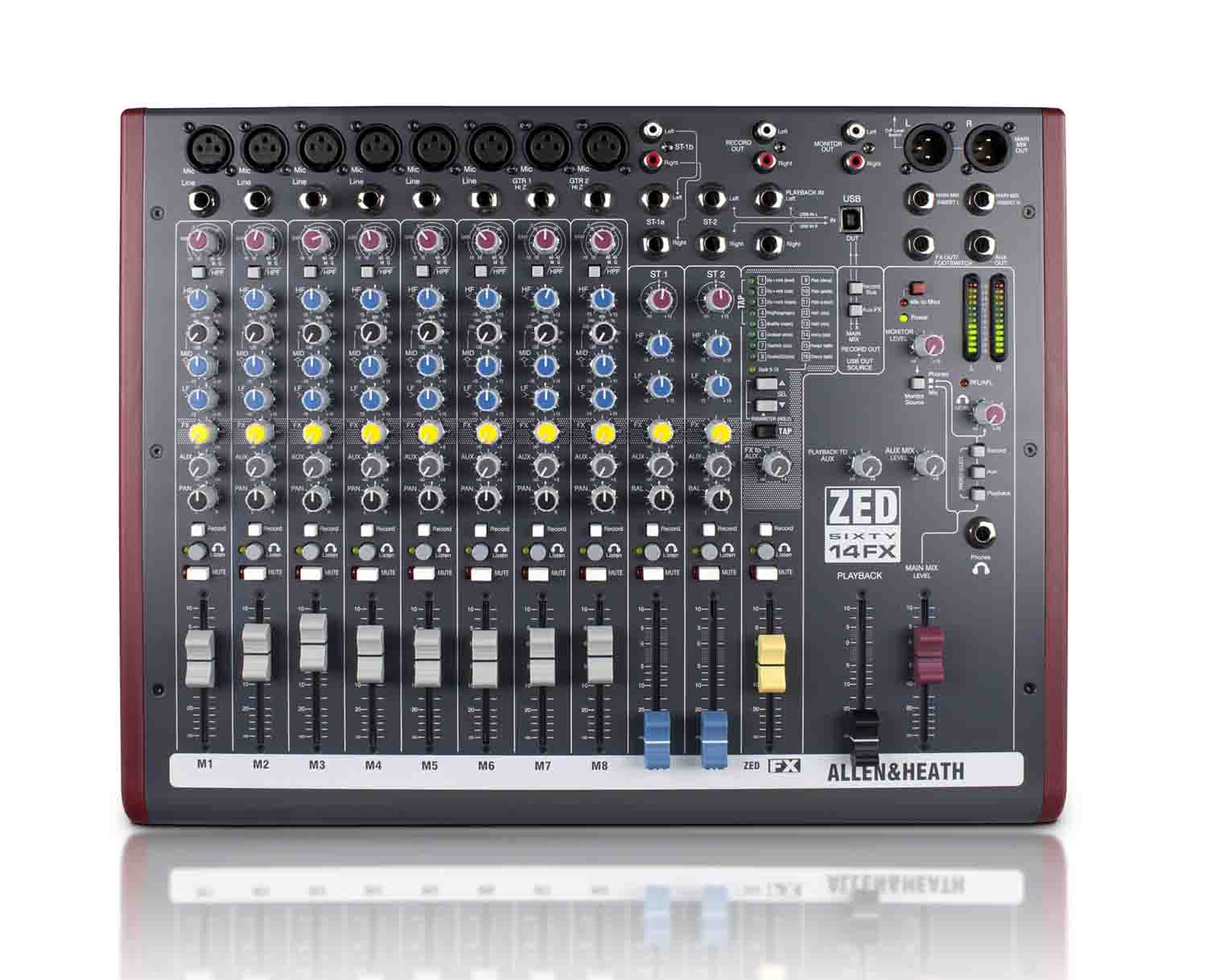

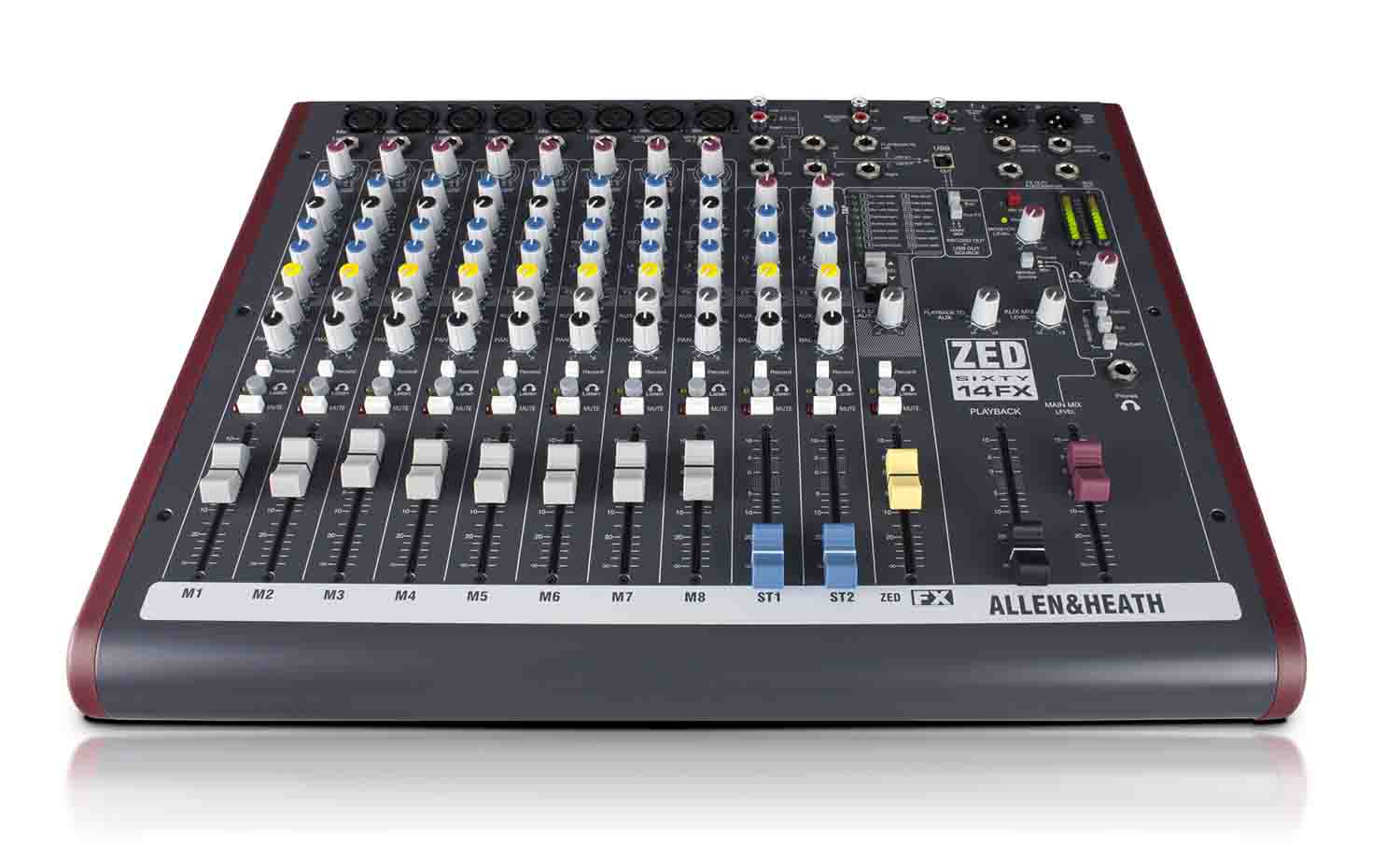

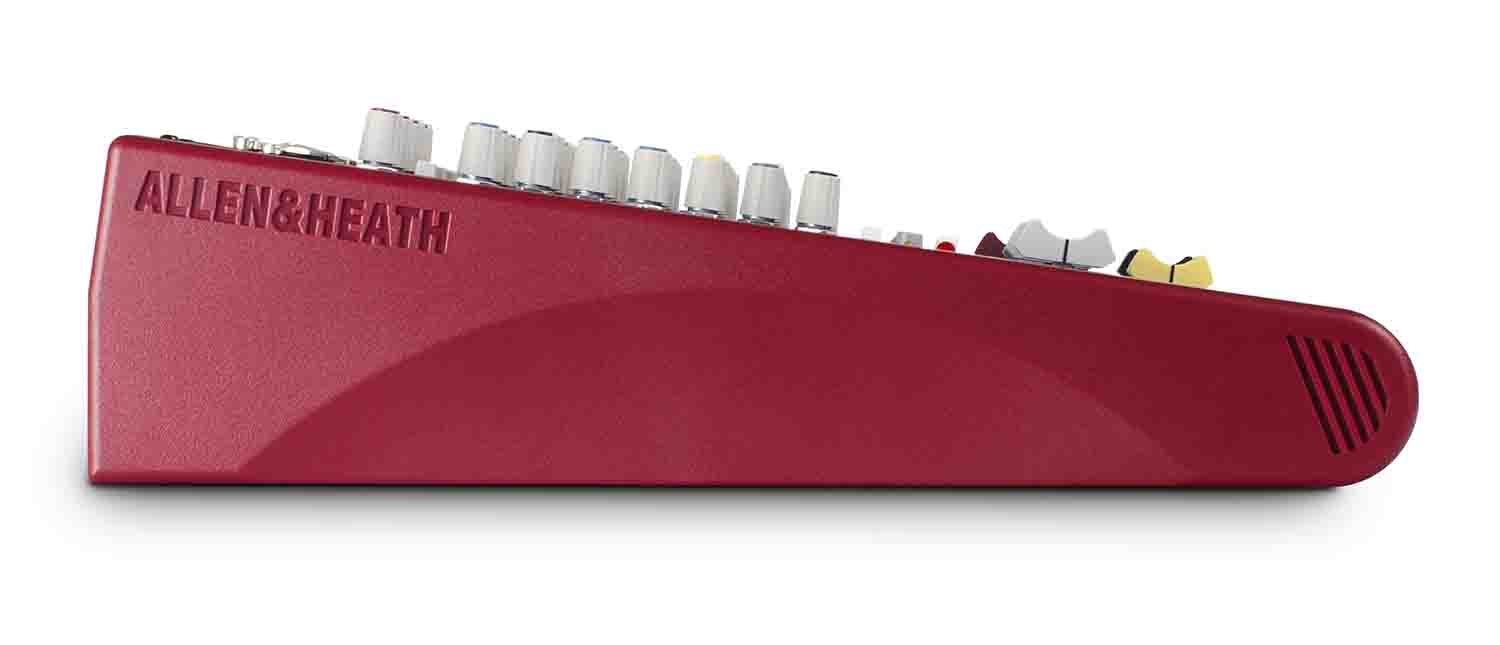

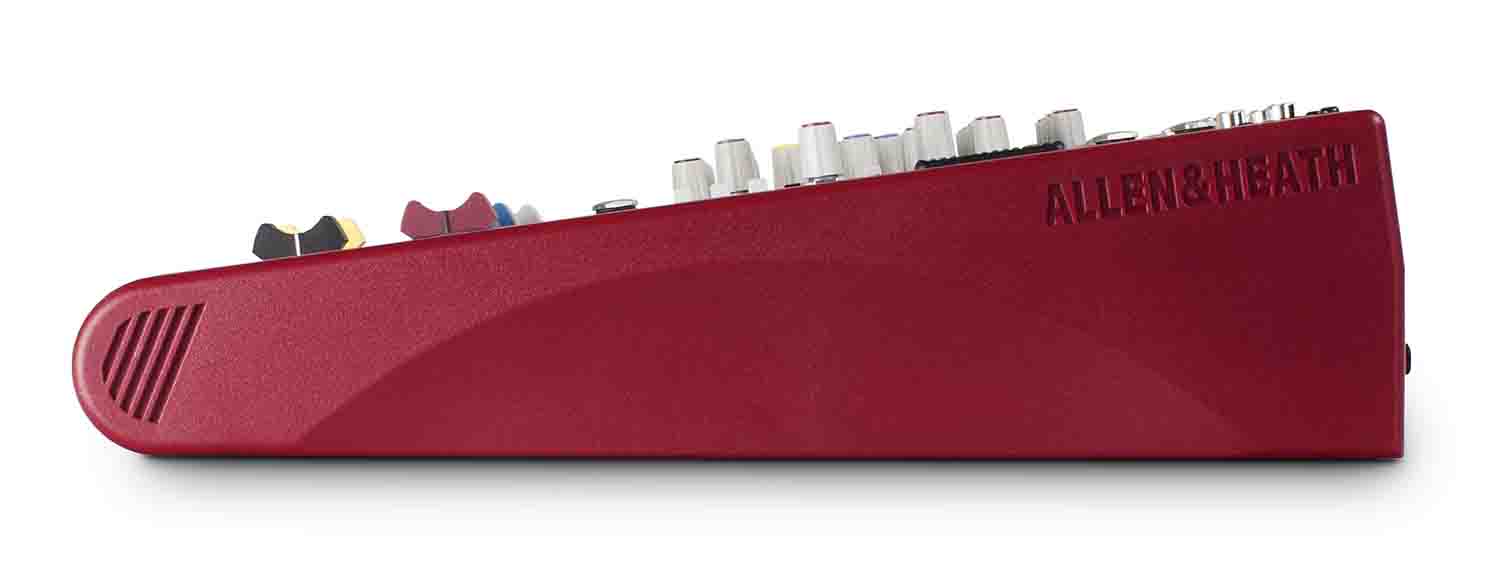

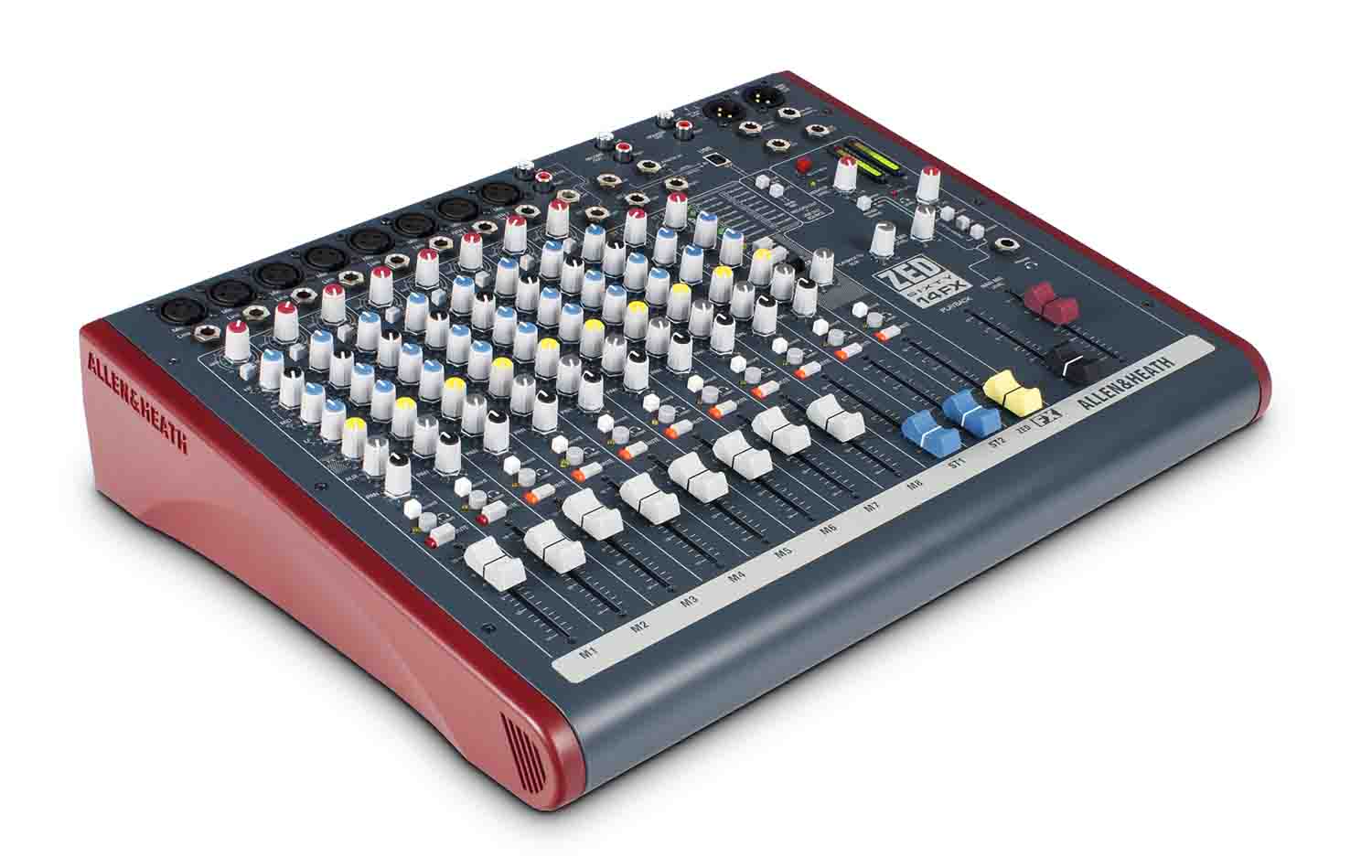

Allen & Heath ZED60-14FX Multipurpose 14-Channel Portable Mixer with FX and USB Port

The Allen & Heath ZED60-14FX is a Multipurpose 14-Channel Portable Mixer with FX and USB Port is ideal for small bands. This mixer is a guitarist’s dream. Two of the 8 mono channels have high impedance jack inputs that can take a normal line level or a low-level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards. ZED60-14FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.

USB Audio Flexibility

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations.

ZED-FX

ZED60-14FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effect’s unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in

Guitar Di

ZED60-14FX’s pre-amps are similar in design to our MixWizard range of mixers, but with a twist! Inputs 7 & 8 have a high impedance jack input capable of taking either a normal line level or a low-level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage.

Product Specifications:

Channels: 14

Computer Connectivity: USB (2 x 2)

A/D Resolution: 16-bit/48kHz

Faders: 13 x 60mm

Inputs Mic Preamps: 8 x XLR

Phantom Power: 8 channels

Inserts: 2 x 1/4" (main mix)

Headphones: 1 x 1/4"

USB: 1 x Type B

Effects: Delay, Reverb, Flange, Chorus

Power Source: Standard IEC AC cable

Height: 3.7"

Width: 17.3"

Depth: 13.6"

Weight: 13.6 lbs.
