Description

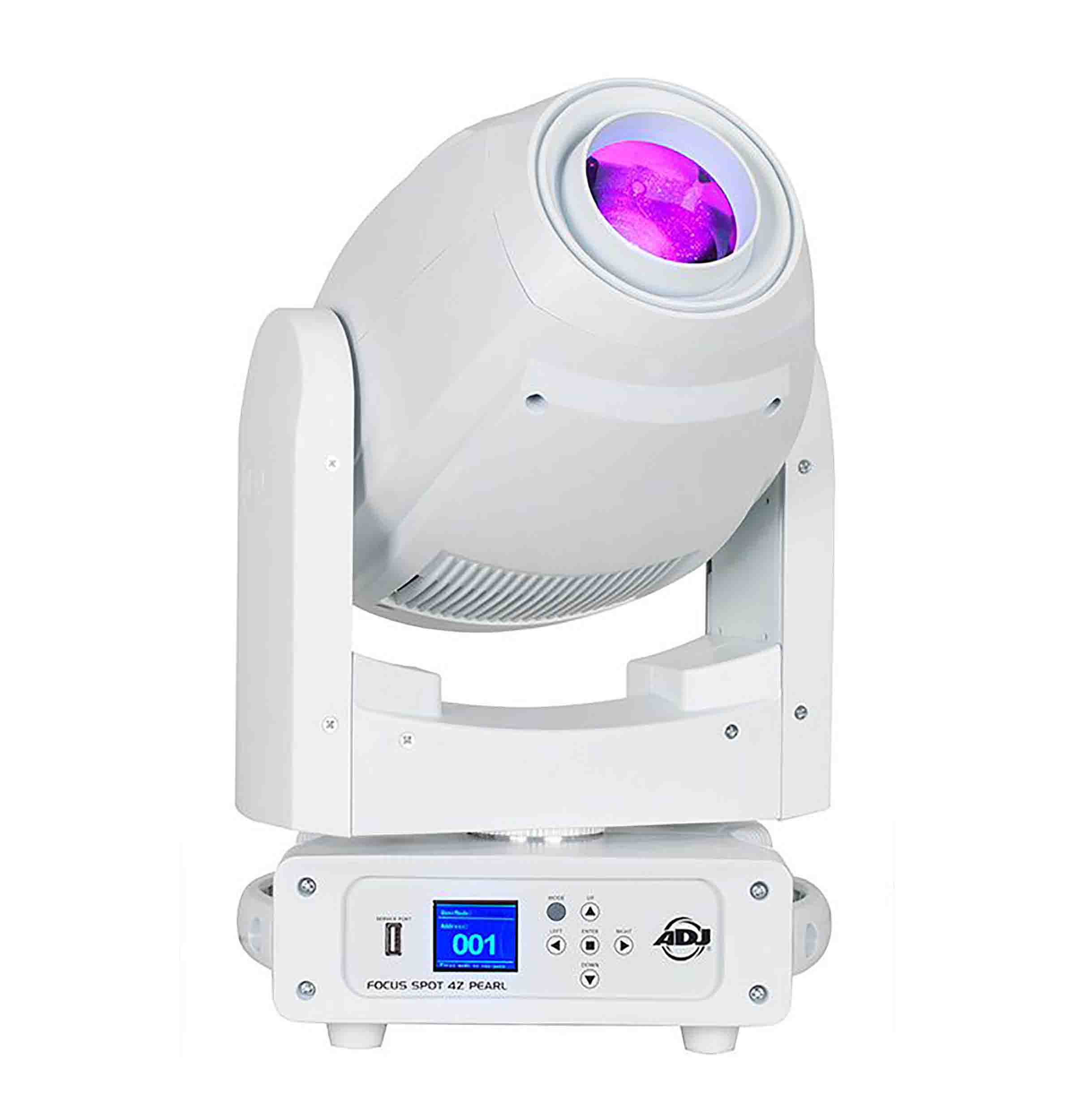

The ADJ Focus Spot 4Z Pearl, Moving Head Spot Fixture with Motorized Focus and Zoom is powered by a brilliant 200W cool white LED engine and has a white exterior housing. It’s designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).
The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).
Product Specifications:
Rating/Approvals: cETLus approved (Control #4010765)
Light Source: 200W Cool White LED Engine (50,000 hr.)

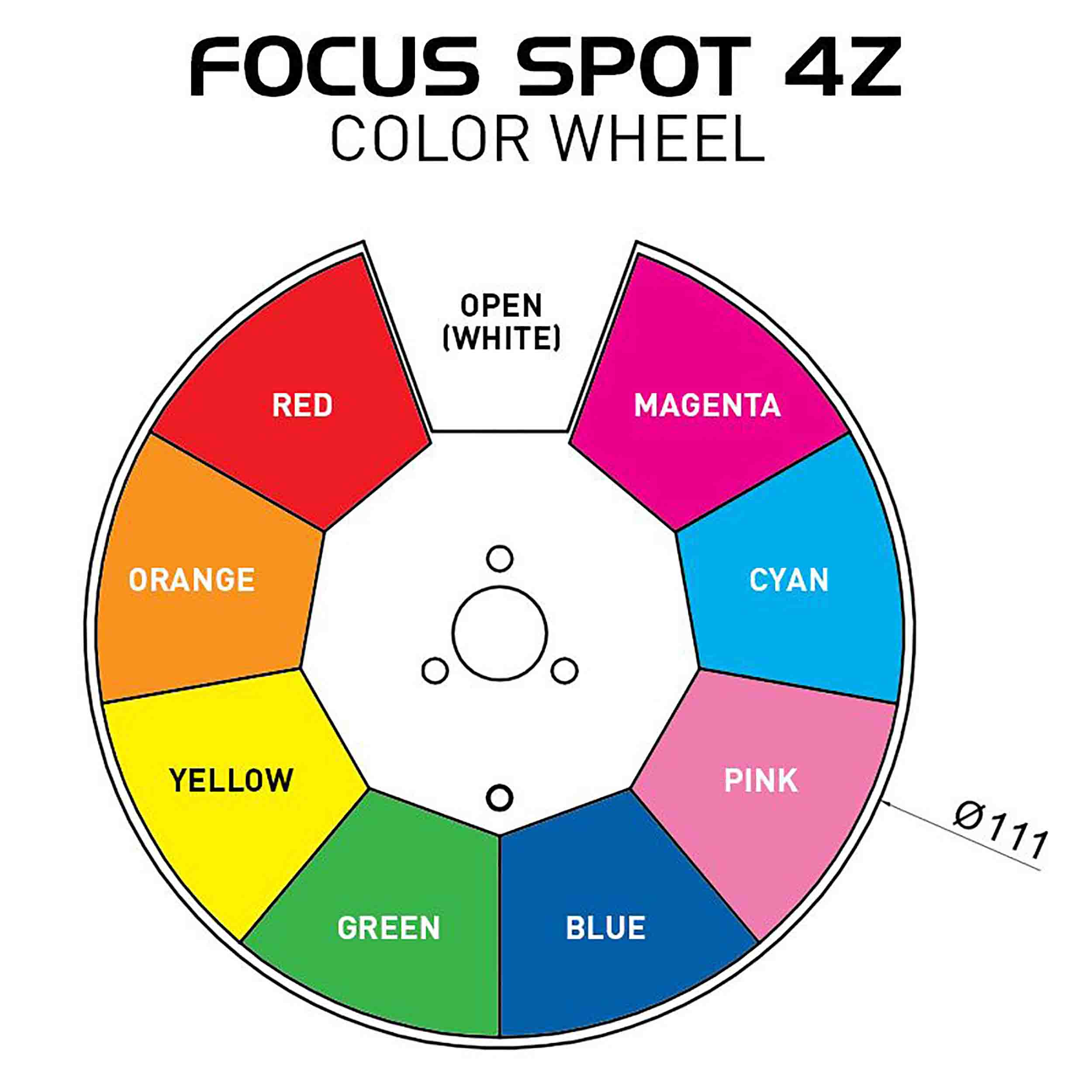

Color Wheel: 8 dichroic colors + white

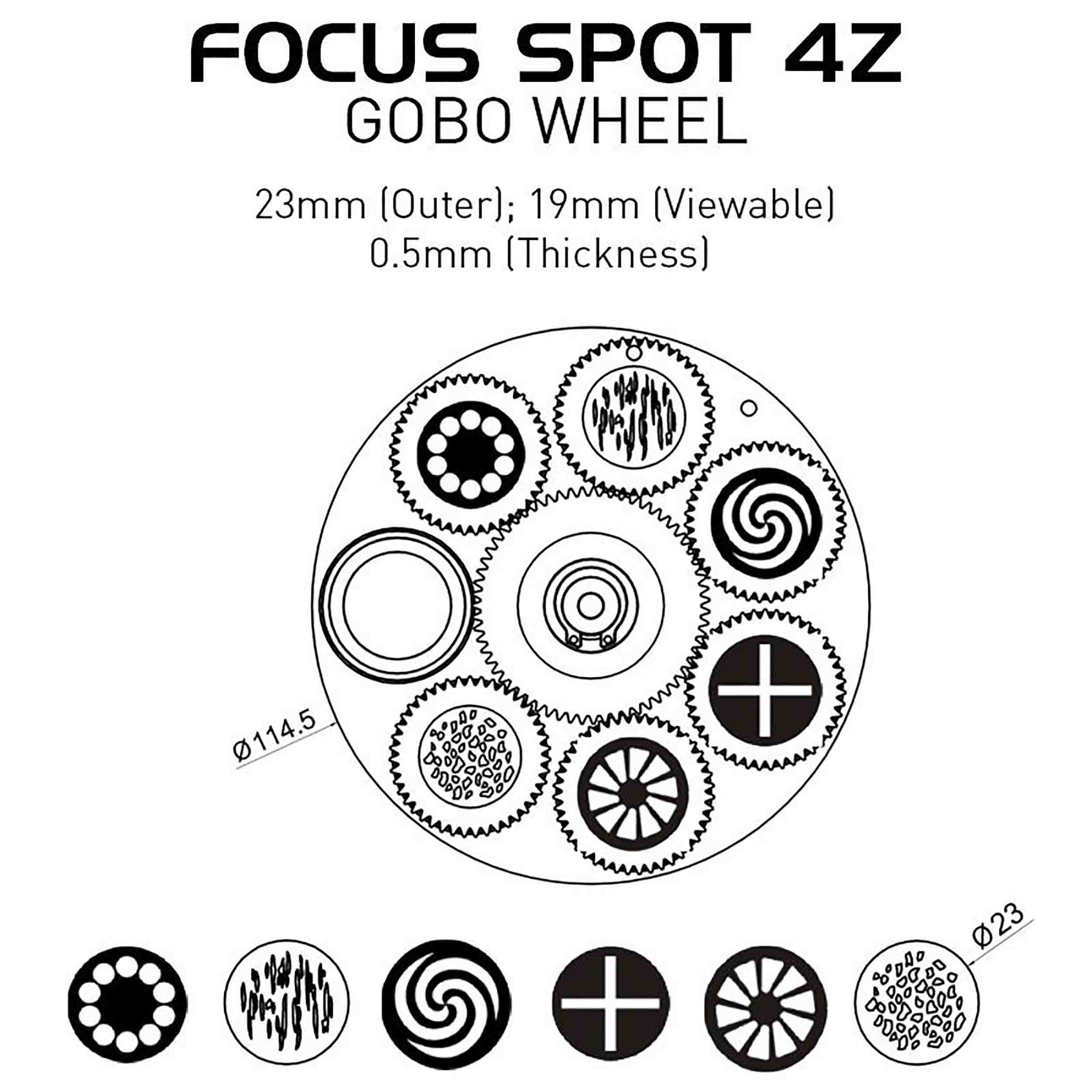

GOBO Wheel:
6 aluminum GOBOs + open
All GOBOs removable & rotatable
GOBO Shake Effect
GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)
Prism Wheel:
Prism Wheel 1: Rotatable 5-facet Linear
Prism Wheel 2: Rotatable 6-facet Circular
Prism Indexing
Control:
3 DMX Channel Modes: 16/18/22 Channels
Color LCD display with 6-button function menu

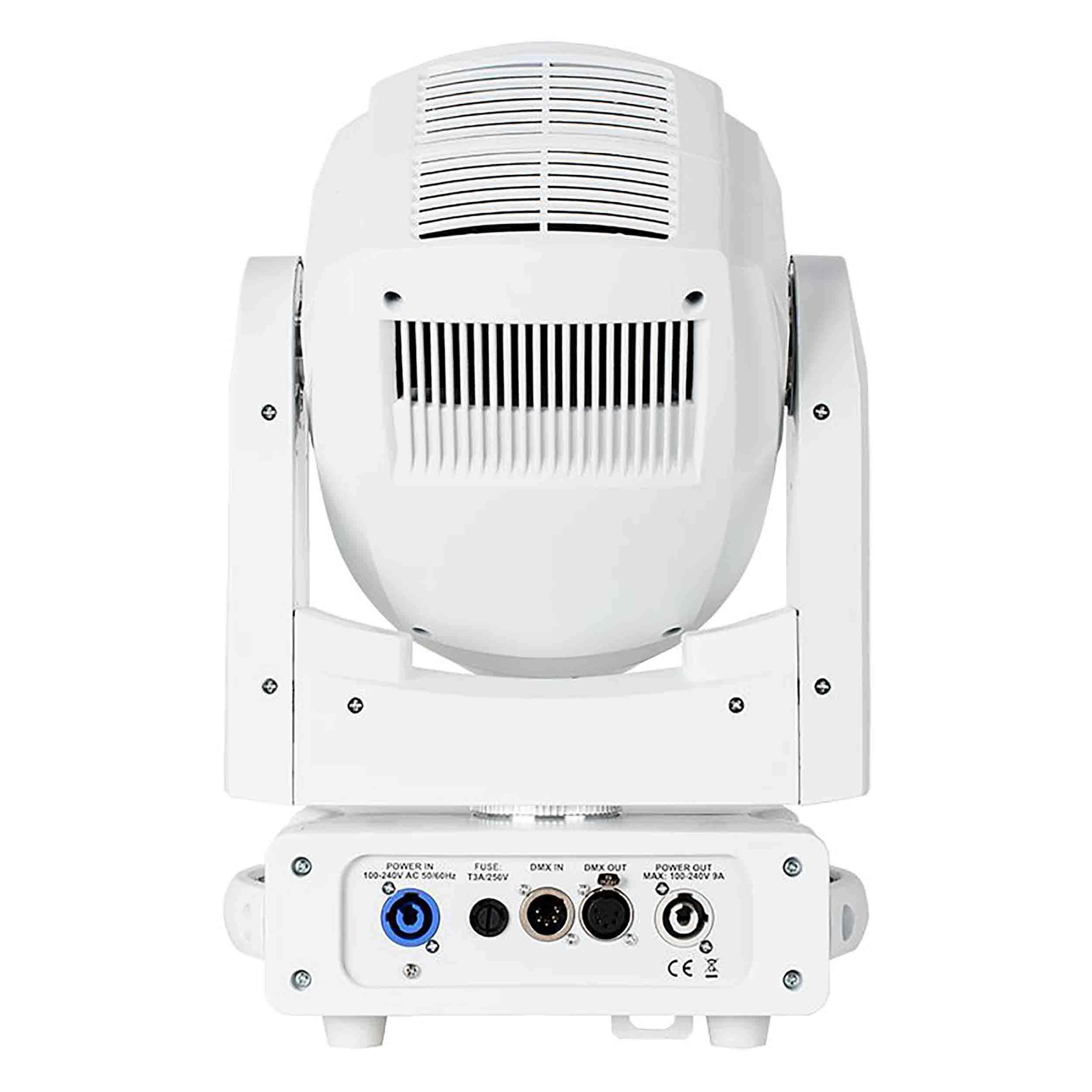

Data In/Out: 5-pin DMX
Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
Control Mode: DMX512 or internal programs
6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
0-100% smooth dimming
Various strobe speeds
USB firmware update port
With Wired Digital Communication Network
RDM (Remote Device Management)
Pan/Tilt:
Pan: 540 & 630 degrees
Tilt: 270 degrees
Dimensions & Weight:
Dimension: 7.15” (L) x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm
Weight: 23 lbs. / 10 kg.
What’s Included:

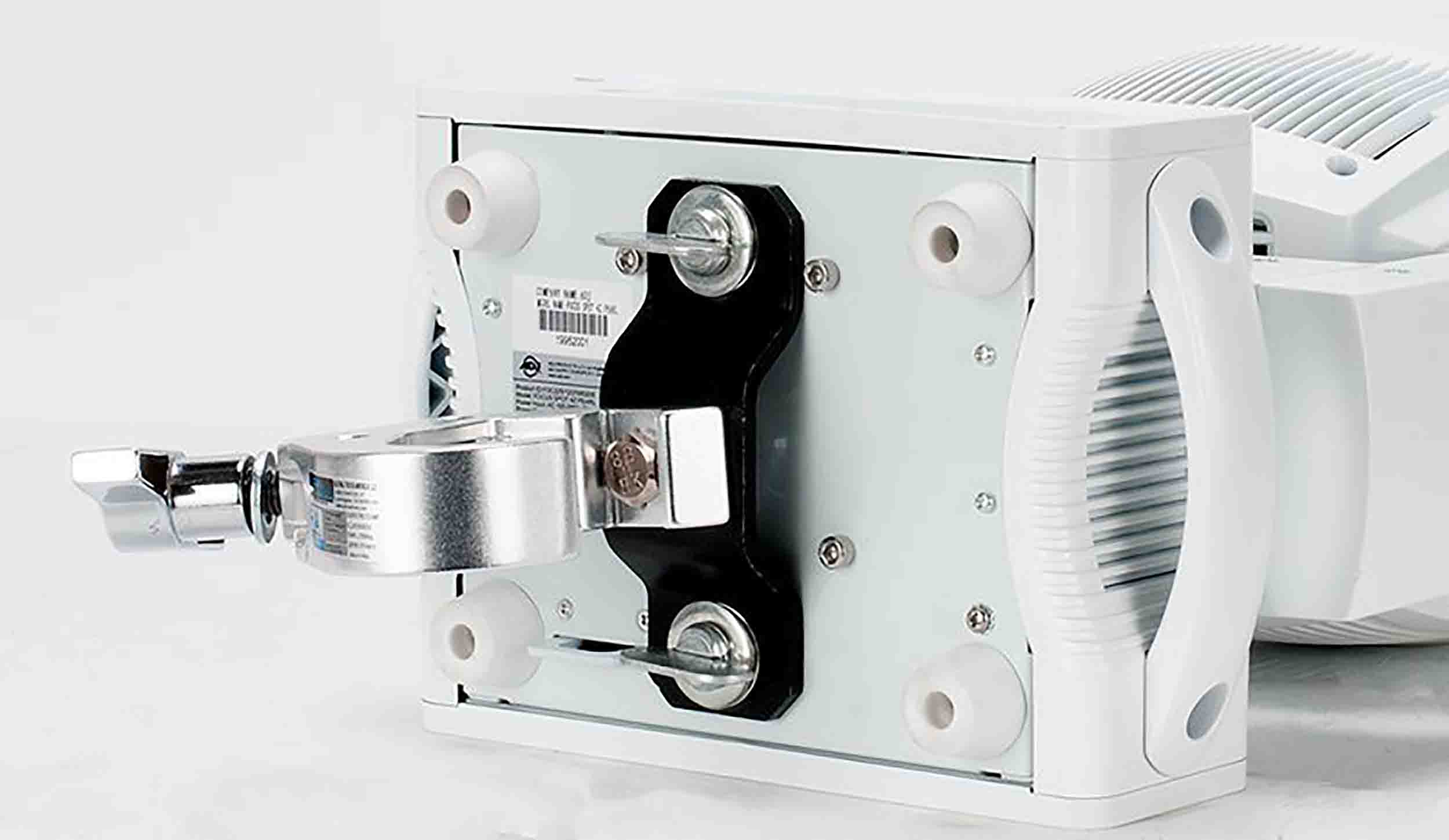

Omega Bracket
6 Ft/3M locking power to Edison cable
Safety Cable
Optional Road Cases:
DRC MH: 2 Focus Spot 4Z Pearl fit in the DRC MH Road Case
QRC MH: 4 Focus Spot 4Z Pearl fit in the QRC MH Road Case
