Description

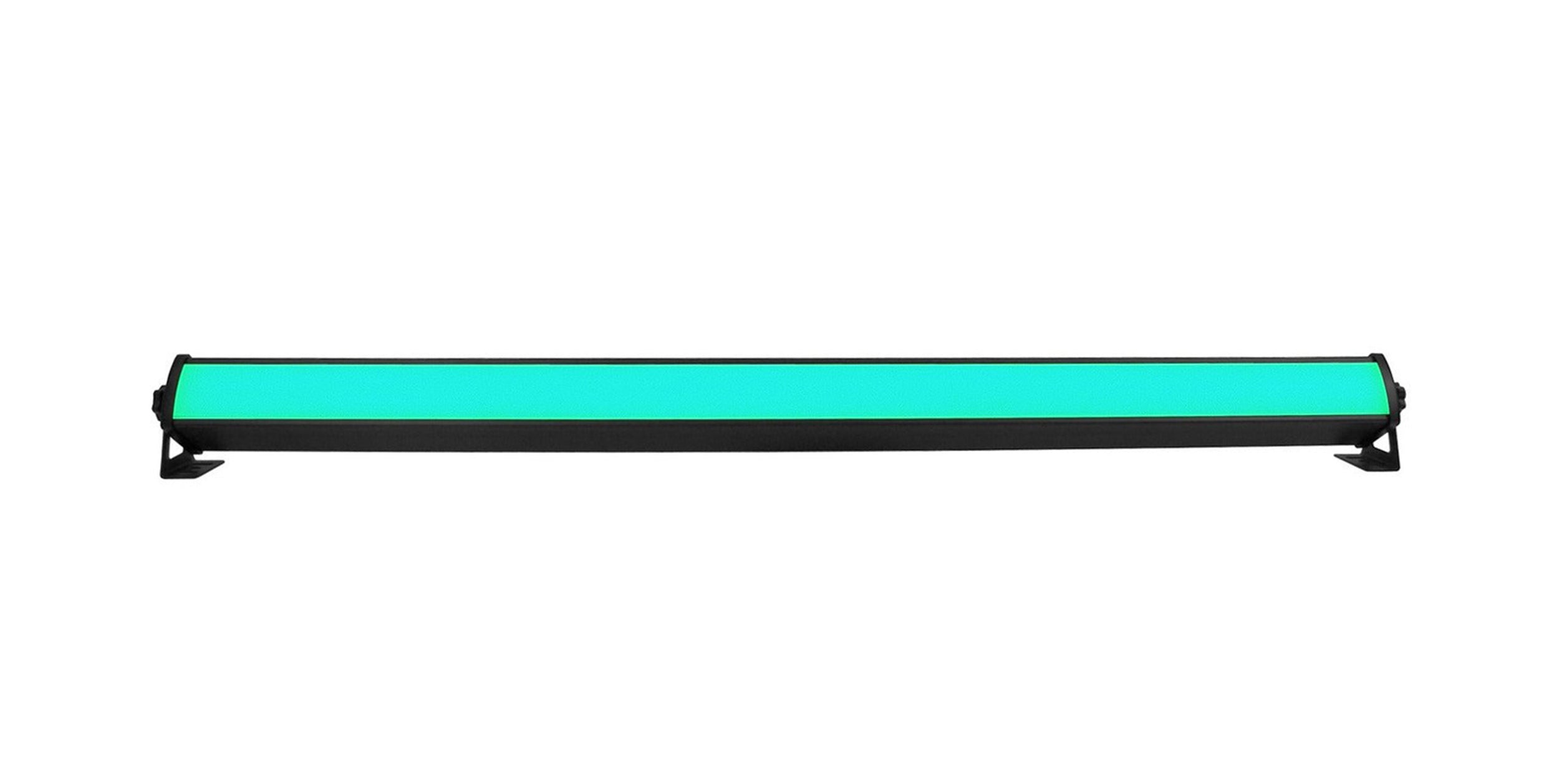

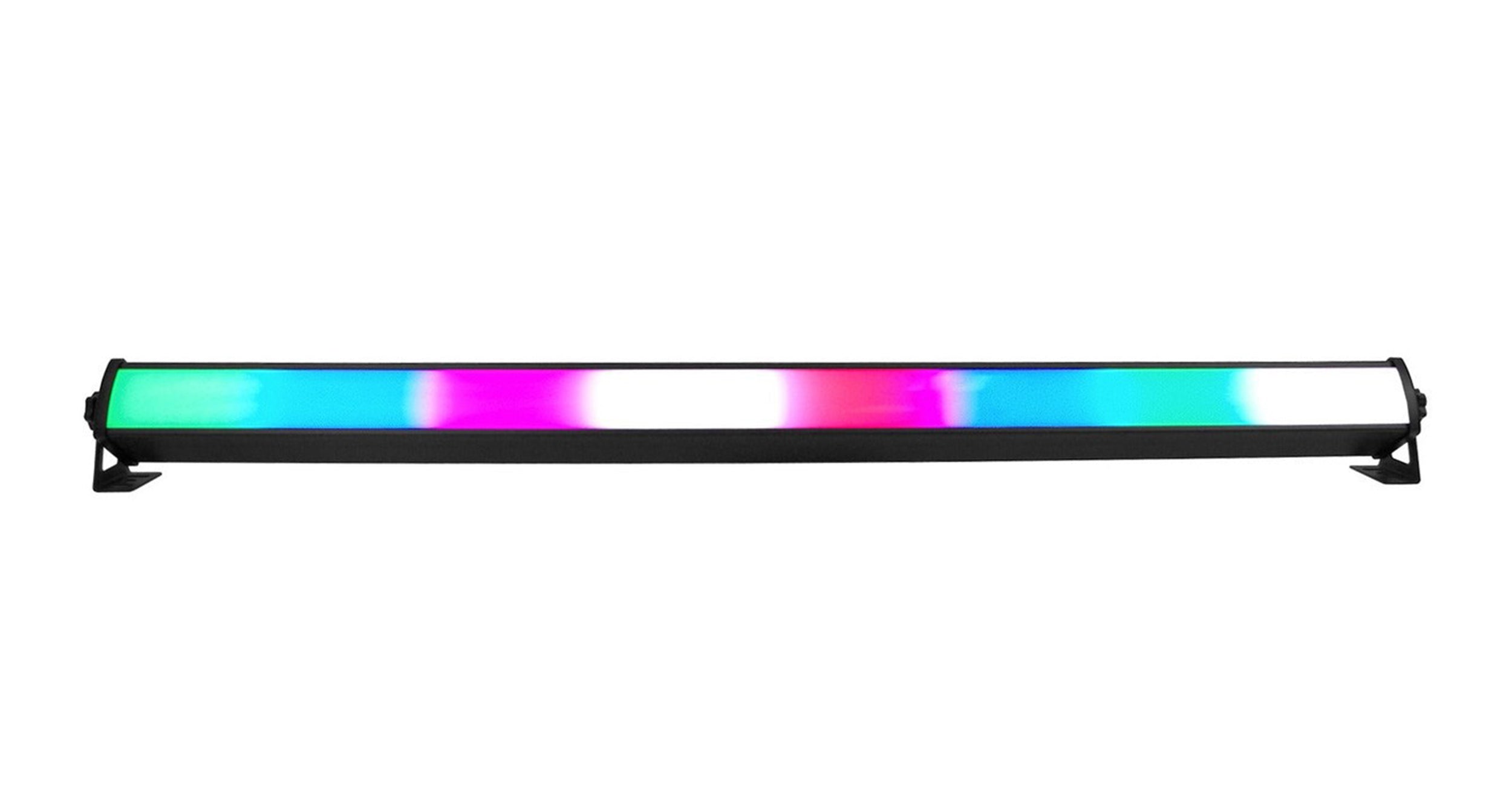

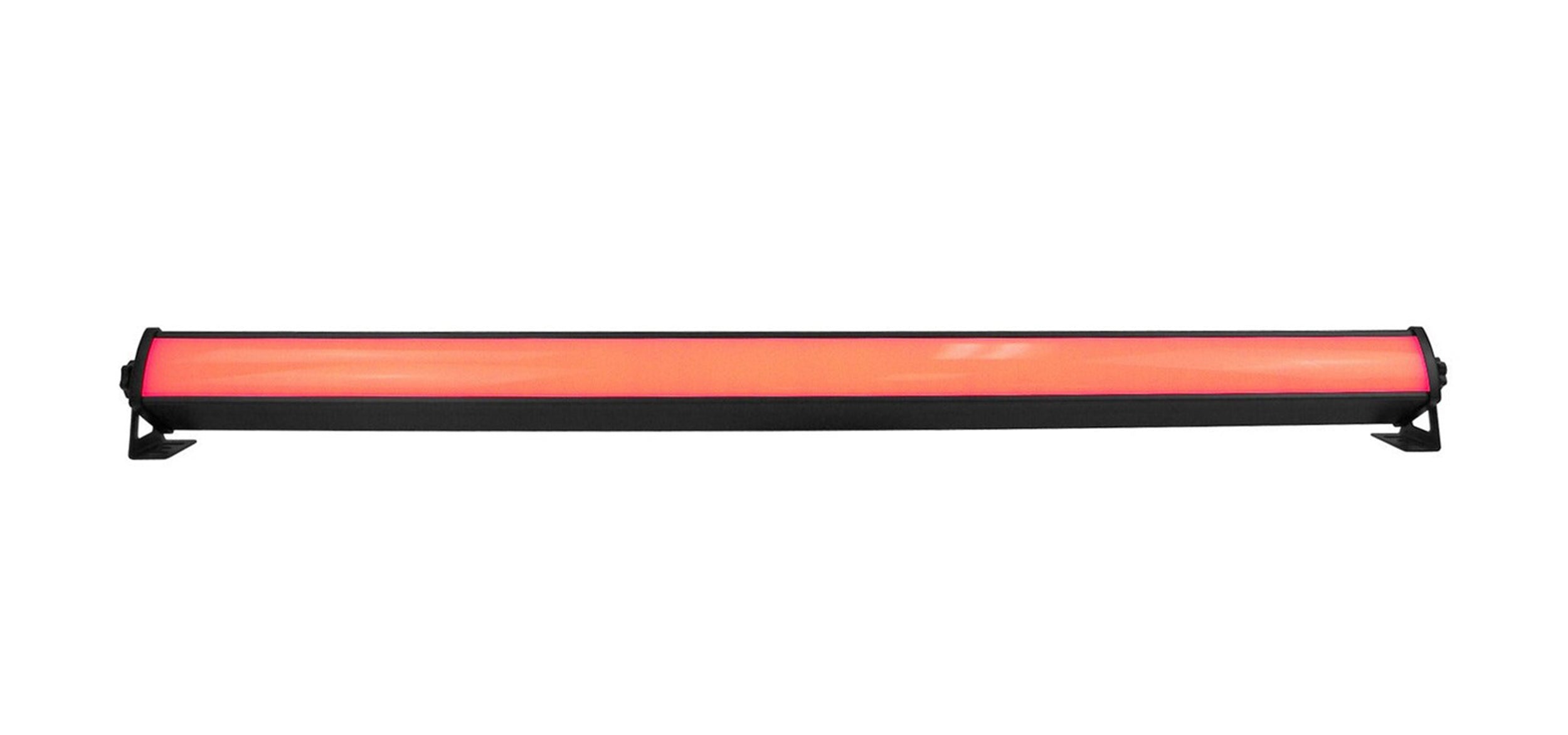

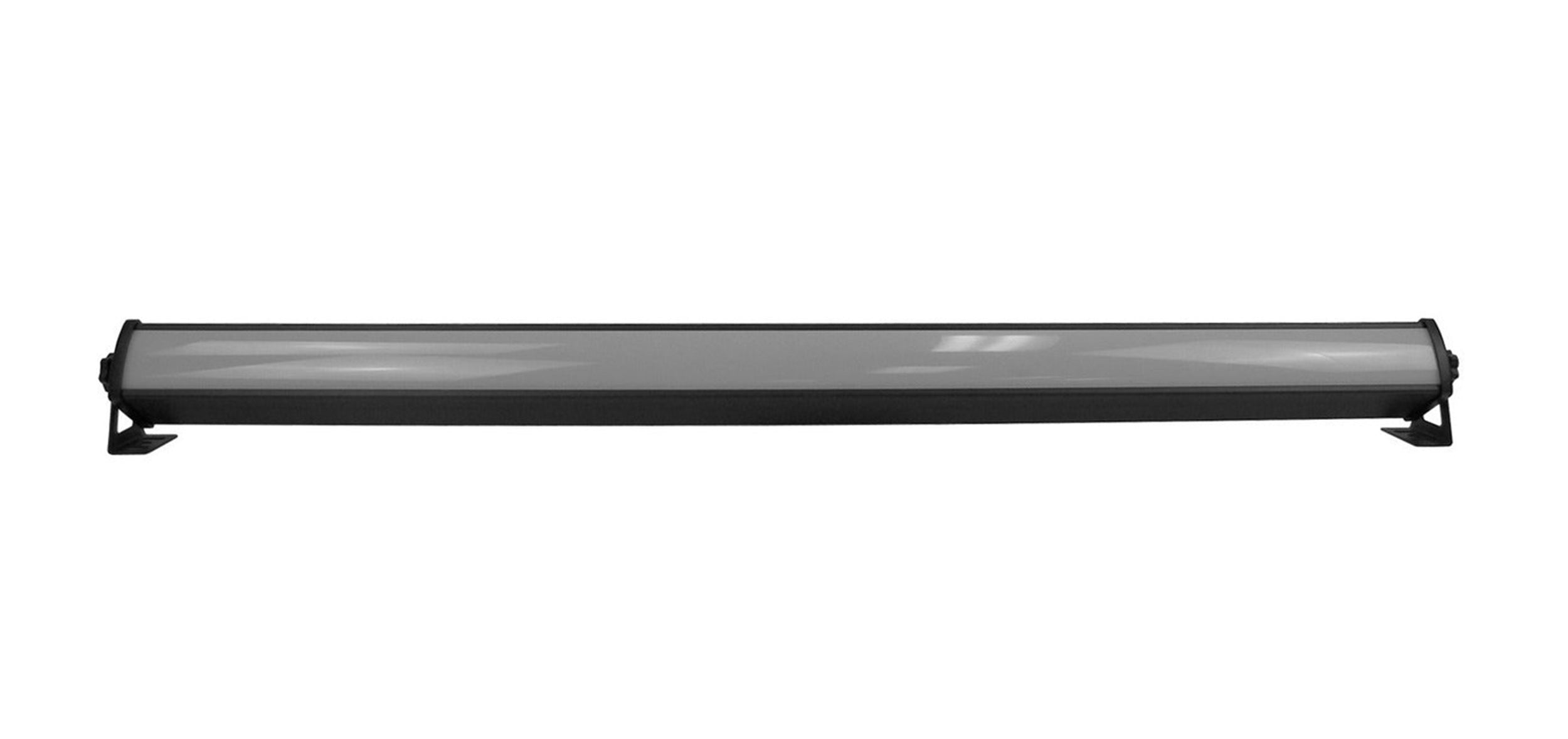

The Antari BAR224FXL LED Bar with 16 Segment Control - 224 RGB is a professional RGB LED pixel bar engineered for clubs, live events, stage productions, and mobile DJs seeking powerful wash effects and creative pixel mapping capabilities. Featuring 224 high-output SMD 5050 RGB LEDs, this fixture produces vibrant colors and dynamic chase effects that enhance any lighting design.
Designed with 16-segment pixel control, the BAR224FXL allows users to create smooth flowing animations, synchronized chase sequences, and eye-catching visual effects. The 90° beam angle ensures broad and even coverage, making it ideal for stage backdrops, truss systems, DJ booths, and venue installations.
Built for flexible operation, the BAR224FXL supports DMX, auto, manual, sound active, and master/slave modes for seamless integration into professional lighting systems. Its slim aluminium housing, lightweight construction, and flicker-free 10,000Hz PWM performance make it an excellent choice for both live productions and camera applications.
Product Specifications:
Light Source: 224 x SMD 5050 RGB LEDs
Beam Angle: 90°
PWM Frequency: 10,000Hz
Pixel Control: 16-Segment Pixel Control
Control Protocol: DMX
DMX Channels: 3 / 5 / 8 / 24 / 48 / 53
Operation Modes: DMX, Auto, Manual, Sound Active, Master/Slave
Control Interface: 3-Pin XLR In/Out
Power Consumption: 150W
Input Voltage: 110–240V AC, 50/60Hz
Power Connection: IEC Power Input
Housing Material: Aluminium.
Product Weight: 8 lbs.
Product Dimensions (L x W x H): 3 " x 44 " x 3 "
Shipping Weight: 9 lbs.
Shipping Dimensions (L x W x H): 4 " x 45 " x 4 "
