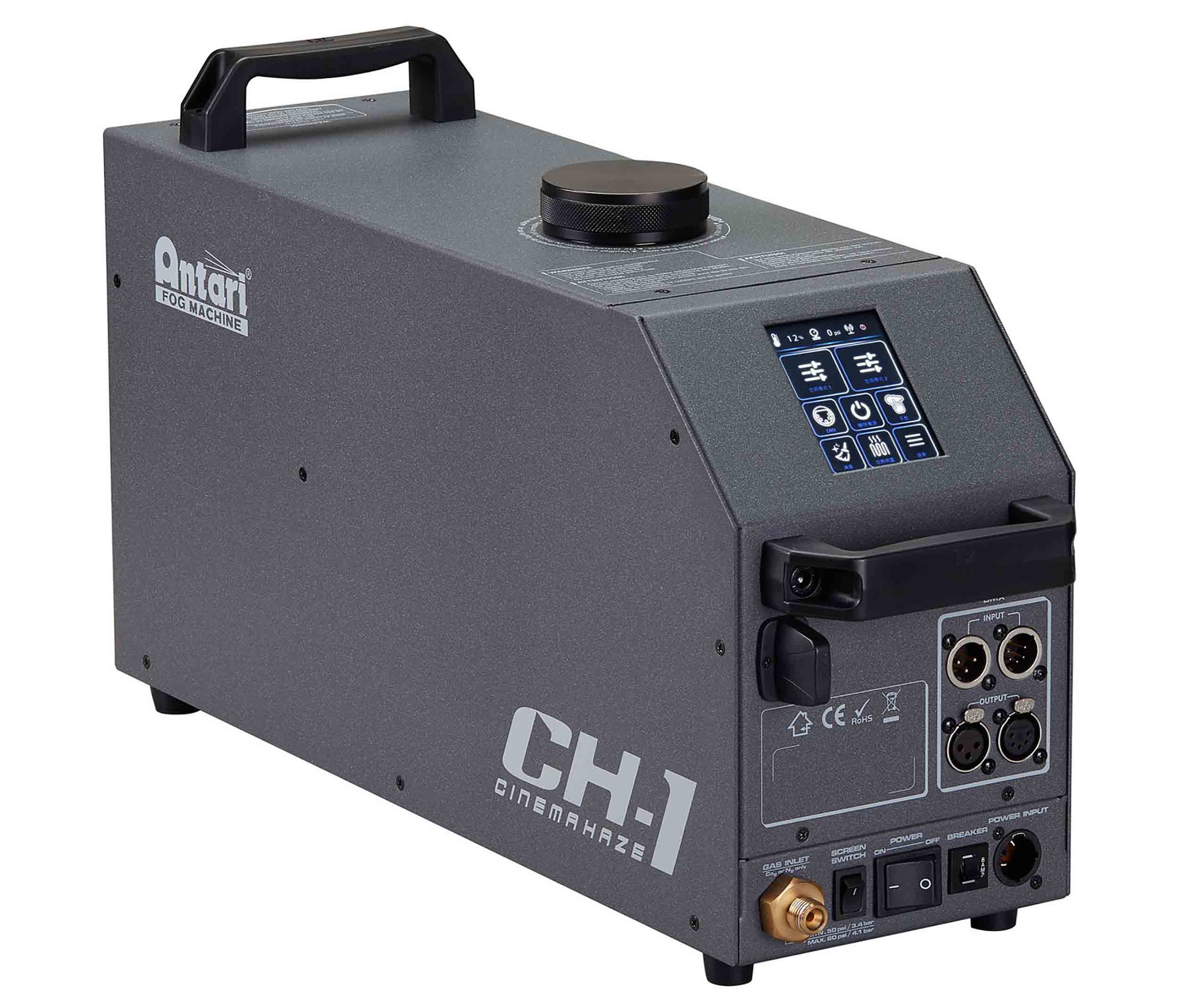

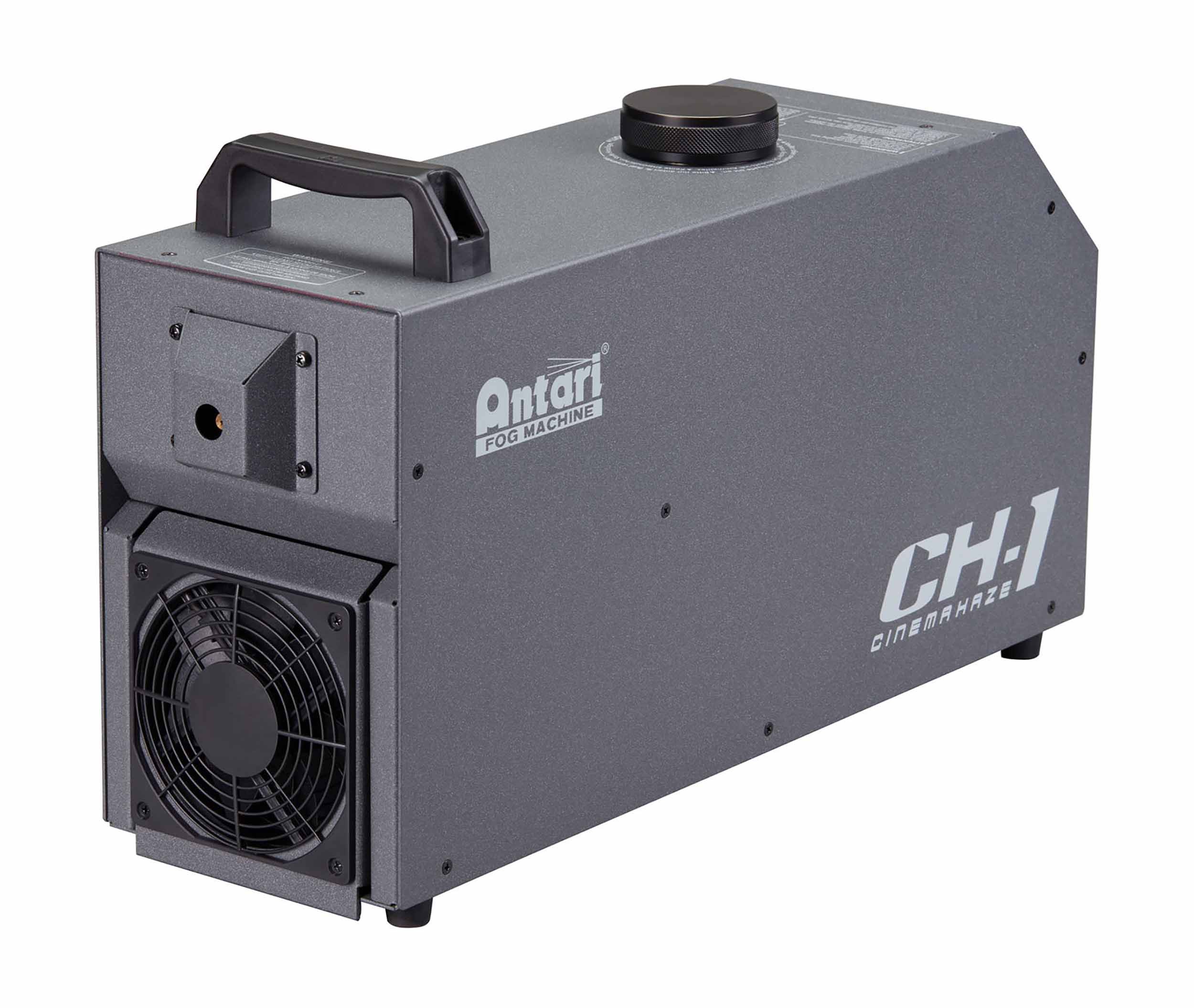

Antari CH-1 Cinema Haze Machine

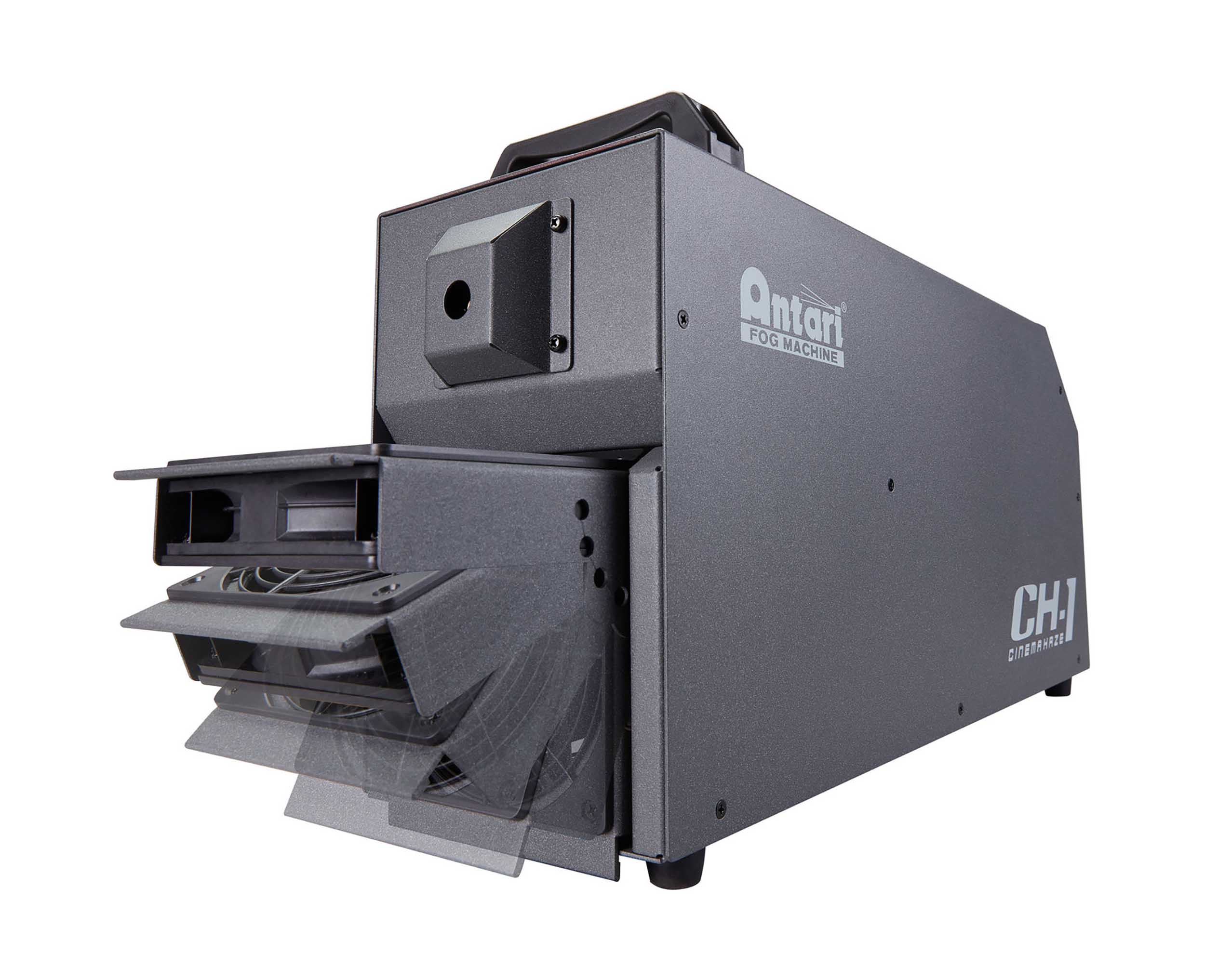

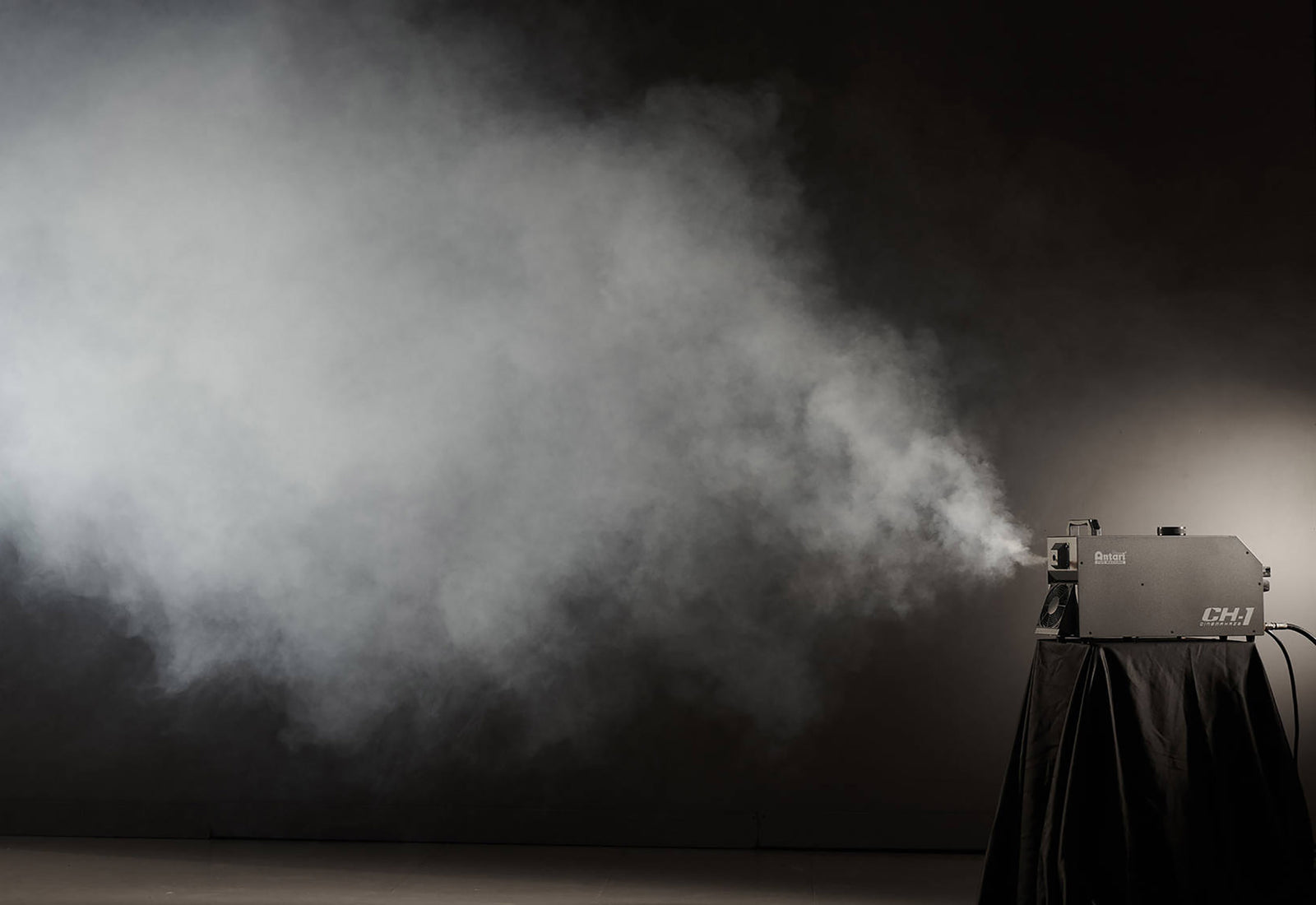

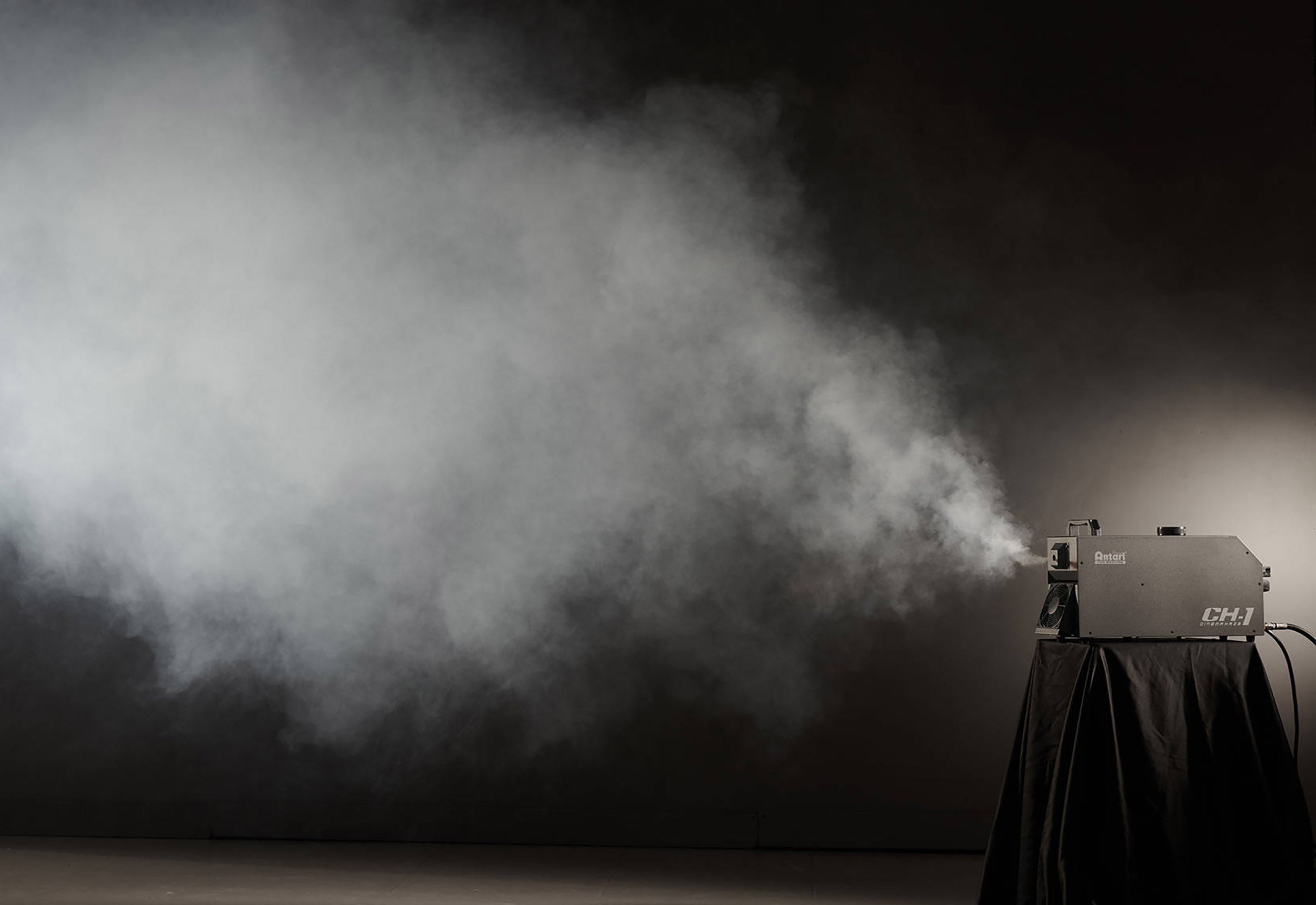

The Antari CH-1D is a Cinema Haze Machine. The CO2 model produces high volume of fine haze smoothly with little working sound, comes with an adjustable fan to bring the haze in different angle. Equipped with color touch panel for intuitive operation, connected with a CO2 gas bottle, mixing the gas and liquid together to provide a longer hanging time.

Product Specification:

Input Voltage: AC 100-240V, 50/60HZ  6A

Rated Power: 120V 700W, 240V 1250W

Warm-Up Time: 8 minutes (approx)

Fluid Consumption: 2 ml/min @40 psi / 2.76 bar

Fluid Tank Capacity: 2.5 Liters (0.66 gallon)

Compatible Fluid: Antari CHL-2 Haze Fluid

Gas Type: CO2, N2

Gas Pressure Range: 50 – 60psi / 3.4 bar – 4.1bar

Gas Consumption: 0.36 Kg / hr @ 40 psi, 0.18 Kg / hr @ 20psi

Control Interface: TFT LCD Touch Screen

Ambient Temp/ Range: 0°C – 40°C (32°F – 104°F)

Control: Manual, Timer, DMX 512, Wireless DMX (Optional)

Dmx Channels: 1 / 3 / 5 Channels

Connection: Neutirk TRUE 1 Connector (Power), XLR 3-pin and 5-pin (DMX), 9/16 -18 R.H (Gas inlet)

Optional Accessories: W-DMX-PCBR, FCH-1 Flight Case

Dimension: L 22.79 W 6.46 H 12.25 inch

Weight: 17 kg (37.48 lbs)
