Description
The Antari SPLIT6 is a professional 6-way indoor DMX splitter designed to distribute a single DMX signal to multiple lighting fixtures while maintaining reliable signal quality and protecting connected equipment. Its compact design makes it ideal for stage productions, theaters, houses of worship, rental companies, and permanent lighting installations.
Featuring one 5-pin XLR input, one 5-pin XLR through, and six 5-pin XLR outputs, the SPLIT6 offers flexible signal distribution for professional DMX lighting systems. A built-in DMX terminator helps maintain signal integrity, while 100% isolation across all inputs and outputs minimizes electrical interference and protects connected devices.
Designed for dependable operation, the SPLIT6 includes individual power and signal LEDs for each output, allowing quick status monitoring during setup and operation. Its PowerCON input, wall or truss mounting options, and compact housing make it an ideal solution for a wide range of indoor lighting applications.
Product Specifications:
Product Type: 6-Way Indoor DMX Splitter

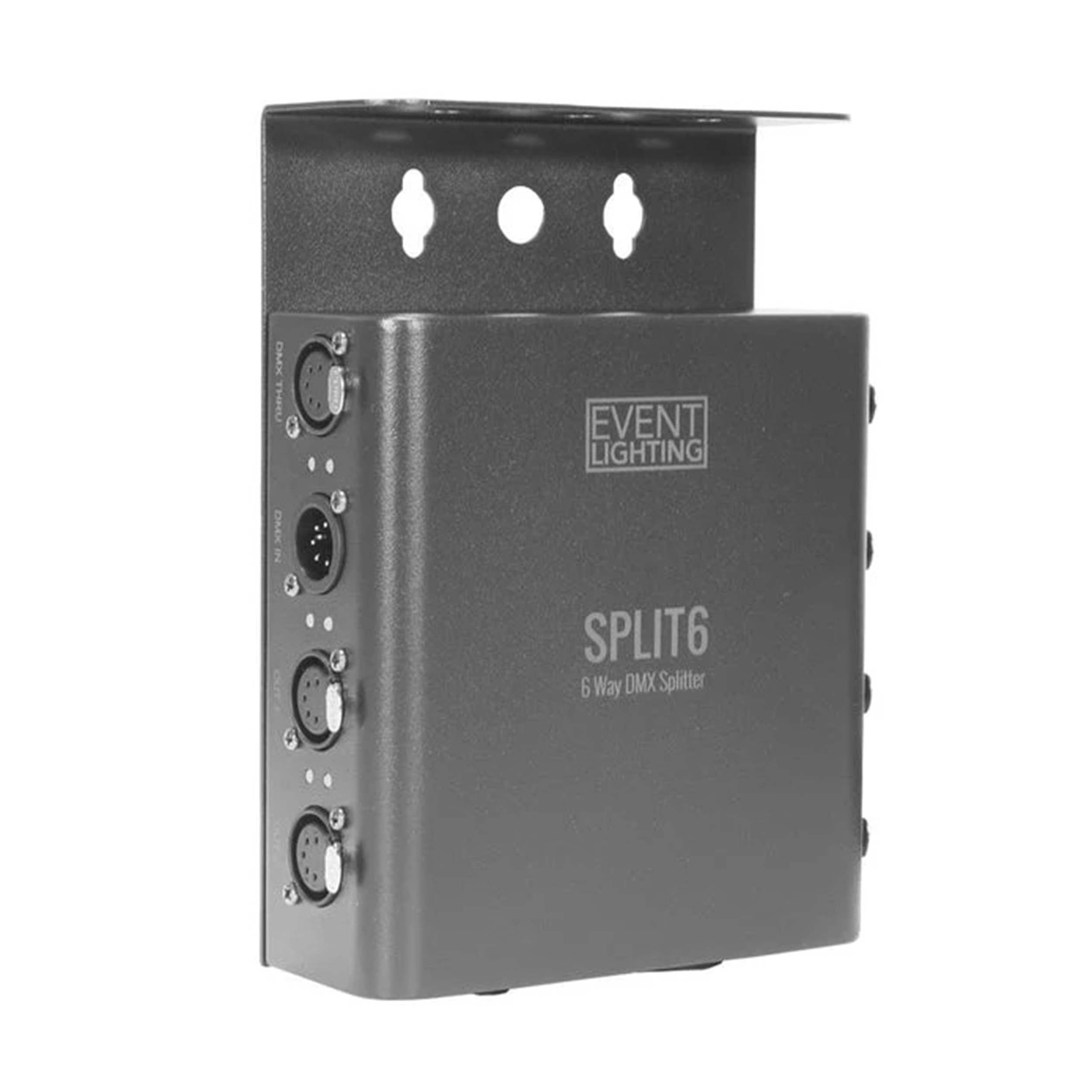

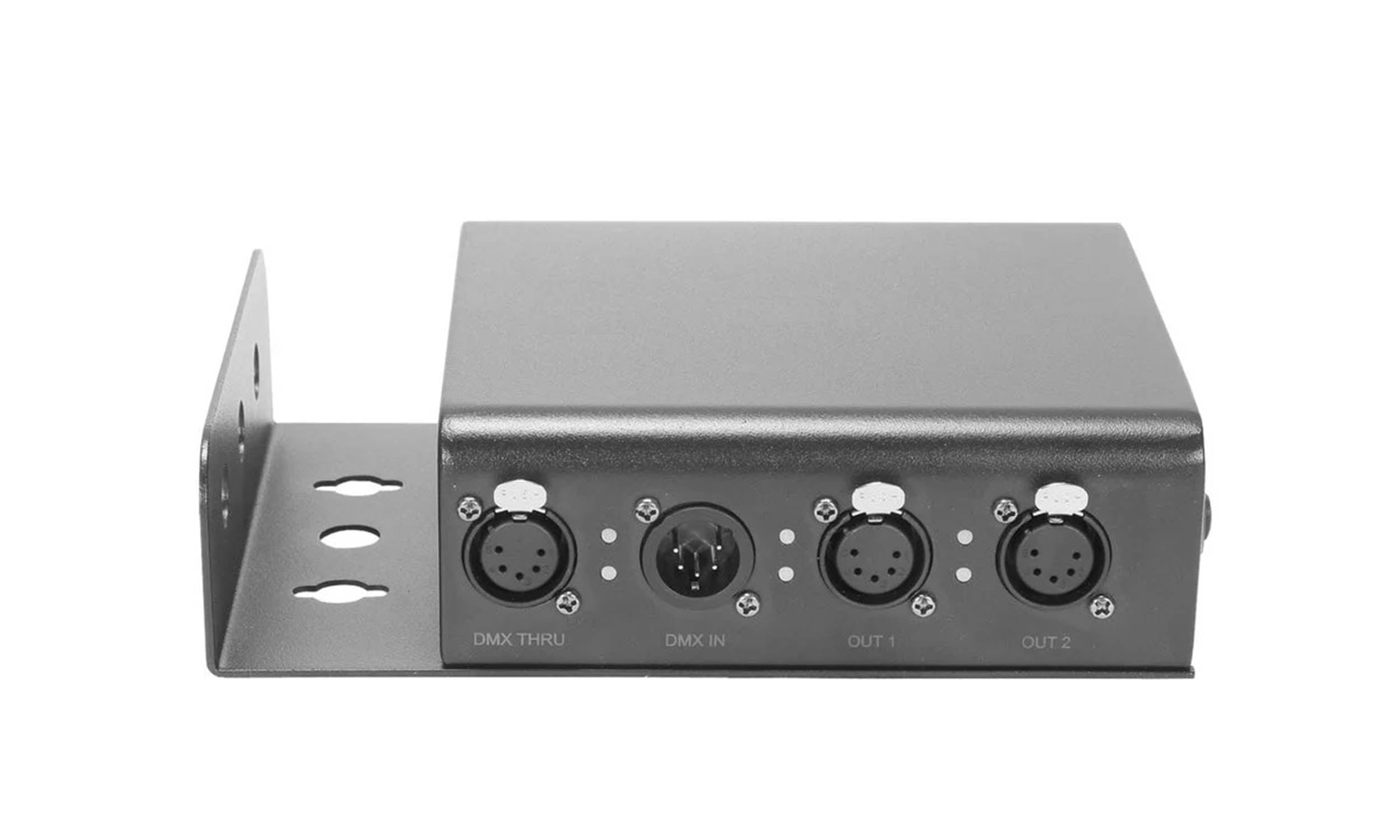

Signal Input: 1 × 5-Pin XLR Input
Signal Through: 1 × 5-Pin XLR Through

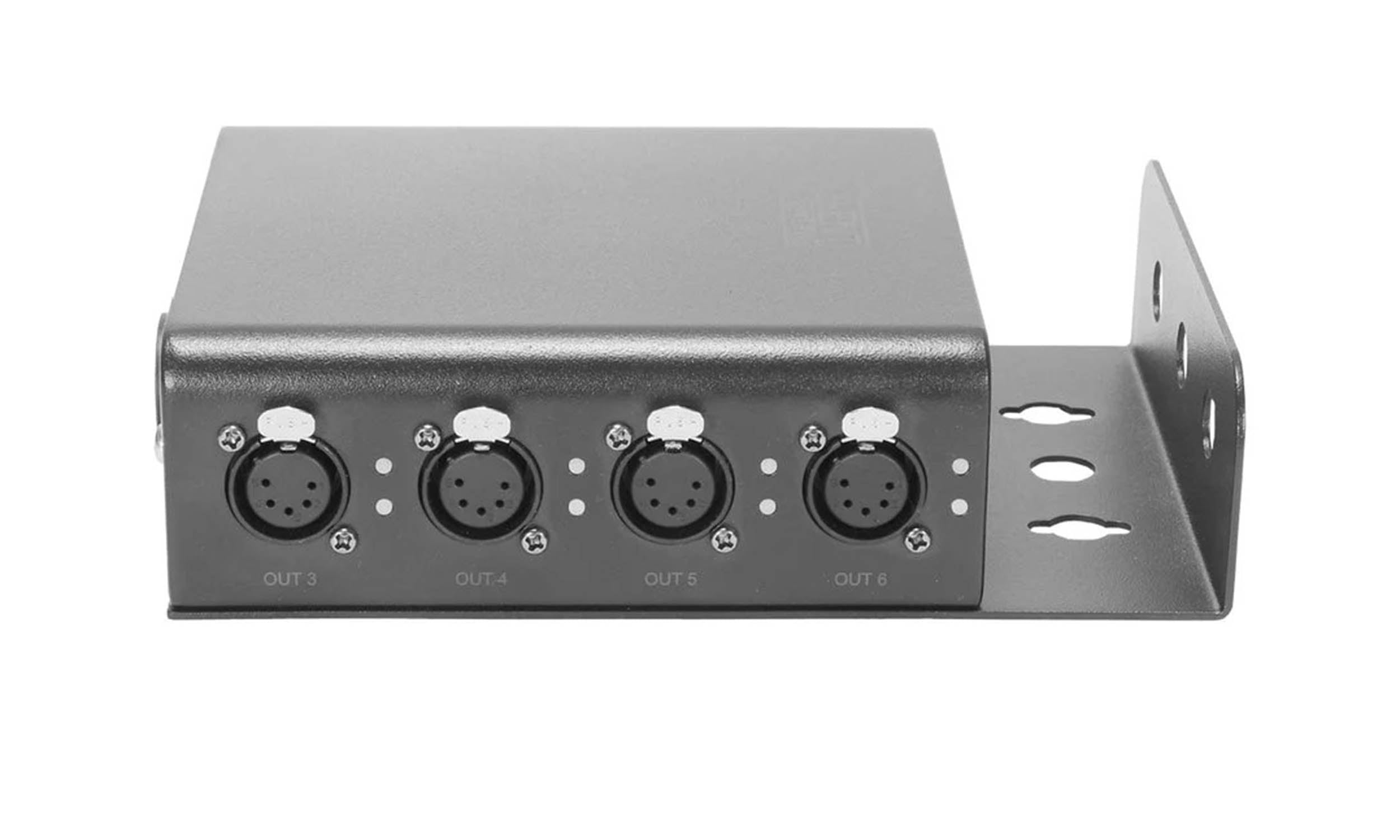

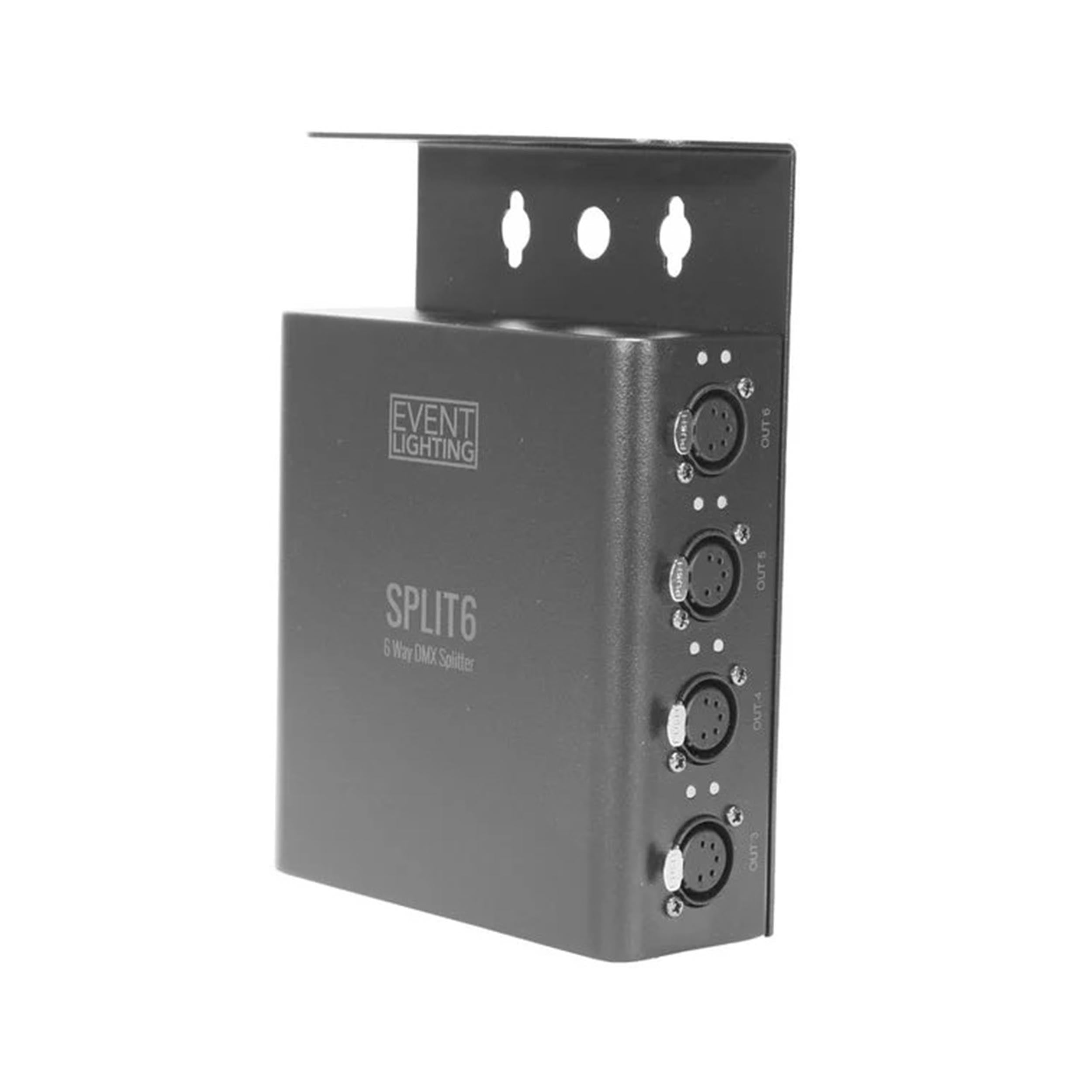

Signal Outputs: 6 × 5-Pin XLR Outputs
Signal Connector Type: 5-Pin XLR
Isolation: 100% Electrical Isolation for All Inputs and Outputs
Status Indicators: Signal and Power LED for Each Output
Built-In Terminator: Yes

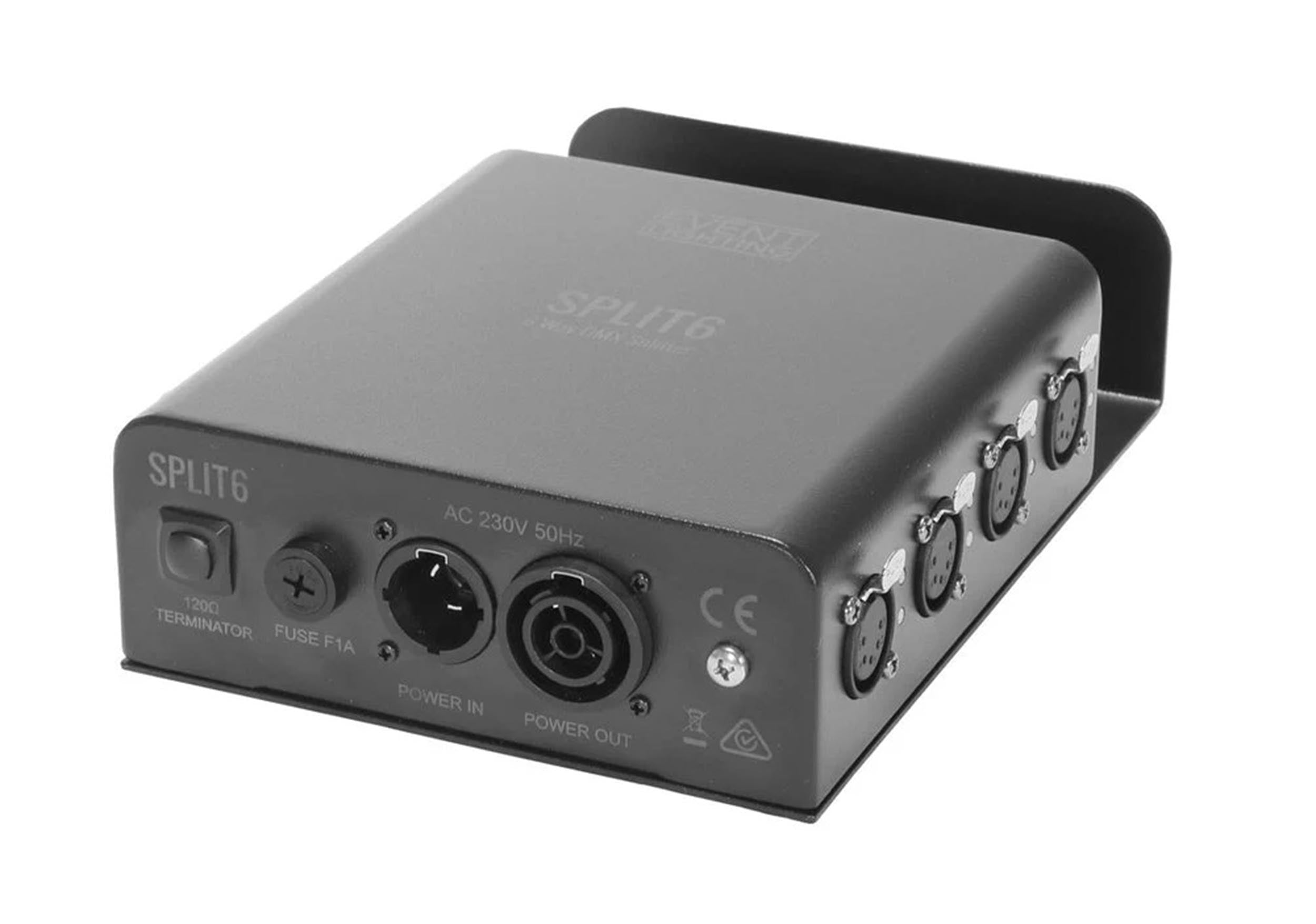

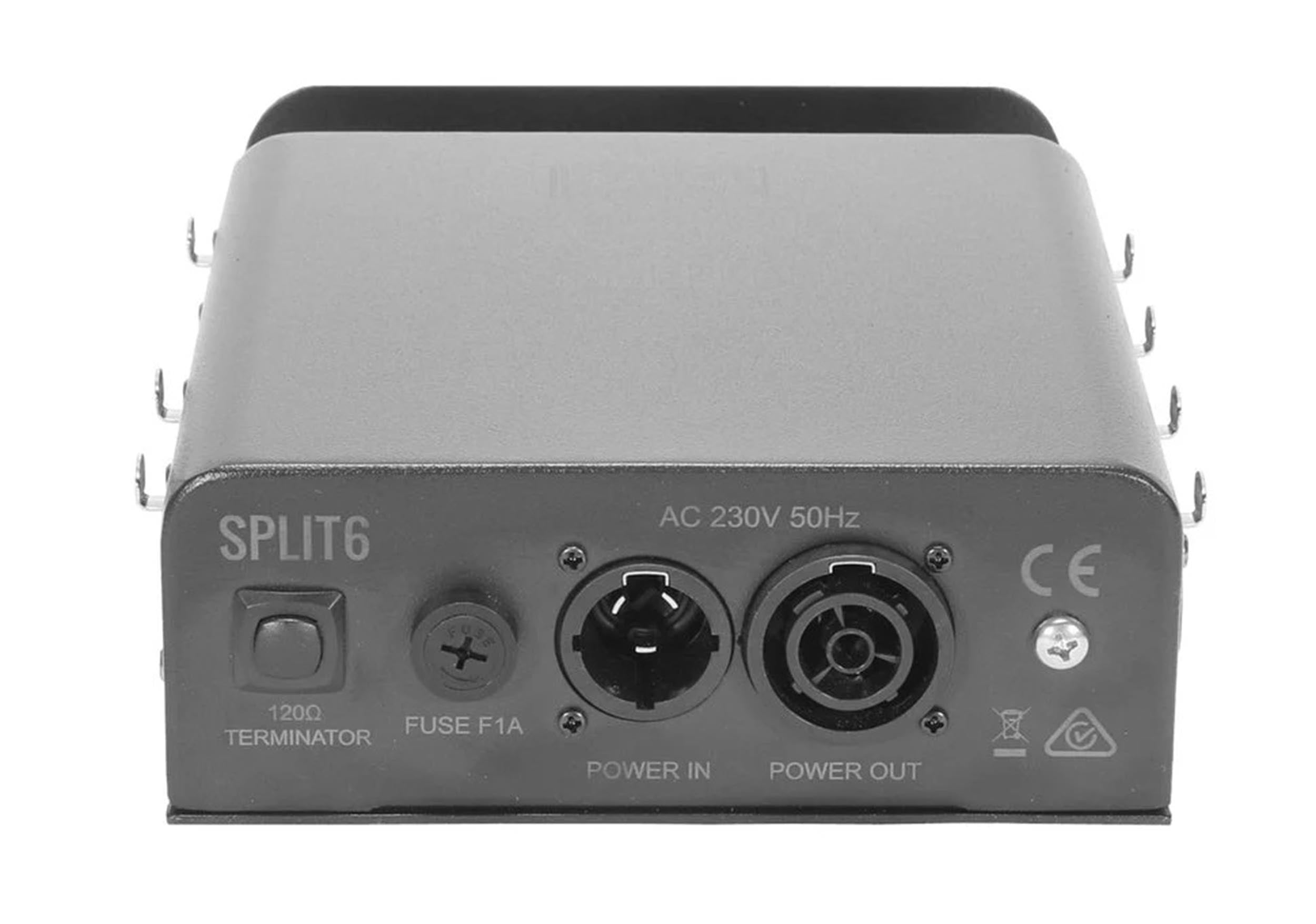

Power Connector: PowerCON In
Power Input: 240V AC
Power Consumption: 6W
IP Rating: IP20

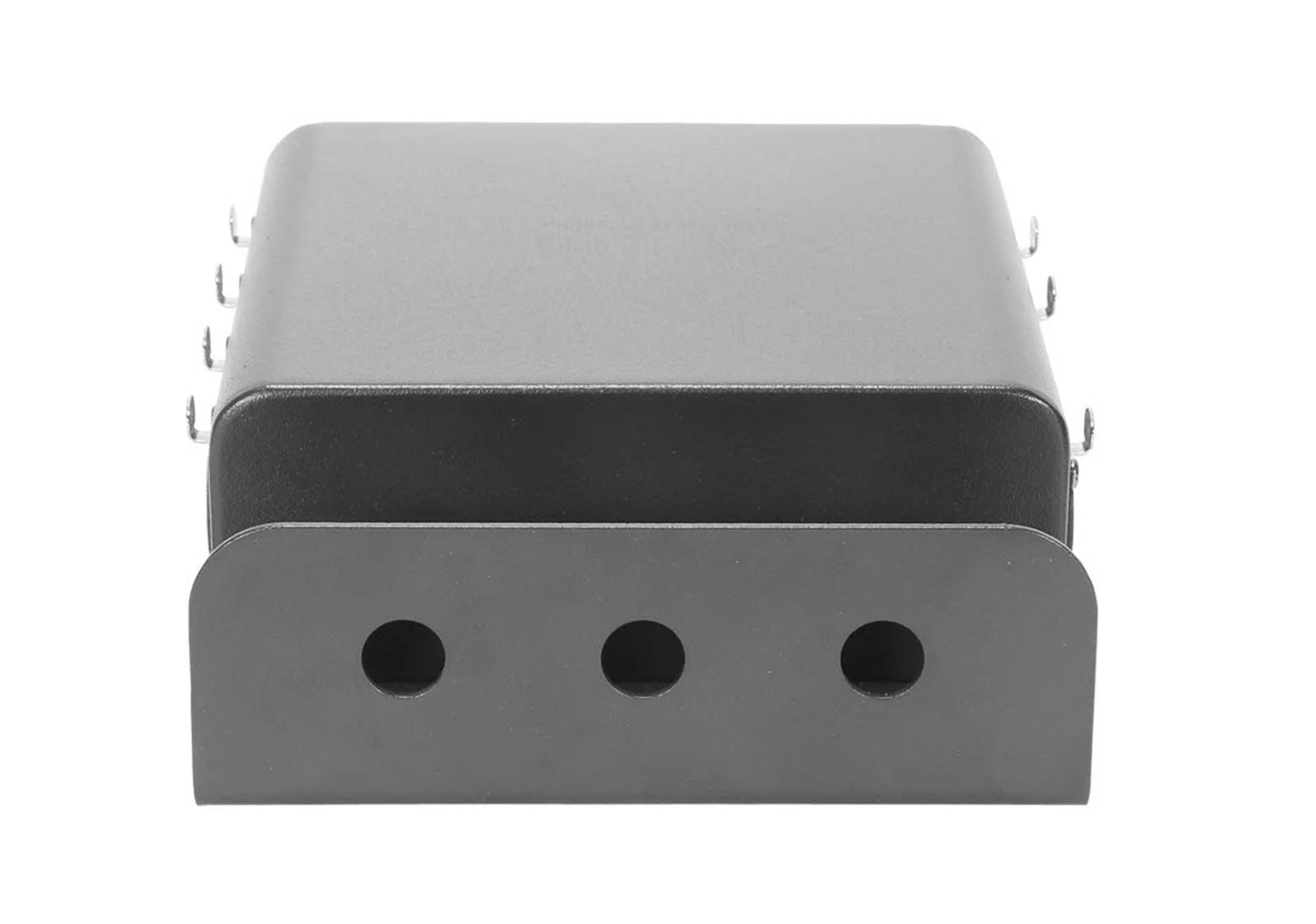

Mounting Options: Wall Mount or Truss Mount
Application: Professional DMX Signal Distribution for Stage Lighting, Theatres, Live Events, and Installations
