Description
The Antari F-8E Typhon is a powerhouse 3500W water-based faze machine, specifically engineered for large-scale events in stadiums, arenas, and other massive venues. Designed to deliver relentless, high-output fog effects, the F-8E Typhon excels in filling vast spaces with ease, ensuring that your audience is enveloped in an atmospheric haze that adds depth and energy to any performance. Whether you're working at a concert, sports event, or theatrical production, the F-8E Typhon's superior performance and massive output make it the go-to choice for event professionals looking to make a bold statement with their fog effects.

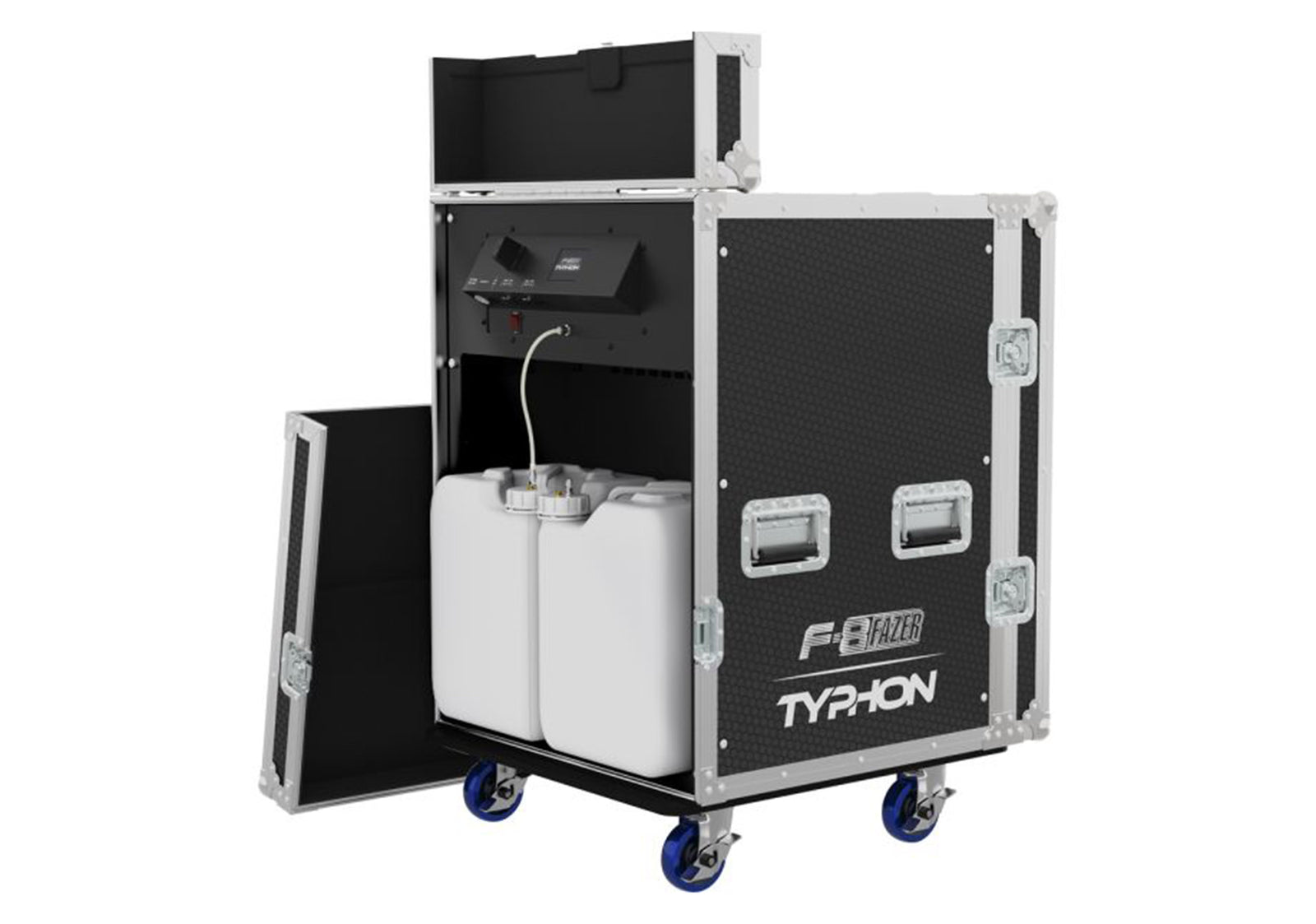

Built to withstand the demands of large-scale applications, the F-8E Typhon is equipped with a massive 20-liter fluid tank (x2), allowing it to run for extended periods without needing to be refilled. The fluid consumption rate is 200 ml/min at full output, and with its capacity, the machine can operate for up to 9 hours at 100% output. The dual 20-liter tanks (5.28 gallons each) offer maximum fluid storage, making this model ideal for events that require continuous, high-volume fog output without interruptions. The F-8E Typhon uses a variety of Antari fluids, including FLG Standard Fog Fluid, FLH Light Faze Fluid, FLJ Light Haze Fluid, and FLZ Super Heavy Fog Fluid, providing flexibility depending on the effect you want to achieve.

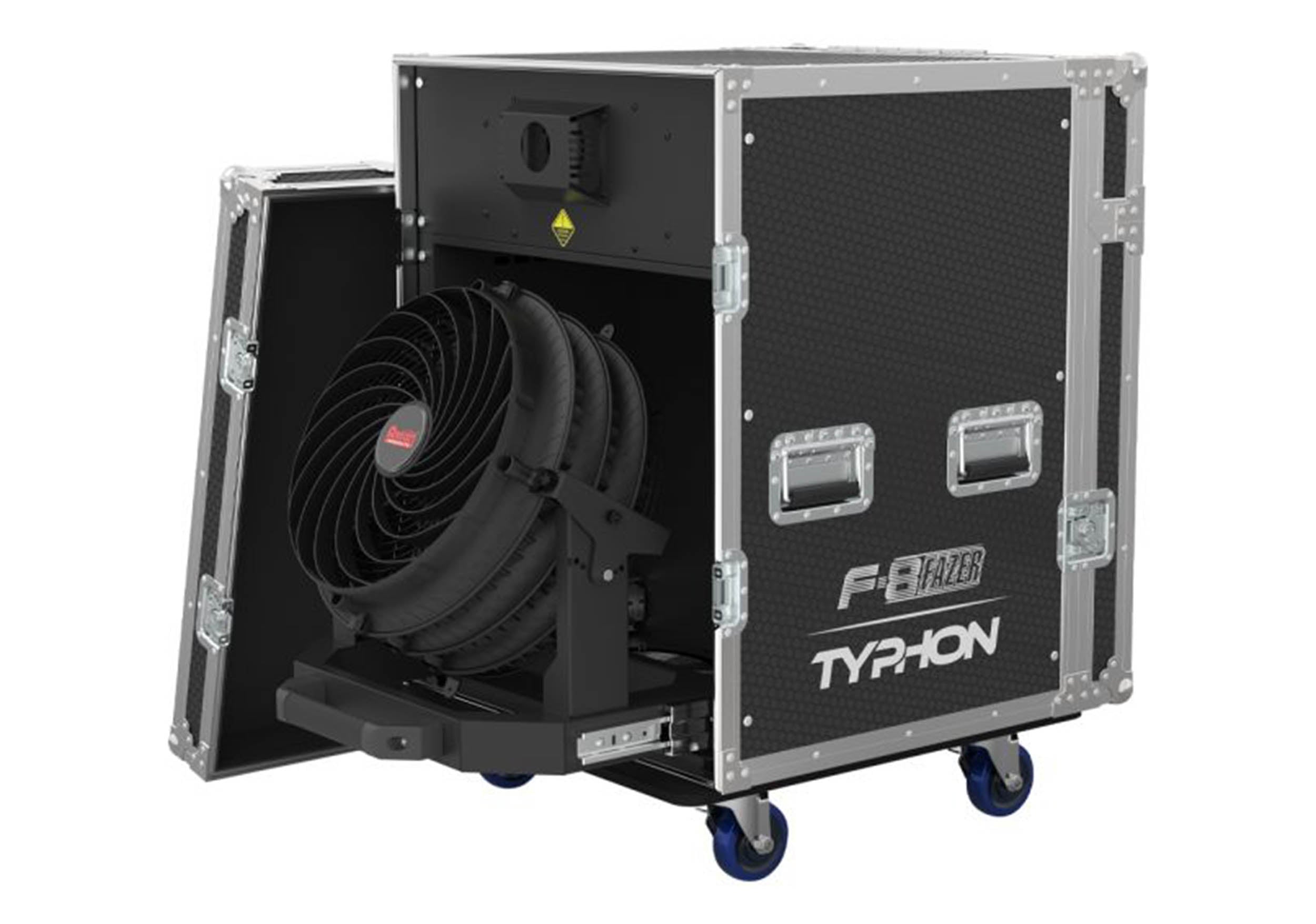

The F-8E Typhon is equipped with an IP55-rated fan, ensuring reliable operation even in challenging outdoor environments. Whether it's a massive arena or a stadium exposed to the elements, the fan's durability ensures smooth operation and consistent airflow. The advanced fan design offers precision airflow for maximum effect, filling large venues with haze or fog efficiently. Its robust design also includes voltage protection, ensuring consistent performance even in unstable voltage conditions.
With a warm-up time of just 8 minutes, the F-8E Typhon is ready to deliver massive fog output when you need it. The machine supports multiple control options including manual operation, timer, DMX512, and optional wireless control (sold separately). For DMX control, the fixture uses a 3-channel setup, allowing for complete control over the fog output and fan settings. The DMX interface uses XLR 3-pin/5-pin connectors, and the power input is secured with a Neutrik powerCON TRUE 1 connector for a safe and reliable power connection.

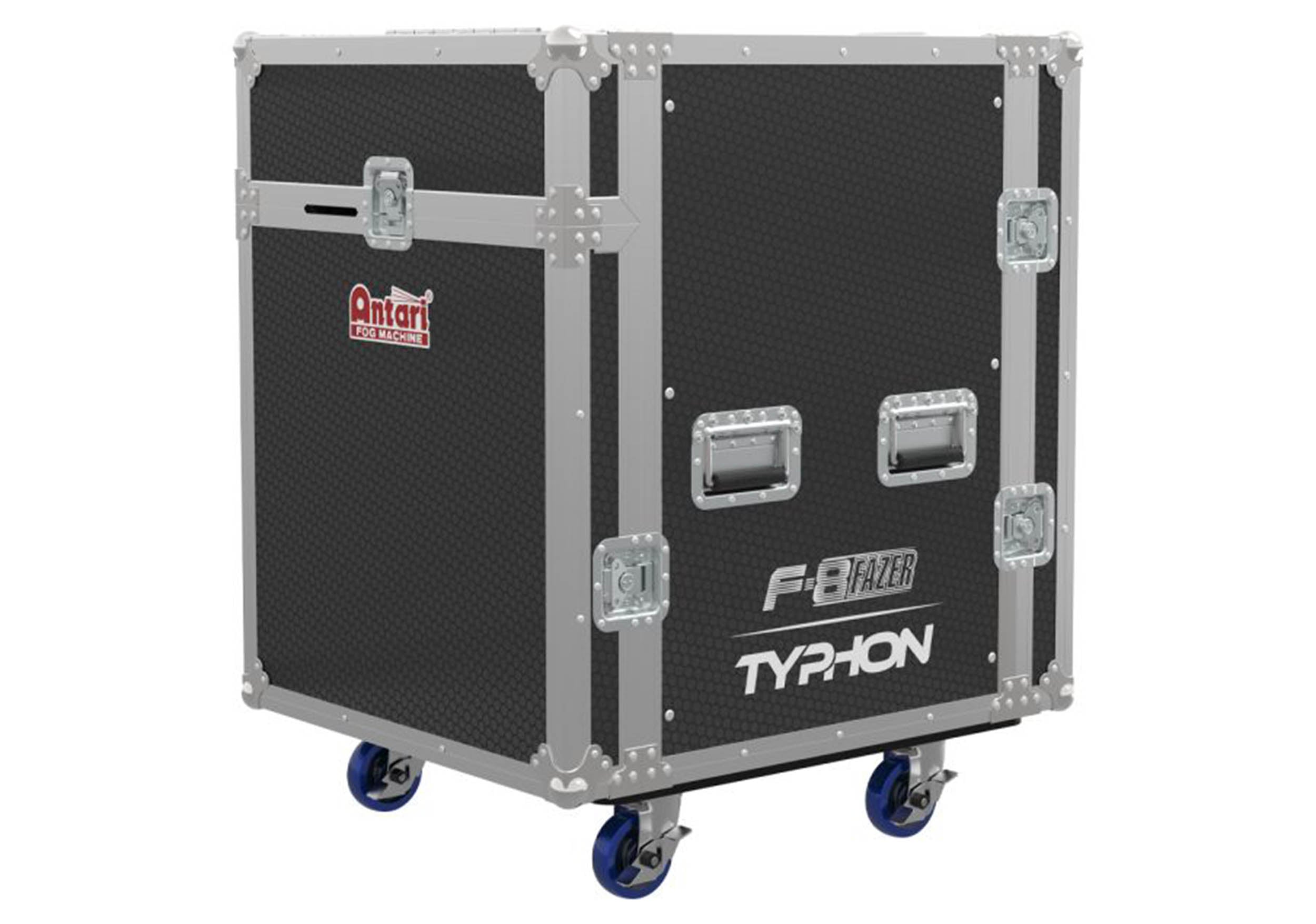

At 220.50 lbs, the F-8E Typhon is a substantial fixture, but it is designed for easy handling and transport within a custom flight case (black/silver finish), providing a sleek and protective solution for touring and rental companies. The flight case ensures that the F-8E Typhon is protected from damage during transit, while the compact design allows for ease of storage and transportation despite its large output capabilities.
For event organizers, rental companies, and large venues, the Antari F-8E Typhon sets the benchmark for performance and reliability in large-scale fog production. Its ability to produce nonstop, powerful effects for hours, combined with its precision airflow and rugged durability, makes it the ideal choice for creating spectacular and atmospheric fog effects in stadiums, arenas, and other large venues.
Product Specifications:
Rated Voltage: AC 220-240V, 50/60Hz
Rated Power: 3500W
Warm-Up Time: 8 minutes (approximate)
Fluid Consumption: 200 ml/min (100% Output)
Fluid Tank Capacity: 20 Liters (5.28 gallons) x 2
Compatible Fluid: FLG Standard Fog Fluid, FLH Light Faze Fluid, FLJ Light Haze Fluid and FLZ Super Heavy Fog Fluid
Operating Time: 9 hours (100% output)
Ambient Temperature Range: 32F to 104F
Control Methods: Manual, Timer, DMX512, Wireless (Optional, Sold separately), W-DMX (Optional, Sold separately)
Interface: XLR 3-Pin/5-Pin Connector (DMX), Neutrik powerCON TRUE 1 (Power)
DMX Channels: 3
Dimension: 31.6 x 26.66 x 38.43 inches
Weight: 220.50 lbs
