Description

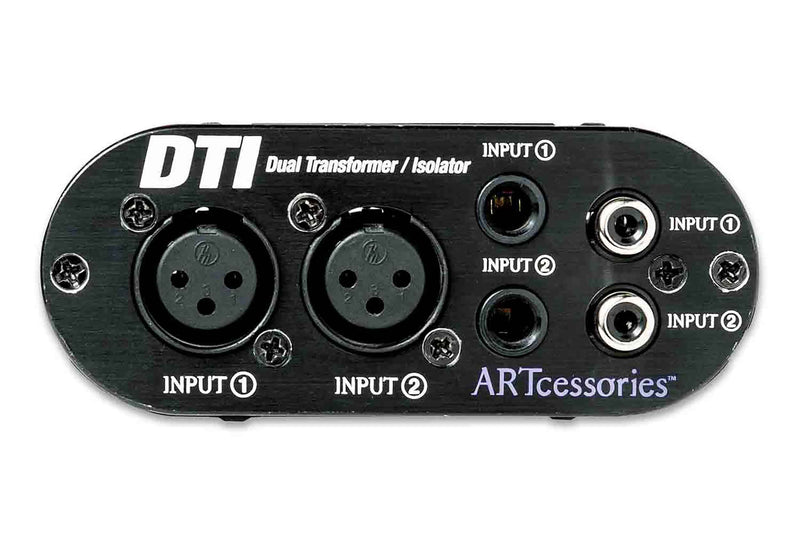

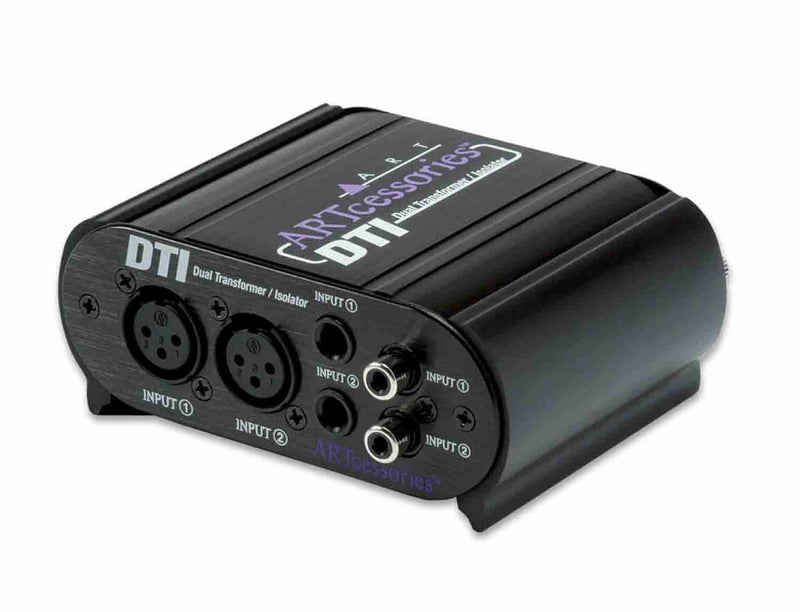

The Art DTI is a Dual Transformer and Isolator Provides a high-quality totally passive audio interface that uses a pair of high-performance transformers to totally separate input and output signal grounds, thereby isolating two systems and reducing hum and ground-loop noise. The DTI’s audio transformers have an extremely flat and wide frequency response and can handle high signal levels while an isolated balanced output.
This gives the DTI a very clean and neutral sound with a wide variety of maintaining signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 ohms to 100k ohms.
Product Specifications:
Frequency Response: 10Hz-50kHz +/-.5dB@+4dBu
Total Harmonic Distortion: 01% Typical @ 1kHz, +18dBu, <.05% @ 100Hz, +24dBu
Insertion Loss: 4dB@100k Ω load, 5.5dB @ 600 Ω load
Input Connectors: XLR-F Balanced,1/4-inch TRS Balanced / Unbalanced, and RCA Jacks

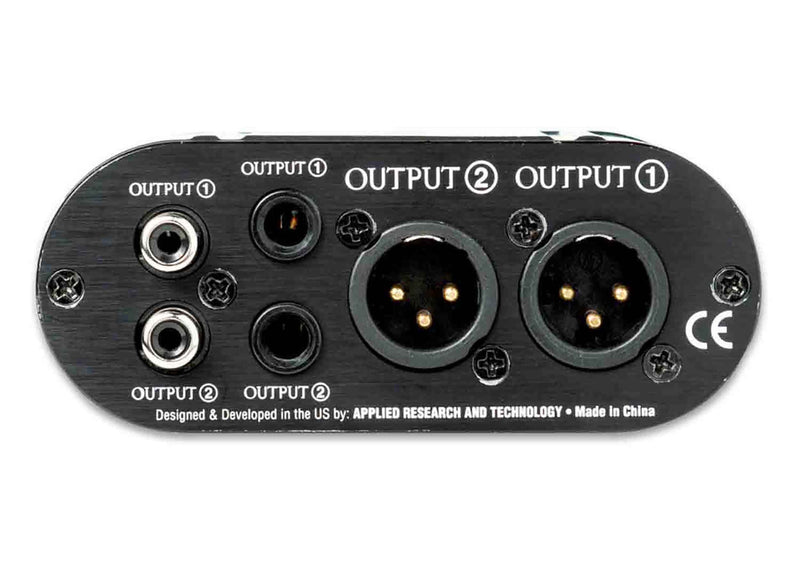

Output Connectors: XLR-M Balanced, 1/4-inch TRS Balanced / Unbalanced and RCA Jacks
Power Requirements: Passive
Dimensions: 1.75″H x 4.2″W x 3.5″D
Weight: 75 lbs (0.34kg)
