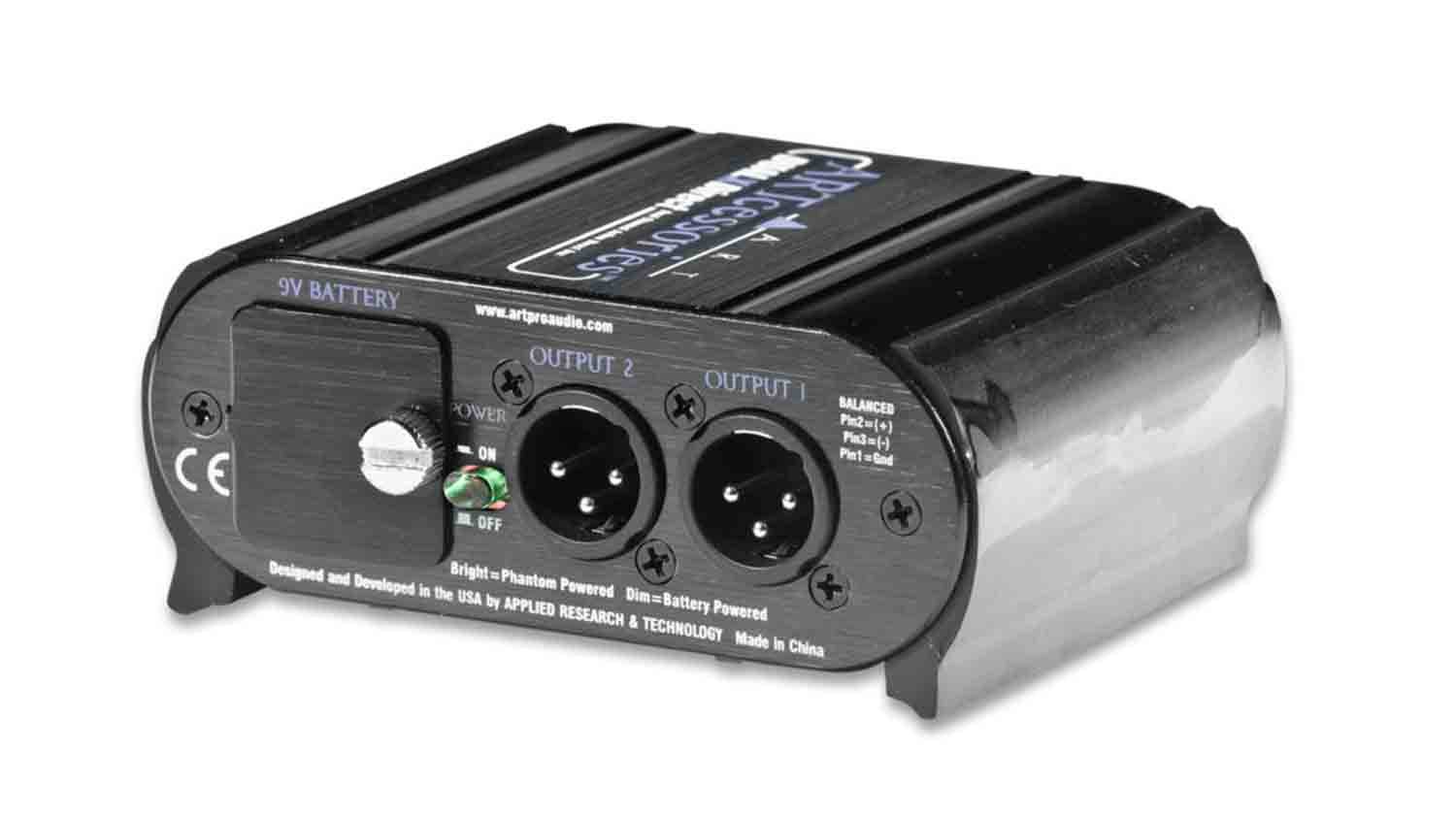

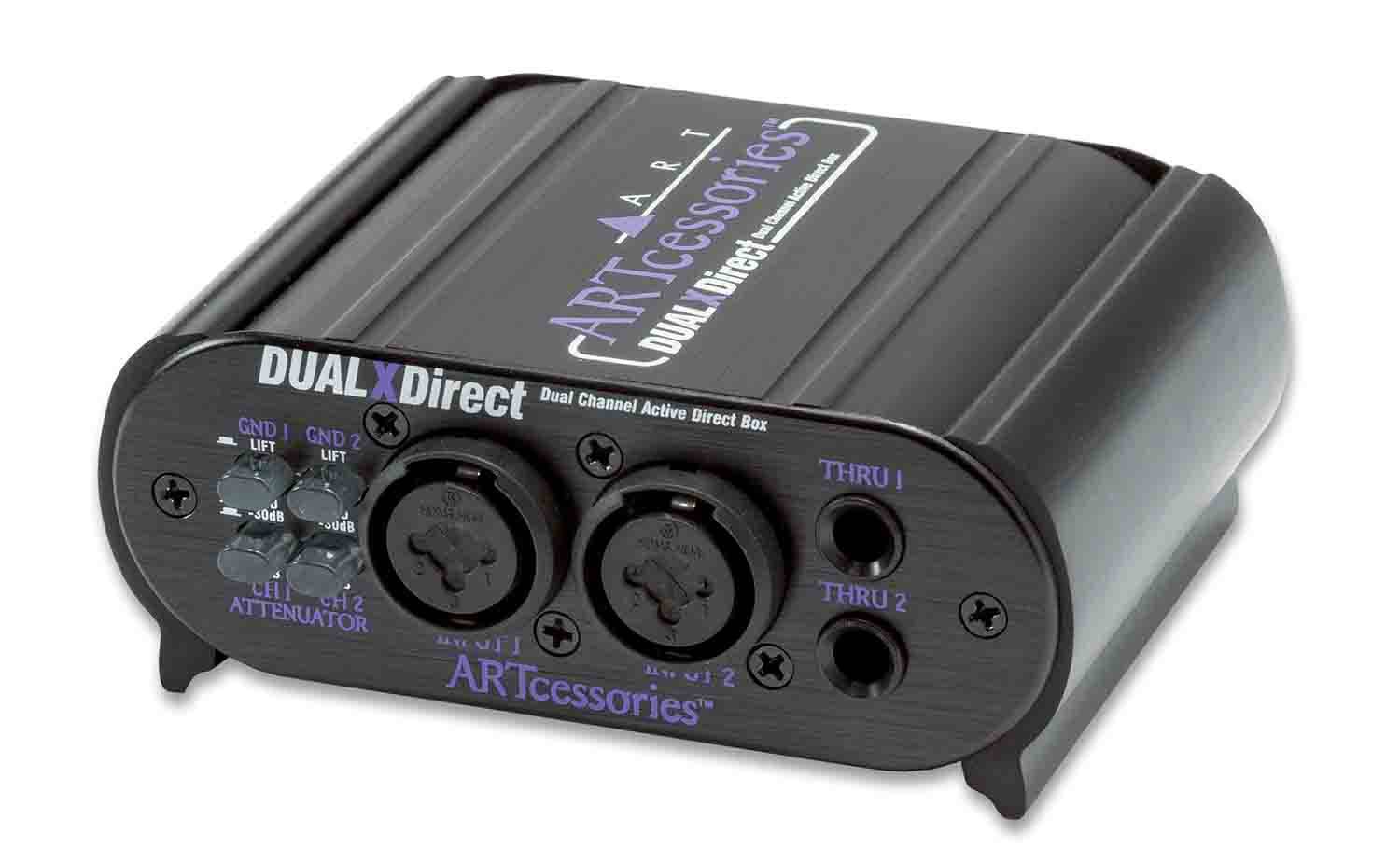

Art DualXDirect, Dual Channel Professional Active Direct Box

The Art DualXDirect is a Dual Channel Professional Active Direct Box provides high-quality active interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. Each of the high impedance 1/4″ and XLR inputs (provided via “combo” jacks) are buffered and converted by very low noise active electronics into an isolated, balanced, low impedance signal output.

The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over-long signal runs in high noise environments.

The input ATTENUATOR switches allow for a wide range of signal levels and the input THRU jacks allow for tapping off of your signal chain. The GROUND LIFT switches let you totally separate the input and output signal grounds, when appropriate, to isolate two systems, thereby reducing hum and ground-loop noise.

Product Specifications:

Frequency Response: 10 Hz – 100 kHz, ± 0.5 dB @ +0 dBu

Total Harmonic Distortion: <.05% (typical)

Dynamic Range: >100 dB (typical)

Channel Separation : > 80 dB (typical)

Maximum Input Level: +4, +34 dBu

Output Connections: XLR male balanced (2), <600 Ω

Input Attenuation: Switchable, (0, -30 dB)

Dimensions: 1.85″H x 4.6″W x 3.9″D

Weight: 0.84 lbs (0.38 kg)
