Description

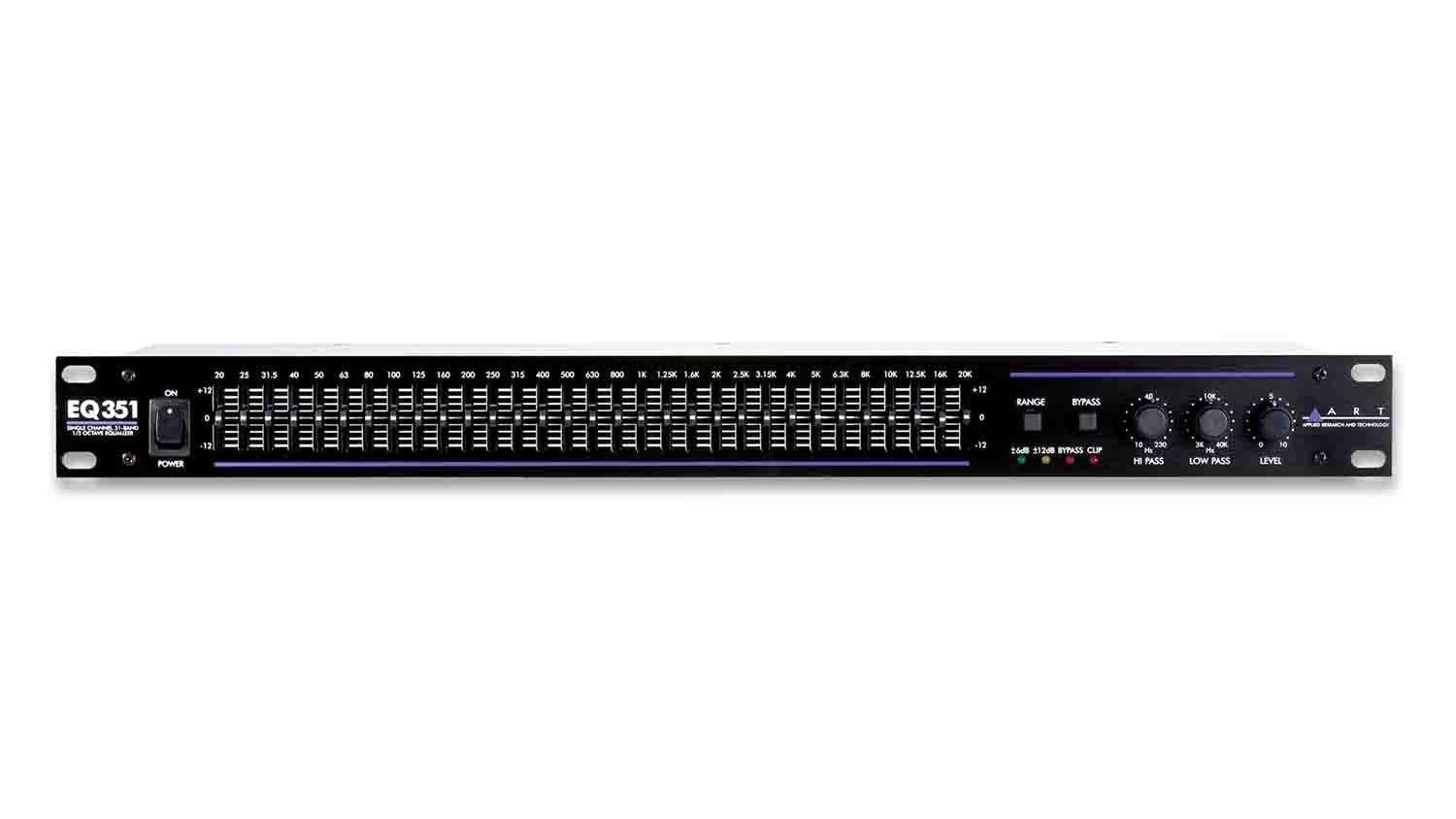

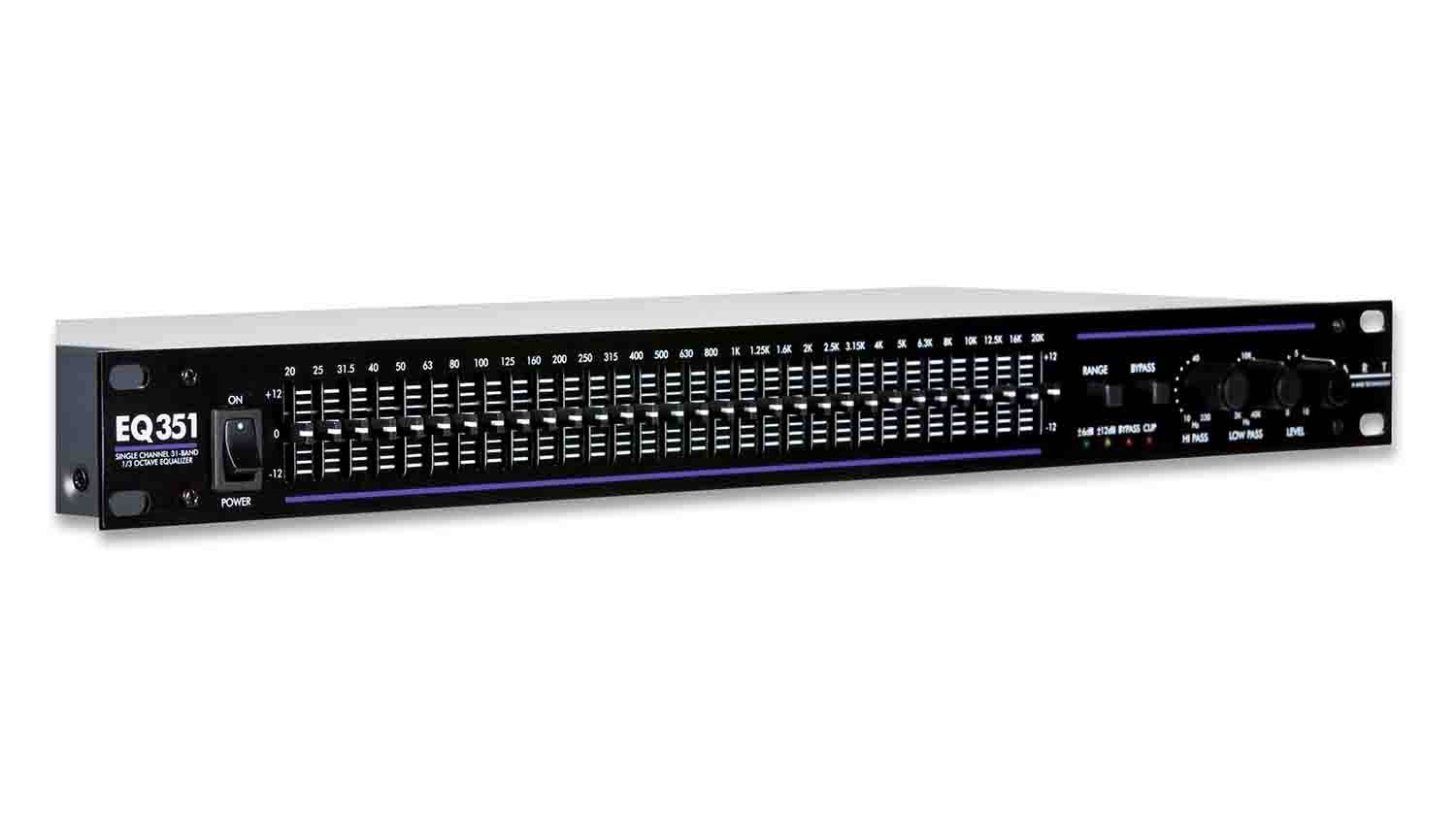

The ART EQ300 Series of graphic equalizers have been designed and engineered to extremely high standards for audio performance and functionality. These innovative, high-quality equalizers are perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design and extremely silent processing is important. Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.
May be used in a variety of applications such as live sound, recording studios, instrument racks as well as any conventional fixed installation environment. The equalizer can be used wherever modification of the frequency contour of a sound is needed. The graphic equalizer is a powerful tool for solving a number of audio problems and creating interesting sound textures. Patch the EQ between your mixing console and power amps to allow you to alter the overall mix to better match your environment. Use the EQ between your monitor mixer and monitor power amps to aid in the removal of feedback inducing frequencies. Patch into a channel insert to EQ one channel or track individually. Run your instrument directly into the equalizer to enhance its sound before reaching a power amplifier or instrument amplifier. Patch into the effects loop of an instrument amplifier or between a preamp and power amp to have precise control over the complete sound.
Product Specification:
Channel Separation: > 50dB
Controls: Power On/Off Switch; Filter Range Switch; Bypass Switch; Level Control; AC Voltage Selector; Ground Lift Switch
Filter Type: Constant Q – 3% center accuracy
Frequency Bands: 31, 1/3 octave, ISO spacing
Frequency Response: 20Hz to 20kHz, +0.5dB
Indicators: 6dB/12dB Range LEDs; Bypass and Clip LEDs
Input Impedance: 20k Ω (bal), 15k Ω (unbal)

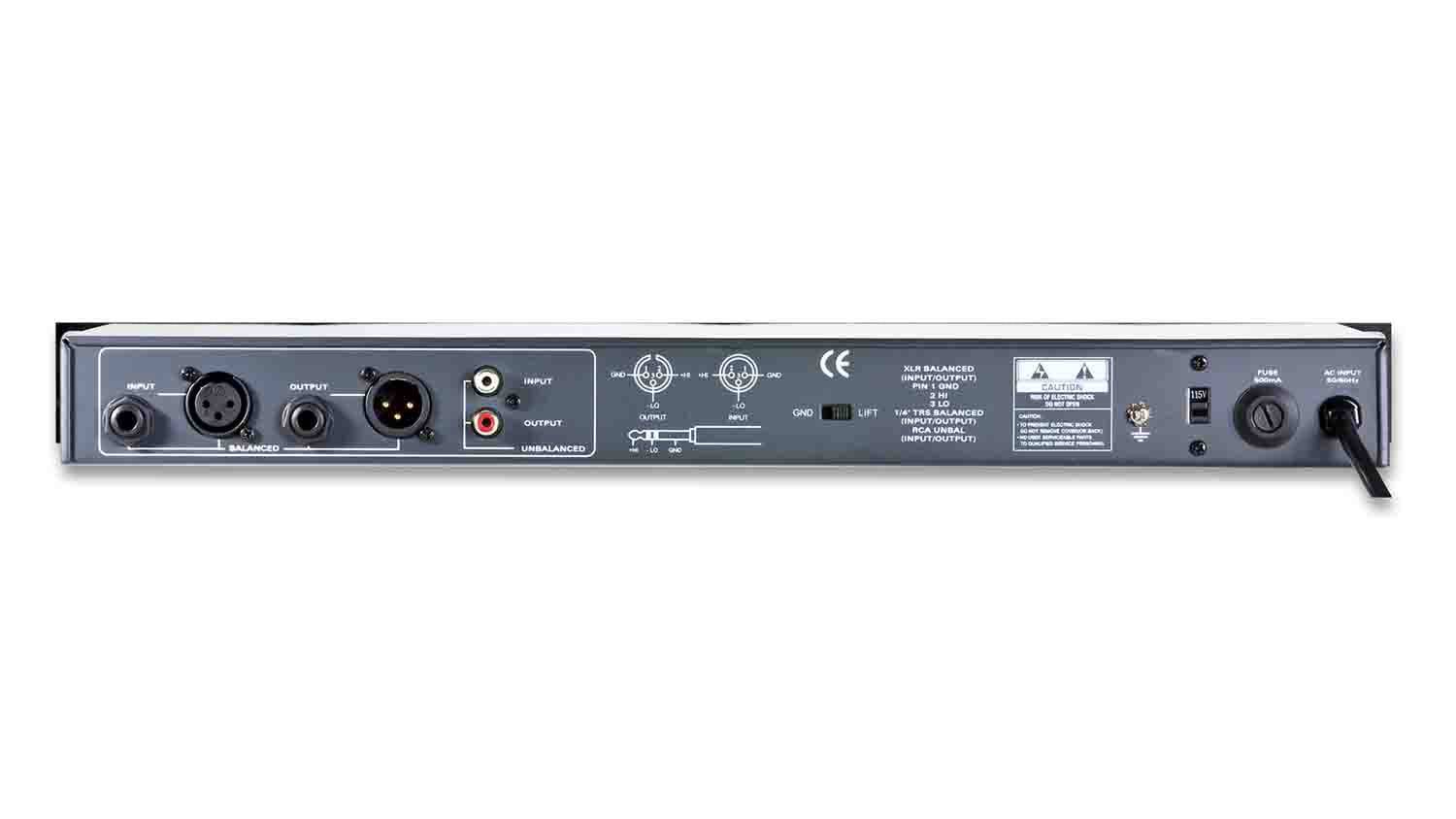

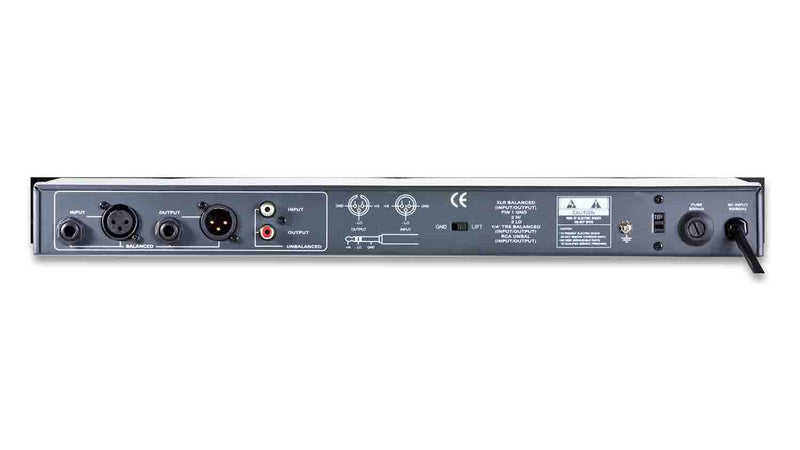

Input/Output Connections: Active balanced XLR and 1/4″ TRS {XLR pin 2/ 1/4″ tip = Hot (+)} Unbalanced RCA
Maximum Input Level: +22dBm
Maximum Output Level : +18dBm (bal), +22dBm (unbal)
Power: (Switchable) 95-130VAC, 50/60Hz
Power Consumption: 12 W
Range: +/-6dB or +/-12dB selectable
Signal to Noise Ratio: -94dB
Slider Travel: 20mm w/ positive center detent
Total Harmonic Distortion: 0.0001
Dimensions: 1.75″H x 19″W x 8.5″D
Weight: 4.5lbs (2.5kg)
