Description

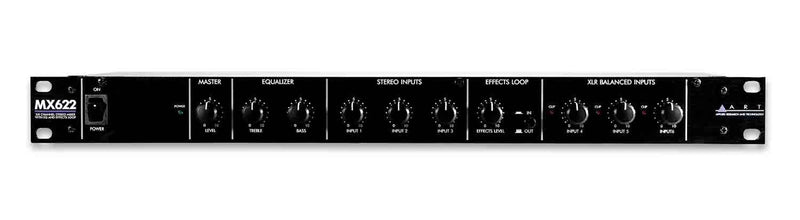

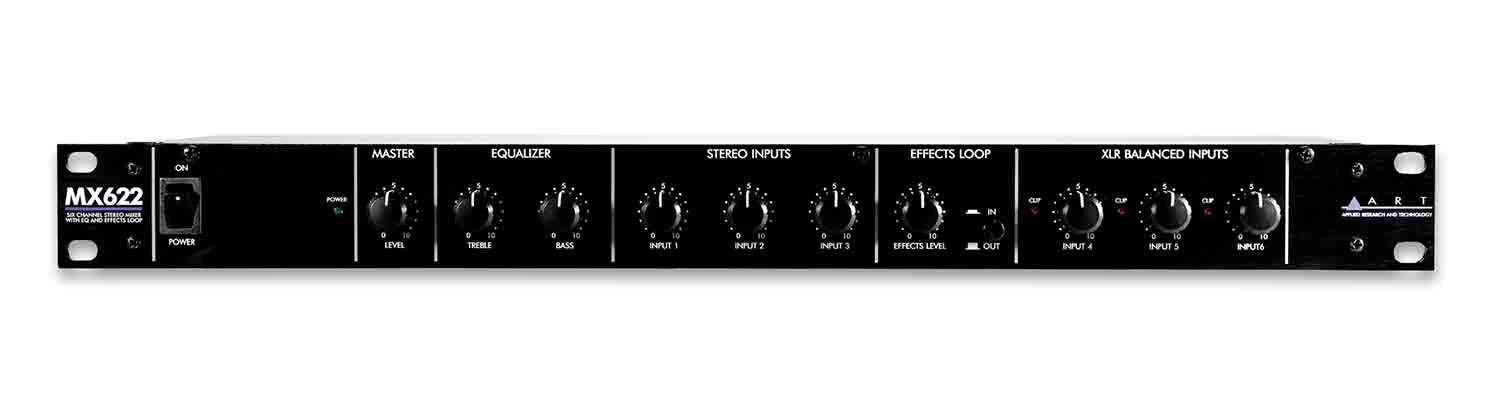

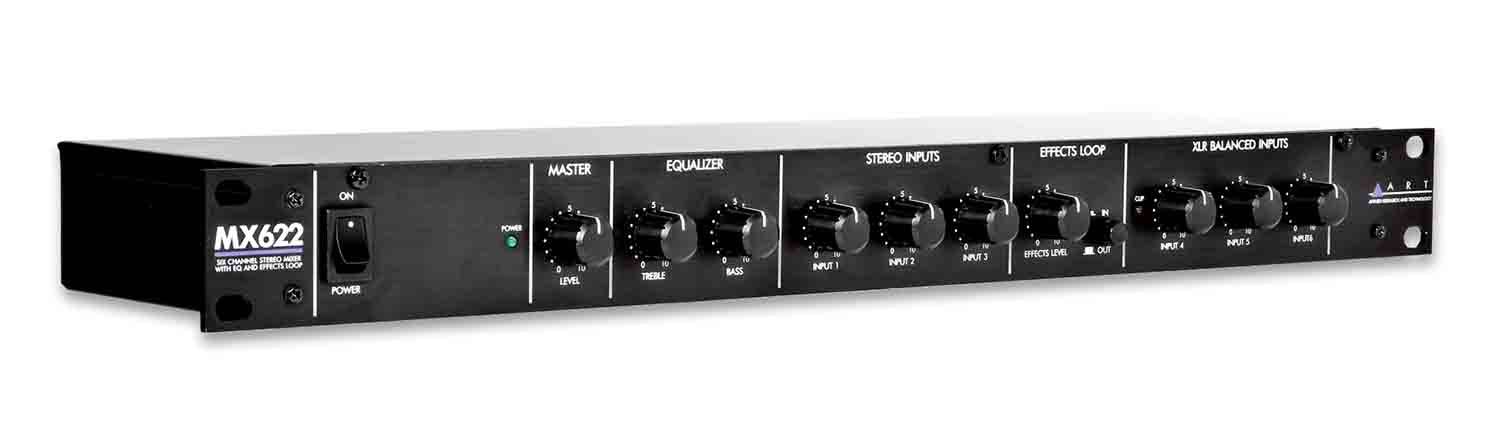

The Art MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.
Product Specification:

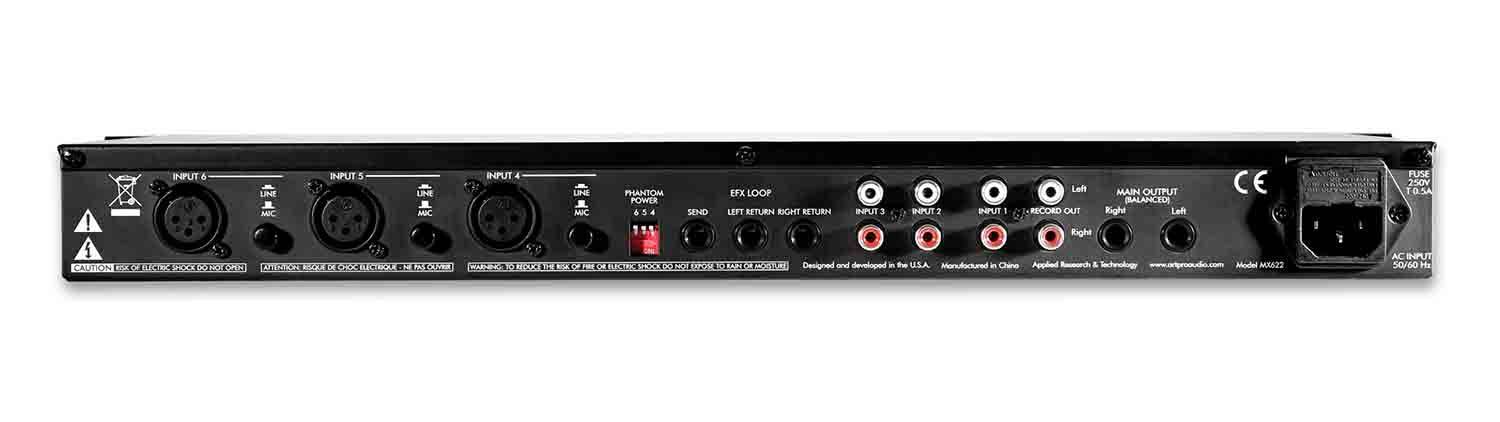

Input Connections: XLR-F balanced (x3)
1/4-inch unbalanced (x2)
3 pairs stereo RCA (6 total)
Output Connections: TRS balanced 1/4-inch (x2), 1/4-inch unbalanced (x1), RCA (x2)
Input Impedance: 600/22K Ω mic/line XLR inputs / 10K Ω RCA inputs / 22K Ω 1/4-inch effects returns
Output Impedance: 50 Ω 1/4-inch main outputs / 1K Ω RCA record outputs / 100 Ω effects output
Total Harmonic Distortion: .01% Typical
Signal to Noise Ratio: > 90dB typical
Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs
Phantom Power: +15Volts DC (regulated / low noise)
Power Requirements: USA – 105 to 125 VAC / 50-60Hz, 15 W typical
Equalizer Range: +/-12dB @ 100Hz & 10kHz
Dimensions: 1.75″H x 19″W x 6.0″D (44.5mm x 483mm x 152mm)
Weight: 6.2 lbs (2.8 kg)
