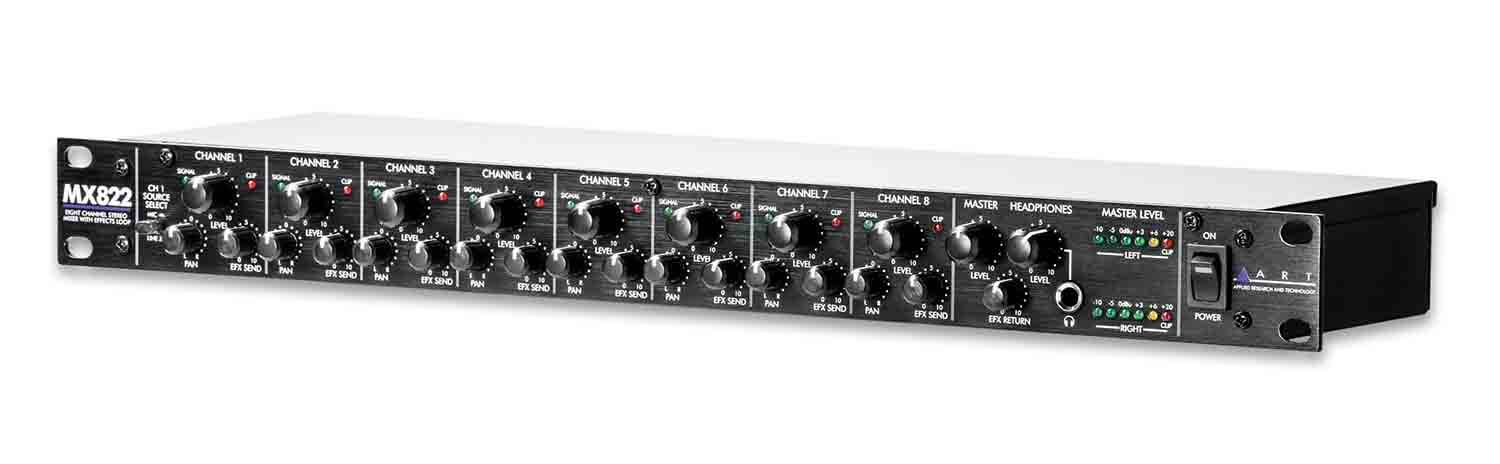

Art MX822 8-Channel Stereo Mixer with Effects Loop

The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

Product Specification:

Input Connections: XLR-F balanced (MIC)

1/4″ TRS unbalanced (Ch1-Ch8, Effects Return)

1/4″ TRS stereo unbalanced (EFX Buss, Main Expand)

Output Connections: XLR-M balanced (Main)

1/4″ TRS unbalanced (Effectss Send)

1/4″ TRS stereo unbalanced (Monitor, Main Expand, Headphone)

Input Impedance: 1k Ω (MIC), 5k Ω (Ch1-Ch8)

Output Impedance: <1k Ω (Main, balanced), <25 Ω (Headphone)

Total Harmonic Distortion: <0.01% @ 1kHz

Signal to Noise Ratio: > 90dB typical (Ref 0dBu)

Maximum Input Level: -19dBu (MIC), +24dBu (Ch1-8)

Maximum Output Level: +24dBu (Main), +18dBu (Monitor, Effects Send)

Maximum Gain: +60dB (MIC), +14dB (Ch1-8)

Phantom Power: Switch Selectable, +48V DC, filtered, current limited

Power Requirements: USA – 95 to 125 VAC, 50-60 Hz, Export units configured for country of destination

Dimensions: 1.75″H x 19″W x 6″D (44.5mm x 483mm x 152mm)

Weight: 6.5 lbs (2.95 kg)
