Description

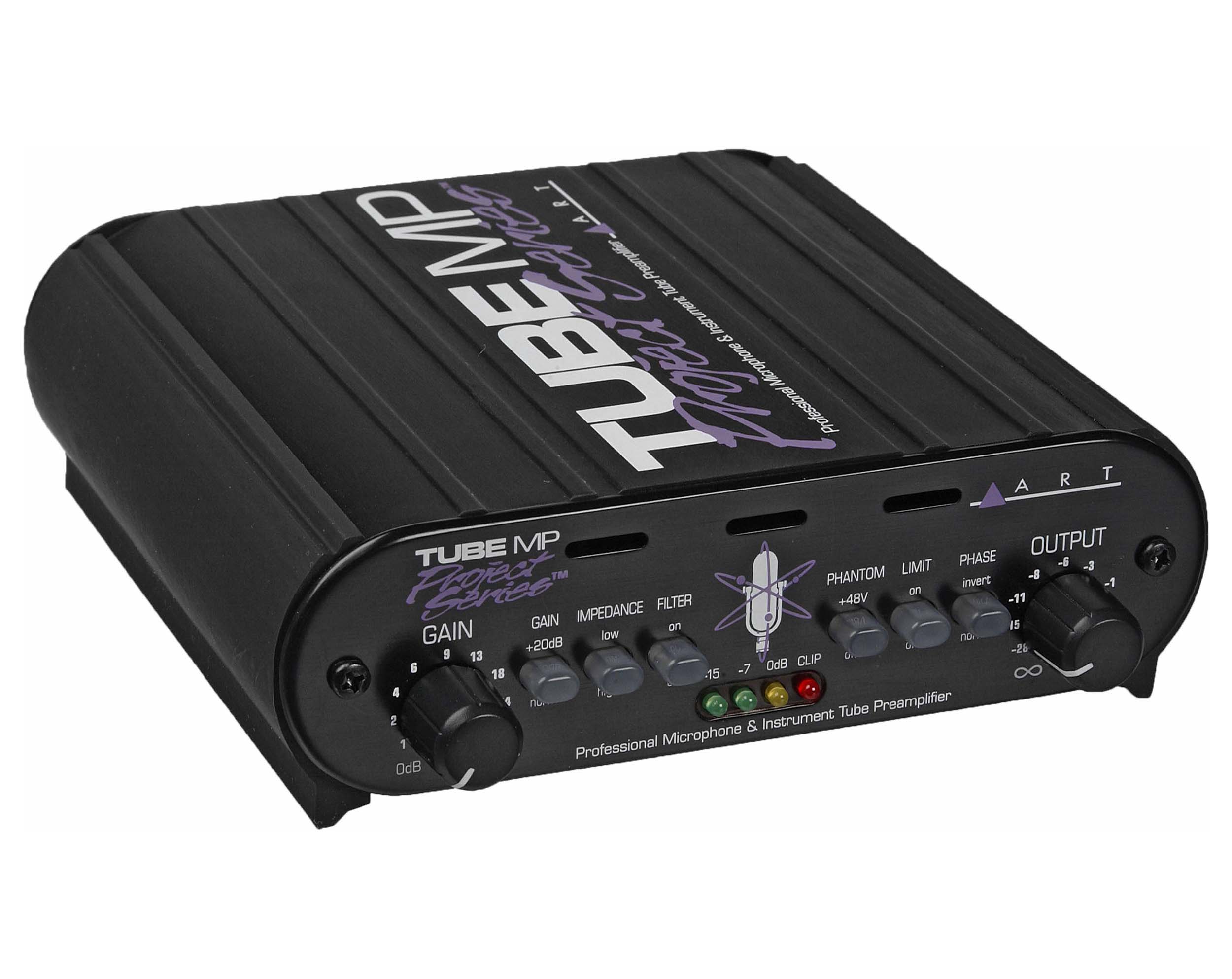

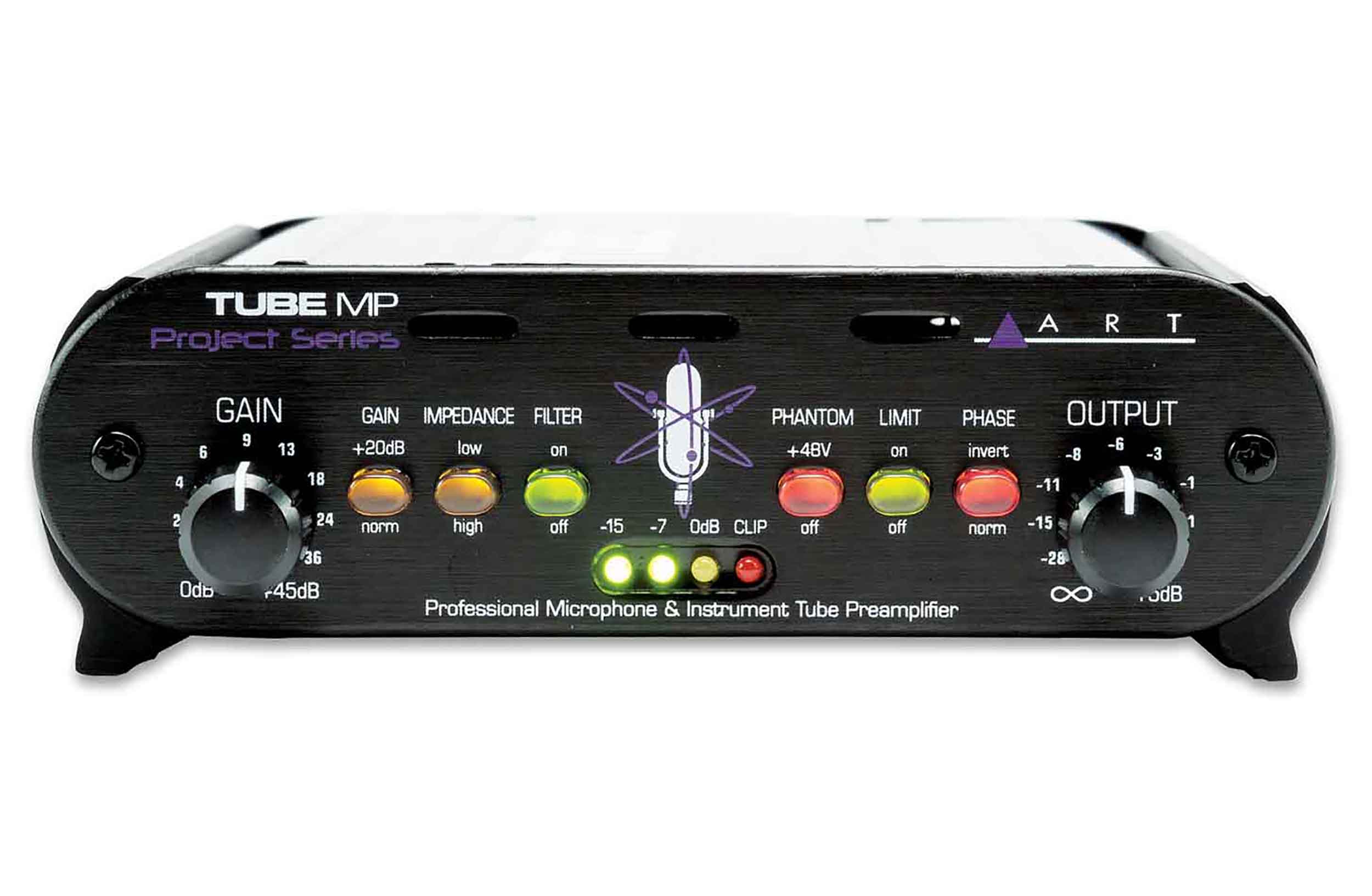

The Tube MP Project Series is a professional quality audio interface that lets you connect a microphone, instrument, and line-level signals to a mixer or other audio input. This hybrid design is the latest in a long line of ART tube preamps. We took our legendary Tube MP series and updated every aspect of the design, inside and out, while still maintaining a compact, reliable, and cost-effective product.
From the new all-aluminum stackable chassis to the precision LED level metering circuitry, we have improved virtually every aspect of our already successful Tube MP series. With up to 70dB of clean musical gain and high output signal drive capability, the cold digital world will melt with your mixes! Charge up your creativity with the Tube MP Project Series!
Optional ART SM1 stand mount securely attaches the Tube MP Project Series to any microphone stand for live stage or studio applications are available.
Product Specifications:
Frequency Response: 10Hz to 40kHz, +/-1 dB (typical)
Total Harmonic Distortion: <0.05% (typical)
CMRR: > 60dB (typical)
Dynamic Range: > 100dB (20Hz to 20kHz)
Equivalent Input Noise: <-130dB (XLR to XLR A-weighted)
Input Impedance: Switchable, 4.7k Ω / 600 Ω (XLR)

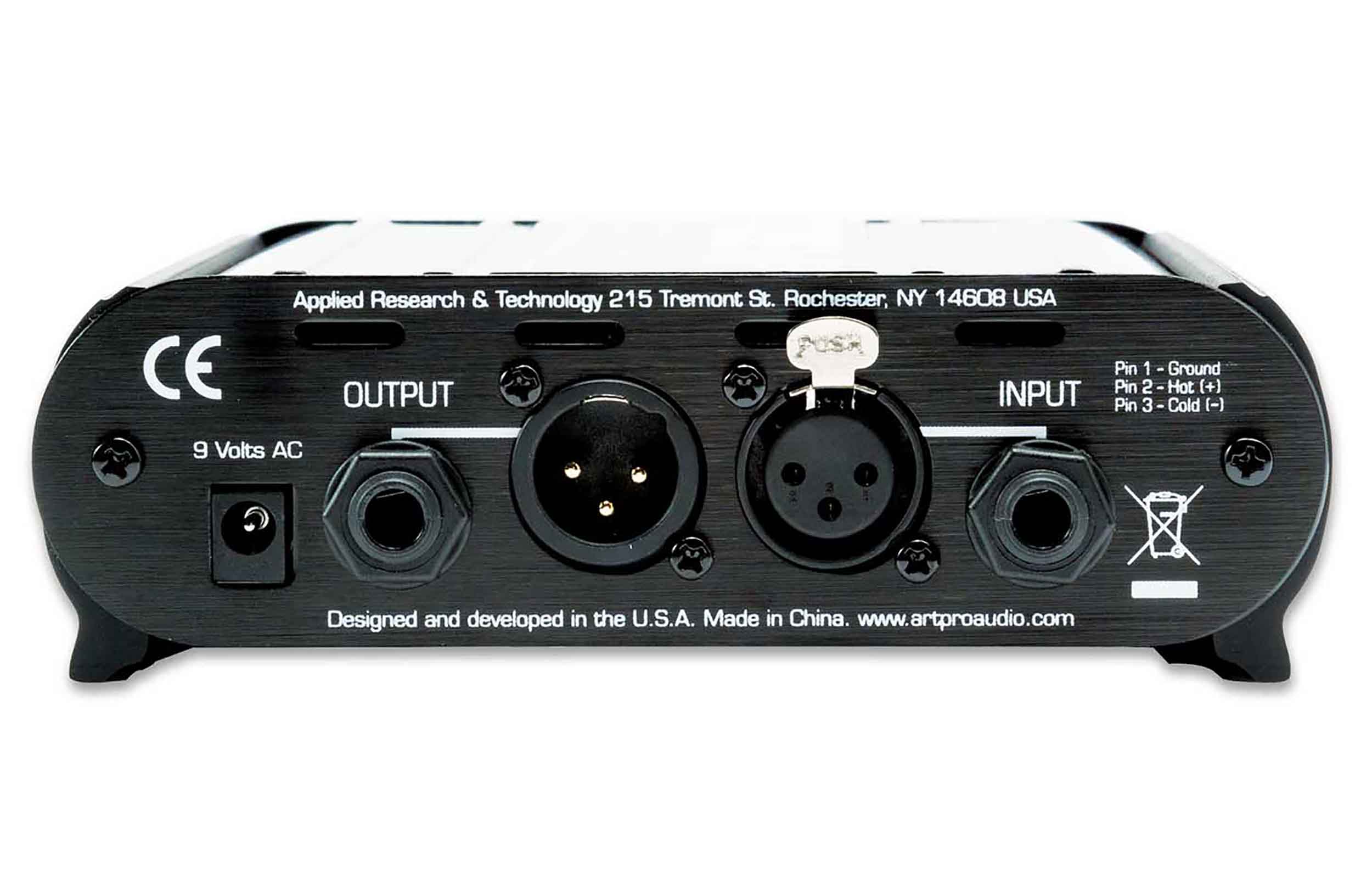

Input/Output Connections: Input: 1/4″ TRS unbalanced (1meg Ω), XLR female balanced. Output: 1/4″ TRS unbalanced (600 Ω), XLR male balanced (<300 Ω)
Maximum Gain: 70dB (XLR – XLR), +50dB (1/4″ – XLR)
Input Gain Pad: Switchable, 20dB
Maximum Input Level: +17dBu (1/4″), +16dBu (XLR)
Maximum Output Level: +20dBu (1/4″), +26dBu (XLR)
Low Cut Filter: Switchable, -3dB @ 40Hz
Output Phase: Switchable, Normal/Invert
Output Limiter Type: Switchable, Fast & Musical FET Limiter, > 20dB limit range
Phantom Power: Switchable, +48V DC, filtered, current limited
Signal Metering: Precise LED array with a fast attack and moderate release
Chassis Type: Aluminum Anodized with integral/stackable rubber sides
Power Requirements: 10VAC @ 700mA (typ)
Tube Type: 12AX7A hand selected
Dimensions: 6.5″D x 5.9″ W x 1.75″ H (165mm x 150mm x 44.5mm)
Weight: 2.5 lbs (1.14 kg)
