Art SLA-2, 200W Power Amplifier

The Art SLA-2 is a studio linear power amplifier capable of delivering 280watts per channel (@4 ohms) with an incredible 10Hz to 40kHz frequency response. Compact single rackspace low noise linear design, the SLA-2 uses a solid steel chassis and toroidal transformer for added long term reliability. Stable down to 2 ohms, the SLA-2 can be bridged mono to deliver a full 560 watts into a single 8 ohm load.

Ideal for any studio or installation application, the SLA-2 uses oversized convection cooling heatsinks and temperature controlled variable speed SmartFan technology to ensure quiet operation in any environment.

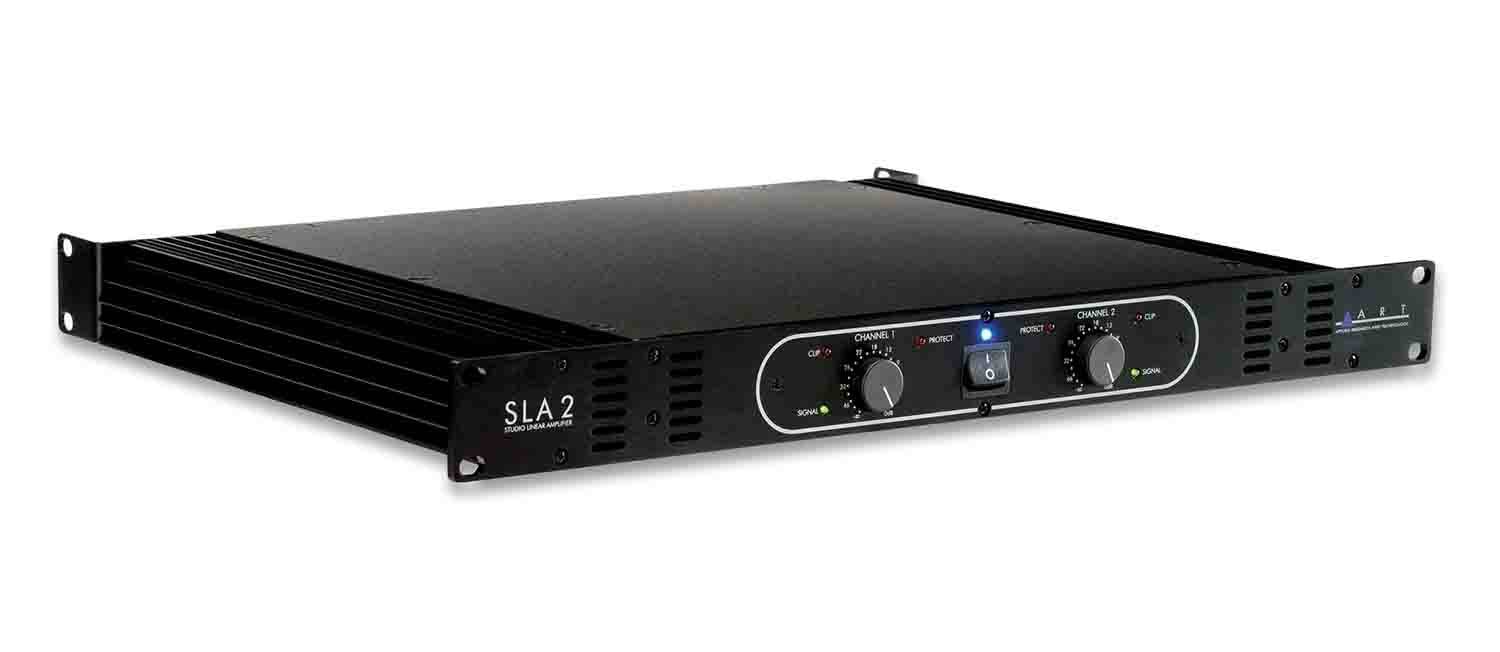

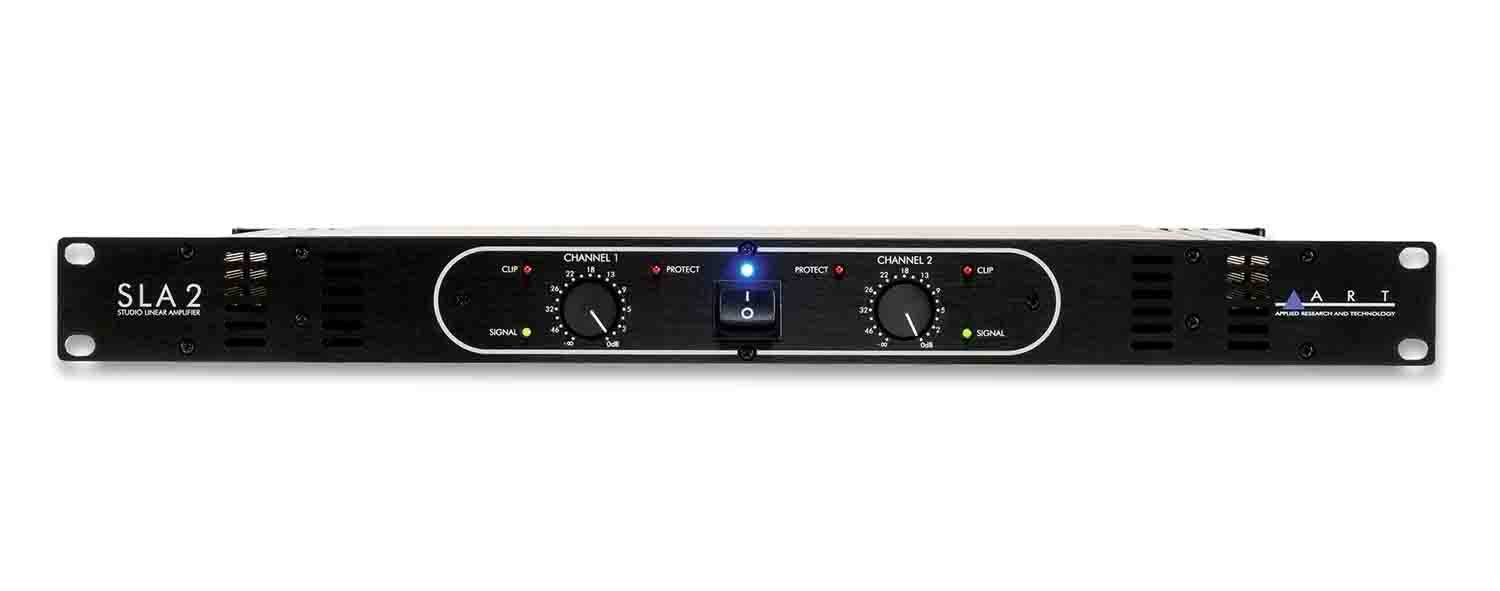

Designed to deliver in the most demanding audio applications. Housed in an aluminum and steel single space 19-inch rackmount chassis. Proven toroidal transformer design for unmatched long-term reliability. The SLA-2 features SmartFan, an advanced, thermal dependent fan assisted convection cooled system. The SmartFan system is dependent upon the internal ambient temperature of the unit, and runs at high or low levels depending on the amplifier’s cooling needs. XLR and 1/4-inch TRS balanced inputs as well as multi-way output binding posts are ensure the SLA-2 can be quickly and easily tied in to any system without modification. Simple to install tamper proof cover is included.

Product Specification:

Bridged Output Power, 8 Ohms: 560 W MONO

CMRR: > 60dB (typical @ 1kHz)

Frequency Response: 10Hz to 40kHz, +/- .5dB

Total Harmonic Distortion: > 0.05% (typical)

Hum and Noise: > 100dB below clipping

Input Impedance: 44k Ω (bal), 22k Ω (unbal)

Input Sensitivity: 1V for full power output

Input/Output Connections: IN: XLR, Euroblock (bal), 1/4″ TRS (bal/unbal)

Stereo Output Power, 4 ohms: 280 W RMS per channel

Stereo Output Power, 8 ohms: 200 W RMS per channel

Transformer Type: Toroidal

Power Requirements: USA 120vac 60 Hz 1000 W (max) 1000 W (max)

Dimensions: 1.75″h x 19″w x 13.5″d

Weight: 19.8 lbs (9 kg)
