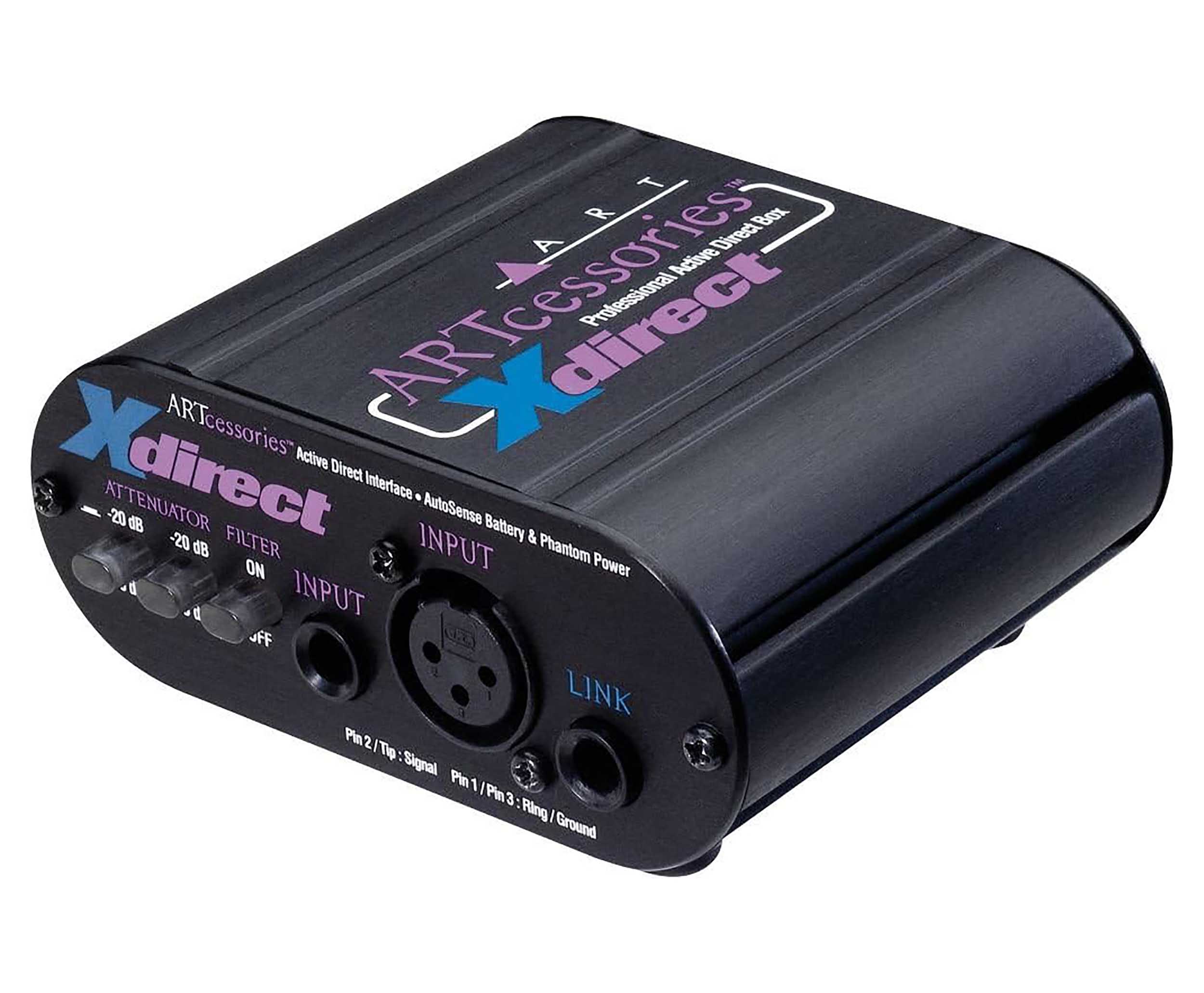

Art XDirect Professional Active Direct Box

The Art XDirect is a Professional Active Direct Box that Provide a high-quality interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input. The high impedance single-ended 1/4″ and XLR inputs are buffered and converted, by very low noise active electronics, into an isolated balanced low impedance signal source.

The Direct has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Xdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

The Input Attenuator switches allow for a wide range of signal levels and the Input Link jack allows for tapping off of your signal chain. The Ground Lift switch lets you totally separate the input and output signal grounds, when appropriate, to isolate two systems, thereby reducing hum and ground-loop noise.

Product Specifications:

Frequency Response: 10Hz -100kHz, +/-.5dB @ +0dBu

Total Harmonic Distortion: <.05% Typical

Dynamic Range: >100dB typical

Maximum Input Level: 4/+24/+44dBu

Maximum Output Level: +6dBu (battery powered), +14dBu (phantom powered)

Output Phase: Switchable, Normal/Invert

Input Attenuation: Switchable, (0dB, -20dB, -40dB)

Filter Type Response: Switchable, Low Pass, -3dB @30kHz

Dimensions : 1.75″H x 4.2″W x 3.5″D (44.5mm x 107mm x 89mm)

Weight: 0.75 lbs (0.34 kg)
