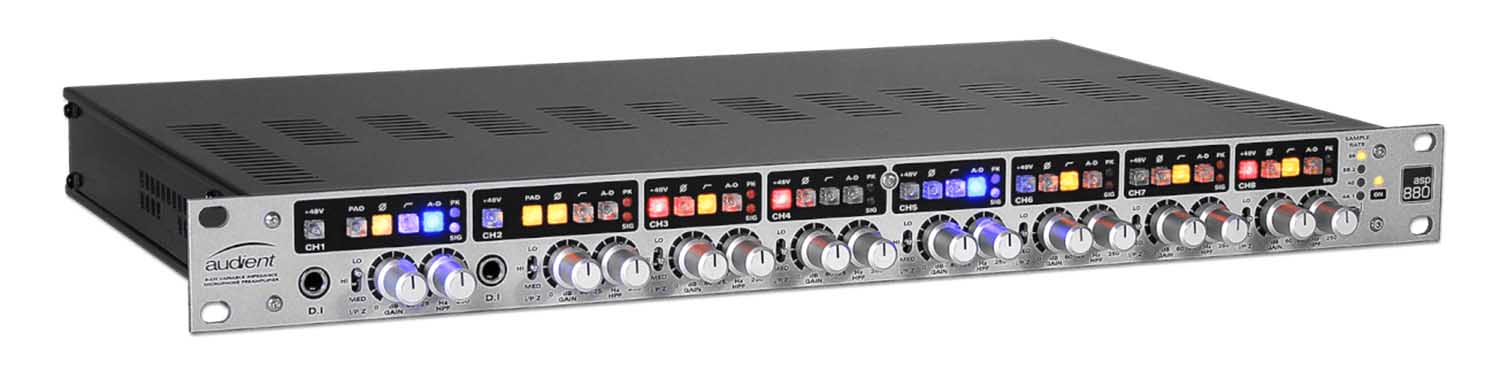

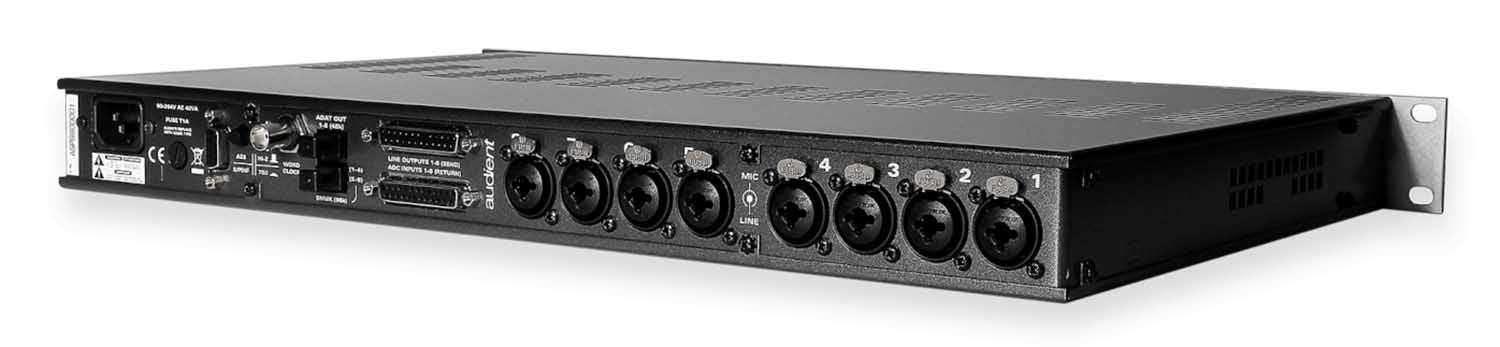

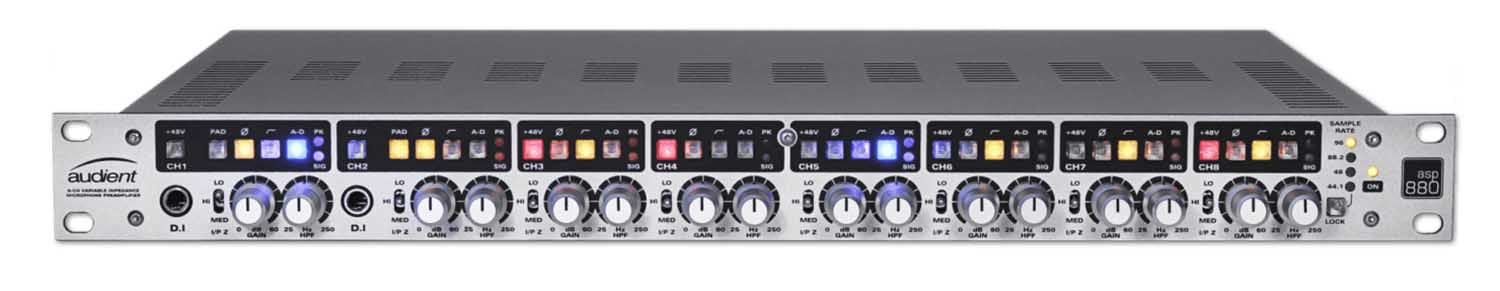

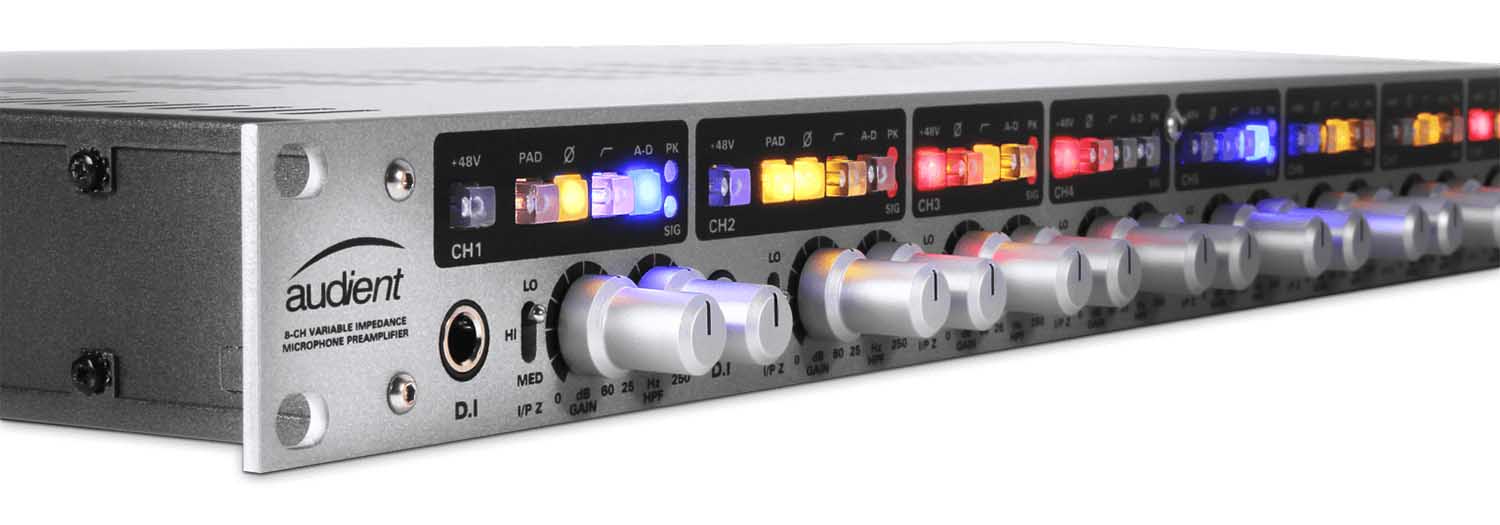

Audient ASP880 8 Channel Mic Preamp with ADC

The Audient ASP880 8 Channel Mic Preamp with ADC is an audio powerhouse designed with expandability in mind, making it the perfect addition to your audio interface. Upgrade your current setup with 8 channels of Audient’s Console mic preamps, 8-line inputs/outputs, 8 insert points, class leading converters and two JFET D. I’s – all in a compact 1RU package.

More channels, more possibilities:

ASP880 is the perfect tool for expanding your existing interface. Add 8 channels of Audient mic pre via ADAT and transform your current setup into the complete recording rig.

The professional sound you deserve:

Tackle any project with the renowned Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, ASP880’s eight Audient Console mic pre’s will give you the professional sound you deserve.

Integrate your outboard:

Easily integrate outboard FX such as EQ and compression before the analogue to digital converter. Letting you record using your favorite outboard gear.

Clarity where you need it:

Confidently capture your microphones and line level instruments with ASP880’s class leading converter technology. By providing the cleanest signal path possible, ASP880 makes sure you capture every nuance, every detail of your audio, letting you focus on getting the most from your session.

Plug and play:

As well as offering you 8 channels of Audient mic pre, ASP880 has two harmonically rich JFET D.I inputs. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard or drum machine straight in and start recording instantly.

Product Specification:

Mic Gain: -10 to +60dB (-10dB Pad)

Line Gain: -16 to +44dB (-10dB Pad)

Phantom Power: 48v +/-4v @ 10mA/Channel

Mic Ein: <-127.5dBu

Cmrr: >80dB @ 100 to 10kHz

Maximum Input Level: +22dBu (+32dBu with Pad)

Frequency Response: +/-0.5dB 10Hz to 100kHz

Crosstalk: <-85dBu @ 1kHz & 10kHz

THD+N @ 0dbu (1khz): 0.003% (-90.5dBu)

Snr: >90dB

Hpf: Sweep able from 25Hz to 250 Hz, 2nd Order (12dB/Octave)

Xlr: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

D.I Gain: -10 to +60 dB (-10dB Pad)

Maximum Input Level: +16dBu (typical), +22dBu

Input Impedance: 1MegΩ Unbalanced

Frequency Response: +/-0.5dB 10Hz to 50kHz

THD+N @ 0dbu (1khz): <0.03% (-70dBu)

1/4” Jack: TIP (Hot) & SLEEVE (Shield)

Maximum Output Level:  +27.5dBu

Output Impedance: <100Ω Balanced

Maximum Input Level: +18dBu

Digital Reference Level: 0dBFS = +18dBu

Dinput Impedance: >10kΩ Balanced

Frequency Response: +/-0.5dB 10Hz to Fs/2

Crosstalk: <-80dBu @ 1kHz & 10kHz

THD+N @ -1dbfs (1khz): <0.002% (-94dB)

THD+N @ -6dbfs (1khz): <0.002% (-94dB)

Dynamic Range: 113dB un-weighted, 115dB A-weighted

Peak Led Lineup: +16dBu (-2dBFS)

Signal Led Lineup: Variable Brightness from -30dBu to -10dBu (-28dBFS)

Adat 8 Channels Smux: 44.1 – 96kHz

Aes | S/Pdif 8 Channels: 44.1 – 96kHz

Clock: Internal or External

World clock Input: 75Ω BNC, Optional 75Ω Termination
