Audio-Technica AT8022 X/Y Stereo Phantom and Battery Powered Field Microphone

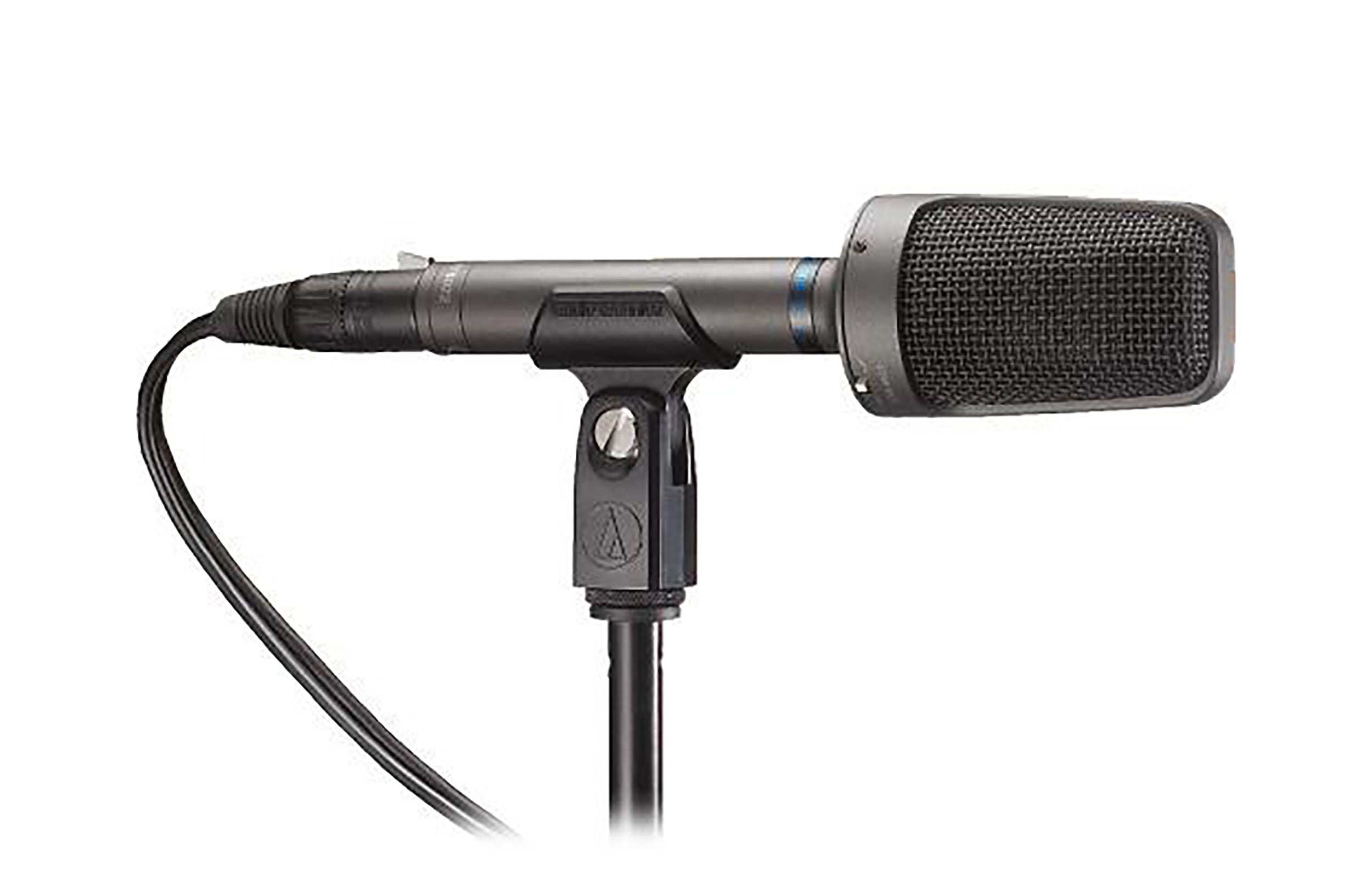

The Audio-Technica AT8022 X/Y Stereo Microphone captures ambiance, live performances and any audio source with accurate stereo imaging and detailed frequency response. The microphone is powered with external phantom power or a 1.5V AA battery making it ideal for use with cameras and portable recording devices.

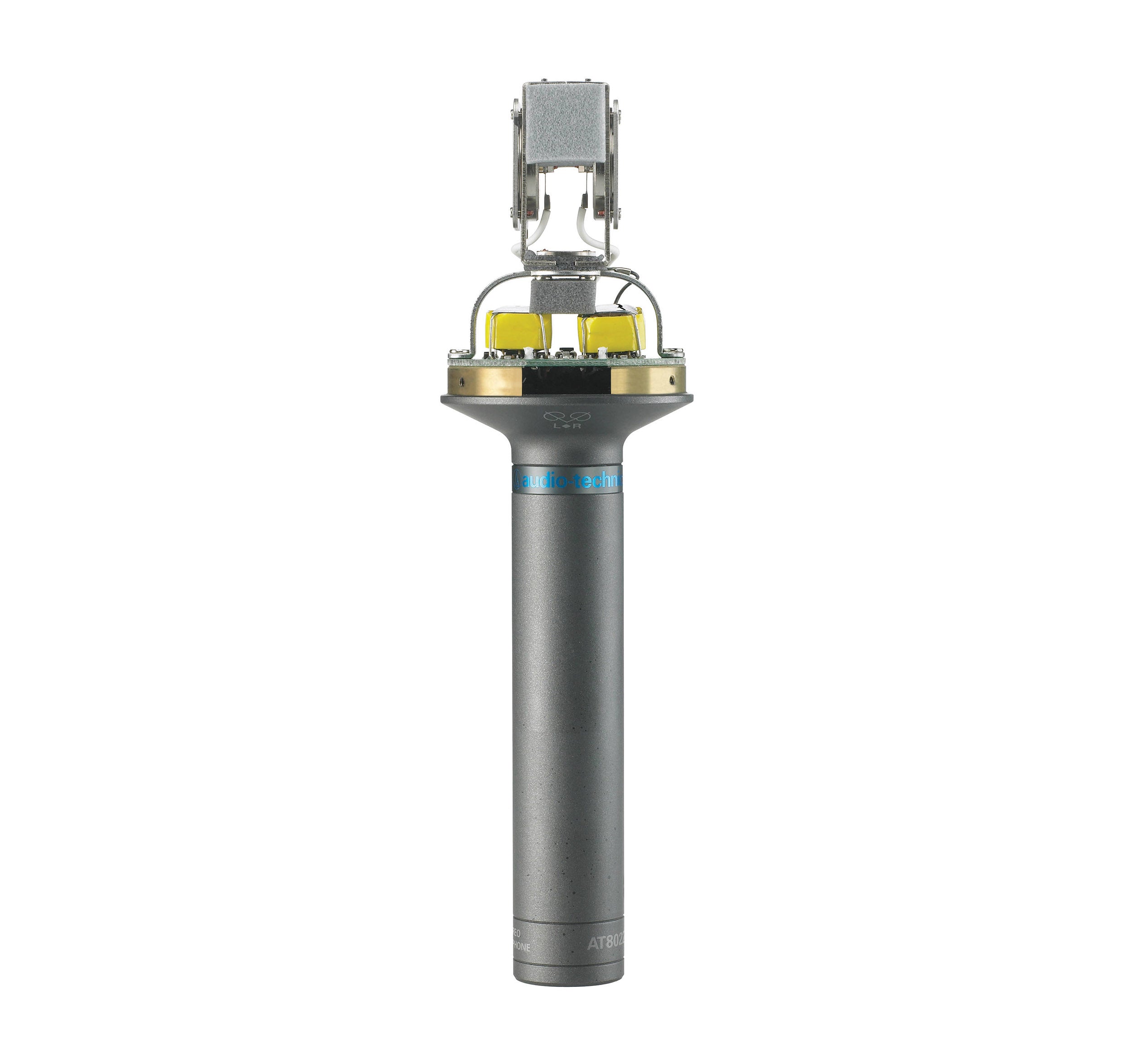

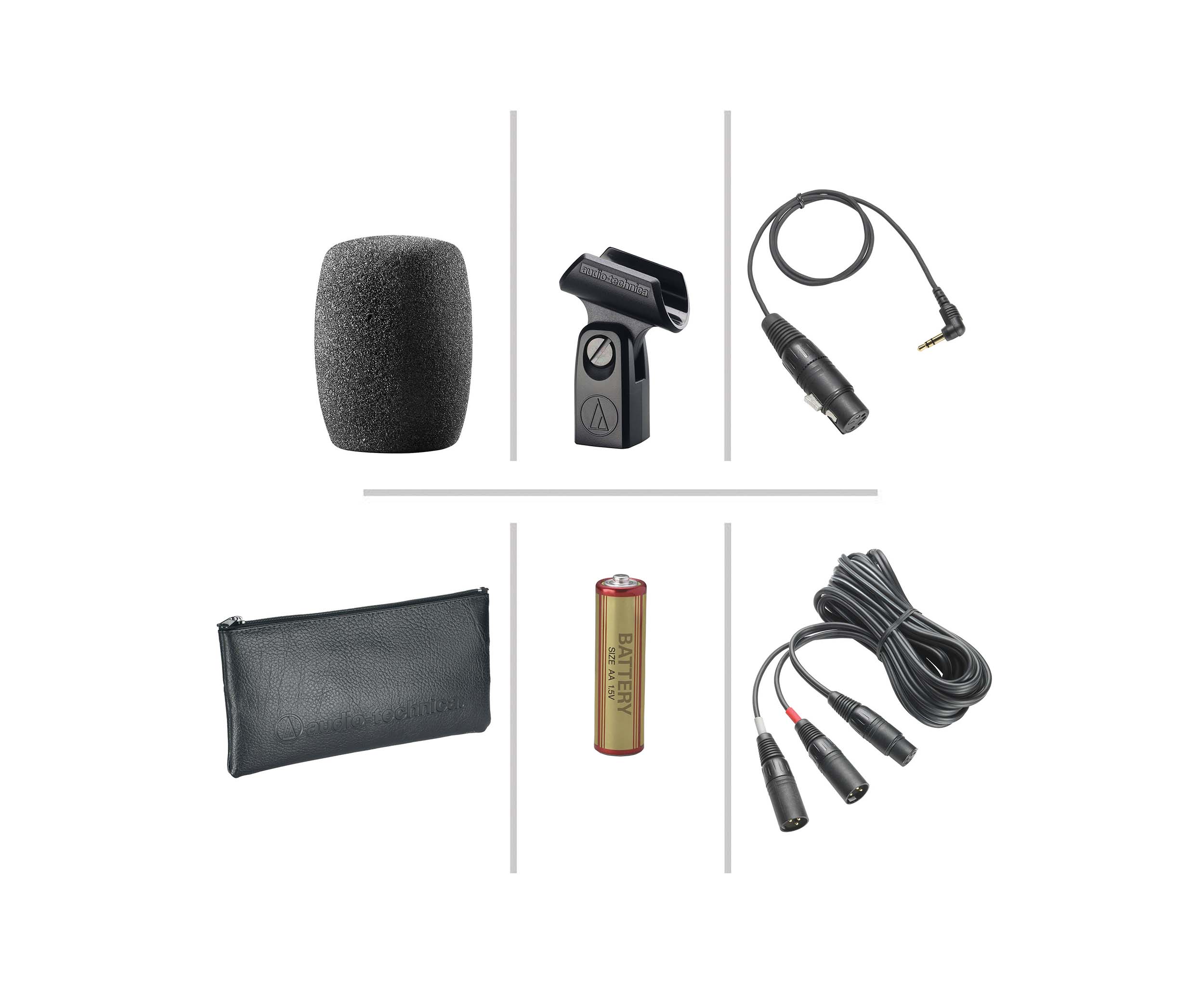

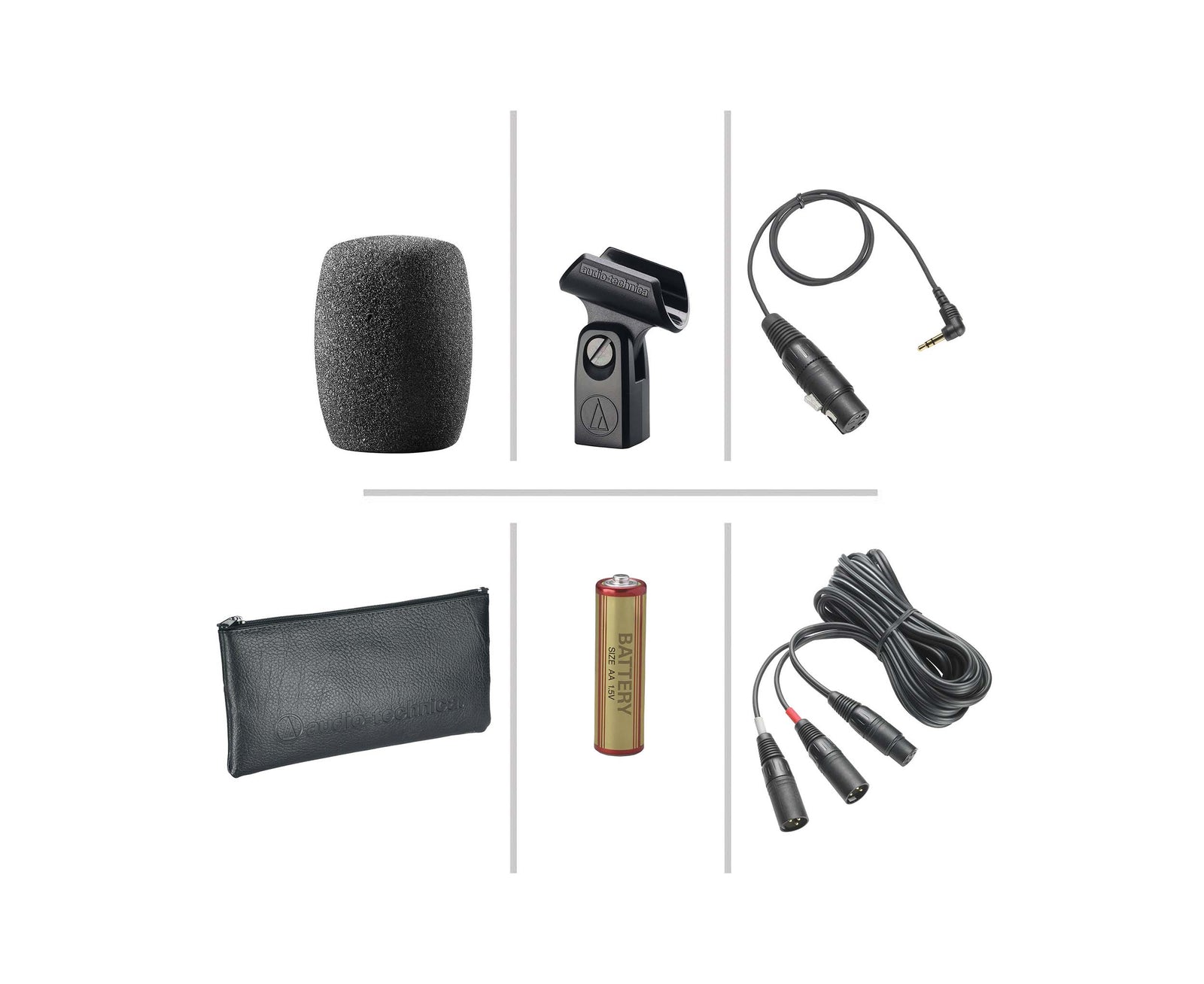

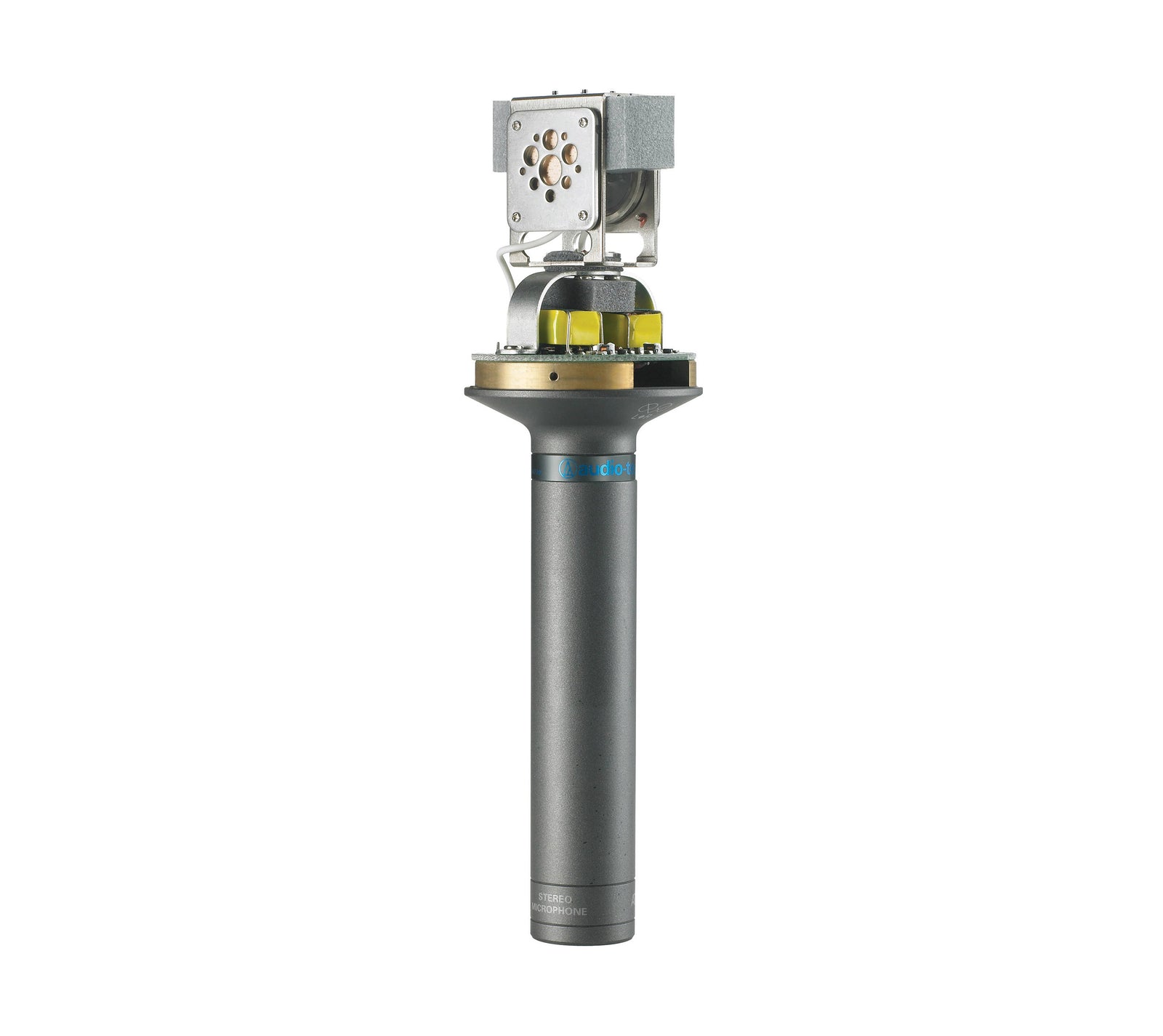

The capsule features two condenser capsules mounted in an X/Y configuration. Its innovative coincident capsule configuration produces accurate stereo image in a smaller housing. The microphone features a 5-pin XLR output connector. Dual 3-pin XLR and single 1/8" (1.5mm) stereo mini cables are supplied. Also included is a stand adapter, windscreen and protective pouch.

Product Specifications:

Microphone:

Sound Field: Stereo

Element Type: 2x Electret Condenser

Polar Pattern: Cardioid

Orientation: End Address

Circuitry: Solid-State

Pad: No

High-Pass Filter: 80 Hz, 18 dB/Octave

Filter & EQ:

Low-Cut Filter: 80 Hz, 18 dB/Octave

Gain Adjustment: No

Controls: On/Off, Low Cut/HPF

Performance:

Frequency Response: 20 Hz to 15 kHz

Maximum SPL:

128 dB (Phantom Power, 1 kHz, 1% THD)

120 dB (Battery Power, 1 kHz, 1% THD)

Sensitivity:

-38 dB (Phantom Power)

-38 dB (Battery Power)

Dynamic Range:

109 dB (Phantom Power, 1 kHz, at Max SPL)

101 dB (Battery Power, 1 kHz, at Max SPL)

Connectivity:

Analog Output: 1x XLR 5-Pin Male

Cable Length: 6.5' / 2 m

Power Sources: Phantom Power

Operating Voltage: 11 to 52 V

Battery Type: 1x AA (Not Included)

Color: Black

Mounting Thread Size: 5/8"-27 Female

Dimensions:

ø: 1.9 x L: 7.3" / ø: 47.6 x L: 186 mm

Product Weight: 0.5 lbs. / 247 g

Shipping Weight: 1.85 lbs.

Shipping Dimensions (LxWxH): 9.55 x 5.05 x 2.95"
