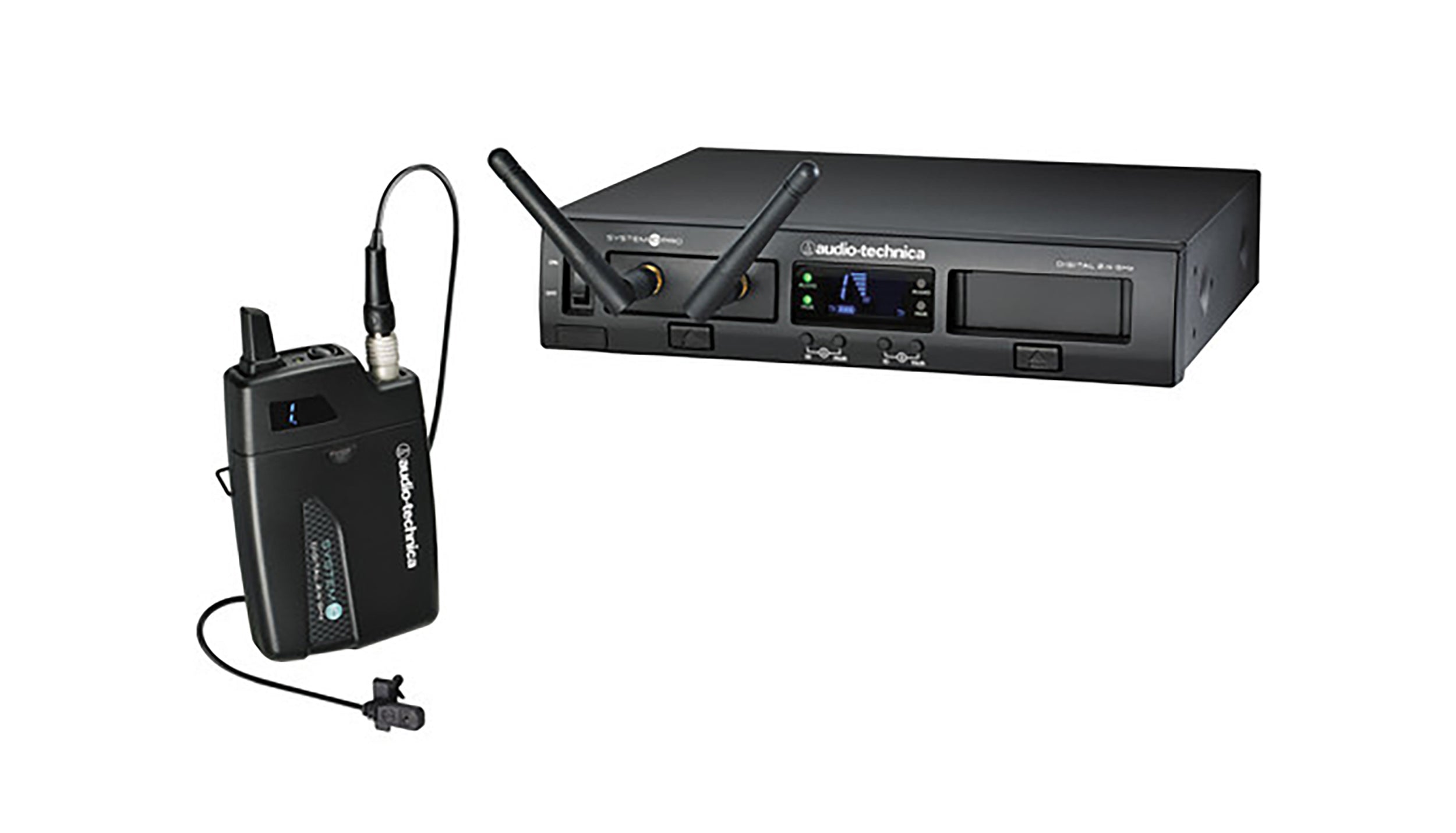

Audio-Technica ATW-1301/L, System 10 PRO Digital Wireless Omni Lavalier Microphone System - 2.4 GHz

The Audio-Technica ATW-1301/L System 10 PRO is a single-channel digital wireless lavalier microphone system featuring a half-rack ATW-RC13 receiver chassis equipped with one ATW-RU13 receiver unit. It is well suited for rack mounting in portable flight cases or for permanent installations in educational facilities, conference rooms, small to mid-sized venues, and houses of worship as well as broadcast studios.

The easy-to-use system comes preconfigured at the factory, ready to operate right out of the box with no setup required. Three levels of diversity reception and automatic frequency selection provide seamless, reliable performance with clear digital audio for presenters, lecturers, clergy, and performers.

The ATW-1301/L includes a bodypack transmitter and a miniature MT830cW omnidirectional lava mic for hands-free speech. The transmitter provides up to 7 hours of continuous use with two AA batteries, at a maximum range of 200'. Up to 10 mic channels can operate simultaneously in the same space.

The receiver unit can be removed from the chassis and mounted remotely (up to 328' away, connected via an Ethernet cable), for more reliable reception. The chassis can accommodate a second receiver unit (available separately), allowing you to set up a dual-channel wireless system—with an additional transmitter.

Up to five chassis can be linked using RJ12 cables, creating a stable environment in which up to 10 receiver units work together, with all receiving, transmitting, and frequency allocation coordinated to prevent audio dropouts.

Product Specifications:

System:

Wireless Technology: Digital 2.4 GHz

Included Transmitters: 1x Bodypack

Diversity: Yes

RF Frequency Band: 2400 to 2483.5 MHz

RF Channel Scanning: Auto-Scan

Max Operating Range: 200' / 61 m (Line of Sight)

Max Transmitters per Band: 10

Built-In Recorder: No

Timecode Support: No

Mobile App Compatible: No

Sample Rate/Resolution: 48 kHz / 24-Bit

Latency: 3.8 ms

Dynamic Range: >109 dB (Typical)

Receiver:

Receiver Type: Tabletop

Mounting Options: Rackmount (with Included Hardware)

Rackmount Size: 1 RU (1/2 Rack)

Antenna: 2x Detachable SMA External (Front-Mount)

Number of Audio Channels: 1

Audio I/O: 1x XLR 3-Pin Male Balanced Output (Locking)

1x 1/4" 3-Pin Female Unbalanced Output"

Audio Output Level:

XLR Output: 0 dBV (Balanced)

1/4" Output: +6 dBV (Unbalanced)"

Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)

Network I/O: 1x RJ12

Network Protocols: Media Control

Word Clock I/O: No

USB/Lightning Connectivity: No

USB Class-Compliant: No USB Connectivity

Power Requirements: AC/DC Power Adapter

AC/DC Power Adapter: 12 VDC at 0.5 A (Included)

Input Power: 100 to 240 VAC, 50 / 60 Hz

DC Input Power: 12 VDC at 0.5A

Display & Indicators: 1x Backlit LCD (RF Level, Sync, Transmitter Battery Status)

Dimensions: 8.3 x 1.7 x 6.7" / 209.8 x 44 x 169.3 mm

Weight: 33.2 oz / 940 g

Transmitter:

Transmitter Type: Bodypack

RF Output Power: 10 mW

Audio I/O: 1x Hirose cW-Style 4-Pin Male Input (Locking)

Muting: Off/On Switch

Auto-Level/Gain: No

Antenna: 1x Fixed External

Power Requirements: Battery

Battery Type: 2x AA (Not Included)

Transmitter Battery Life: 7 Hours (Alkaline)

Display & Indicators: 1x Multi-Segment LED (Channel)

Housing: Plastic

Dimensions: 2.2 x 0.7 x 3.1" / 57 x 19 x 77.6 mm

Weight: 2.3 oz / 64 g

Microphone: TypeLavalier

Color: Black

Sound Field: Mono

Capsule: Condenser

Polar Pattern: Omnidirectional

Frequency Range: 30 Hz to 20 kHz

SNR: 67 dB

Maximum SPL: 135 dB SPL

Sensitivity: -37 dB

Output Connector: 1x Hirose cW-Style 4-Pin Female (Locking)

Cable Length: 4.59' / 1.4 m

Shipping Weight: 5.9 lbs.

Shipping Dimensions (LxWxH): 16.9 x 12.4 x 3.9"
