Description

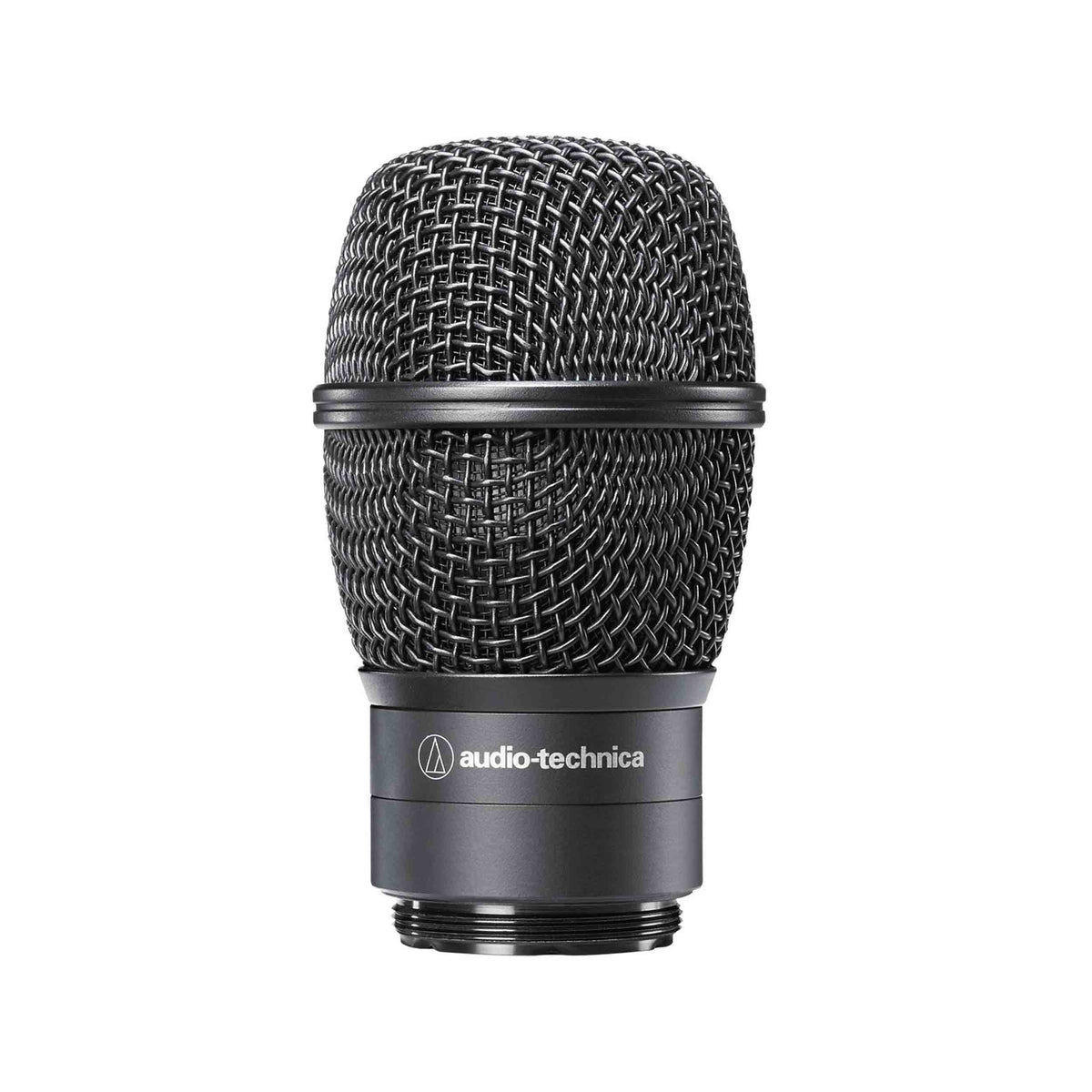

The Audio-Technica ATW-C710 is an interchangeable cardioid condenser microphone capsule designed for the ATW-T3202 3000 Series fourth-generation handheld wireless transmitter. Based on the ATM710 handheld microphone design, it delivers detailed vocal reproduction with a smooth, natural high-frequency response. Its cardioid pickup pattern helps focus on the intended sound source while reducing unwanted sound from the sides and rear, making it suitable for live performances, presentations, and other vocal applications.
Clear Vocal Performance and Feedback Control
Featuring a fixed-charge back plate, permanently polarized condenser element, the ATW-C710 offers a frequency response of 40 Hz to 20 kHz. Its cardioid polar pattern helps improve isolation and manage feedback in controlled-stage-volume environments and in-ear monitoring applications. With a typical dynamic range of 127 dB and a maximum input sound level of 148 dB SPL at 1 kHz with 1% total harmonic distortion, the capsule is designed to handle demanding vocal performance conditions while maintaining clarity and intelligibility.
Durable Grille and Interchangeable Design
The multi-stage grille provides multiple layers of protection against plosives and sibilance without compromising high-frequency clarity. An industry-standard threaded connection allows the capsule to attach to compatible handheld transmitters, including the ATW-T3202. Its interchangeable design offers a practical way to configure a compatible wireless microphone system for vocal applications requiring focused pickup and detailed condenser sound.
Product Specifications:
Product Type: Interchangeable Condenser Microphone Capsule
Compatibility: Audio-Technica ATW-T3202 3000 Series Fourth-Generation Handheld Transmitter
Equivalent Microphone: Audio-Technica ATM710
Transducer Type: Fixed-Charge Back Plate, Permanently Polarized Condenser
Polar Pattern: Cardioid
Frequency Response: 40 Hz–20 kHz
Dynamic Range (Typical): 127 dB, 1 kHz at Maximum SPL
Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.
Mounting Connection: Interchangeable Industry-Standard Thread
Grille Design: Multi-Stage Grille
Intended Applications: Live Vocals, Close-Up Vocal Use, Studio Applications
Power Requirements: Transmitter-Dependent
Capsule Length: 3.32 Inches (84.4 mm)
Maximum Capsule Diameter: 1.97 Inches (50.0 mm)
Product Weight: 0.25 lbs (114 g)
Package Weight: 0.35 lbs
Box Dimensions (L × W × H): 5.45 × 2.6 × 2.5 Inches
