Description

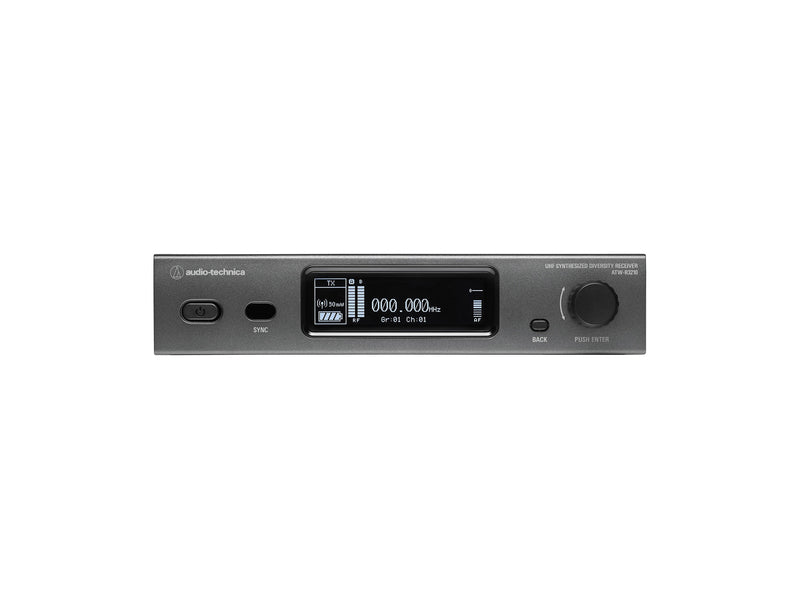

The Audio-Technica ATW-R3210 is a 3000 Series (4th generation) half-rack wireless receiver compatible with the ATW-T3201 bodypack transmitter and the ATW-T3202 handheld transmitter. It offers professional-level features for enhanced reliability and control, including true-diversity reception, a wide 60 MHz tuning range, and an intuitive interface with a dual-mode OLED display for easy operation. The receiver minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages.

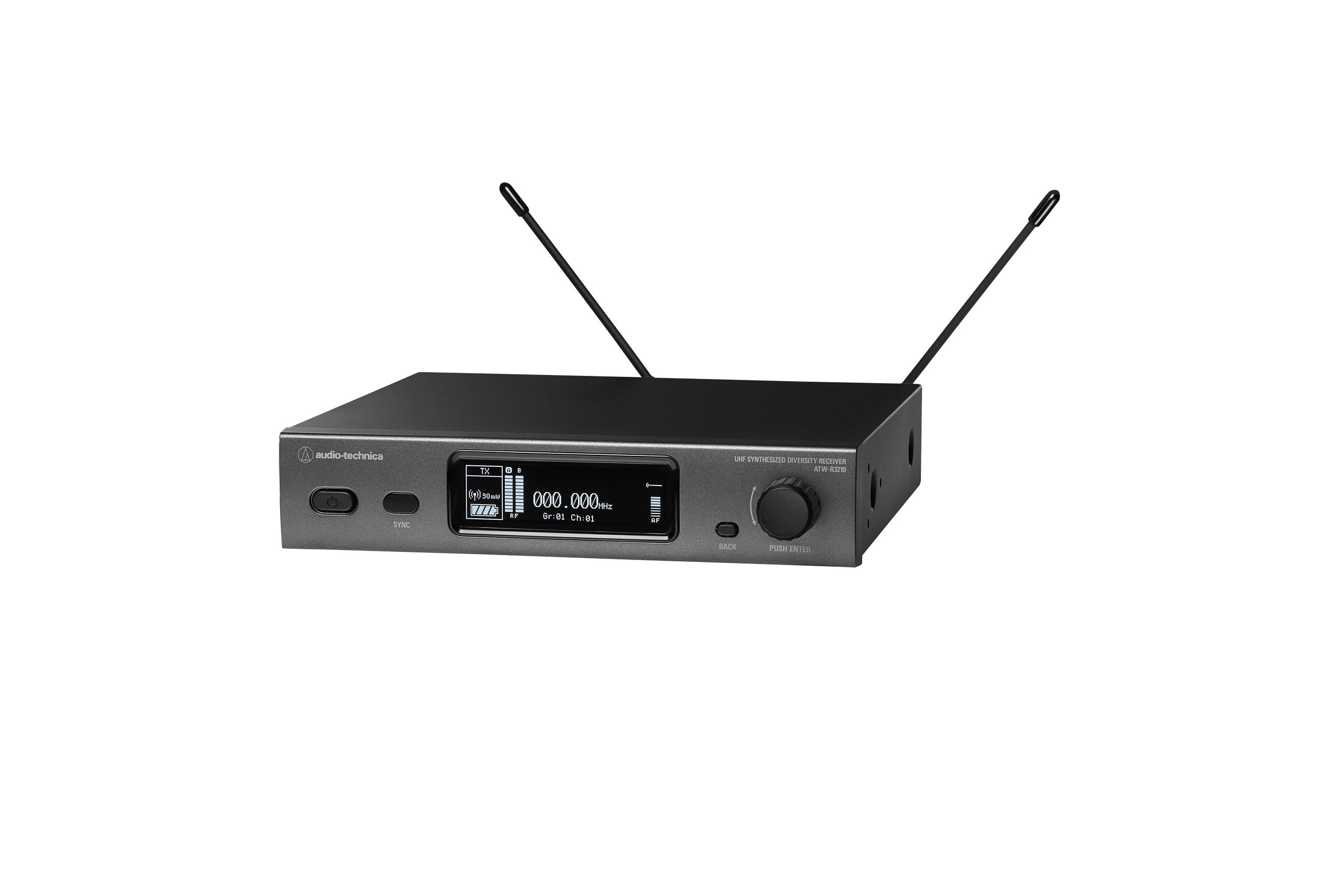

The ATW-R3210 is housed in a rugged, full-metal chassis with removable antennas, well suited for rackmounting in portable flight cases or permanent installations. The receiver's auto-scan function searches 2395 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission. The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter's multifunction button in the event of unexpected interference. The transmission range is up to 330'. Up to 40 mic channels can operate simultaneously in each frequency band.
Product Specifications:
Operating Frequencies:
Band DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Band EF1: 590.000 to 649.975 MHz
Band FG1: 650.000 to 699.875 MHz
Band GH2: 794.100 to 805.900 MHz
Band HH2: 821.100 to 831.900 MHz and 863.100
Minimum Frequency Step: 25 kHz
Modulation Mode:FM
Maximum Deviation:
ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Frequency Response:
ATW-T3201: 31 Hz to 15500 Hz
ATW-T3202: 25 Hz to 16700 Hz
Operating Range: 100 m
Dynamic Range:
ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range: -5 ºC to +45 ºC
Simultaneous Use:
40 Channels per band
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representative.
Receiver:
Receiving System: True Diversity
Sensitivity: 20 dBuV at 60 dBA S/N ratio (50Ω termination)
Maximum Output Level:
XLR / Balanced: +14 dBV
6.3 mm (¼"""") / Unbalanced: +8 dBV

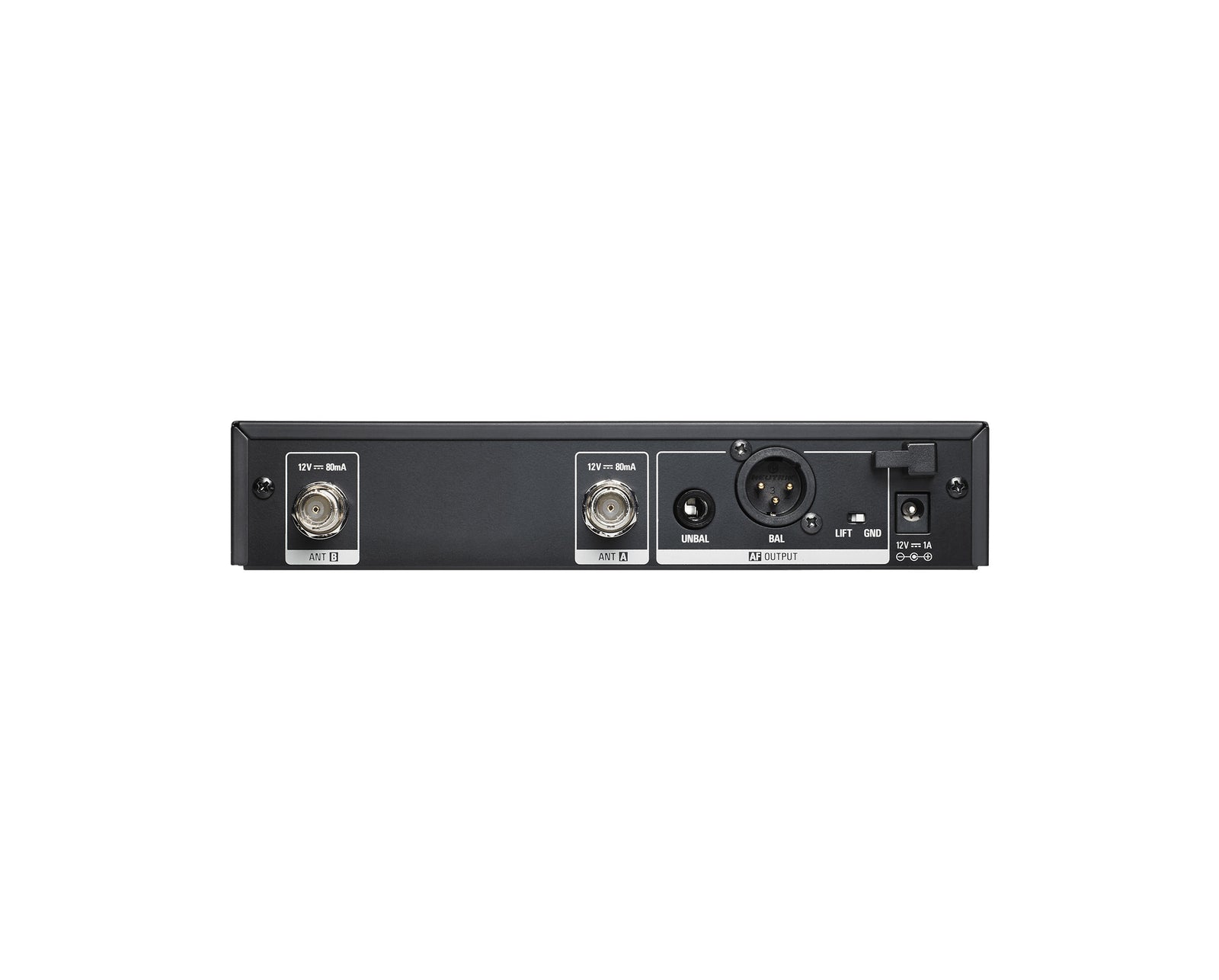

Antenna Input: BNC-type, 50 Ω
Power Output: 12 V DC, 160 mA (combined)
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
Weight: 1100 g, without accessories
Accessories Included:
Two Flexible UHF antennas
AC adapter (country dependent)
Rack Mount Adaptors
Shipping Weight: 4.87 lbs.
Shipping Dimensions (LxWxH): 15.1 x 13.5 x 3.15"
