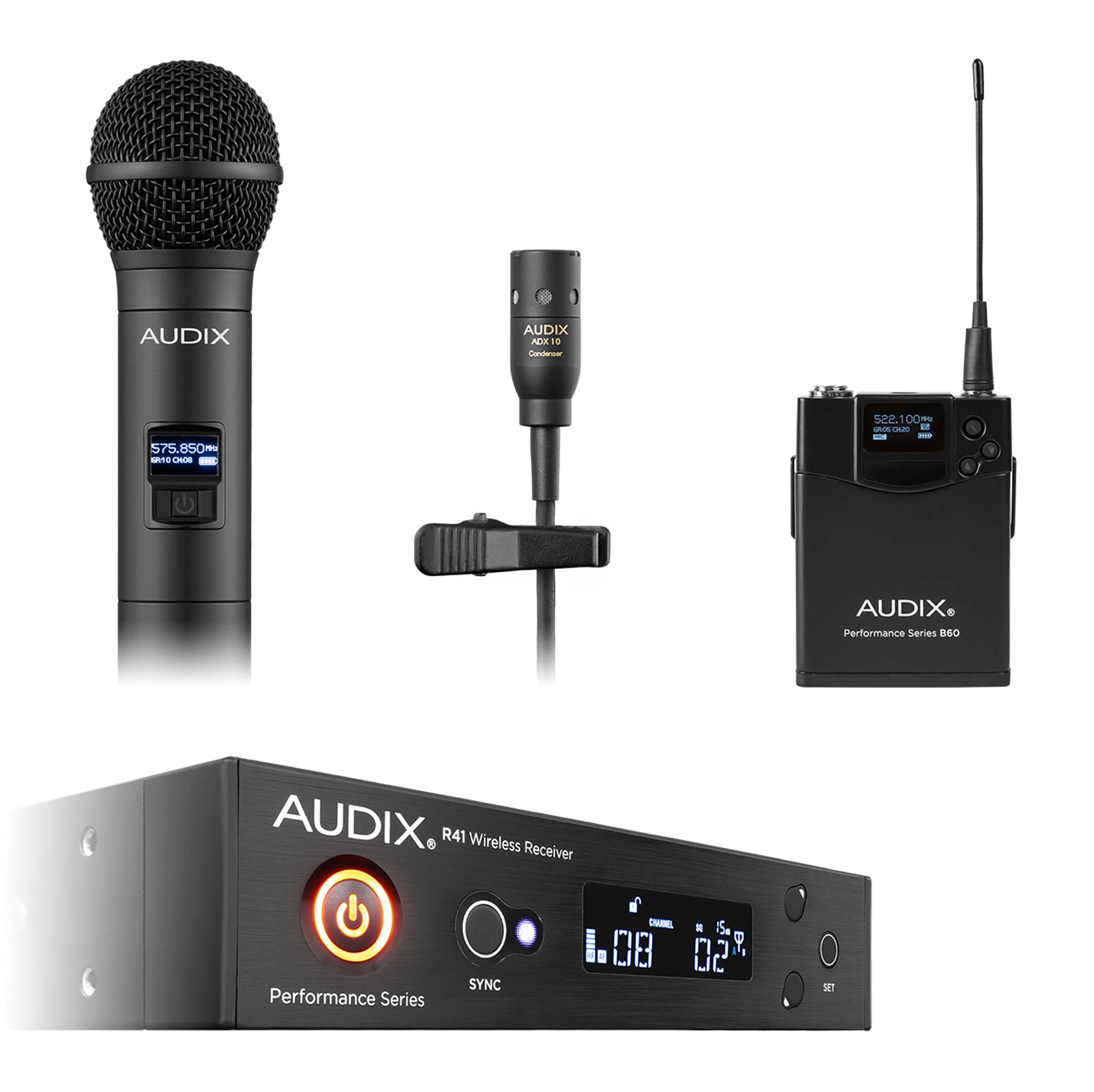

Audix AP41OM2L10B, Handheld and Lavalier Wireless System

The Audix AP41OM2L10B, Handheld and Lavalier Wireless System is a combination system that allows for the flexibility of using either the OM2 handheld transmitter or the bodypack system with the ADX10 cardioid lavalier microphone. This package of Audix AP41OM2L10B is designed and ideal for rental companies, hotels, presentation events, education and applications where only one transmitter would be required at a time. (Note: it is not possible use both transmitters simultaneously-see the AP42 C210, a combo pack where both transmitters can be used at the same time.)

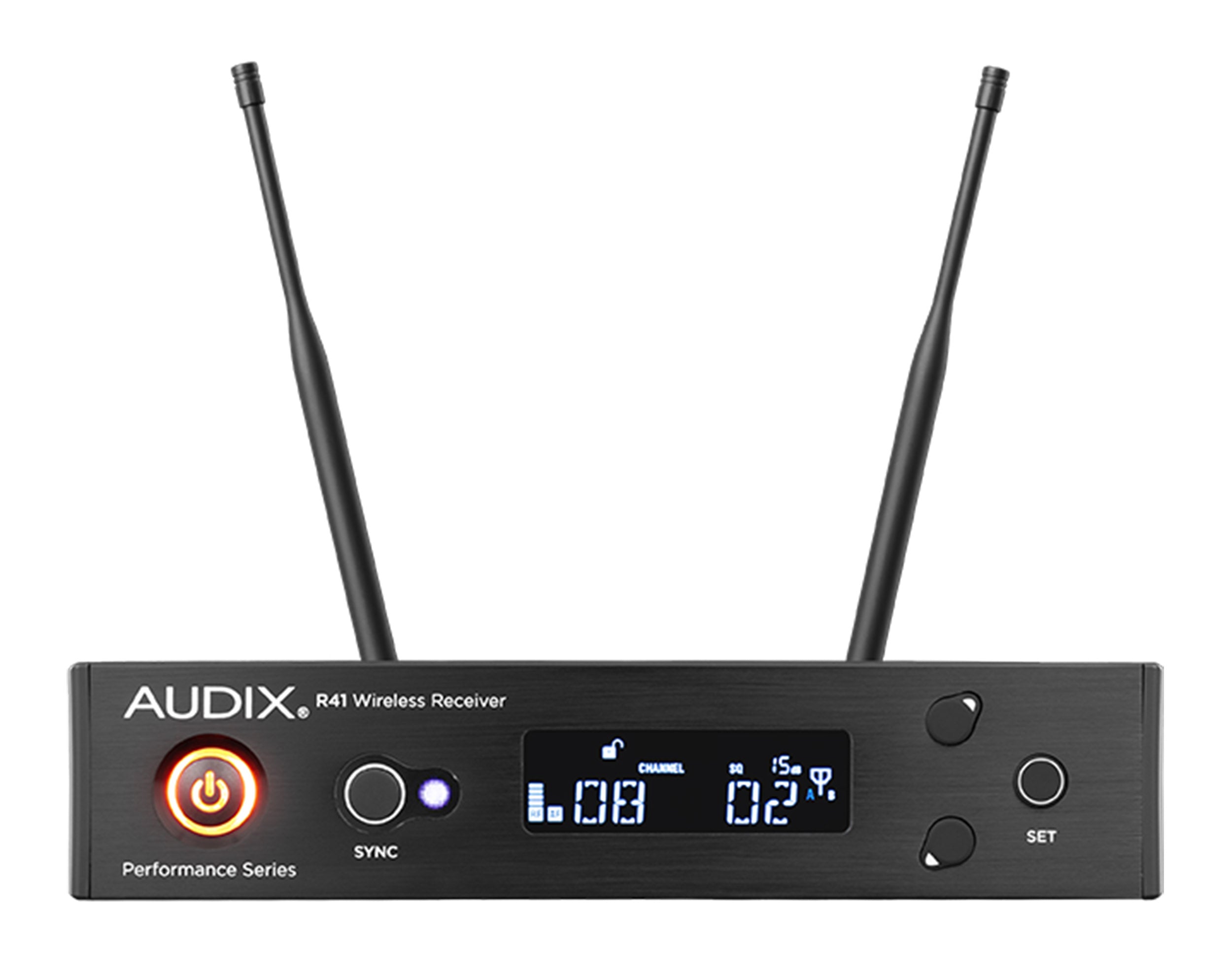

The R41 receiver operates on a frequency range of 554 MHz - 586 MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, the receiver can be easily linked to the B60 bodypack or the H60 handheld transmitter placed within 300'.

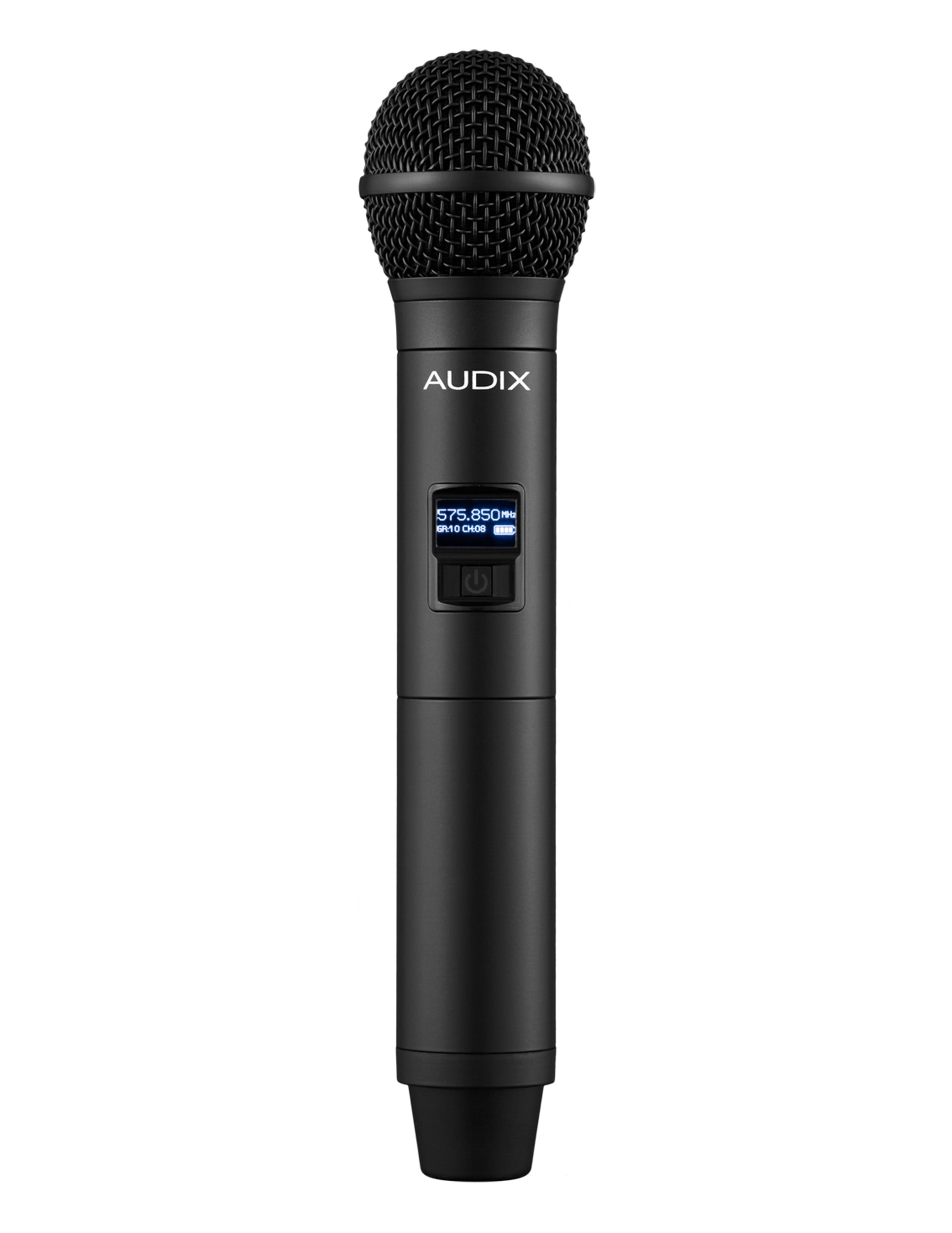

Both the transmitter units of the Audix AP41OM2L10B come with a soft mute switch which also serves as an on/off switch when needed and feature a high-contrast LCD display with group, channel, and battery indicator. The bodypack transmitter unit in the Audix AP41OM2L10B comes enclosed in a metal housing with a modular antenna design, whereas the handheld unit features a slim-line body design and durable metal housing.

Product Specifications:

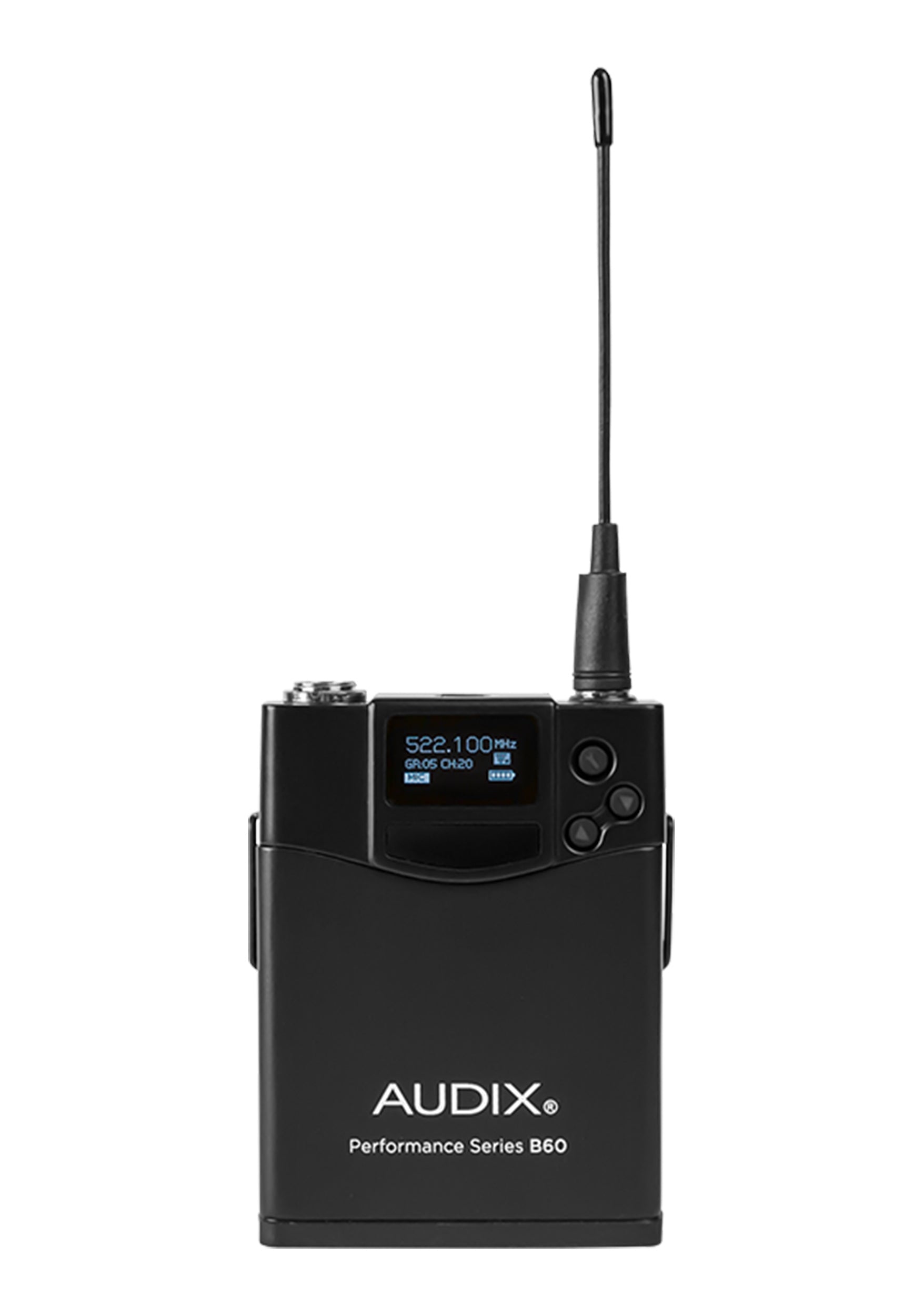

Audix B60 Performance Series Bodypack Transmitter (522 To 586 MHz) Specs:

RF Power Output: 10/30 mW

Bandwidth: 64 MHz

Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB

Inputs: 1 x mini-XLR 3-pin

Input Impedance:

Mic: 10 kOhms

Line: 1 MOhm

Maximum SPL: Approximately 128 to 140 dB (depending on microphone)

Battery Life: Approximately 14 hours

Current Consumption: 110 mA typical

Power Requirement: 2 x AA 1.5 V batteries

Dimensions (W x L x D): 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm

Weight: 3 oz / 85 g without batteries

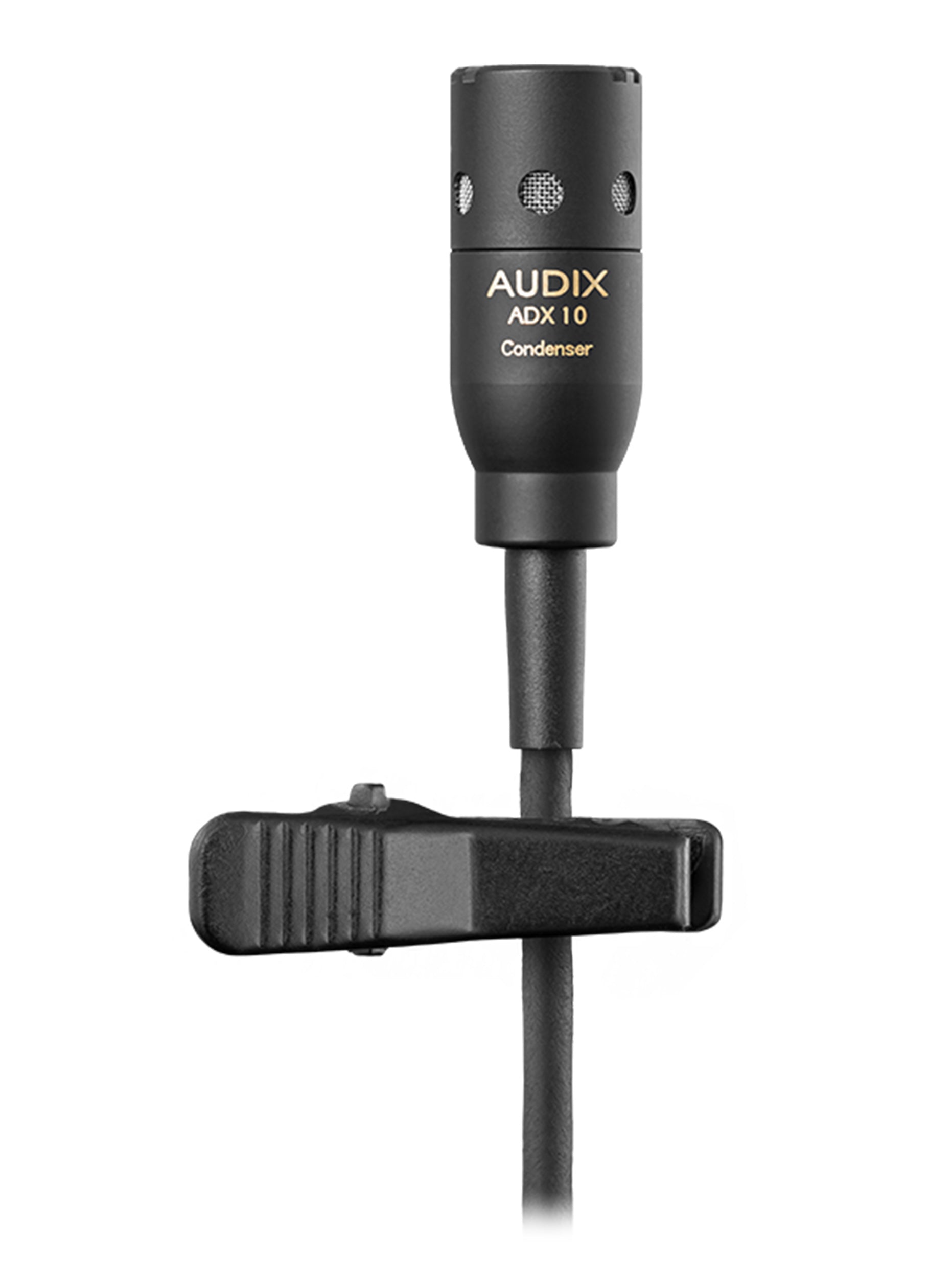

Audix ADX10 Miniature Cardioid Condenser Lavalier Microphone<span> </span>Specs:

Transducer: Condenser

Polar Pattern: Cardioid

Frequency Response: 50Hz to 18KHz

Dynamic Range (Typical): not specified by manufacturer

Signal-to-Noise Ratio: not specified by manufacturer

Maximum Input Sound Level: 130dB

Output Impedance: 1000 ohms

Output Connectors: Mini-XLR

Pad: No

Low Frequency Roll-Off: No

Dimensions: not specified by manufacturer

Weight: not specified by manufacturer

Frequency Band: 554 MHz - 586 MHz

Bandwidth: 32 MHz

Switchable Frequencies: 106 pre-coordinated frequencies

Wireless Range: Up to 300' / 91 m

Antenna Connector: 2 x BNC (8 VDC, 150 mA)

Outputs:

1 x XLR 3-pin balanced

 1 x 1/4"" TS unbalanced

Audio Output Level:

XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain

 1/4"": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain

Audio Level Control: -12 to +9 dB in 3 dB steps

Frequency Response: 45 Hz to 18 kHz

Compander: 2:1

Pilot Tone: 32 kHz

Receiving System: Single tuner, antenna diversity

Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)

Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)

Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A- weighted)

Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A

Dimensions (W x D x H): 8.1 x 8.1 x 1.7" / 205 x 206 x 44 mm

Weight: 1.9 lb / 0.9 kg
