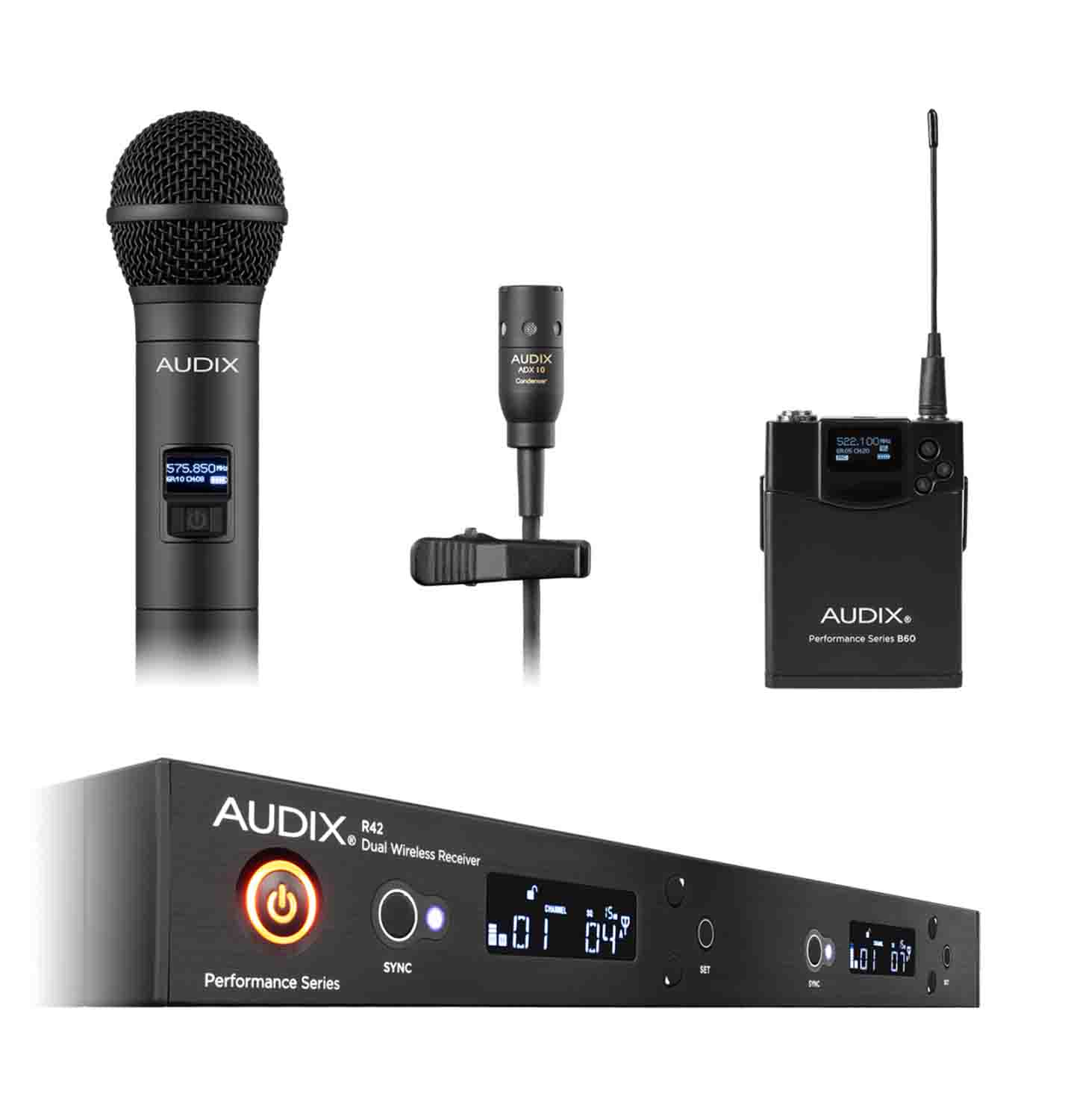

Audix AP42 C210, Dual-Channel Combo OM2 Handheld and ADX10 Lavalier Wireless System

The Audix AP42 C210 is a Dual-Channel Combo OM2 Handheld and ADX10 Lavalier Wireless System. A dual-channel system that combines the OM2 handheld transmitter with the ADX10 cardioid lavalier system. This is a very efficient and cost-effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings, or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

Includes

1x R42 32 MHz Two Channel Diversity Receiver

1x H60 Handheld Transmitter with OM2 Capsule Module

1x B60 Bodypack Transmitter with ADX10 Lavalier Microphone

2x Antennas

1x Audio Cable

1x WS10 Windscreen

1x Clip

1x Pouch

4x AA Batteries

1x Power Supply

1x User Guide

1x Rackmount Hardware

2x BNC Cables

Product Specifications:

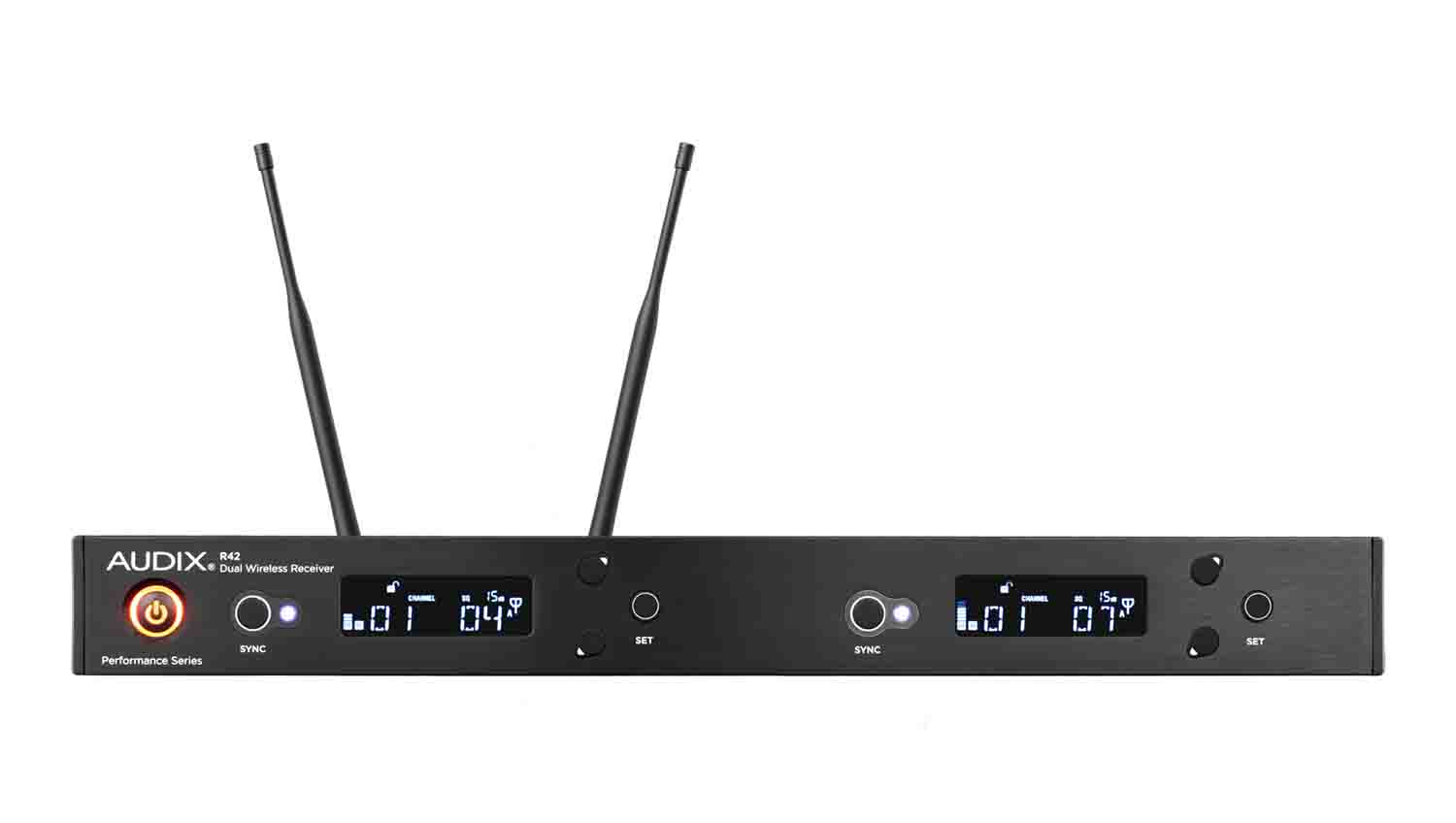

Receiver

Bandwidth: 32 MHz

# Of Simultaneous Systems: Up to 8

Switchable Frequencies: 106 pre-coordinated frequencies

Wireless Range: Up to 300' / 91 m

Antenna Connector: 2 x BNC (8 VDC, 150 mA)

Outputs:

2 x XLR 3-pin balanced

2 x 1/4" TS unbalanced

Audio Output Level:

XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain

1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain

Audio Level Control: -12 to +9 dB in 3 dB steps

Frequency Response: 45 Hz to 18 kHz

Compander: 2:1

Pilot Tone: 32 kHz

Receiving System: Single tuner, antenna diversity

Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)

Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)

Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)

Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A

Dimensions: 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm

Weight: 4.8 lb / 2.2 kg

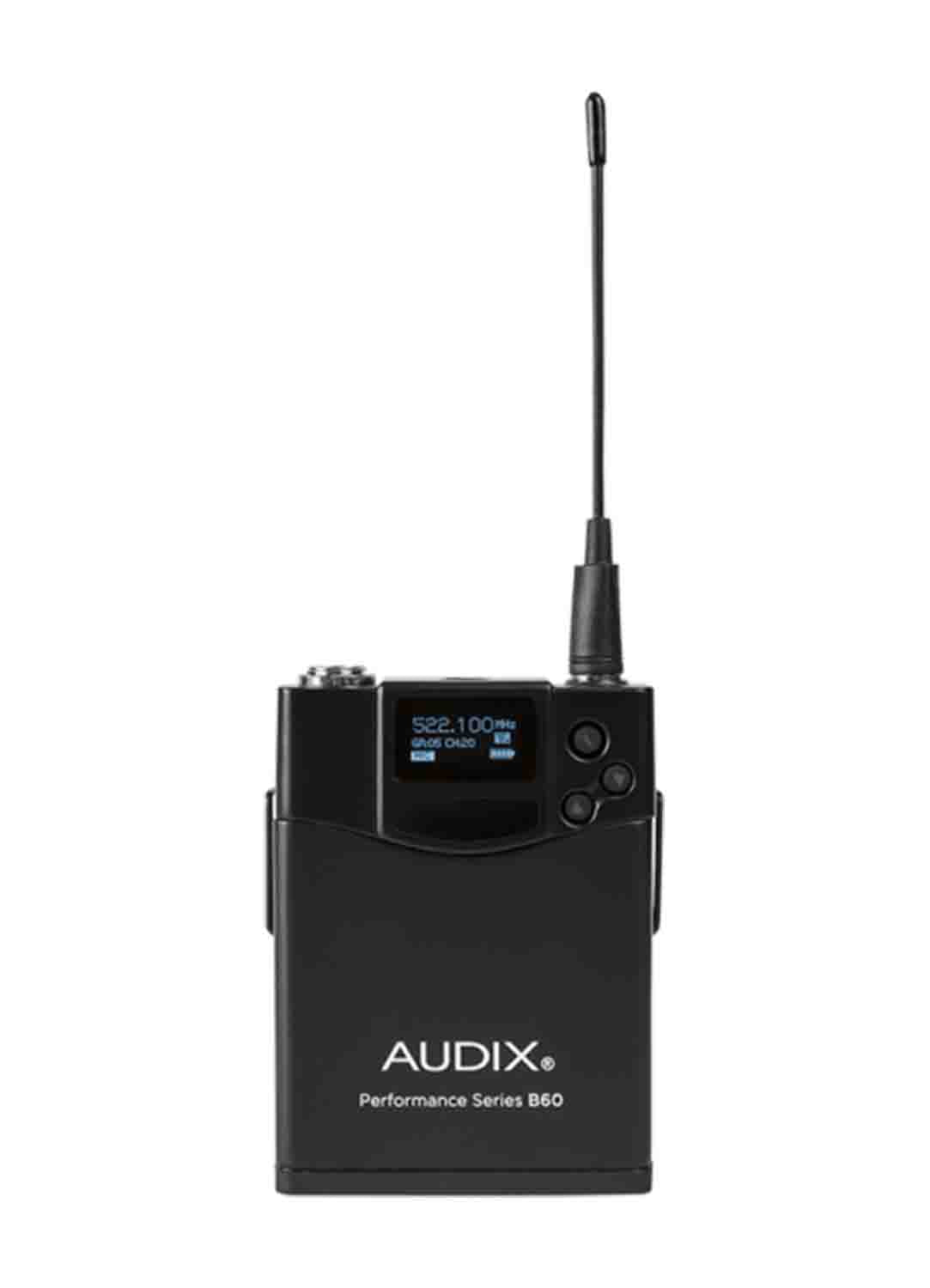

Transmitter

RF Power Output: 10/30 mW

Bandwidth: 64 MHz

Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB

Inputs: 1 x mini-XLR 3-pin

Input Impedance:

Mic: 10 kOhms

Line: 1 MOhm

Maximum SPL: Approximately 128 to 140 dB (depending on microphone)

Battery Life: Approximately 14 hours

Current Consumption: 110 mA typical

Power Requirement: 2 x AA 1.5 V batteries

Dimensions: 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm

Weight: 3 oz / 85 g without batteries

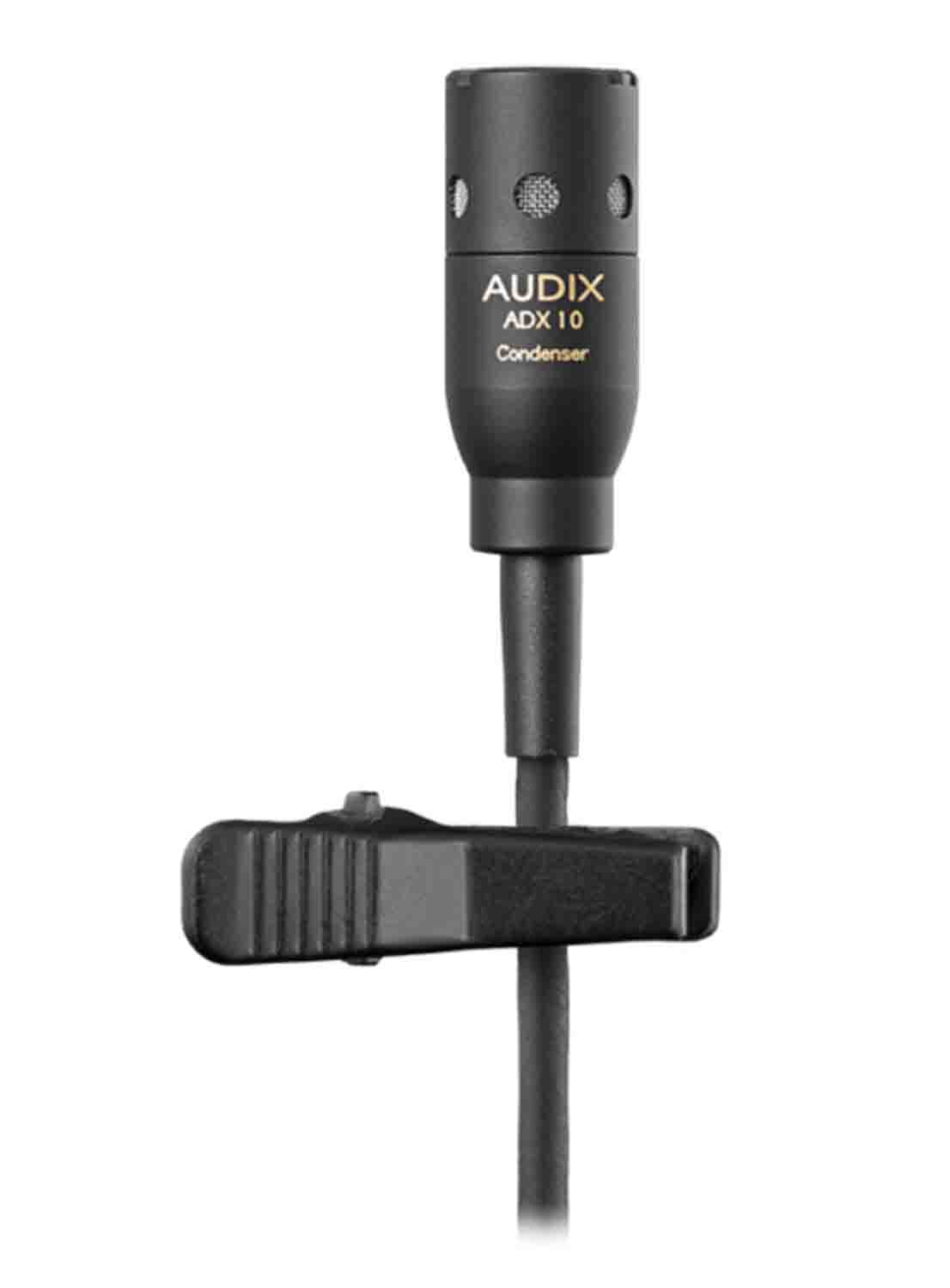

Lavalier Microphone

Transducer: Condenser

Polar Pattern: Cardioid

Frequency Response: 50Hz to 18KHz

Output Impedance: 1000 ohms

Output Connectors: Mini-XLR

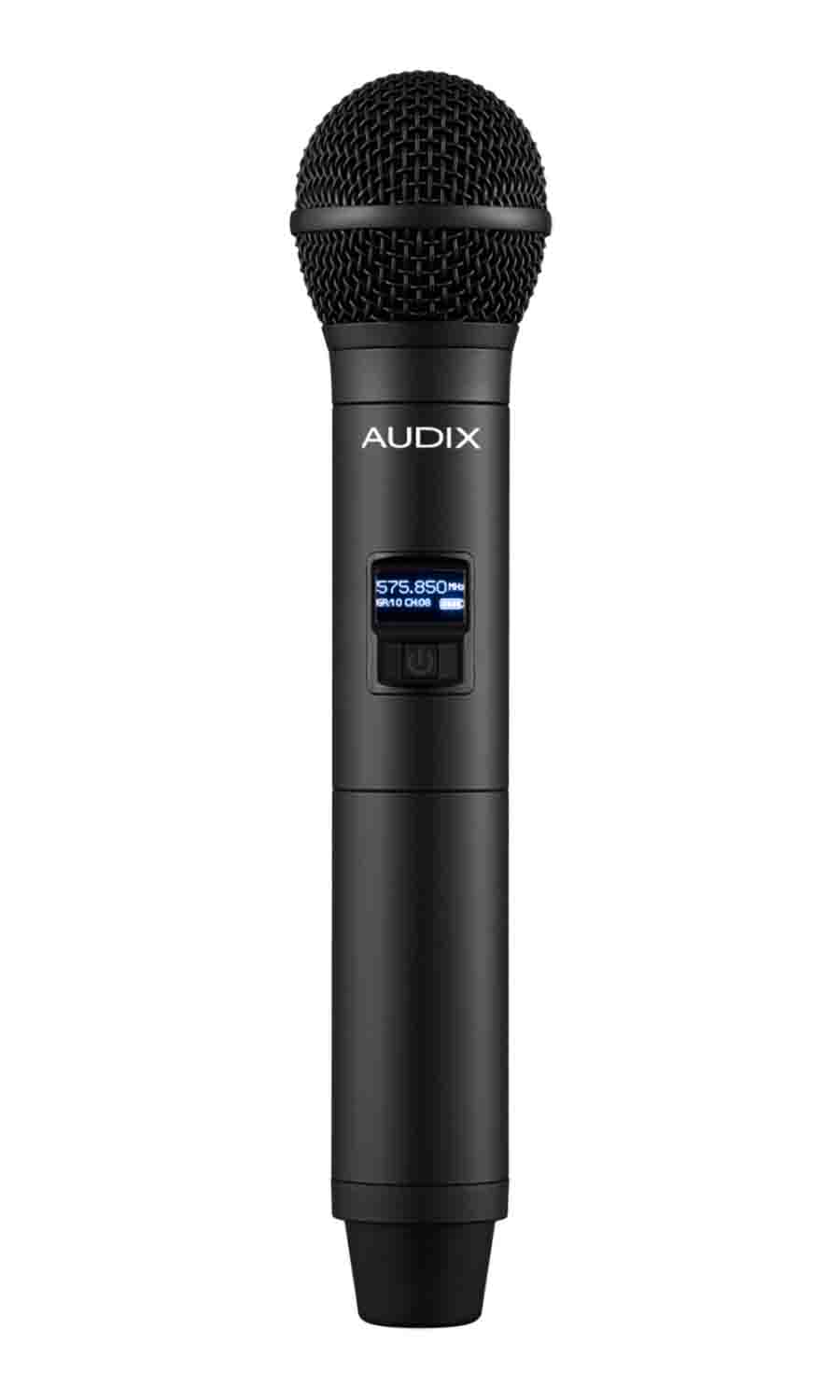

Transmitter with OM2 Capsule

Type: Dynamic

Polar Pattern: Hypercardioid

Capsule : VLM Type B

Frequency Response: 50 Hz to 16 kHz

Maximum SPL: ≥140 dB

Impedance: 290 Ohms

Sensitivity: 1.6 mV/Pa at 1 kHz
