Description

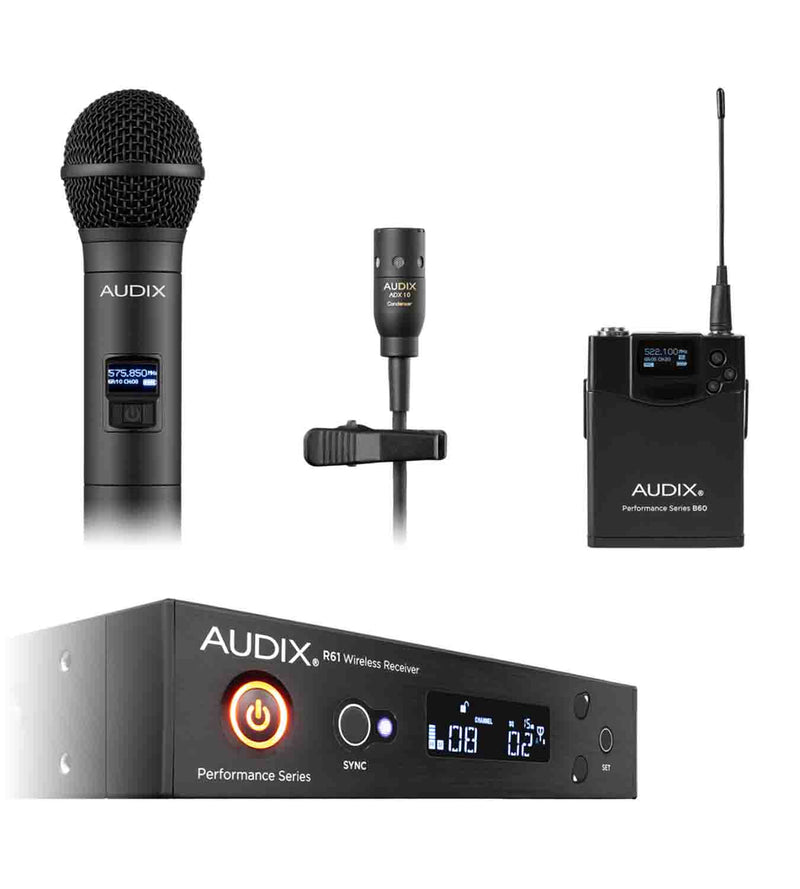

The Audix AP61 OM2 L10 is an R61 Diversity Receiver, H60/OM2 Handheld Transmitter, And B60 Bodypack Transmitter with ADX10 Microphone. The Audix AP61 OM2 L10 is a Performance Series single-channel true diversity receiver and dual-transmitter bundle designed to deliver reliable long-range wireless audio for preachers, guest speakers, and announcers in houses of worship and live stage applications. It includes an R61 single-channel true diversity receiver, a B60 bodypack transmitter, an ADX10 cardioid condenser lavalier mic, and one H60 transmitter with an OM2 hypercardioid dynamic microphone capsule. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, four AA batteries, a power supply, and a rackmount kit.
Includes
1x R61 64 MHz Diversity Receiver
1x H60 Handheld Transmitter with OM2 Capsule Module
1x B60 Bodypack Transmitter with ADX10 Lavalier Mic
2x Antennas
1x Audio Cable
1x WS10 Windscreen
1x Clip
1x Pouch
2x AA Batteries
1x Carrying Case
1x Power Supply
1x User Guide
1x Rackmount Hardware
Product Specifications:
Receiver
Frequency Band: 522 to 586 MHz
Bandwidth: 64 MHz
Wireless Range: Up to 450' / 137 m
Antenna Connector: 2 x BNC (8 VDC, 150 mA)
Outputs:
1 x XLR 3-pin balanced
1 x 1/4" TS unbalanced
Transmitter
RF Power Output: 10/30 mW
Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
Inputs: 1 x mini-XLR 3-pin
Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
Battery Life: Approximately 14 hours
Current Consumption: 110 mA typical
Power Requirement: 2 x AA 1.5 V batteries
Lavalier Microphone
Transducer: Condenser
Polar Pattern: Cardioid
Frequency Response: 50Hz to 18KHz
Microphone Transmitter
Type: Dynamic
Polar Pattern: Hypercardioid
Capsule: VLM Type B
Frequency Response: 50 Hz to 16 kHz
