Avante AS8, Achromic Lightweight Column PA System - Black

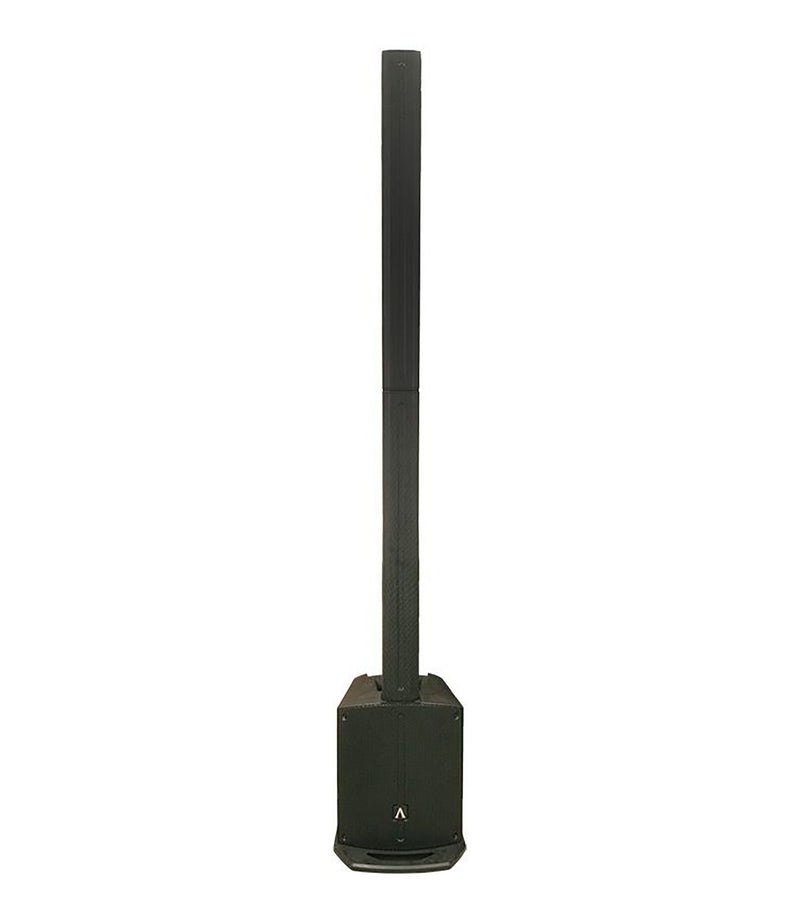

The Avante AS8, Achromic Lightweight Column PA System is portable and feature packed. Offering an impressive output from a very compact column system, it is the ideal choice for live PA, musicians, and mobile entertainers looking for an extremely portable PA setup. The System includes: (1) 8-inch active subwoofer, (1) column speaker with six 2-75-inch speakers, (1) spacer, (1) carry bag for column speakers.

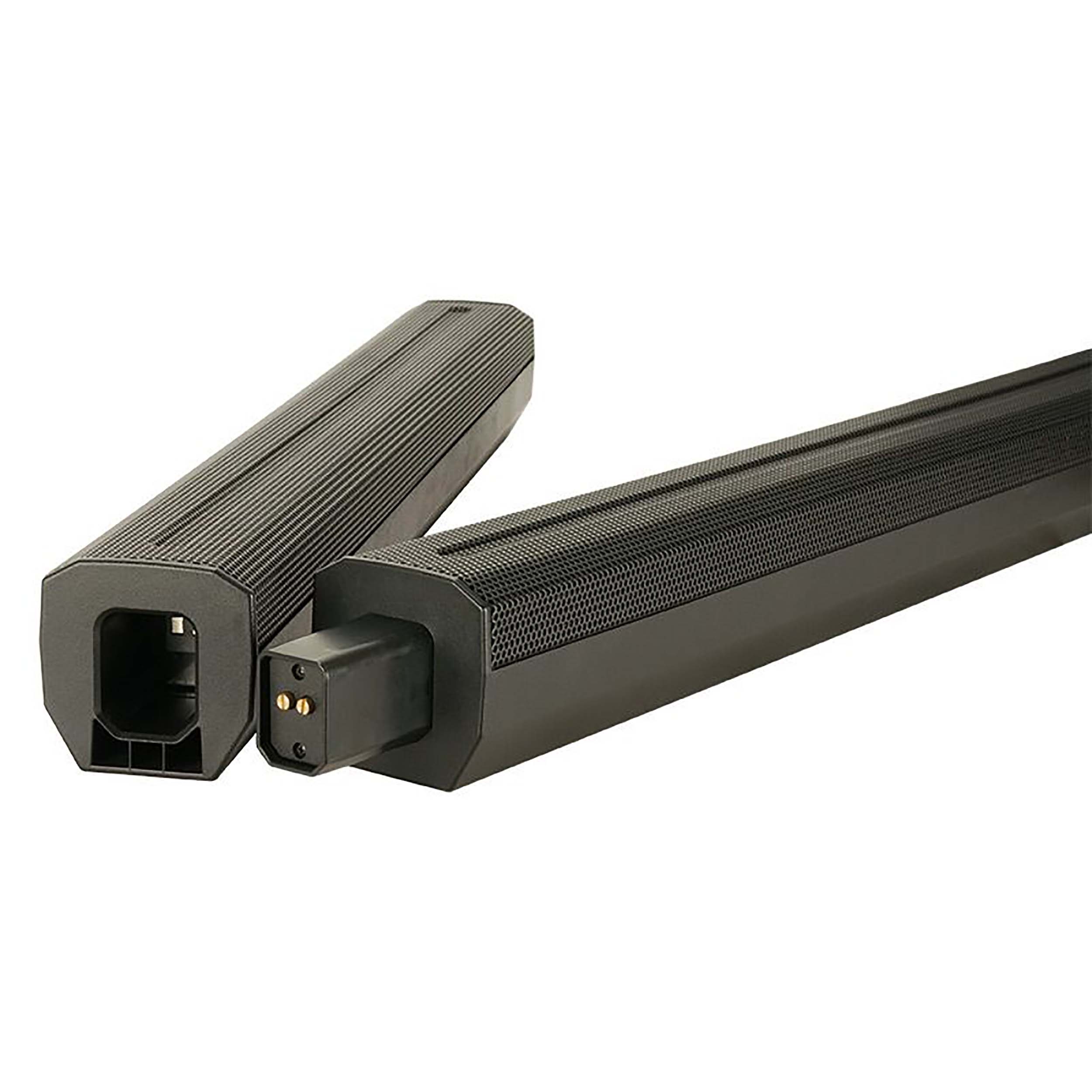

The fully-featured and easy to setup AS8 active column system comprises an active 8-inch neodymium subwoofer enclosure alongside two column units. One is loaded with six precision-aligned 2.75” neodymium drivers while the other serves as a spacer to lift the speaker column up to optimal height. Both feature Avante’s new SAM (Secure Array Mount) system which allows the columns to lock securely to the sub and to one another without risk of being toppled over. The SAM connection also passes the audio signal from the sub up to the columns, removing the need for speaker cables.

Featuring a Class D power amplifier with built-in limiter that delivers 1000W of power, the sub unit also integrates a flexible 4-input mixer with 2-band EQ. This allows direct connection of line-level audio sources as well as microphones and even a guitar, making the system ideal for acoustic solo performers, duos and even small bands. The unit is also equipped with a BLUETOOTH audio connection that allows wireless streaming of music from a smartphone, tablet or laptop.

The lightweight system can be easily transported in a small car and is supplied with a padded bag for carrying and protecting the column units. This makes it the perfect system for DJs as well as live musicians playing in small venues such as coffee houses and lounges.

System Includes:

(1) 8-inch neodymium Subwoofer

Column with six 2-75-inch neodymium Speakers

Spacer

Carry bag for columns

Product Specifications:

Amplifier:

Inputs: Two XLR/TRS combo jacks, Stereo 1/4” inputs, Stereo 1/8” input, Bluetooth

Outputs: XLR balanced line output

Power output: RMS 250W (SUB) RMS, 1000W peak

Volume: Input Gain control per channel

EQ: Main out 2 band EQ

LEDs: Power/Clip indicator

Power Input: 100-240V~50/60Hz switchable 250W

Amplifier: Class D amplifier with switching power design

Active Vented Subwoofer:

Frequency Response: 55-200Hz

Max Output SPL: 116dB (at max. amp output)

Impedance: 4 Ohm

Driver: 8-inch neodymium subwoofer, 1.5” voice coil, 28 oz. magnet

Cabinet: PP plastic

Grill: 1.0mm steel

Dimensions: 13.8”x16.9”x79.1” / 350x430x2010mm

Weight: 35 lbs. / 15.8 kg.

Passive Full-Range Speaker Column:

Frequency Response: 180-20kHz

Max. output SPL: 110dB

Impedance: 4 Ohm

Driver: 6x 2.75-inch neodymium drivers

Cabinet: PP plastic

Grill: 1.0mm steel

Dimensions: 3.8”x3.8”x34.3” / 96x96x870mm (each column)

Weight: 11 lbs. / 5 kg. (Each column)

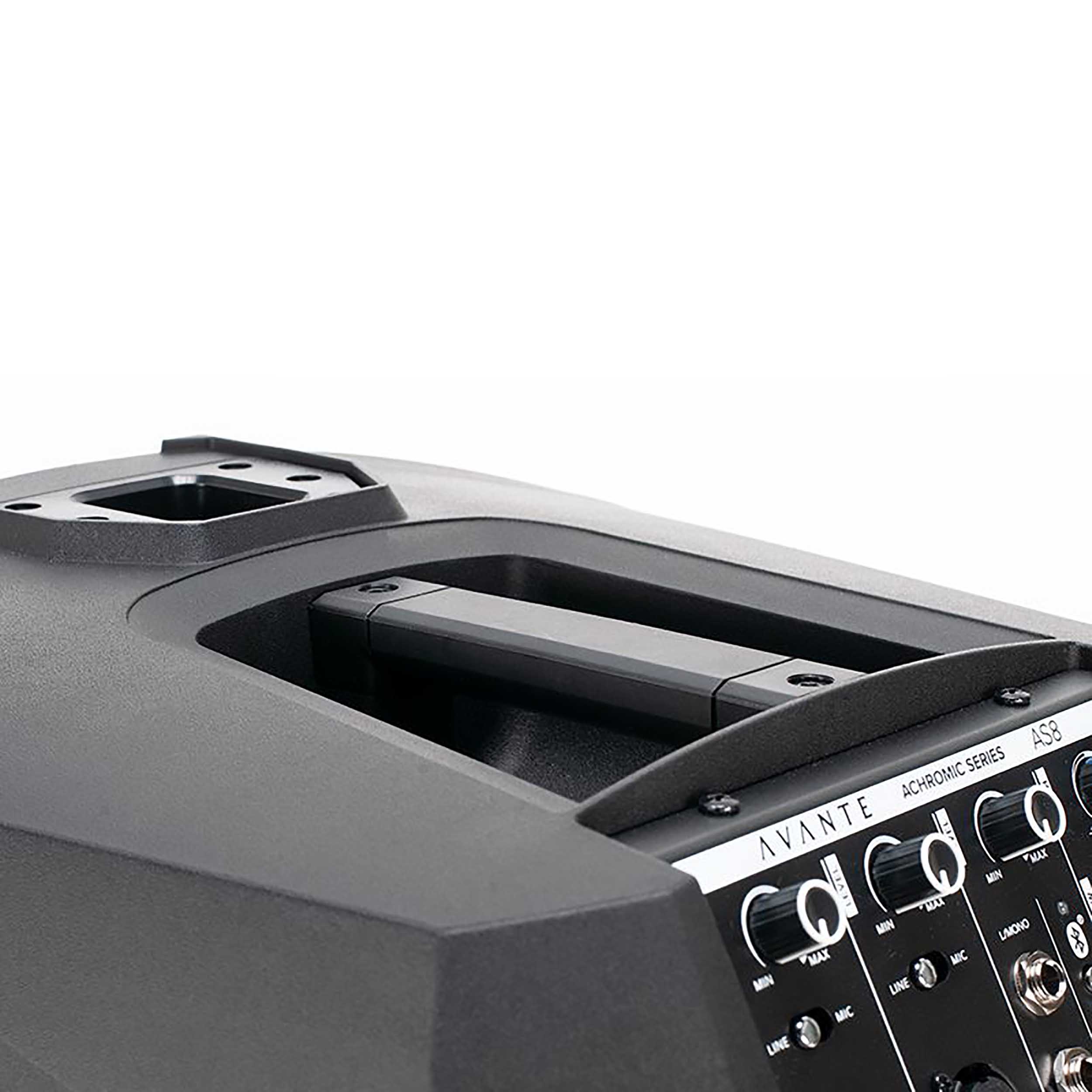

Rear Panel:

4 input mixers with line out

Two (2) Mic/Line Input (XLR/TRS Combo)

Two (2) Guitar/Line Input (1/4" Stereo)

1/8” stereo Aux Input

Line Output (XLR)

Dual Band EQ

BLUETOOTH Connection

Extended Position:

Dimensions: 13.8”x16.9”x79.1” / 350x430x2010mm

Weight: 35 lbs. / 15.8 kg.

Compact Position:

Weight: 30 lbs. / 13.6 kg.

Dimensions: 13.8”x16.9”x47.6” / 350x430x1210mm
