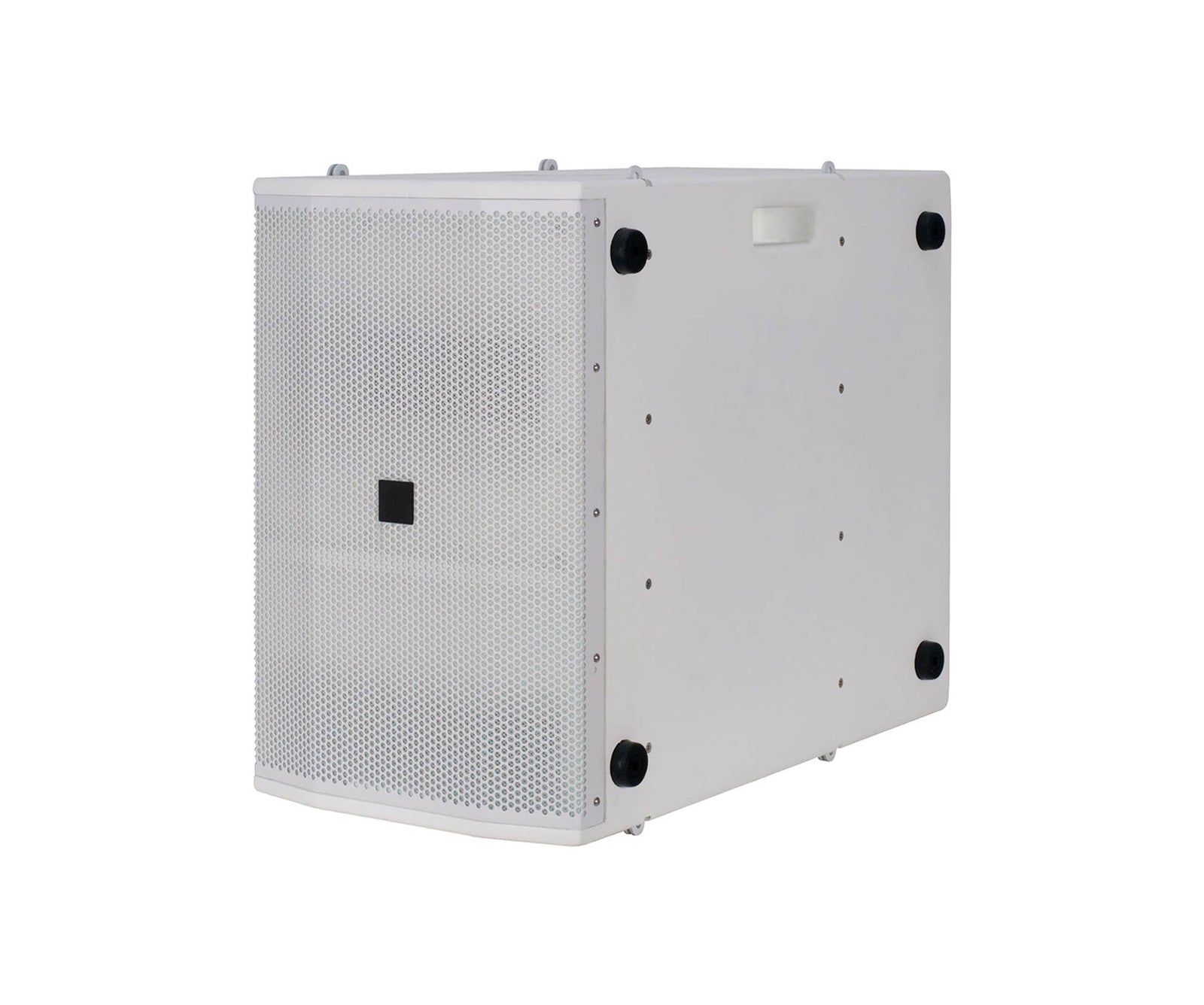

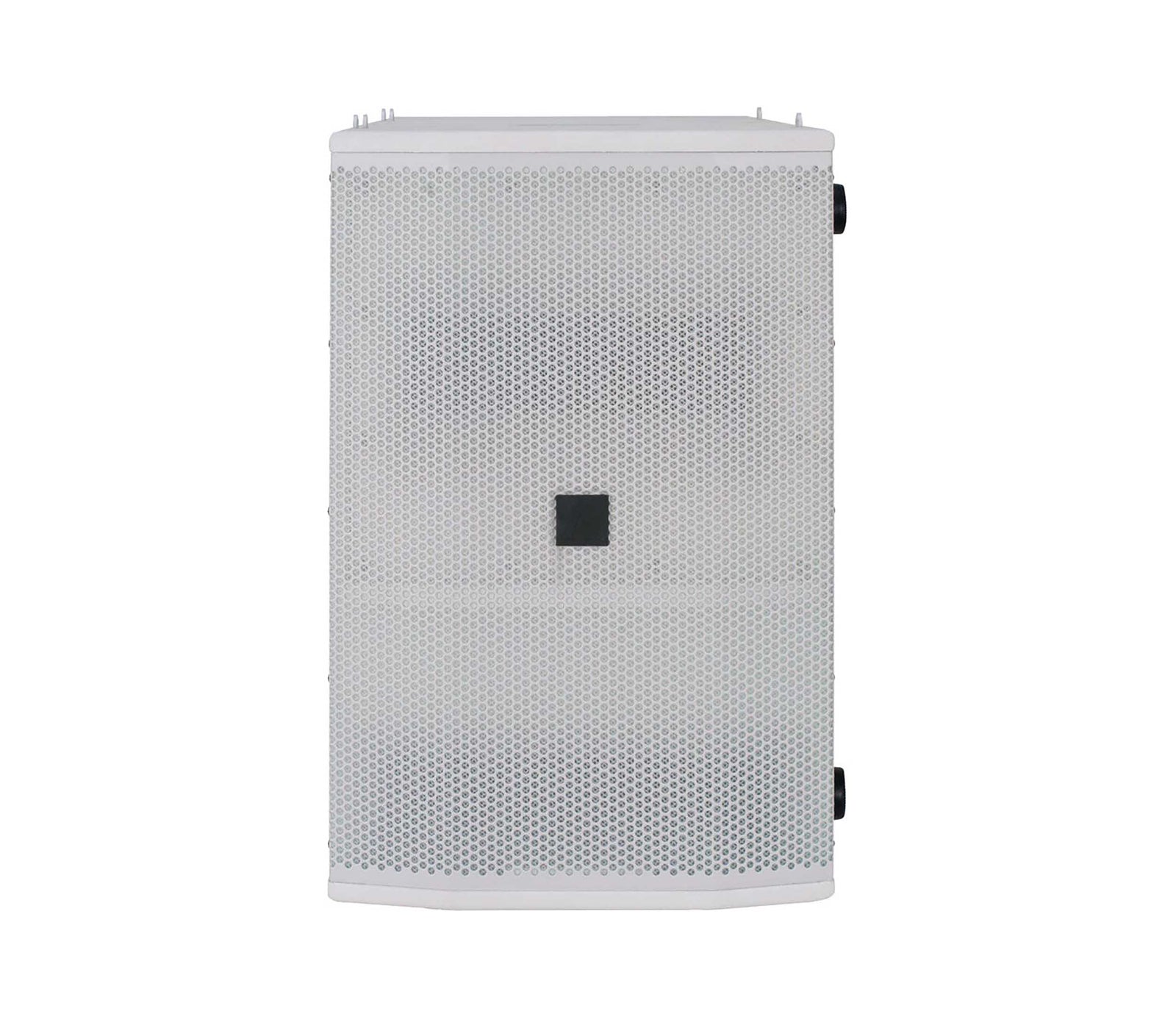

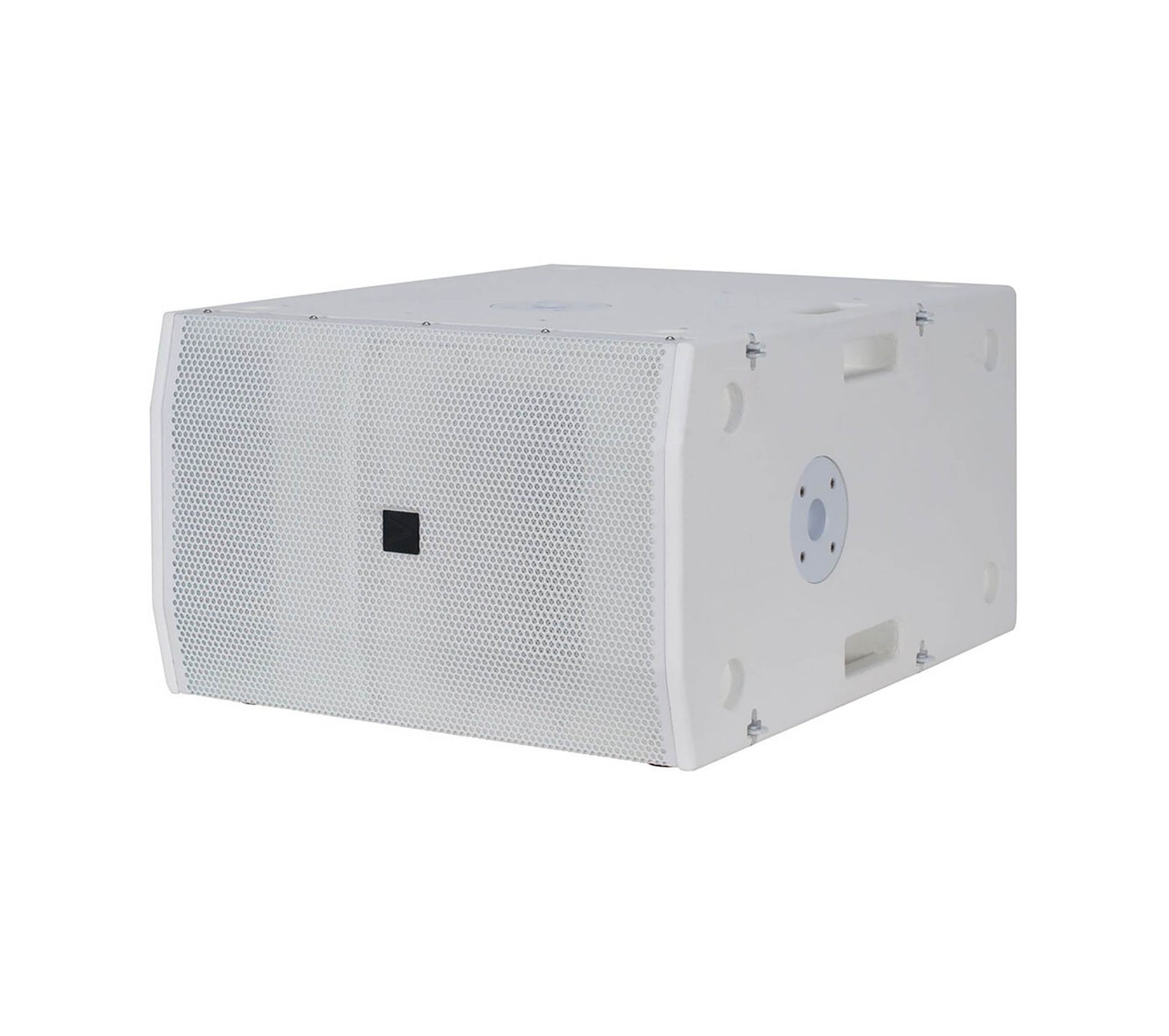

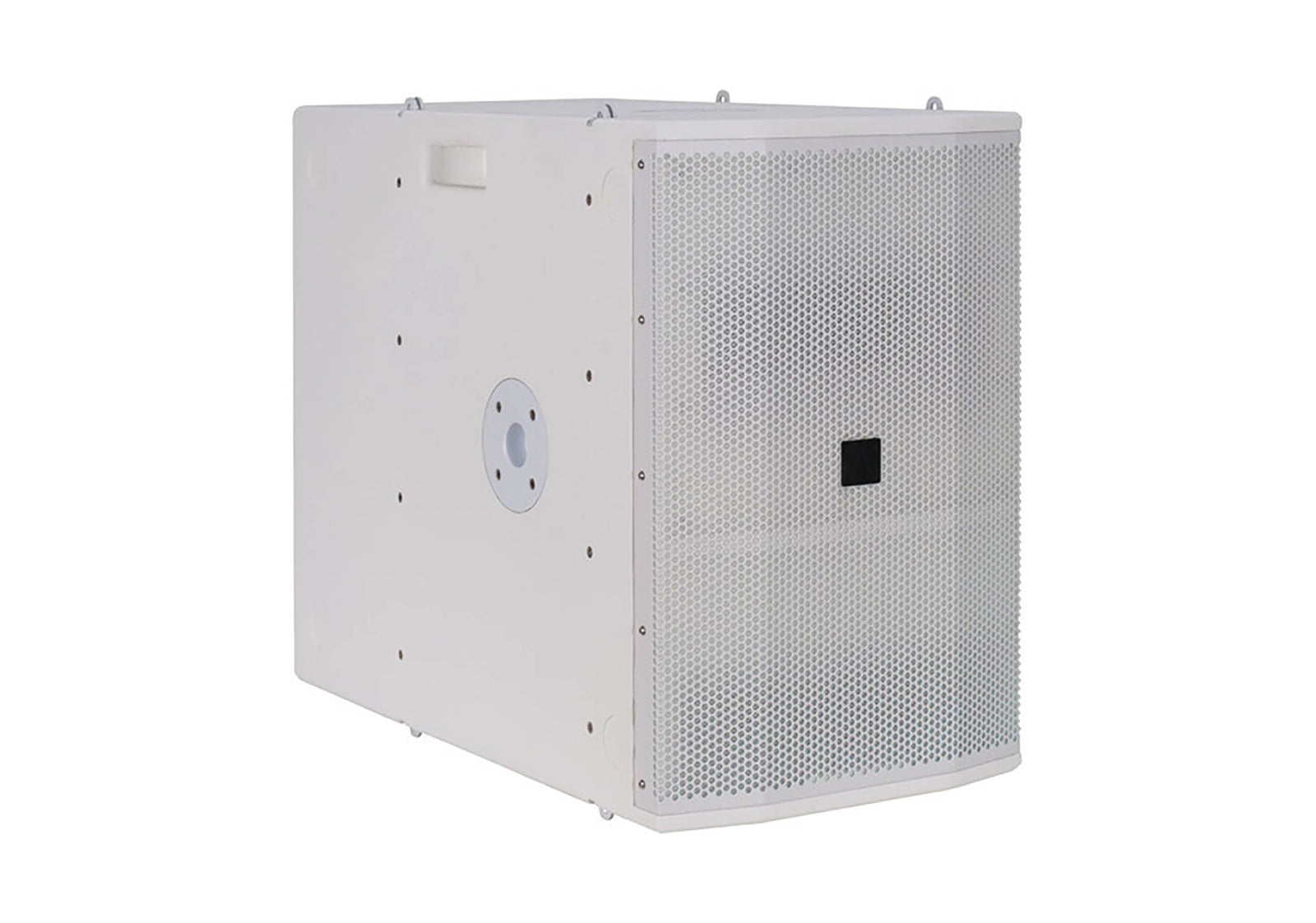

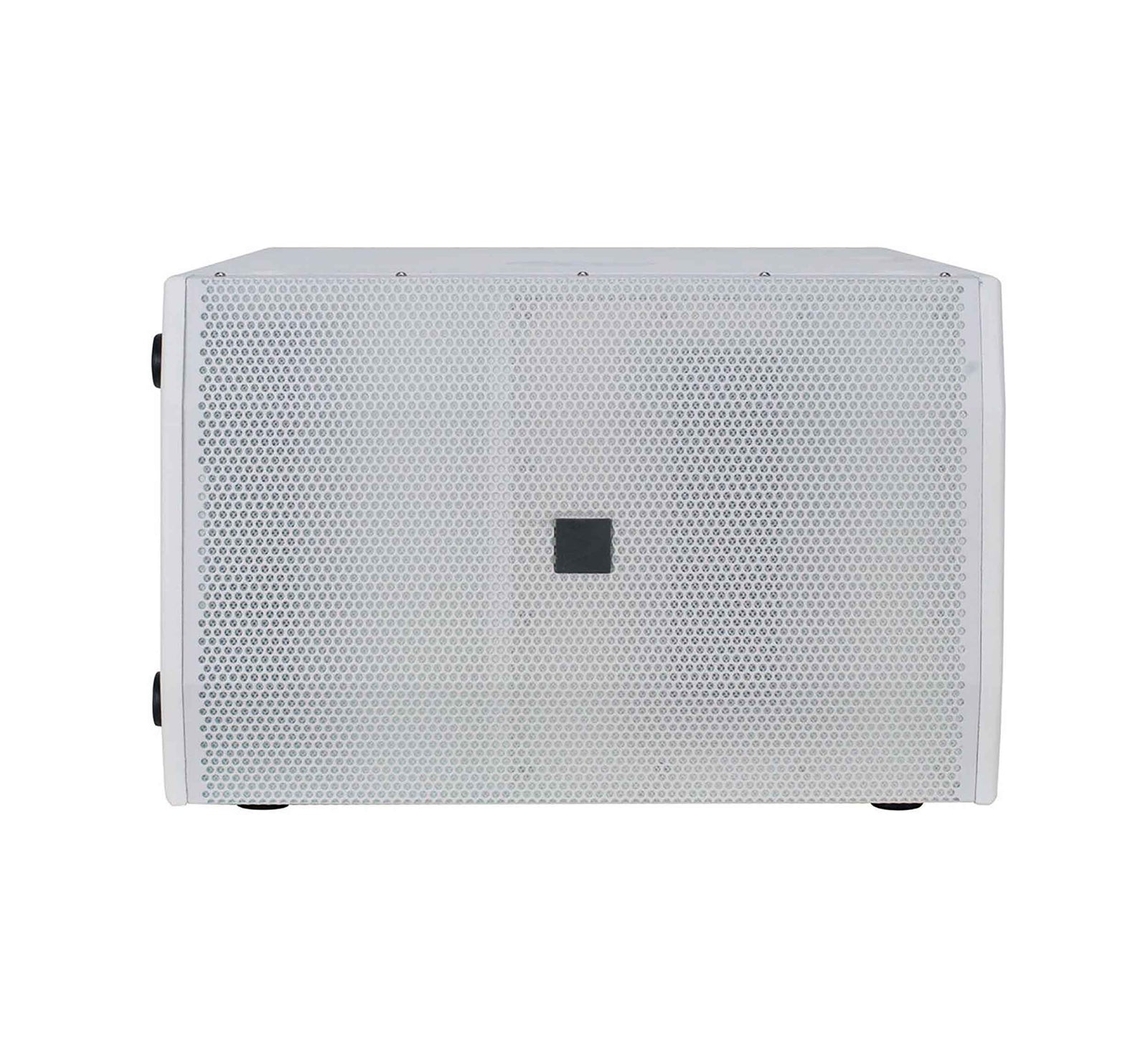

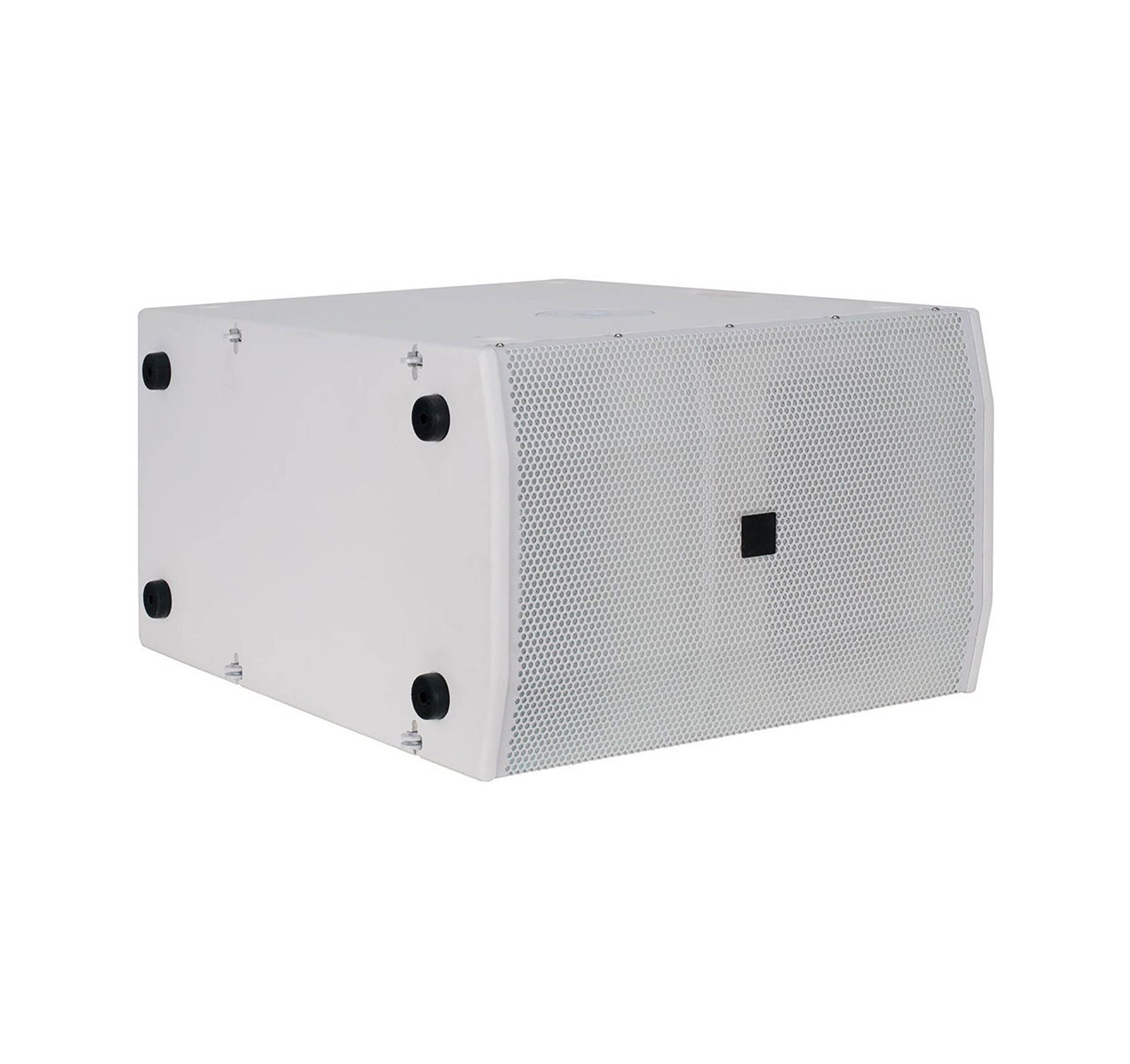

Avante Imperio SUB210W, 700-Watt Subwoofer - White

The Avante Imperio SUB210W, 700-Watt Subwoofer - White is a versatile and powerful dual-driver sub designed with flexible controls and physical configurations for a variety of venues or situations, whether ground-stacked or flown. Featuring a powerful 1400W max Class-D amplifier, dexterous I/O, and integrated rigging for a modular setup, the Sub210 can handle everything from small to large stages through the addition of further Imperio speakers or Sub210s.

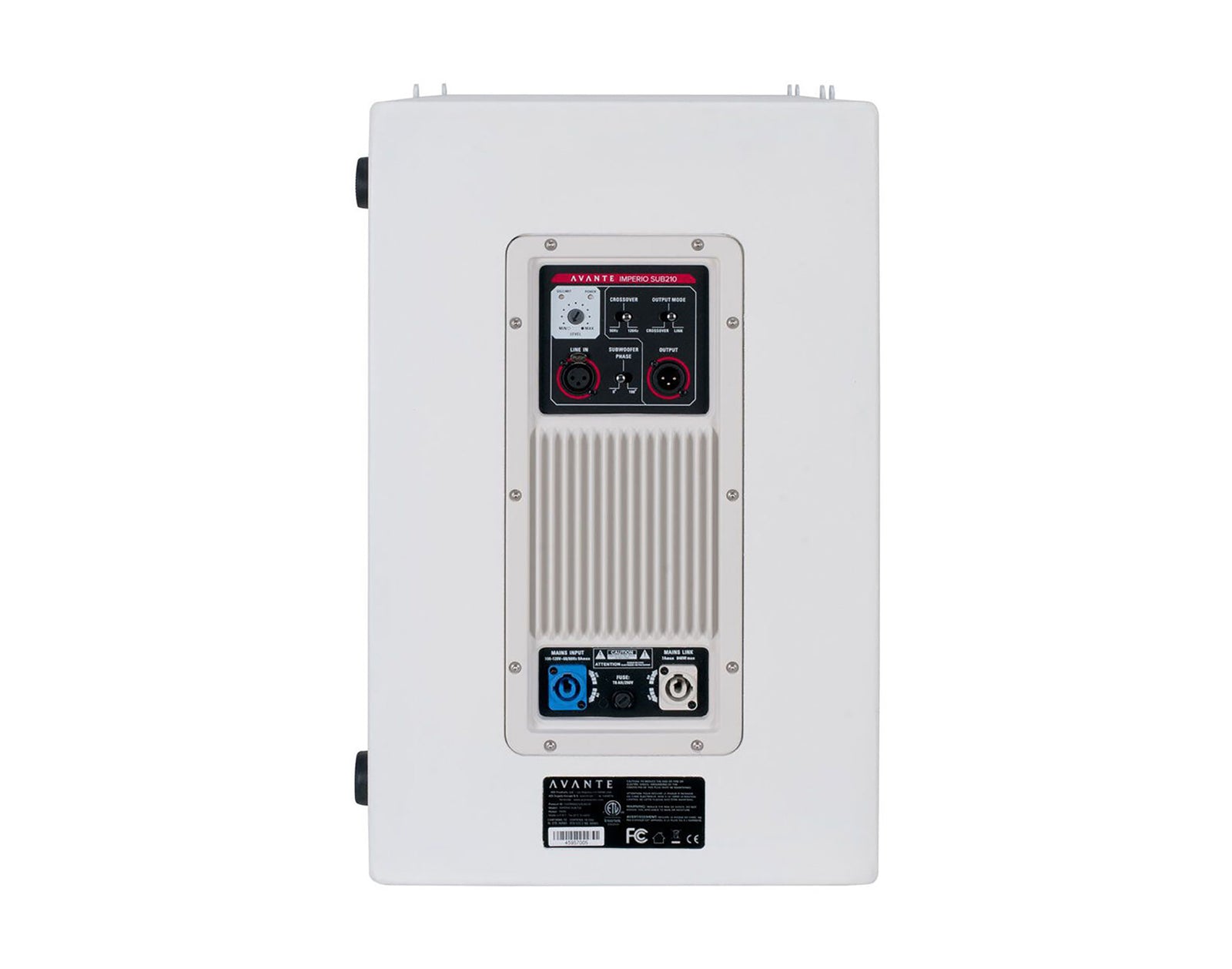

The Sub210 sports balanced XLR I/O, locking powerCON connectors for power input or speaker linking, selectable crossover frequencies and output modes as well as a robust cabinet constructed from plywood and a steel mesh grille. Whether stacking multiple Sub210s and Imperio speakers vertically, horizontally, or overhead, the Imperio Sub210 is an ideal core unit for any size PA system.

Product Specifications:

Enclosure Type: Bandpass Subwoofer

Total Power Capacity: 1400 W Peak (at 8 Ohms)

Amplifier Power Rating: 2 x 350 W RMS (at 8 Ohms)

Amplifier Class: Class-D

System Impedance: 8 Ohms

Drivers:

MF Driver: No

LF Driver: 2x 10" / 25.4 cm Woofer

LF Voice Coil: 2.5" / 6.3 cm

Frequency Response: 40 Hz to 150 Hz

Maximum SPL: 124 dB (Peak)

Protections: AC Fuse, RMS, Signal Limiter

Audio I/O:

1x XLR 3-Pin Female Balanced Line Input

1x XLR 3-Pin Male Balanced Line Output

Network I/O: No

USB I/O: No

Wireless Connectivity: No

Signal Processing:

Crossover: High-Pass - 90 / 120 Hz

EQ: No

Parametric EQ: No

Semi-Parametric EQ: No

Filters: No

Dynamic Processing: Peak Limiter

Alignment Delay: No

Phase Adjustment: 0 / 180°

AC Input Power :

Factory Selectable:

100 to 120 VAC, 50 / 60 Hz (T 8 A H 250 V)

220 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V)

AC Power I/O:

1x powerCON Input (Locking)

1x powerCON Output (Locking)

Mounting:

1 x M20 Pole Socket (Top)

1 x M20 Pole Socket (Side)

4 x Integrated Rigging (Each Side)

4 x (Bottom, Top)

Handles:

2x Top

1x Each Side

Construction Material: Plywood, Stainless Steel Grille

Certifications: ETL

Shipping Dimensions: 14.3 x 26.4 x 22.6" / 36.3 x 67.1 x 57.4 cm

Shipping Weight: 76 lb / 34.5 kg
