Description

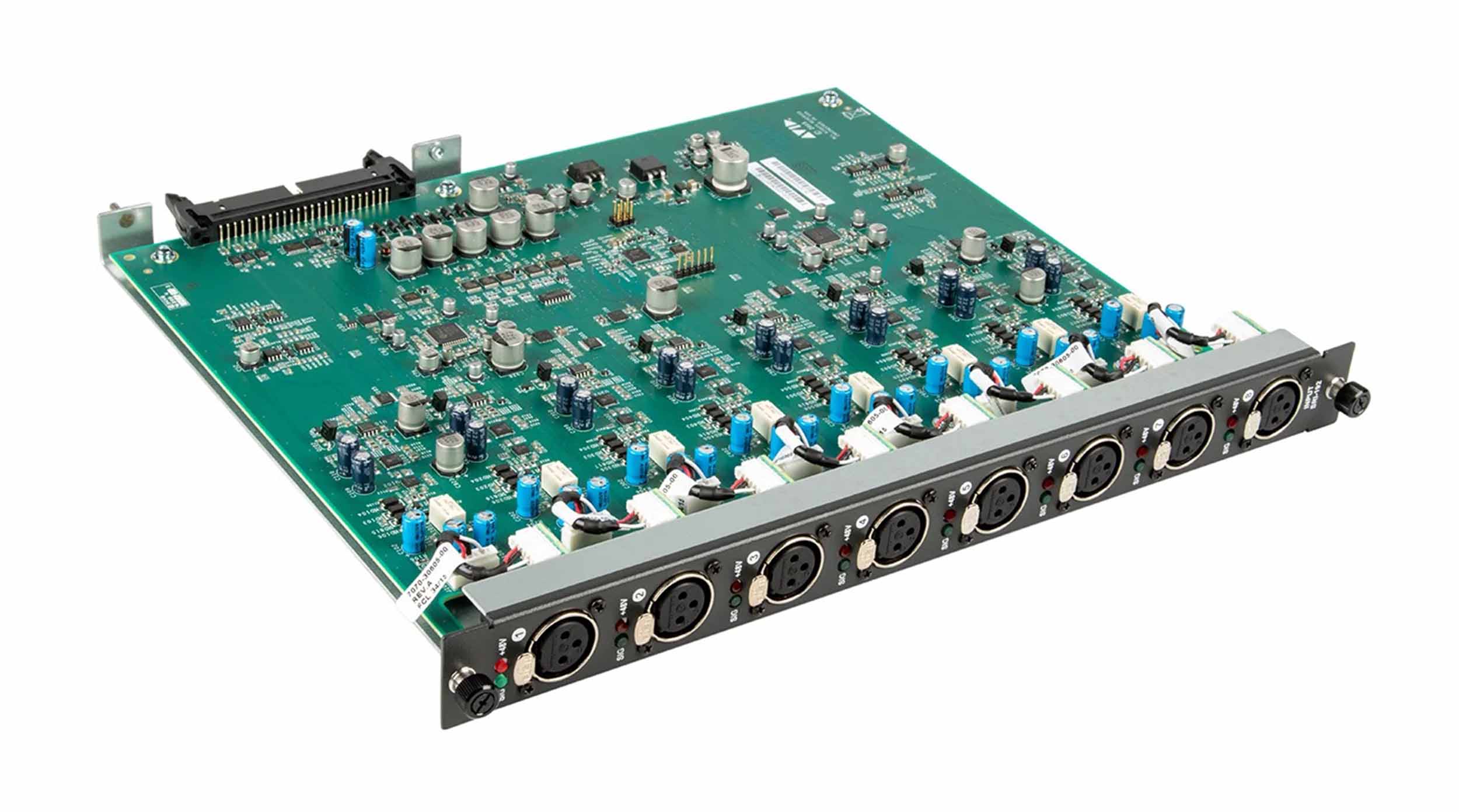

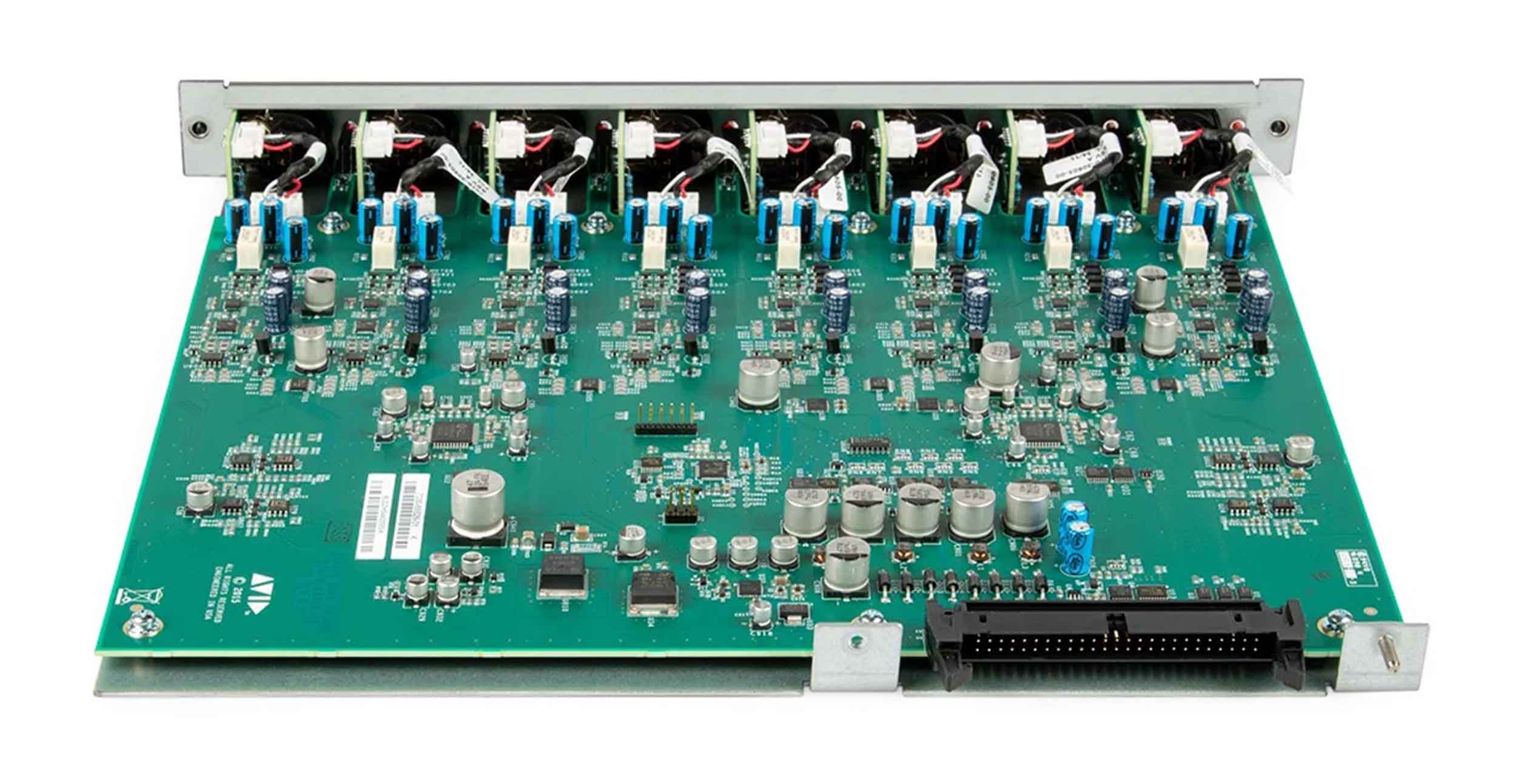

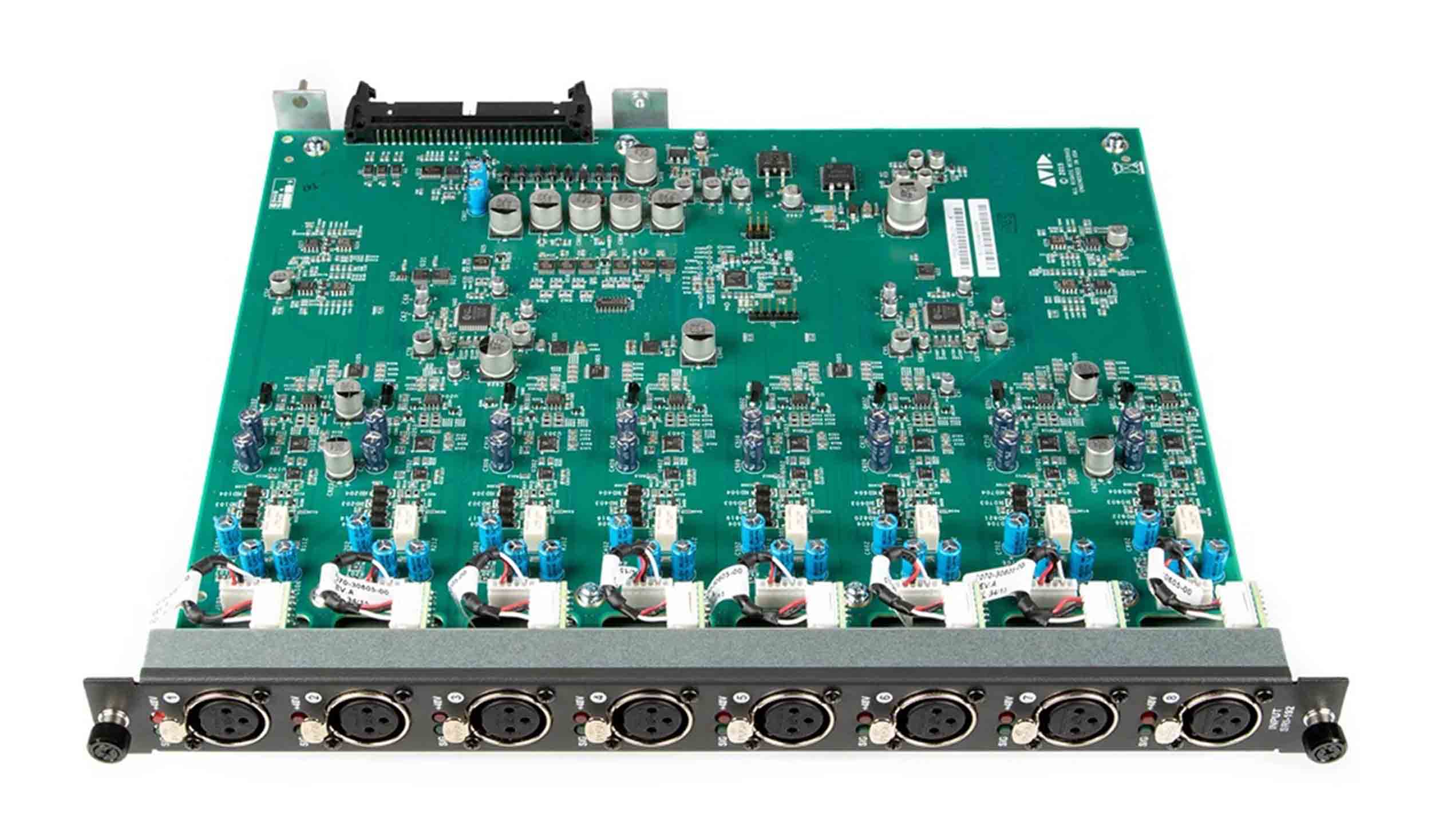

Expand your D-Show or Profile System with additional analog line inputs. The SRI (Stage Rack Input) Card is an option for the Stage Rack that adds eight channels of software-controlled, fully recallable analog mic/line inputs through XLR connectors. You can install up to six SRI Cards into a single Stage Rack for a total of 48 analog line input channels, or mix and match with other Stage Rack option cards to customize your output.
The SRI (Stage Rack Input) Card is an option for the VENUE Stage Rack that provides eight channels of analog line outputs via XLR connectors for your Digi design VENUE system. You can install up to six SRI Cards into a single Stage Rack for a total of 48 analog line input channels, or mix and match with other Stage Rack option cards to customize your input.
Product Specifications:
Connector (x8): XLRF, balanced
Gain:
+10 dB to +60 dB (6 dB analog steps
with 0.1 dB digital increments and crossfade at analog relay switch point)
Maximum Input Level: +34 dBu (pad ON)
Pad: 20 dB
Input Impedance: pad OFF: 10k Ohm balanced; pad ON; 4k Ohm balanced
Phantom Power: +48V
EIN: -126 dBu (maximum gain, 150 Ohm source, 22 Hz - 20 kHz BW, unweighted)
THD + N: 0.003% minimum gain, pad OFF, -1 dBFS output, 20 Hz - 20 kHz BW)
A/D Converter Latency: 0.25 ms (Fs = 48 kHz)
