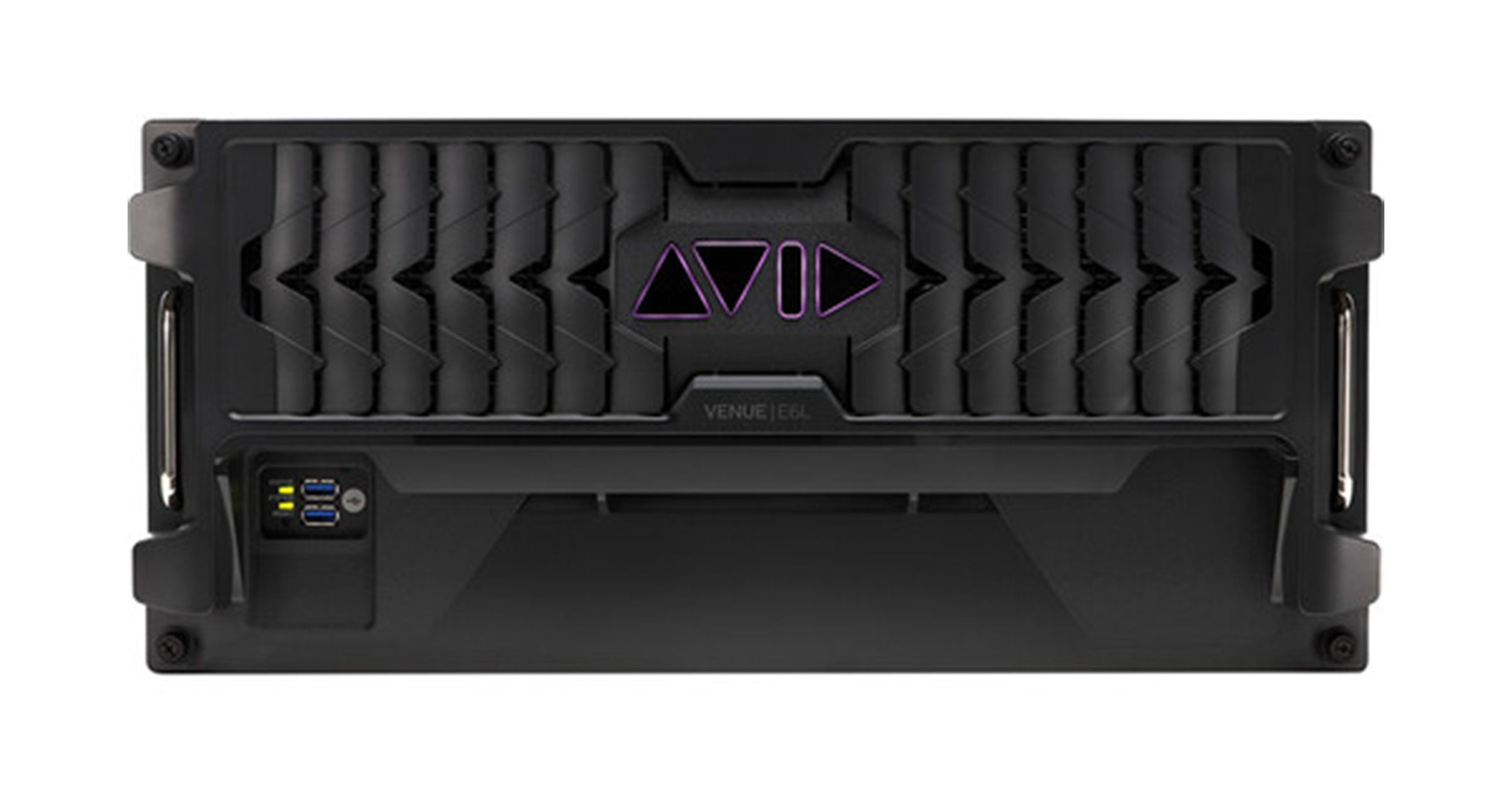

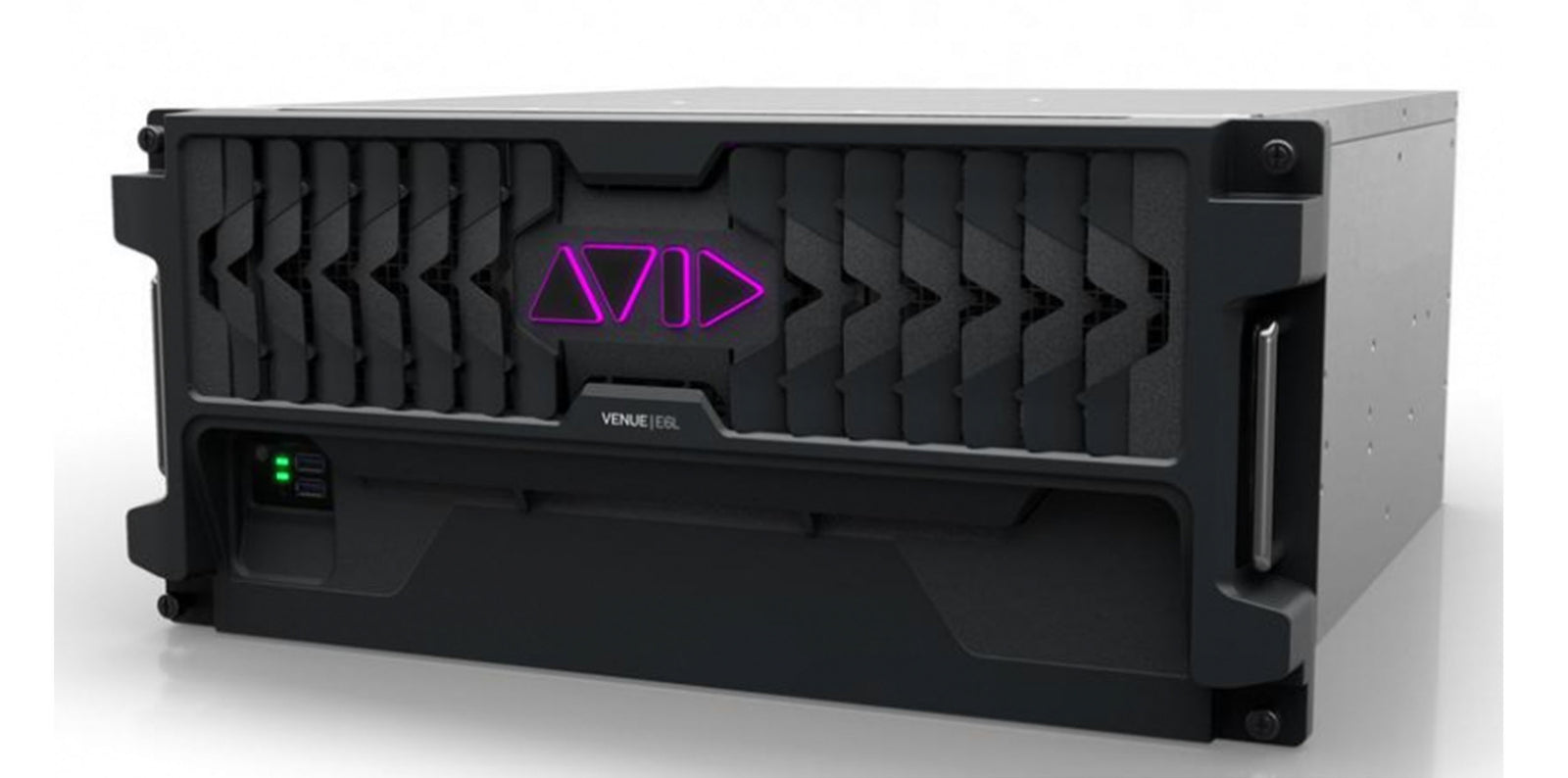

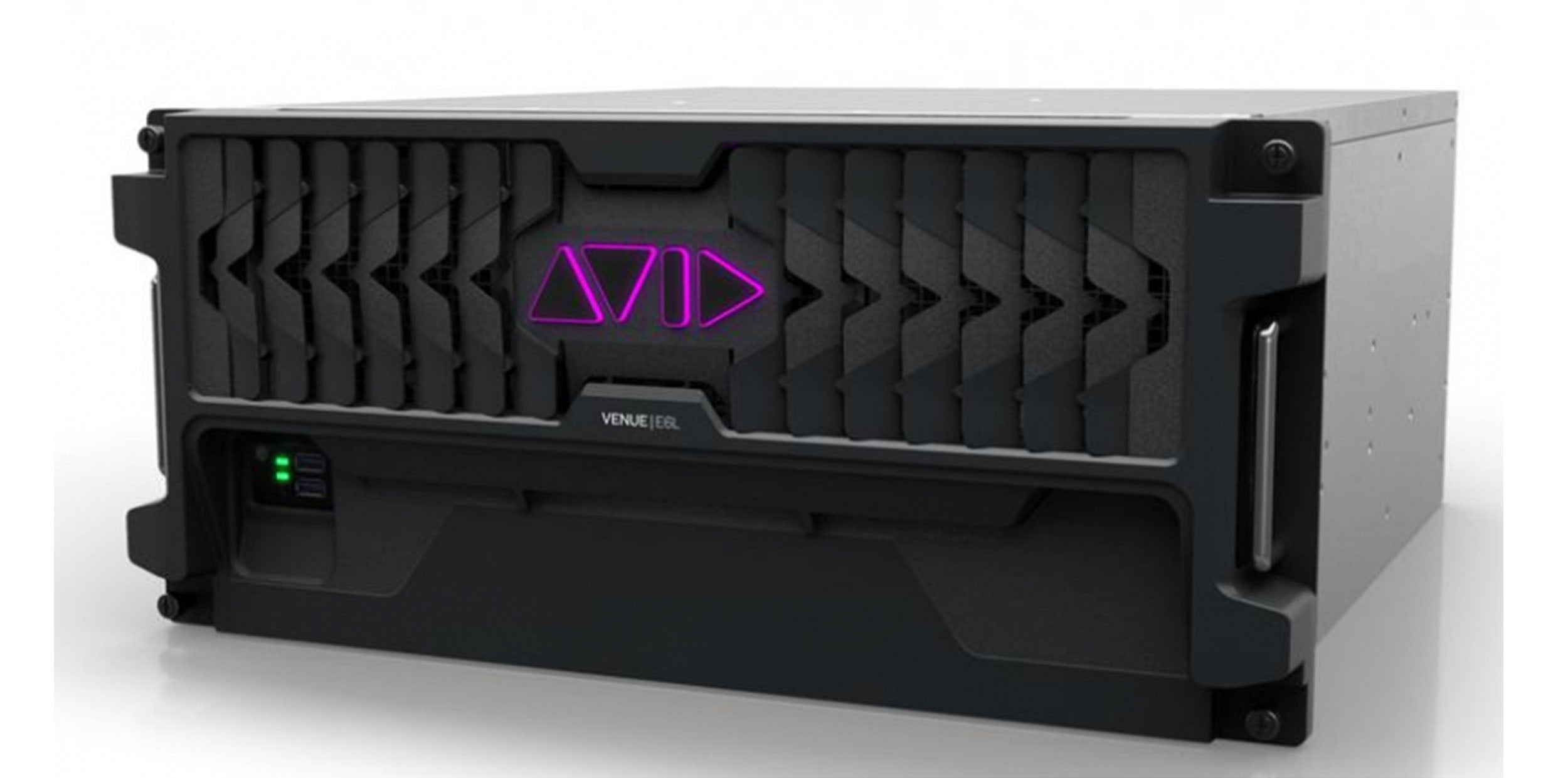

Avid VENUE E6L-192 Engine, with 3 Year Avid Advantage Elite Live Support

The Avid VENUE E6L is a state-of-the-art real-time processing engine dedicated to handling all routing, channel, and mixing functions for maximum stability and power, while the HDX-powered DSP engine manages all AAX plug-in processing, with fully automatic delay compensation. That means you can create bigger, better sounding mixes, with hundreds of processing channels and mix busses, while enjoying the tightest, most robust plug-in performance and lowest possible latency—and with no round trips to external servers.

With its modular, scalable system architecture, you can freely mix and match your choice of control surface, engine, and I/O to support practically any live sound application. Choose from three control surface configurations to meet your needs, and select the ideal E6L engine to support your channel count requirements. Ramp up your plug-in processing power by adding more HDX cards to your engine (up to four). Users can go from a maximum 64 mic inputs with one Stage 64 rack up to hundreds of I/O channels by connecting additional boxes.

Product Specifications:

Number of Analog Input Channels: No

Number of Mic Preamps: No

Number of Analog Output Channels: 0

Mix Routing: 96 x Bus

Presets: No

Faders & Level Adjustment: No

Dynamic Processing: Compressor, Limiter, Soft Limiter, Gate

EQ: 7-Band Parametric

Graphic EQ: No

Real Time Analyzer: No

Audio Delay: No

Sample Rates: 96 kHz

Signal Generator: Yes

Analog Inputs: No

Analog Outputs: No

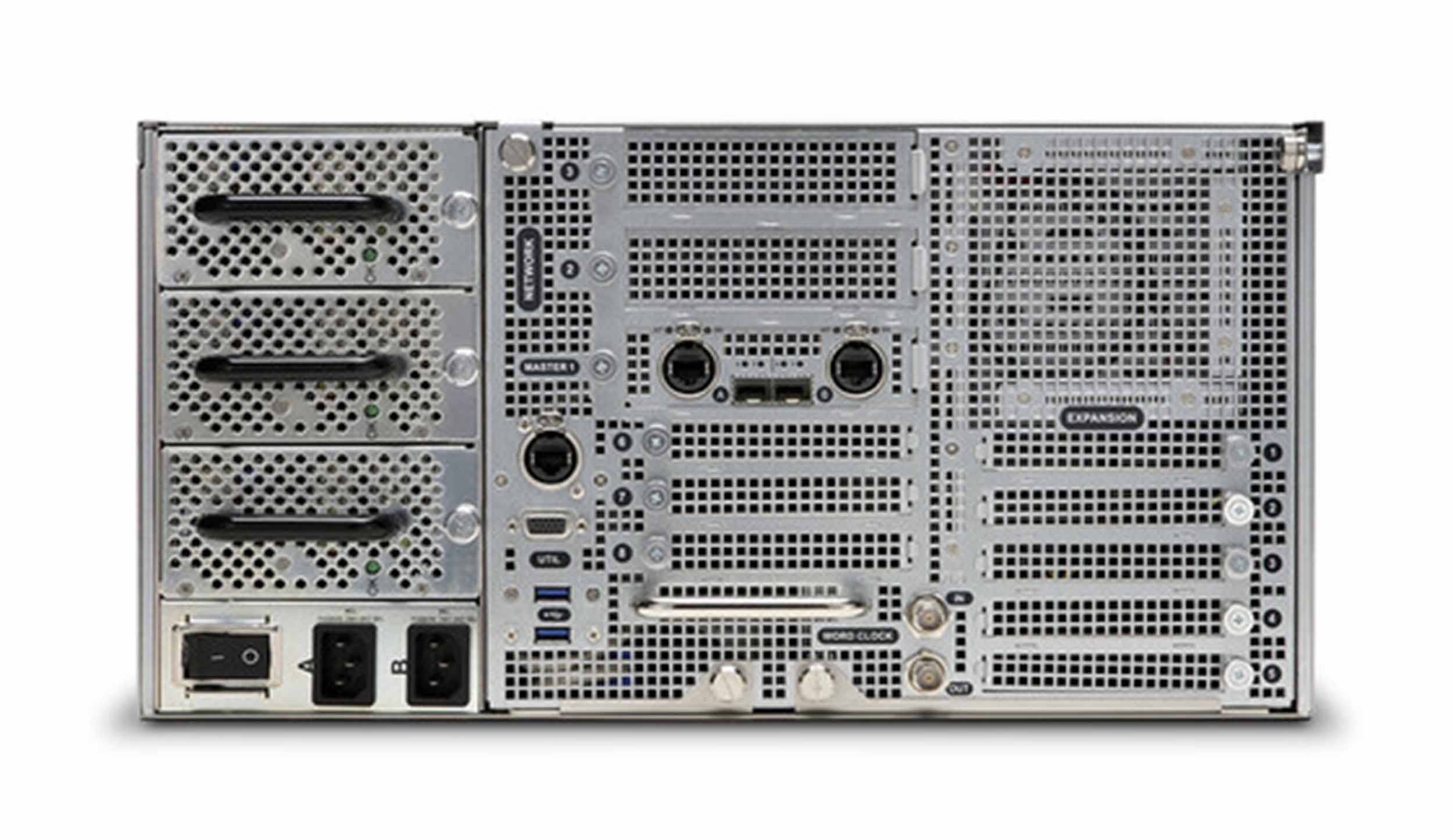

Digital I/O: 192 x etherCON

MIDI I/O: No

USB: 5 x USB-A 2.0()

Expansion Ports: 4 x I/O Card

Rack Mountable: Yes

Dimensions: 16.9 x 8.6 x 19" / 430 x 218 x 483 mm

Weight: 72.8 lb / 33 kg
