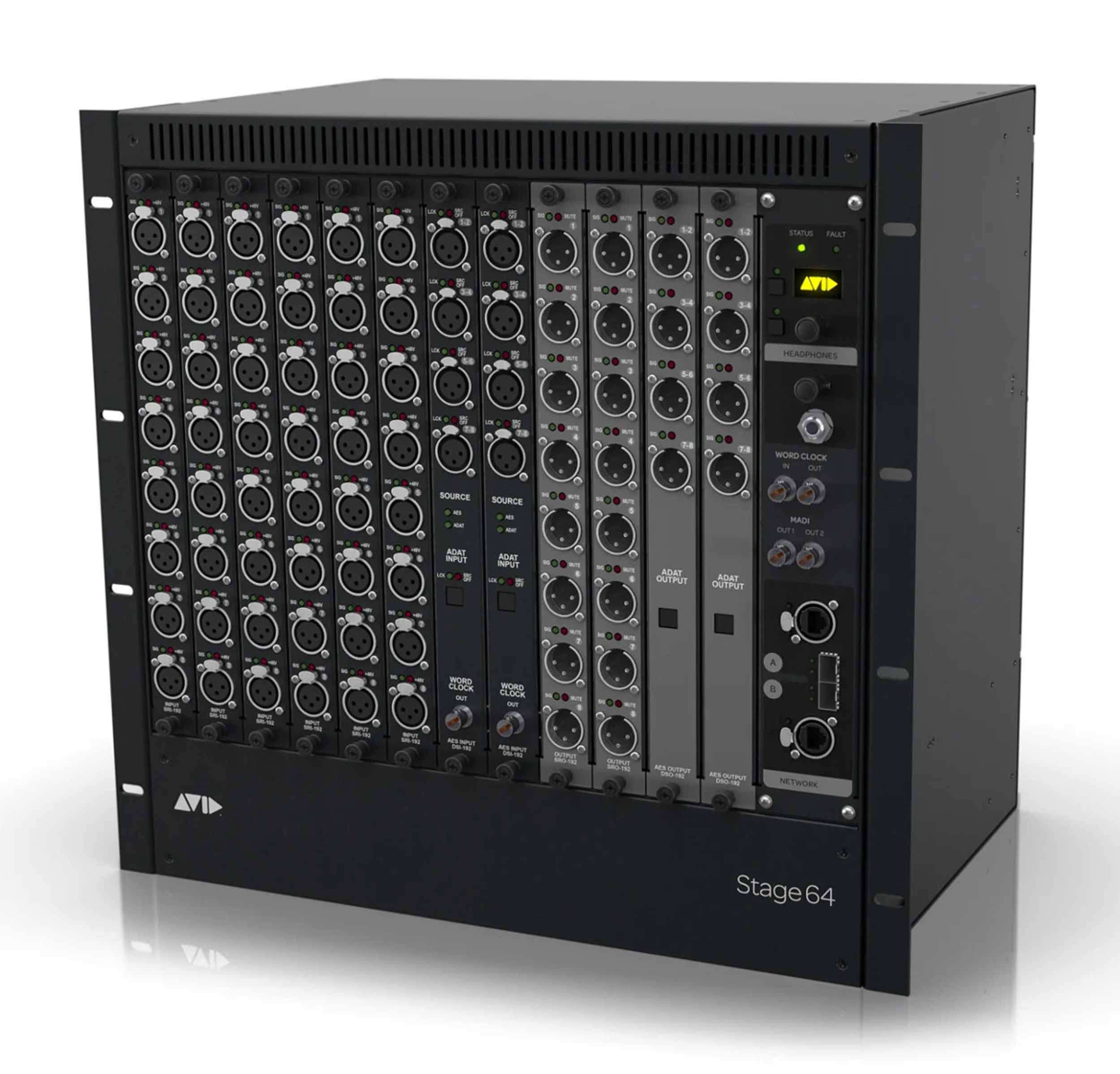

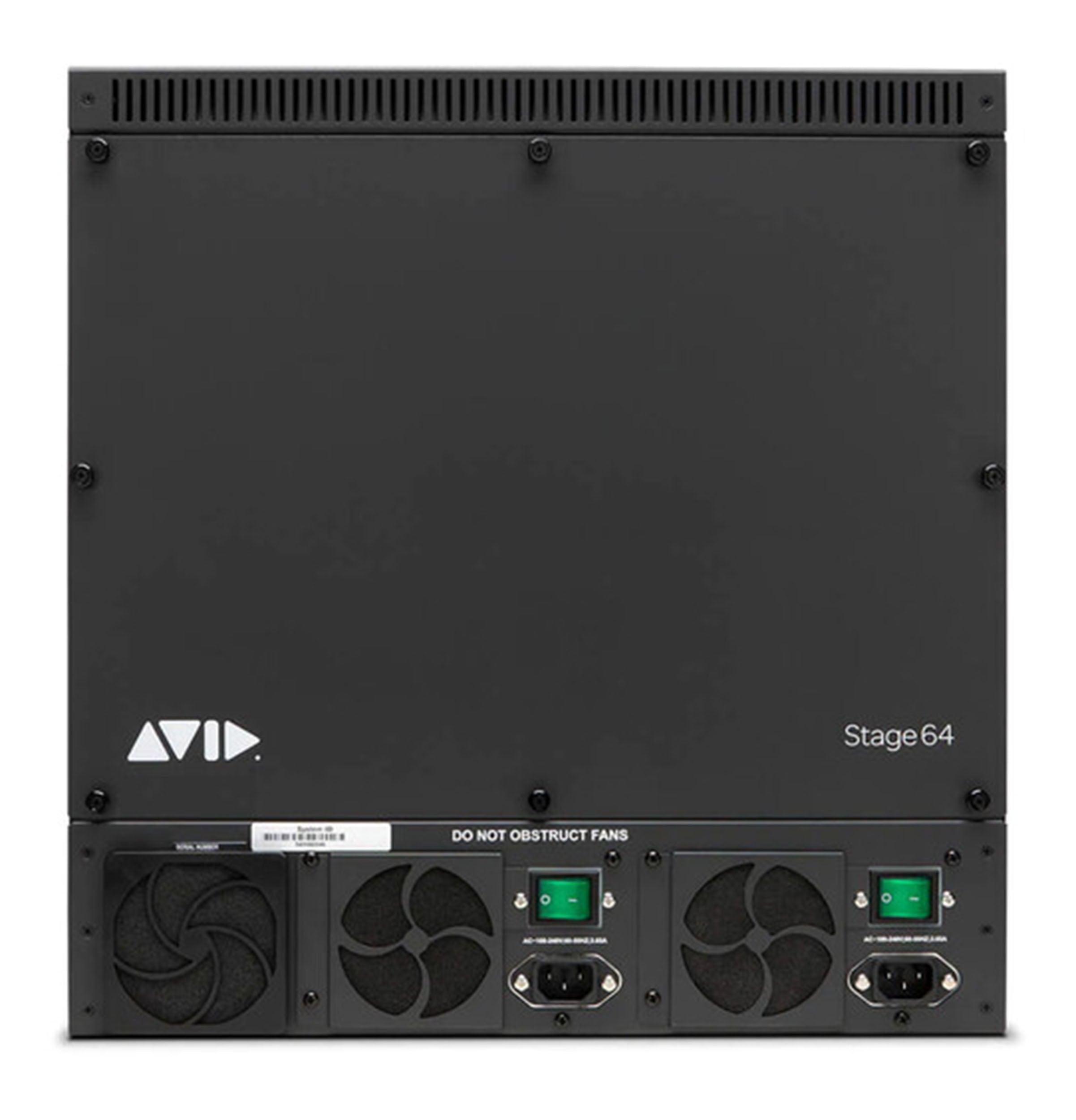

Avid Venue Stage 64 Stage Rack (48x8), with 3 Year Advantage Elite - Live Support

The Venue Stage 64 is a 10 RU I/O rack that offers maximum flexibility to support the biggest productions. This Venue Stage 64 comes with 48 input channels and 8 output channels already installed.

The rack supports up to 64 inputs and 32 outputs (choose from a variety of analog I/O, digital I/O, and Dante card options. Network up to three Stage 64 racks together to reach the maximum 192 inputs supported by the E6L-192 engine. Scale your I/O, get more I/O distribution flexibility, or add local I/O by mixing and matching Stage 64 with other VENUE | S6L I/O racks.

The Venue Stage 64 comes with three years of Avid Advantage Elite Live support—the company's highest level of service available to customers who work in the most mission-critical live sound environments.

Product Specifications:

Max I/O Capacity: 64 x Input / 32 x Output

Number of Analog Input Channels: 48

Number of Mic Preamps: No

Number of Analog Output Channels: 8

Mix Routing: 0 x Send

Presets: No

Faders & Level Adjustment: No

EQ: No

Graphic EQ: No

Real Time Analyzer: No

Sample Rates: 96 kHz

Analog Inputs: 48 x XLR Input

Analog Outputs: 8 x XLR Output

Digital I/O:

2 x etherCON (I/O)

2 x BNC Coaxial MADI

MIDI I/O: No

Expansion Ports: 12 x I/O Card

Internet Connection: Yes

Rack Mountable: Yes

Rackmount Size: 10 RU (with Included Hardware)

Dimensions: 17 x 17.5 x 12.2" / 432 x 445 x 310 mm

Weight: 68.3 lb / 31 kg
