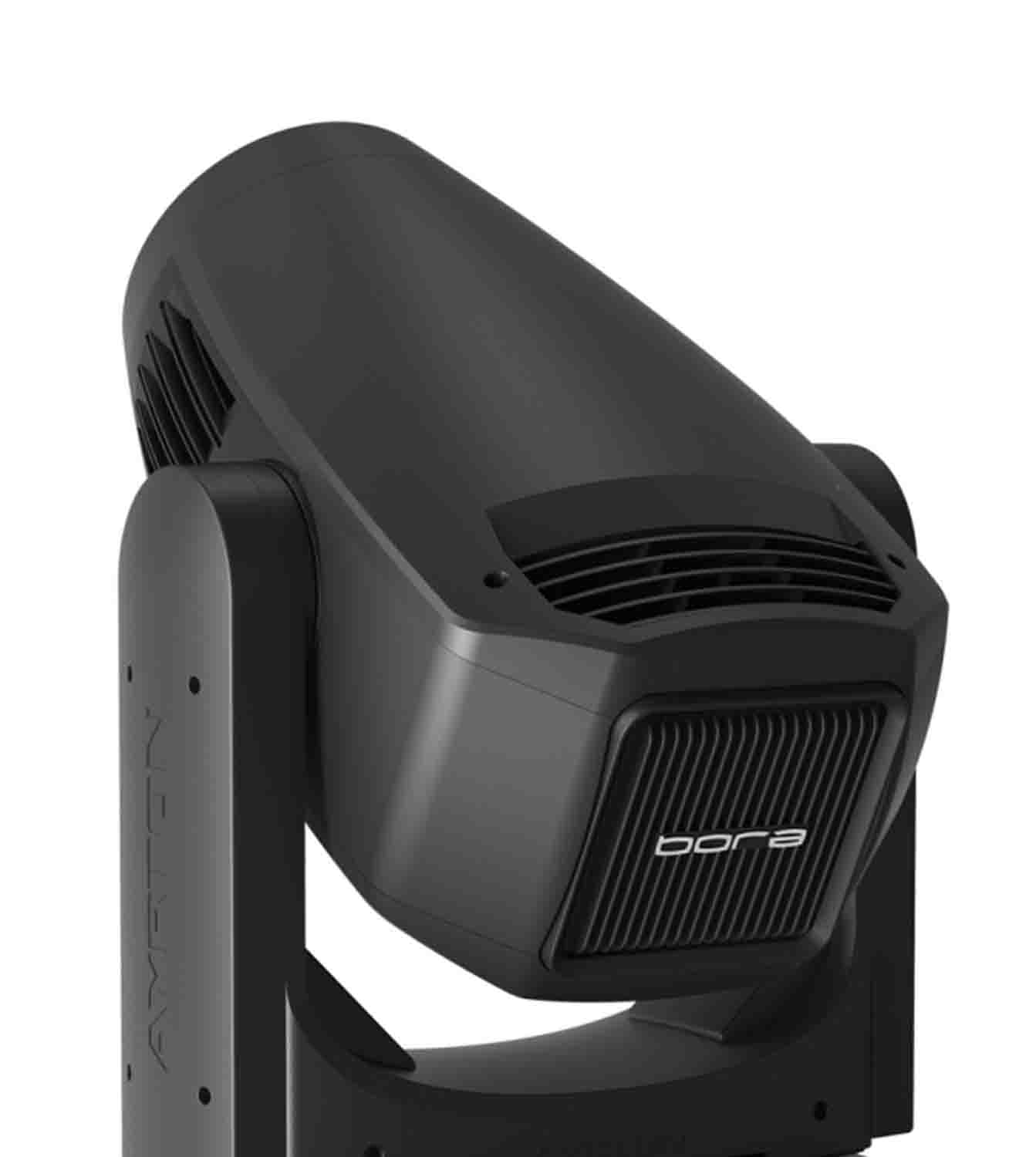

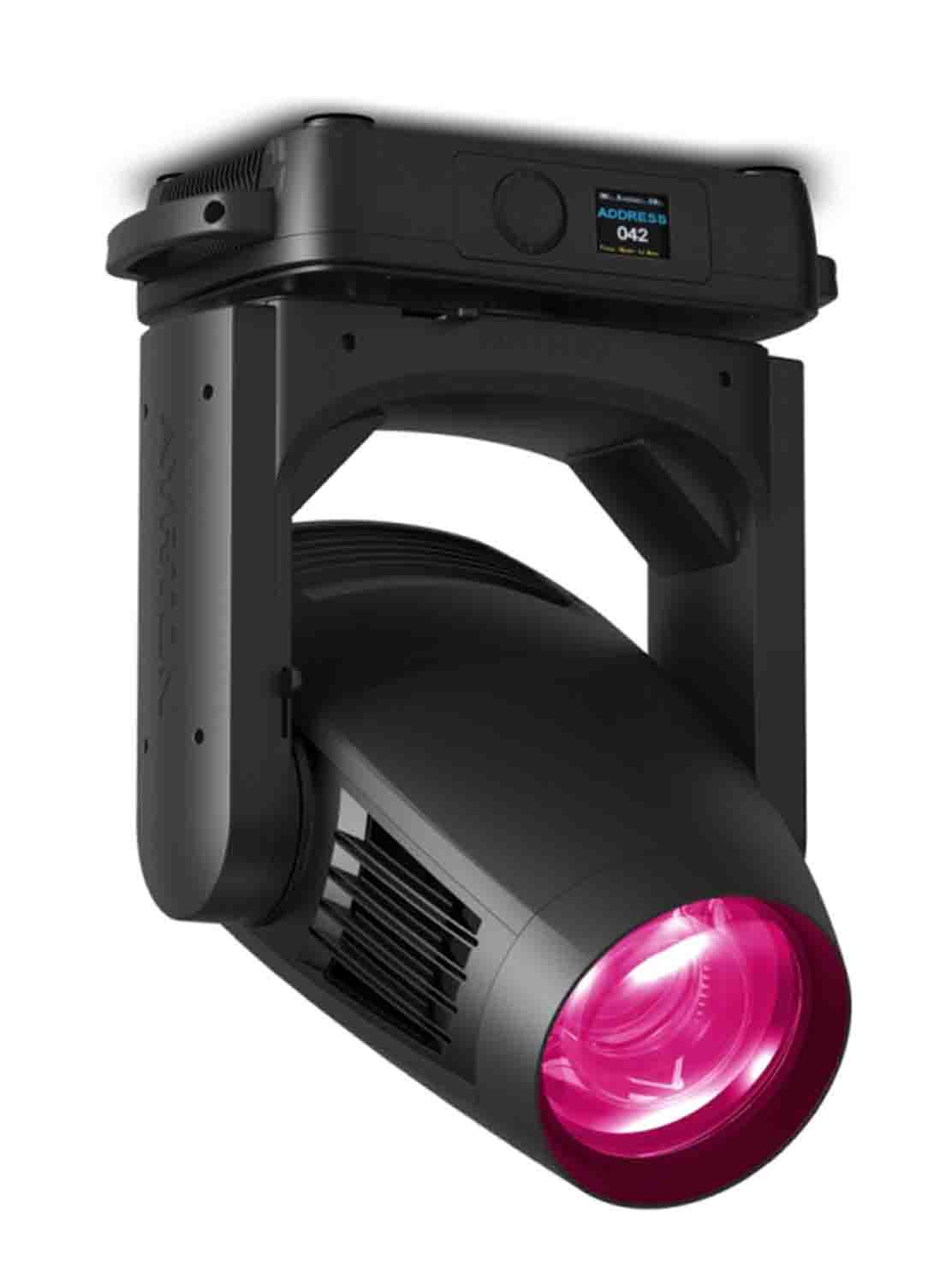

Ayrton Bora-S 750W LED Beam & Wash

The AYRTON AY010640 Bora-S 750W LED Beam & Wash feature-packed 750 W wash luminaire, using a radical approach. Its specific function is to establish the perfect atmosphere for your creative design. Fitted with a frontal 178 mm spherical lens, the proprietary optical system using 13 high-quality lenses was developed specifically for “wash” applications. It features an 8:1 zoom ratio for a wide zoom range from 8° to 64°. The optics produces an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous color mix regardless of the color combination selected.

BORA comes in two versions, each to meet the specific requirements of lighting professionals. BORA-S is designed for scenic applications. It is equipped with a new LED module calibrated at 8000 K, delivering powerful metallic white light with record-breaking output of 40,000 lumens. Devised specifically for applications that require perfect color reproduction, BORA-TC is equipped with an entirely new LED module using a monochromatic light source calibrated at 7000 K with a native color rendering index greater than 90, and extremely high TM30 readings.

Product Specification:

Fixture Class (LED / Arc): 750 - 1000 W / 1700 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 178 mm front lens

Optic Efficiency: 0.63

Beam Aperture: 8° to 64°

Zoom Elements / Range: 13 Elements / 8:1

Light Source:

Architecture: White Light Engine

Power Source / Number: 750 Watt / 1

Light Engine Output (lm): 60,000 lm (48,000 lm)

Colour Temperature (LED / Fixture): 8,000 K / 6,800 K (7,000 K / 6,000 K)

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan 540° - Tilt 280°

Colours:

Colour Mixing: CMY

Colour Depth: 16.7 million

Colour Temperature Correction: Yes / Variable

Fixed Colours (number/wheel): 6 colours / 2 WheelS

Gobos/Effects:

Fixed Gobos (number/wheel): No

Rotating Gobos (number/wheel): 6 Gobos / 1 Wheel

Graphic Animation Wheel (type): No

Rotating Effect: No

Frost filter: Variable linear frost

Iris Diaphragm: Yes

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic

Software Features:

Information Menu: Yes

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: ArtNet - sACN

Channel Control: 30 to 52

Frequency Range: 50-60Hz

Power Consumption Maximum: 1,150W  (max)

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Protection Rating: IP20

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Safety Cable Attachement Point: Yes

Operating Parameters:

Permitted Ambient Temperature: -10 to 45°C

Maximum Ambient Humidity: 75% at 25°C

Dimensions & Weight:

Dimensions (mm): 494 x 737 x 280

Flight-case Foam Dimensions (mm): 655 X 590 X 555

Weight (Kg): 37.8

Others:

dBA Rating (1m): 0

Warranty in Years (Fixture / Source): 44594

Variable PWM Control: Yes

SIP included: Yes
