Description

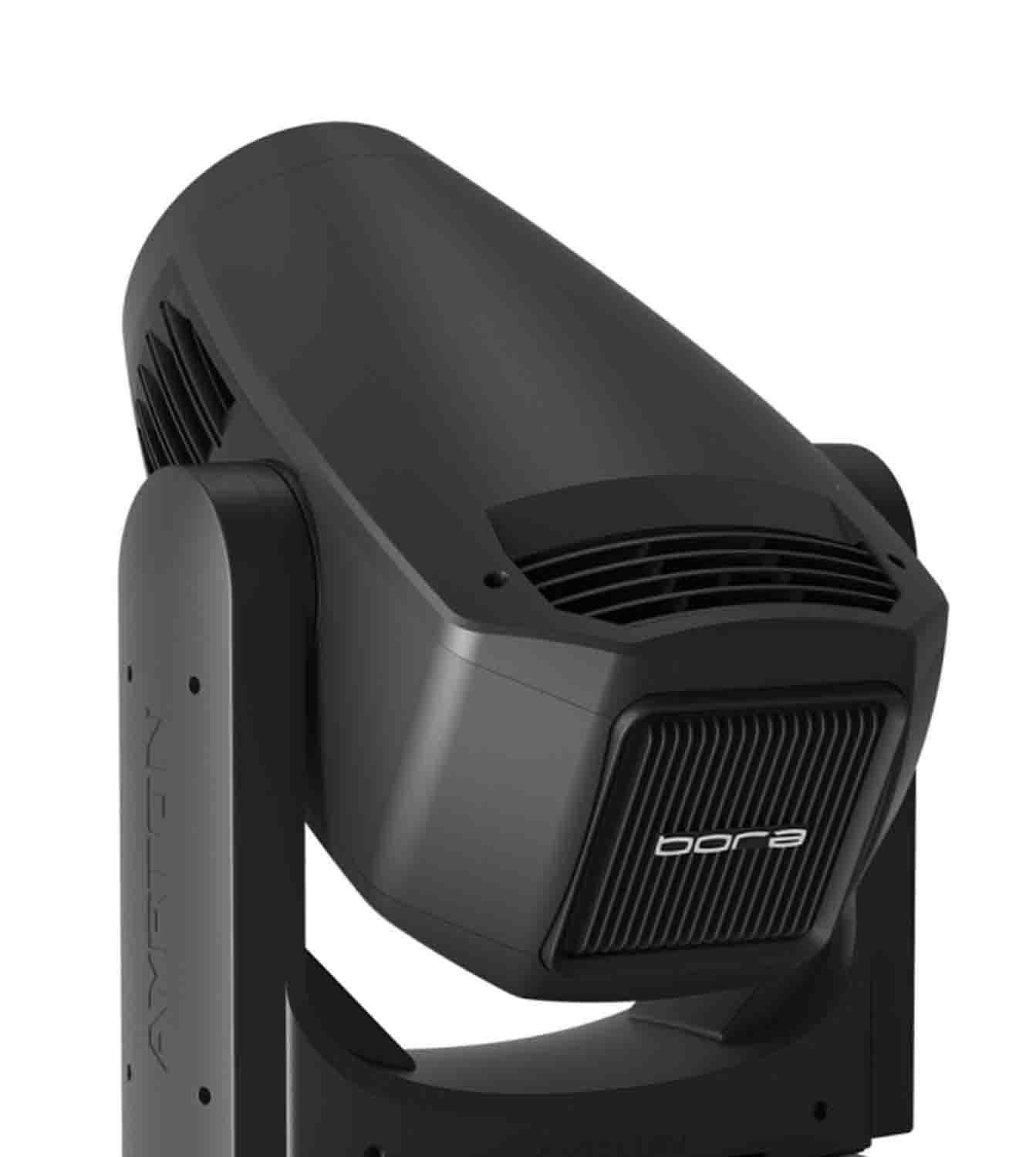

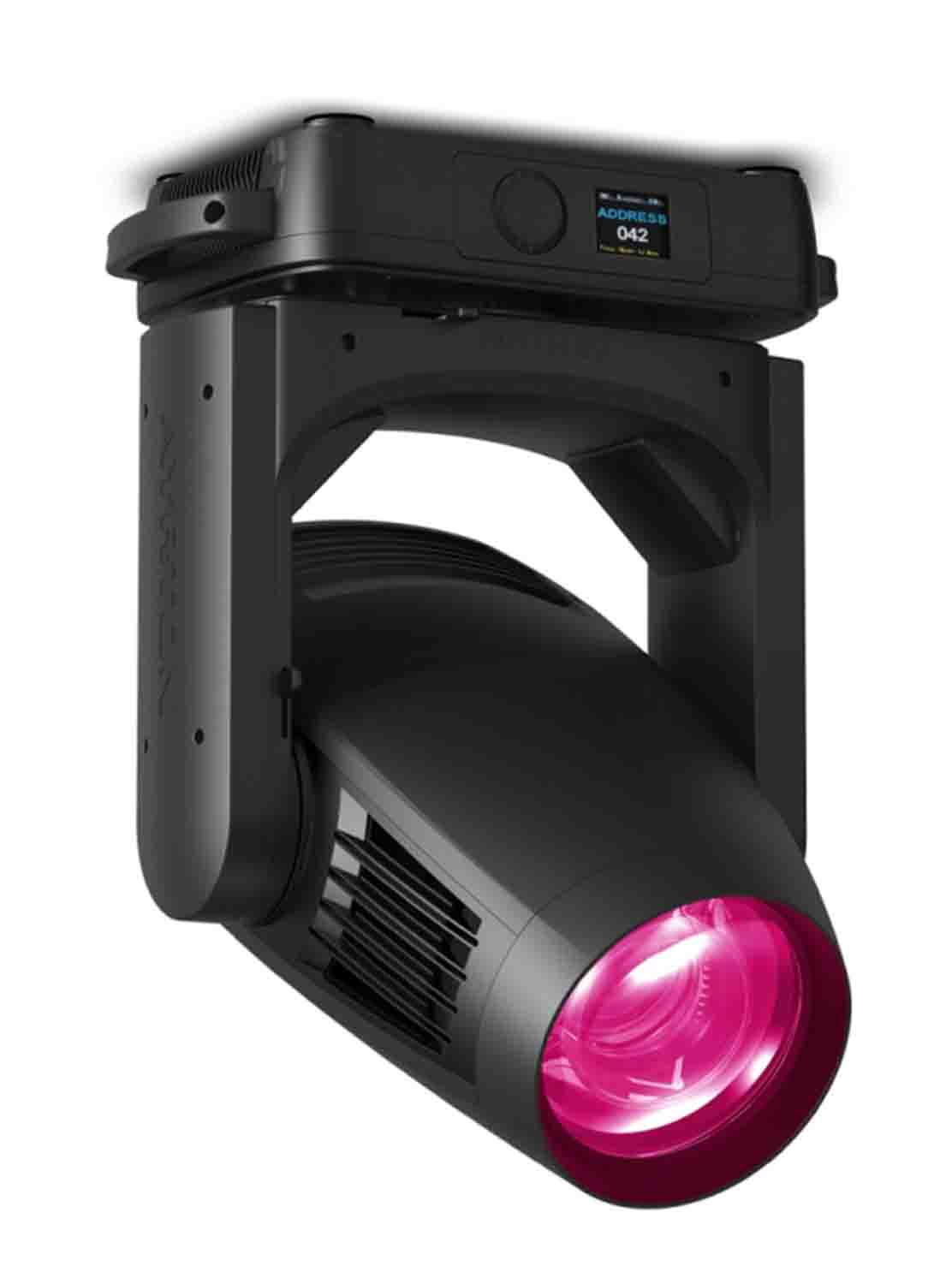

The Ayrton AY010650 Bora-TC 750W LED Beam & Wash 8 to 64 Degree feature-packed 750 W wash luminaire, using a radical approach. Its specific function is to establish the perfect atmosphere for your creative design. Fitted with a frontal 178 mm spherical lens, the proprietary optical system using 13 high-quality lenses was developed specifically for “wash” applications. It features an 8:1 zoom ratio for a wide zoom range from 8° to 64°. The optics produces an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous color mix regardless of the color combination selected.
BORA comes in two versions, each to meet the specific requirements of lighting professionals. BORA-S is designed for scenic applications. It is equipped with a new LED module calibrated at 8000 K, delivering powerful metallic white light with record-breaking output of 40,000 lumens. Devised specifically for applications that require perfect color reproduction, BORA-TC is equipped with an entirely new LED module using a monochromatic light source calibrated at 7000 K with a native color rendering index greater than 90, and extremely high TM30 readings.
Product Specification:
Fixture Class (LED / Arc): 750 - 1000 W / 1700 W
Source: LED
Optics:
Optic Type: Motorized zoom system
Optic Size / Diameter: 178 mm front lens
Optic Efficiency: 0.63
Beam Aperture: 8° to 64°
Zoom Elements / Range: 13 Elements / 8:1
Light Source:
Architecture: White Light Engine
Power Source / Number: 750 Watt / 1
Light Engine Output (lm): 60,000 lm (48,000 lm)
Colour Temperature (LED / Fixture): 8,000 K / 6,800 K (7,000 K / 6,000 K)
Rated Life (hours): L70 40,000 h
Bora TC
48,000 lumens 7000 K white light engine
Total Luminaire Output: up to 31,000 lumens
Colour Temperature Output: 6200 K
Cri: greater than 90
Movement:
Rotation Type / Range: Pan 540° - Tilt 280°
Colours:
Colour Mixing: CMY
Colour Depth: 16.7 million
Colour Temperature Correction: Yes / Variable
Fixed Colours (number/wheel): 6 colours / 2 WheelS
Gobos/Effects:
Fixed Gobos (number/wheel): No
Rotating Gobos (number/wheel): 6 Gobos / 1 Wheel
Graphic Animation Wheel (type): No
Rotating Effect: No
Frost filter: Variable linear frost
Iris Diaphragm: Yes
Dimmer: Electronic
Dynamic LED FX: No
Strobe: Electronic
Software Features:
Information Menu: Yes
Control:
Data Protocol: DMX 512 - RDM
Ethernet Protocol: ArtNet - sACN
Channel Control: 30 to 52
Frequency Range: 50-60Hz
Power Consumption Maximum: 1,150W (max)
Cooling System:
Type: Forced ventilation
System: Heatpipe technology
Temperature Protection: Yes
Housing:
Body Material: Aluminium and Steel metal plates
Protection Rating: IP20
Exterior Finish: Black
Installation:
Operating Positions: Any
Suspension System: 2 Omega brackets
Safety Cable Attachement Point: Yes
Operating Parameters:
Permitted Ambient Temperature: -10 to 45°C
Maximum Ambient Humidity: 75% at 25°C
Dimensions & Weight:
Dimensions (mm): 494 x 737 x 280
Flight-case Foam Dimensions (mm): 655 X 590 X 555
Weight (Kg): 37.8
Others:
dBA Rating (1m): 0
Warranty in Years (Fixture / Source): 44594
Variable PWM Control: Yes
SIP included: Yes
