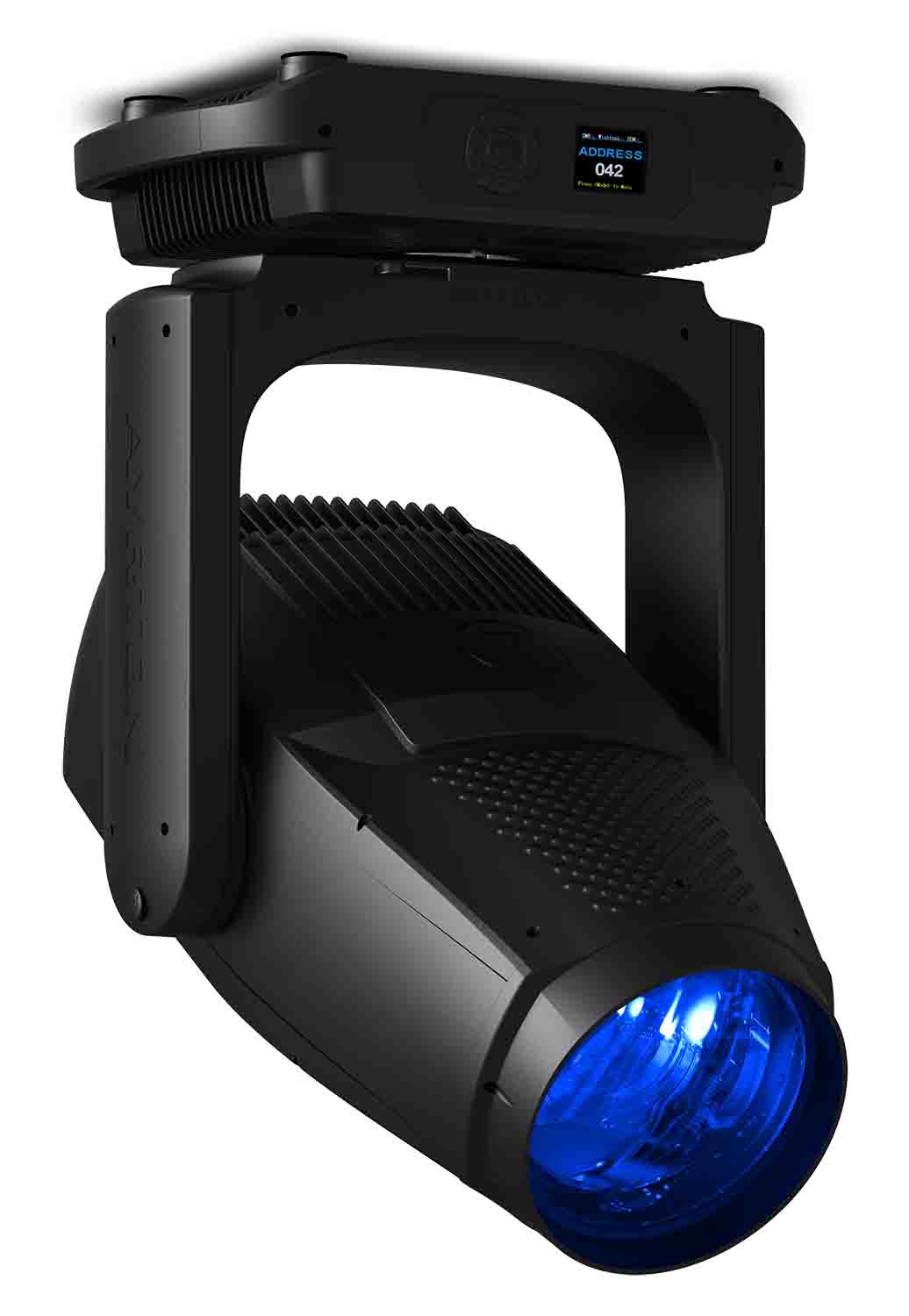

Ayrton Domino-LT 1,000W LED IP65 Profile, 3.5 to 53 Degree

The Ayrton DOMINO LT 1,000-Watt Led Module is the first all-terrain LED luminaire in the LT  (Long Throw) range designed for intensive outdoor use in long-distance applications requiring high precision. To create this extreme luminaire unrivalled on the market, AYRTON has used “XXL” 225 mm-diameter frontal optics weighing 7 kg that can obtain an ultra-intensive beam. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53°. DOMINO LT was developed to cope with the most extreme conditions, able to acclimate to all types of environments and endure rapid climate change. For this purpose, DOMINO LT has borrowed from the style and minimalist design of DOMINO PROFILE, incorporating full weather-proofing features while ensuring total accessibility to the luminaire’s internal functions. With its new die-cast aluminum frame, the luminaire uses the same base, reducing its visual footprint to a minimum. For greater efficiency, DOMINO LT has a highly effective next-generation, oversized cooling system fitted with six submersible fans outside its weatherproof enclosure.

DOMINO LT adopts the complex color mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colors (patent pending) and a triple corrector for variable color temperature that allows subtle adjustment from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical tools for shaping light, DOMINO LT is factory-equipped with a linear progressive frost system, a lightweight frost filter, and two image-multiplying rotating prisms: one is linear with four facets and the other is circular with five facets. The framing section enables precise positioning of each shutter blade on a 100% surface area. The effects section includes two superimposed rotating gobo wheels each with seven gobos, a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an RGB and CMY effects wheel for unique multicolor effects. DOMINO LT is a unique luminaire designed to face the most extreme conditions. It is the ultimate tool for stadiums and large arenas.

Product Specifications:

Fixture Class (LED / Arc): 1000 W / 1700 W

Source: LED

Optics:

Optic Type: Motorized zoom system

Optic Size / Diameter: 225mm

Optic Efficiency: 0.68

Beam Aperture: 3.5° to 53°

Zoom Elements / Range: 13 Elements / 15:1

Light Source:

Architecture: White Light Engine

Power Source / Number: 1000 Watt / 1

Light Engine Output (lm): 75,000 lm (56,000 lm)

Colour Temperature (LED / Fixture): 8,200 K / 6,700 K

Colour Rendering Index: >70

Luminaire Light Output (lm), (Sphere): 51,000 lm

Rated Life (hours): L70 40,000 h

Movement:

Rotation Type / Range: Pan 540° - Tilt 280°

Colours:

Colour Mixing: CMY + CTO, CTB,CTP

Colour Depth: 16.7 million

Gobos/Effects:

Fixed Gobos (number/wheel): No

Rotating Gobos (number/wheel): 14 Gobos / 2 Wheel

Gobo type / Size (mm) / Image (mm): HD Glass / 30 / 25

4 blades Framing System: 4 focal planes / Integral (+/- 45˚)

Frost filter: 2 Frost / Soft & Hard Edge

Iris Diaphragm: Yes- 15% to 100%

Dimmer: Electronic

Dynamic LED FX: No

Strobe: Electronic (1-25 fps)

Software Features:

Information Menu: Yes

Back-lit LCD Display Functions: Yes

Menu Buttons For Setting Functions: 5 menu buttons

Integrated Wireless Receiver: LumenRadio CRMX TiMo

Input/Output Data Connector: IP65 XLR 5

Input/Output Ethernet Connector: IP65 RJ45

Input/Output Power Connector: IP65 powerCON TRUE1 in

Control:

Data Protocol: DMX 512 - RDM

Ethernet Protocol: ArtNet - sACN

Channel Control: 44 to 70

Electronic Power Supply:

Range: 100 to 240 Volts

Frequency Range: 50-60Hz

Power Consumption Maximum: 1700 W

Cooling System:

Type: Forced ventilation

System: Heatpipe technology

Temperature Protection: Yes

Housing:

Body Material: Aluminium and Steel metal plates

Cover Material: Die-Cast Aluminum

Front Window: No

Protection Rating: IP65

Exterior Finish: Black

Installation:

Operating Positions: Any

Suspension System: 2 Omega brackets

Safety Cable Attachement Point: Yes

Operating Parameters:

Permitted Ambient Temperature: -20 to 45°C

Maximum Ambient Humidity: 1

Dimensions & Weight:

Dimensions (mm): 490 x 884 x 330

Flight-case Foam Dimensions (mm): 765 x 665 x 555

Weight (Kg): 60

Others:

dBA Rating (1m): 0

Warranty in years (Fixture / Source): 44594

Variable PWM Control: Yes

SIP included: Yes
